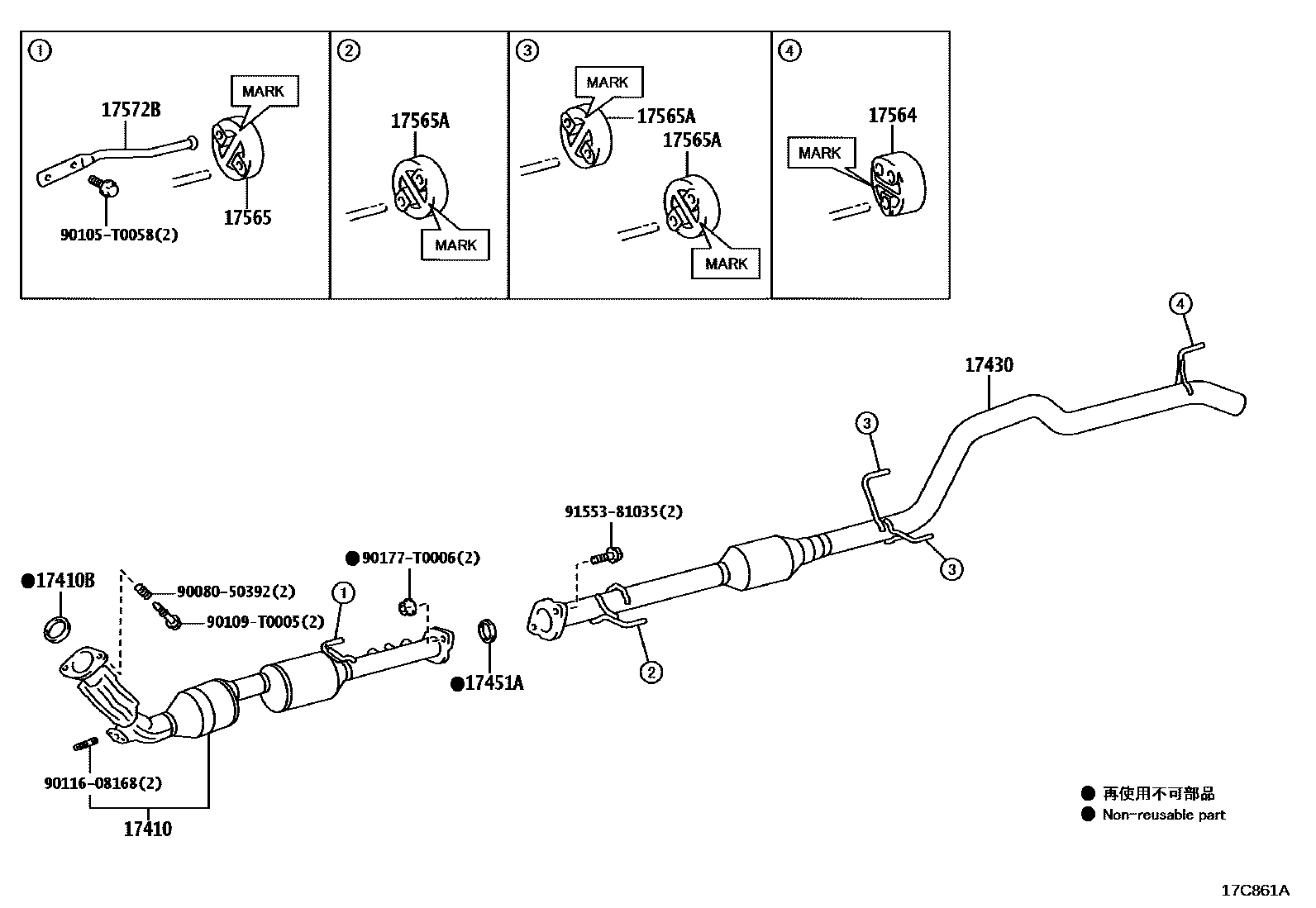

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
IRAN SPEC
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SYRIA SPEC
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
main17401-0L180i1GDFTV..GUN126..MHV..LA;2GDFTV..GUN125..RHD..6F..S..GEN;1GDFTV..GUN126..RHD..6FC..DCRL..GEN;1GDFTV..GUN126..LHD..THP..6FC..H..GEN202308-202412
TYPE A:REFER ILLUST.
main17401-0L180i1GDFTV..GUN126..MHV..LA;2GDFTV..GUN125..RHD..6F..S..GEN;1GDFTV..GUN126..RHD..6FC..DCRL..GEN;1GDFTV..GUN126..LHD..THP..6FC..H..GEN202308-202407
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFERILLUST.
main17401-0L180i1GDFTV..GUN126..MHV..LA;2GDFTV..GUN125..RHD..6F..S..GEN;1GDFTV..GUN126..RHD..6FC..DCRL..GEN;1GDFTV..GUN126..LHD..THP..6FC..H..GEN202308-202407
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
main17401-0L180i1GDFTV..GUN126..MHV..LA;2GDFTV..GUN125..RHD..6F..S..GEN;1GDFTV..GUN126..RHD..6FC..DCRL..GEN;1GDFTV..GUN126..LHD..THP..6FC..H..GEN202308-202407
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFERILLUST.
main17401-0L180i1GDFTV..GUN126..MHV..LA;2GDFTV..GUN125..RHD..6F..S..GEN;1GDFTV..GUN126..RHD..6FC..DCRL..GEN;1GDFTV..GUN126..LHD..THP..6FC..H..GEN202308-202407
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
main17401-0L180i1GDFTV..GUN126..MHV..LA;2GDFTV..GUN125..RHD..6F..S..GEN;1GDFTV..GUN126..RHD..6FC..DCRL..GEN;1GDFTV..GUN126..LHD..THP..6FC..H..GEN202308-202407
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
main17401-0L180i1GDFTV..GUN126..MHV..LA;2GDFTV..GUN125..RHD..6F..S..GEN;1GDFTV..GUN126..RHD..6FC..DCRL..GEN;1GDFTV..GUN126..LHD..THP..6FC..H..GEN202308-202407
CAMBODIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
main17401-0L182i2GDFTV..GUN125,135..AGTP..LA;1GDFTV..GUN126..AGTP..(H,L)..LA;1GDFTV..GUN126..AGTP..6F..S..LA202311-202410
TYPE A:REFER ILLUST.
main17401-0L190i2GDFTV..GUN125,135..VN;1GDFTV..GUN126..GCC,VN;1GDFTV..GUN126..MHV..LA;2GDFTV..GUN125..6FC..L..GEN202308-202410
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
*114=*102
*114=*102,EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
*114=*102,BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
main17430-0C130i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202308-202410
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
main17430-0L060i2GDFTV..GUN125,135..VN;1GDFTV..GUN126..GCC,VN;1GDFTV..GUN126..MHV..LA;2GDFTV..GUN125..6FC..L..GEN202308-202410
EXHAUST EMISSION CONTROL-WITHOUT
main17430-0L070i2GDFTV..GUN125..(H,S)..GEN;2GDFTV..GUN125..6F..L..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,PH,TH);1GDFTV..GUN126..THP..DCRL..(GEN,LA,PH,TH);1GDFTV,2GDFTV..GUN120,121,12202308-202407
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main17430-0L070i2GDFTV..GUN125..(H,S)..GEN;2GDFTV..GUN125..6F..L..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,PH,TH);1GDFTV..GUN126..THP..DCRL..(GEN,LA,PH,TH);1GDFTV,2GDFTV..GUN120,121,12202308-202407
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main17430-0L070i2GDFTV..GUN125..(H,S)..GEN;2GDFTV..GUN125..6F..L..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,PH,TH);1GDFTV..GUN126..THP..DCRL..(GEN,LA,PH,TH);1GDFTV,2GDFTV..GUN120,121,12202308-202407
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
BHUTAN SPEC
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17564SUPPORT,EXHAUST PIPE, NO.4
main17565-0L100i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN12#,13#,TGN12#,136..THP..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,LA,PH,TH,TWN,VN)202308-202412
MARK:17565-0L100
MARK:17565-0L120
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
MARK:17565-0L080
MARK:17565-0L090
main17565-0L090i2TRFE..TGN126,136..AGTP;1GDFTV..GUN136..AGTP..LA;1GDFTV..GUN126..AGTP..6FC..S..LA202311-202410
EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L090
main17565-0L090i2TRFE..TGN126,136..AGTP;1GDFTV..GUN136..AGTP..LA;1GDFTV..GUN126..AGTP..6FC..S..LA202311-202410
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK:17565-0L090
EXHAUST EMISSION CONTROL-WITHOUT
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
main17565-0P240i1GDFTV..GUN126..S..GEN;2GDFTV..GUN125..RHD..(H,S)..GEN;1GDFTV..GUN126..LHD..6F..H..GEN;1GDFTV..GUN126..THP..6FC..S..LA;2GDFTV,2TRFE..GUN122,135,TGN136..GEN;1TRFE,2T202308-202407
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
main17565-0P240i1GDFTV..GUN126..S..GEN;2GDFTV..GUN125..RHD..(H,S)..GEN;1GDFTV..GUN126..LHD..6F..H..GEN;1GDFTV..GUN126..THP..6FC..S..LA;2GDFTV,2TRFE..GUN122,135,TGN136..GEN;1TRFE,2T202308-202409
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main17565-0P240i1GDFTV..GUN126..S..GEN;2GDFTV..GUN125..RHD..(H,S)..GEN;1GDFTV..GUN126..LHD..6F..H..GEN;1GDFTV..GUN126..THP..6FC..S..LA;2GDFTV,2TRFE..GUN122,135,TGN136..GEN;1TRFE,2T202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
NO MARK
main17565-0P240i2TRFE..TGN126..SAP;1GDFTV,2GDFTV,5LE,2TRFE..GUN122,125,126,13#,LAN125,TGN121,136..SA202308-202412
EXHAUST EMISSION CONTROL-WITHOUT,NO MARK
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),NO MARK
17565ASUPPORT, EXHAUST PIPE, NO.4
MARK:17565-0L080
MARK:17565-0L090
NO MARK
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
main17572-0L030i2GDFTV..GUN122..S..GEN;2GDFTV..GUN125..RHD..S..GEN;1GDFTV..GUN126..RHD..6FC..DCRL..GEN;2GDFTV..GUN125..LHD..THP..L..(GEN,LA);1GDFTV..GUN126..LHD..(MMRP,THP)..6FC..H202308-202407
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
main17572-0L030i2GDFTV..GUN122..S..GEN;2GDFTV..GUN125..RHD..S..GEN;1GDFTV..GUN126..RHD..6FC..DCRL..GEN;2GDFTV..GUN125..LHD..THP..L..(GEN,LA);1GDFTV..GUN126..LHD..(MMRP,THP)..6FC..H202308-202409
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main17572-0L030i2GDFTV..GUN122..S..GEN;2GDFTV..GUN125..RHD..S..GEN;1GDFTV..GUN126..RHD..6FC..DCRL..GEN;2GDFTV..GUN125..LHD..THP..L..(GEN,LA);1GDFTV..GUN126..LHD..(MMRP,THP)..6FC..H202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main17572-0L030i2GDFTV..GUN125..H..GEN;1GDFTV..GUN136..AGTP..LA;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..6FC..S..GEN;1GDFTV..GUN126..RHD..6FC..H..DCRL..GEN202308-202410
EXHAUST EMISSION CONTROL-WITHOUT
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035
16 parts on this diagram · 6 diagrams in section
