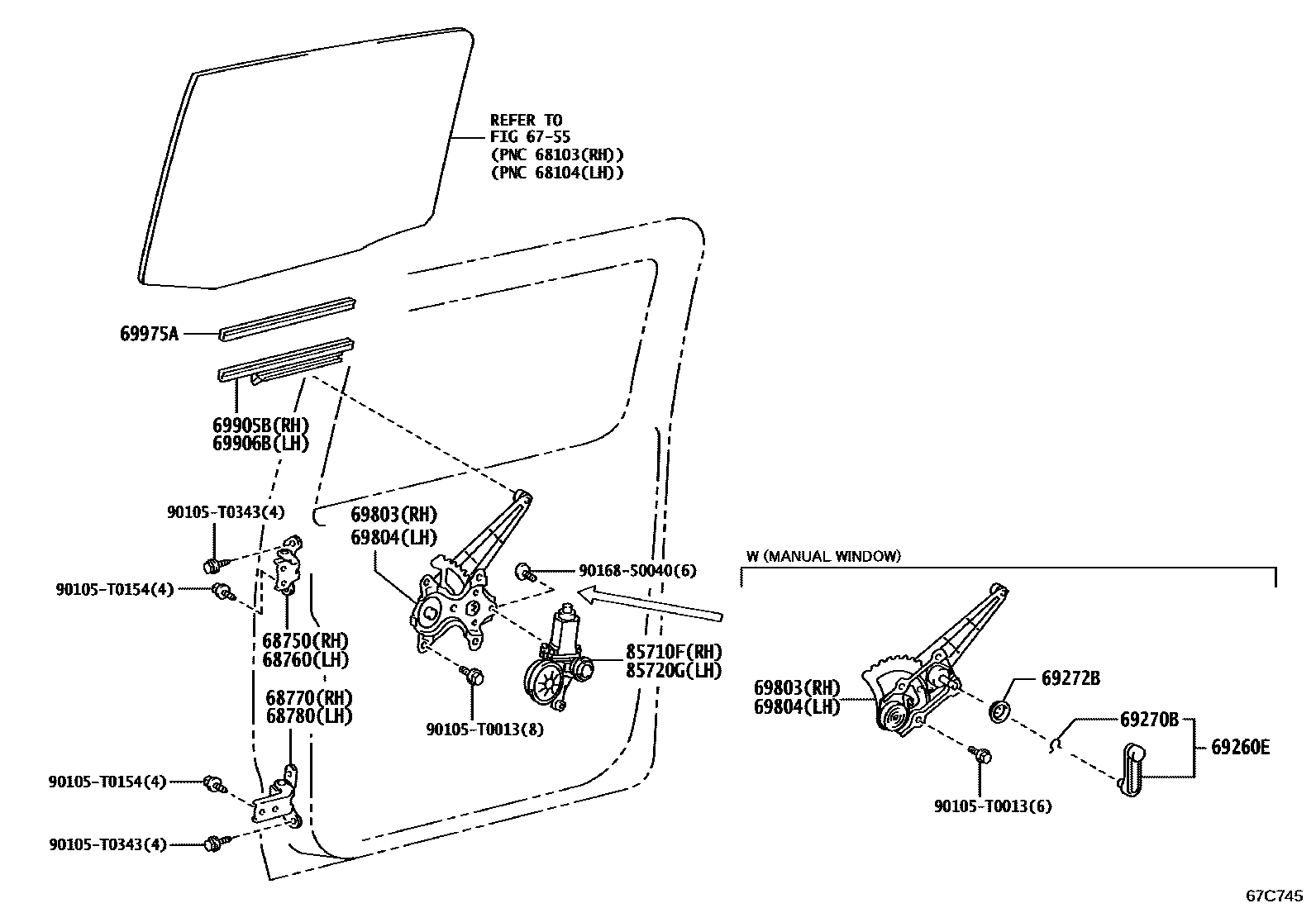

REAR DOOR WINDOW REGULATOR & HINGE
6755
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
BLACK,TRIM2#,3#
main69260-0K010-C0iGUN125..THP..L..(IDN,LA,PH);GUN122,126,135..LHD..THP..L..(GEN,LA,PH)202208-202307
BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
main90520-01274iTGN126..L..GCC;GUN125,TGN121..THP..MTM..L..(GCC,IDN,LA,PH);GUN122,126,135..LHD..THP..L..(GCC,GEN,LA,PH)202208-202307
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69803-0K130iGUN125,135..BZAG;GUN125,135..AGTP..S..LA;GGN125,GUN126,136,TGN126,136..AGTP202211-202310
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69804-0K130iGUN125,135..BZAG;GUN125,135..AGTP..S..LA;GGN125,GUN126,136,TGN126,136..AGTP202211-202310
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69804-0K160iGUN122..L..TH;TGN126..THP..LA;GUN135..PH,TH,VN;GUN135..THP..S..LA;TGN126..(H,S)..GCC;GUN125..THP..6F..(H,S)..(GCC,IDN,LA,TH,VN);GUN122,126,136,TGN121..THP..(H,S)..(202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85720-0D580iGUN122..L..TH;TGN126..(H,S)..GCC;TGN126..THP..(L,S)..LA;GUN135..(L,S)..(PH,TH,VN);GUN126,135..THP..(H,S)..(GCC,LA);GUN122,136,TGN121..THP..(H,S)..(GCC,LA,TH);GUN125202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85720-0K290iGUN125,135..BZAG;GUN126..AGTP..H..LA;GUN125,13#..AGTP..(H,S)..LA;GUN126,TGN126,136..AGTP..(L,S)202211-202310
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85710-0D580iGUN122..L..TH;TGN126..(H,S)..GCC;TGN126..THP..(L,S)..LA;GUN135..(L,S)..(PH,TH,VN);GUN126,135..THP..(H,S)..(GCC,LA);GUN122,136,TGN121..THP..(H,S)..(GCC,LA,TH);GUN125202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
90105T0013
main90105-T0013
90105T0154
main90105-T0154
90105T0343
main90105-T0343
9016850040
main90168-50040
19 parts on this diagram · 1 diagram in section
