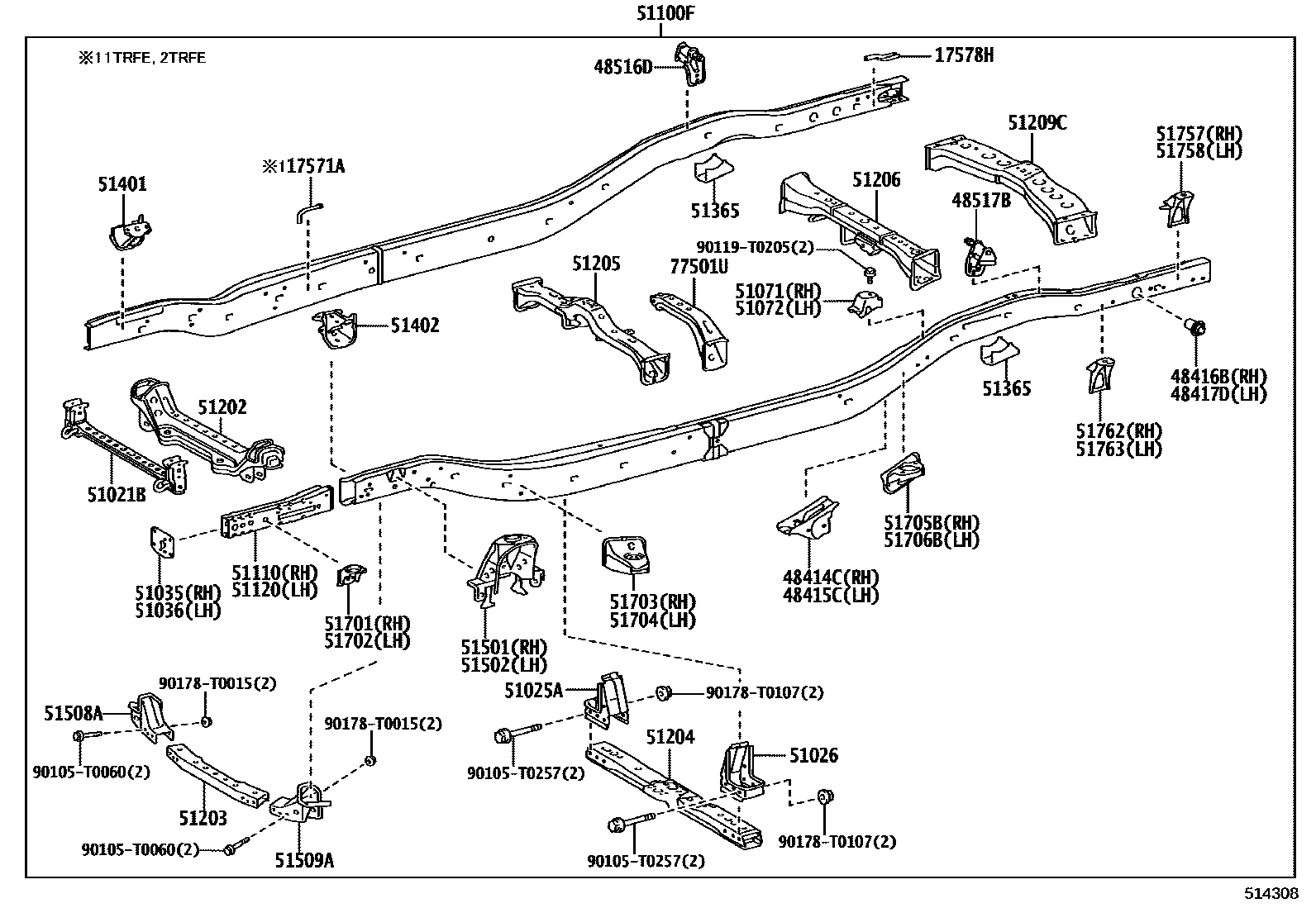

FRAME

0001 1 0002 1 0003 1PROPELLER SHAFT GUARD 0004 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i1GRFE..GGN125..GCC202208-202401

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L020i1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

48414CBRACKET, SPRING, NO.3 RH

main48404-KK030iGUN122,TGN121..SA202208-202401

main48404-KK040iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202403

48415CBRACKET, SPRING, NO.3 LH

main48407-KK030iGUN122,TGN121..SA202208-202401

main48407-KK040iGUN126..PKN202208-202403

48416BBRACKET, SPRING, NO.4 RH

main48405-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

48417DBRACKET, SPRING, NO.4 LH

main48405-KK010iGUN125,126..SA202208-202403

48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

main48505-KK010iGUN126..PKN202208-202403

48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

main48506-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-KK010iGUN125,126..GHA,KEN202208-202403

main51021-KK020iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main51021-KK030iGUN120,121,122,TGN121..GEN,PH,TH202302-202307

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-KK010iGUN126..PKN202208-202403

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-KK010iGUN126..PKN202208-202403

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51072-KK010iGUN126..MMR202208-202403

51100FFRAME SUB-ASSY

main51001-KK242iTGN121..6FC202208-202301

sub51001-KK243

sub51001-KK244

main51001-KK243iTGN121..6FC202302-202307

sub51001-KK244

main51001-KK252iTGN120,121..5F202208-202301

sub51001-KK253

sub51001-KK254

main51001-KK253iTGN120,121..5F..(ARL,GCC)202302-202307

sub51001-KK254

main51001-KK282iGUN120,121,122..5F,6FC202208-202301

sub51001-KK283

sub51001-KK284

main51001-KK283iGUN122..GCC202302-202307

sub51001-KK284

main51001-KK352iTGN126..L..GEN;TGN126..THP..(GCC,LA)202208-202301

sub51001-KK353

sub51001-KK354

main51001-KK353iTGN126..L..GEN;TGN126..THP..(GCC,LA)202302-202307

sub51001-KK355

main51001-KK362iGGN125..GCC202208-202301

sub51001-KK363

sub51001-KK364

main51001-KK363iGGN125..GCC202302-202307

sub51001-KK365

main51001-KK372iGUN125,126..SA202301-202403

sub51001-KKJ90

main51001-KK382iLAN125202301-202401

main51001-KK453iTGN136..GEN202208-202301

sub51001-KK454

sub51001-KK455

main51001-KK454iTGN136..GEN202302-202307

main51001-KK472iGUN13#..6F..SA202301-202401

sub51001-KKK10

main51001-KK483iGUN13#..THP..6FC202208-202301

sub51001-KK484

sub51001-KK485

main51001-KK484iGUN13#..THP..6FC202302-202307

sub51001-KK486

main51001-KK682iTGN126..SA202208-202401

sub51001-KKJ80

main51001-KK682iTGN126..(H,S)..GEN202208-202302

ASIA COLD COUNTRY SPEC

sub51001-KKJ80

main51001-KK692iGGN125..SA202301-202401

main51001-KK702iGUN125,126..INDP,MAP,THP202208-202301

sub51001-KK703

main51001-KK703iGUN125,126..INDP,MAP,MMRP,THP202302-202307

sub51001-KKL00

main51001-KK732iTGN136..SA202301-202401

main51001-KK742iGUN13#..THP..6F202208-202301

sub51001-KK743

sub51001-KK744

main51001-KK743iGUN13#..THP..6F202302-202307

sub51001-KK744

main51001-KK752iGUN13#..6FC..SA202301-202401

main51001-KK781iTGN121..SA202301-202401

main51001-KK791iGUN122..SA202301-202401

main51001-KKA33iTGN126..AGTP202211-202310

main51001-KKA43iGUN125,126..AGTP202211-202310

main51001-KKA83iTGN136..AGTP202211-202310

main51001-KKA93iGUN13#..AGTP..6F202211-202310

main51001-KKB03iGUN13#..6FC..BZAG202211-202310

main51001-KKC03iGGN125..LA202211-202310

main51001-KKC31iGUN122..TH202208-202301

sub51001-KKC32

sub51001-KKC33

main51001-KKC32iGUN122..TH202302-202307

sub51001-KKC33

main51001-KKJ60iTGN121..GEN202302-202307

main51001-KKJ70iGUN120,121,122..(5F,6FC)..(GEN,PH,TH)202302-202307

sub51001-KKJ71

main51001-KKJ80iTGN126..(H,S)..GEN202302-202307

ASIA COLD COUNTRY SPEC

sub51001-KKJ82

main51001-KKL00iGUN125,126..MA202307-202309

51110EXTENSION ASSY, SIDE RAIL, RH

main5103A-KK010iGUN125,126..SA202211-202403

main5103A-KK020iGUN122,TGN121..SA202301-202401

main51110-KK906iGUN120,121,122,TGN120,121..THP202208-202307

main51110-KK907iGUN125,126..IND,MA,MMR,PKN202208-202401

51120EXTENSION ASSY, SIDE RAIL, LH

main5103B-KK010iGUN125,126..SA202211-202403

main5103B-KK020iGUN122,TGN121..SA202301-202401

main51122-KK906iGUN120,121,122,TGN120,121..THP202208-202307

main51122-KK907iGUN125,126..IND,MA,MMR,PKN202208-202401

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-KK010iGUN122,TGN121..SA202208-202401

main51201-KK050iGUN126..MMR202208-202403

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0K010iGUN120,121,122,TGN120,121..THP202208-202401

main51202-KK010iGUN126..MMR202208-202403

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-KK010iGUN122,13#..(5F,6FC)..SA202301-202401

sub51203-KK100

main51203-KK020iTGN121,136..SA202301-202401

sub51203-KK110

sub51203-KK230

main51203-KK030iGUN122,13#..THP..6F202208-202401

main51203-KK040iGUN125,126..SA202208-202403

sub51203-KK250

main51203-KK050iGGN125,LAN125,TGN126..SA202208-202401

sub51203-KK260

main51203-KK130iTGN136..AGTP202208-202310

sub51203-KK230

main51203-KK140iGUN13#..AGTP..6F202211-202310

main51203-KK150iGUN125,126..AGTP202211-202310

main51203-KK190iTGN121..6FC;GUN120,121,122,13#..THP..(5F,6FC)202208-202310

sub51203-KK210

main51203-KK200iGGN125,TGN126..AGTP202211-202310

main51203-KK250iGUN126..MMR202307-202309

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-KK030iGGN125,GUN125,126,TGN126..AGTP202208-202403

main51204-KK040iGUN122,TGN121..SA202208-202401

main51204-KK050iGUN13#,TGN136..AGTP202208-202401

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-KK040iGGN125,GUN122,13#,LAN125,TGN121,126,136..SA202208-202403

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51365STOPPER, REAR BUMPER

main57081-KK010iGUN122,TGN121..SA202208-202401

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-KK010iLAN125202301-202401

main51401-KK020iTGN12#,136..THP202208-202401

main51401-KK030iGGN125..GCC202208-202401

main51401-KK040iGUN126..PKN202208-202403

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-KK010iLAN125202301-202401

main51402-KK020iTGN126,136..AGTP202208-202401

main51402-KK030iGGN125..LA202208-202401

main51402-KK040iGUN126..PKN202208-202403

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-KK010iGUN120,121,122,TGN120,121..THP202208-202401

main51501-KK020iGUN126..MMR202208-202403

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-KK010iGUN120,121,122,TGN120,121..THP202208-202401

main51502-KK020iGUN126..PKN202208-202403

51508ABRACKET SUB-ASSY, LOWER ARM, RH

main51508-KK020iGUN120,121,122,TGN120,121..THP202208-202401

51509ABRACKET SUB-ASSY, LOWER ARM, LH

main51509-KK020iGUN120,121,122,TGN120,121..THP202208-202401

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-KK010iGUN125,126..SA202208-202403

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-KK020iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51706-KK020iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51757BRACKET, BODY SUPPORT, NO.4 RH

main51077-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51758BRACKET, BODY SUPPORT, NO.4 LH

main51078-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51762BRACKET, BODY SUPPORT, NO.5 RH

main51075-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

51763BRACKET, BODY SUPPORT, NO.5 LH

main51076-KK010iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-0K020iGGN125,GUN12#,13#,TGN12#,136..INDP,MAP,THP202208-202403

90105T0060

main90105-T0060

90105T0257

main90105-T0257

90119T0205

main90119-T0205

90178T0015

main90178-T0015

90178T0107

main90178-T0107

47 parts on this diagram · 4 diagrams in section
