CLUTCH & RELEASE FORK

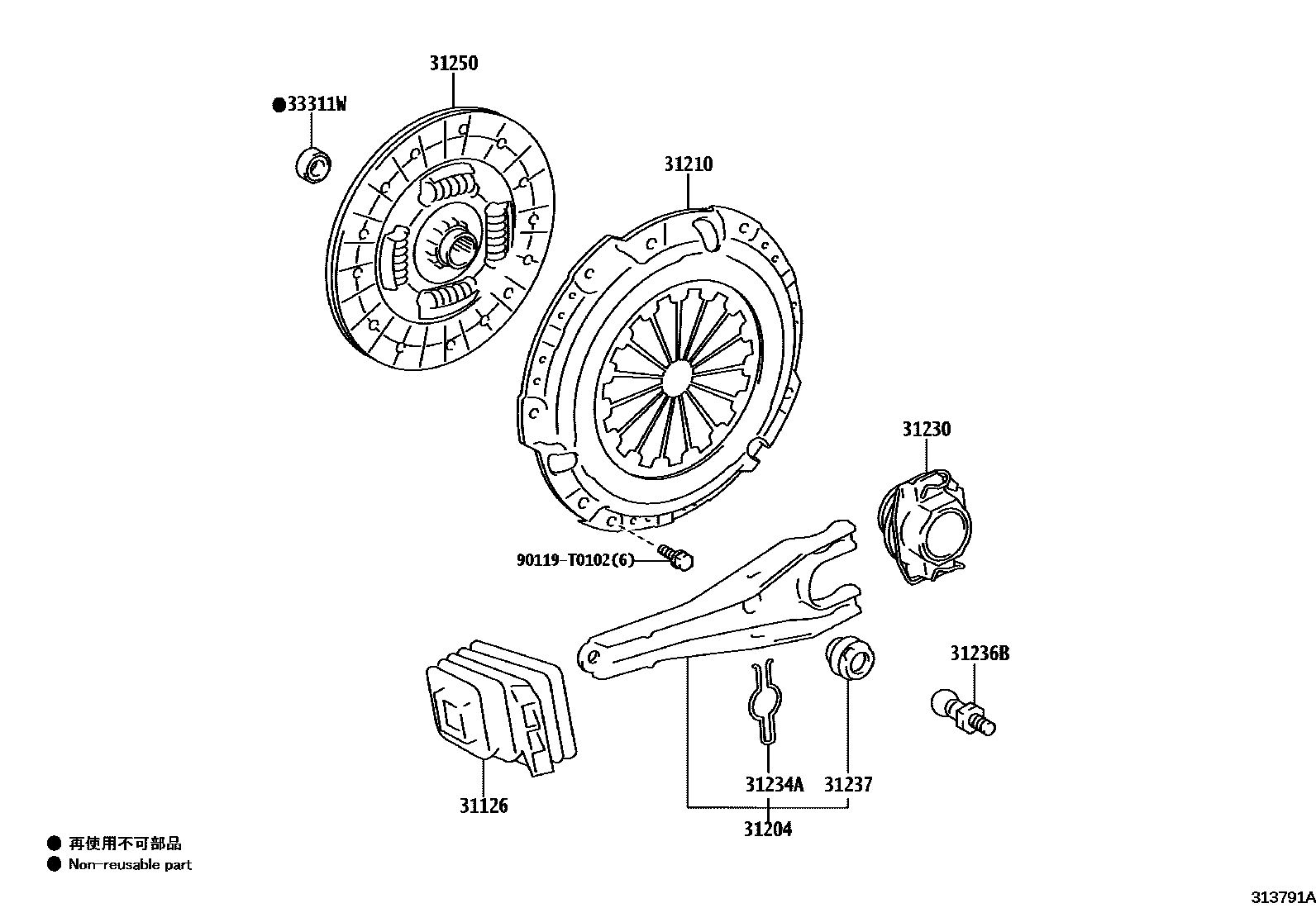

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-0K080i202208-202403
main31126-0K090i202208-202305
TYPE A:REFER 33-01
main31126-0K090i202302-202304
ASIA COLD COUNTRY SPEC,TYPE A:REFER 33-01
main31126-0K090i202208-202401
TYPE B:REFER 33-01
main31126-0K100i202208-202305
TYPE A:REFER 33-01
main31126-0K100i202208-202401
TYPE B:REFER 33-01
main31126-0K110i202301-202401
TYPE B:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-0K110i202208-202401
TYPE B:REFER 33-01
main31204-0K110i202208-202401
TYPE A:REFER 33-01
main31204-0K110i202208-202310
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01
main31204-0K110i202208-202403
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31204-0K120i202302-202304
ASIA COLD COUNTRY SPEC,TYPE A:REFER 33-01
main31204-0K120i202208-202303
TYPE A:REFER 33-01
main31204-0K190i202208-202305
TYPE A:REFER 33-01
main31204-0K190i202208-202401
TYPE B:REFER 33-01
31210COVER ASSY, CLUTCH
main31210-0K260i202208-202401
main31210-0K281i202208-202309
main31210-0K281i202211-202310
TYPE B:REFER ILLUST.
main31210-0K300i202208-202307
main31210-0K310i202208-202401
main31210-0K420i202301-202401
31230BEARING ASSY, CLUTCH RELEASE
main31230-0K040i202310-202401
TYPE B:REFER 33-01
main31230-0K050i202310-202401
TYPE B:REFER 33-01
main31230-0K050i202310-202401
TYPE A:REFER 33-01
main31230-0K050i202310-202403
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31230-71052i202208-202310
TYPE B:REFER 33-01
main31230-71052i202208-202310
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01
main31230-71052i202208-202310
TYPE A:REFER 33-01
main31230-71052i202208-202309
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31230-71061i202208-202303
TYPE A:REFER 33-01
main31230-71061i202301-202401
TYPE B:REFER 33-01
main31230-71080i202208-202305
TYPE A:REFER 33-01
main31230-71080i202208-202310
TYPE B:REFER 33-01
31234ASPRING, RELEASE FORK SUPPORT
main31234-71020i202208-202401
TYPE B:REFER 33-01
main31234-71020i202208-202305
TYPE A:REFER 33-01
31236BSUPPORT, RELEASE FORK
main31236-0K010i202208-202310
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01
main31236-0K010i202208-202401
TYPE B:REFER 33-01
main31236-0K010i202208-202401
TYPE A:REFER 33-01
main31236-0K010i202208-202403
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31236-0K020i202208-202303
TYPE A:REFER 33-01
main31236-0K030i202208-202401
TYPE B:REFER 33-01
main31236-0K030i202208-202305
TYPE A:REFER 33-01
main31236-0K060i202208-202401
TYPE B:REFER 33-01
main31236-0K060i202208-202305
TYPE A:REFER 33-01
31237BOOT, CLUTCH RELEASE FORK SUPPORT
main31237-0K020i202208-202401
TYPE B:REFER 33-01
main31237-0K020i202208-202305
TYPE A:REFER 33-01
31250DISC ASSY, CLUTCH
main31250-0K261i202208-202401
sub31250-0K262
main31250-0K281i202208-202309
main31250-0K281i202211-202310
TYPE B:REFER ILLUST.
main31250-0K301i202208-202307
sub31250-0K302
main31250-0K311i202208-202401
main31250-0K440i202301-202401
33311WBEARING (FOR INPUT SHAFT)
main90363-12024i202301-202401
main90363-T0006i202208-202403
main90363-T0019i202208-202401
90119T0102
main90119-T0102

10 parts on this diagram · 6 diagrams in section
