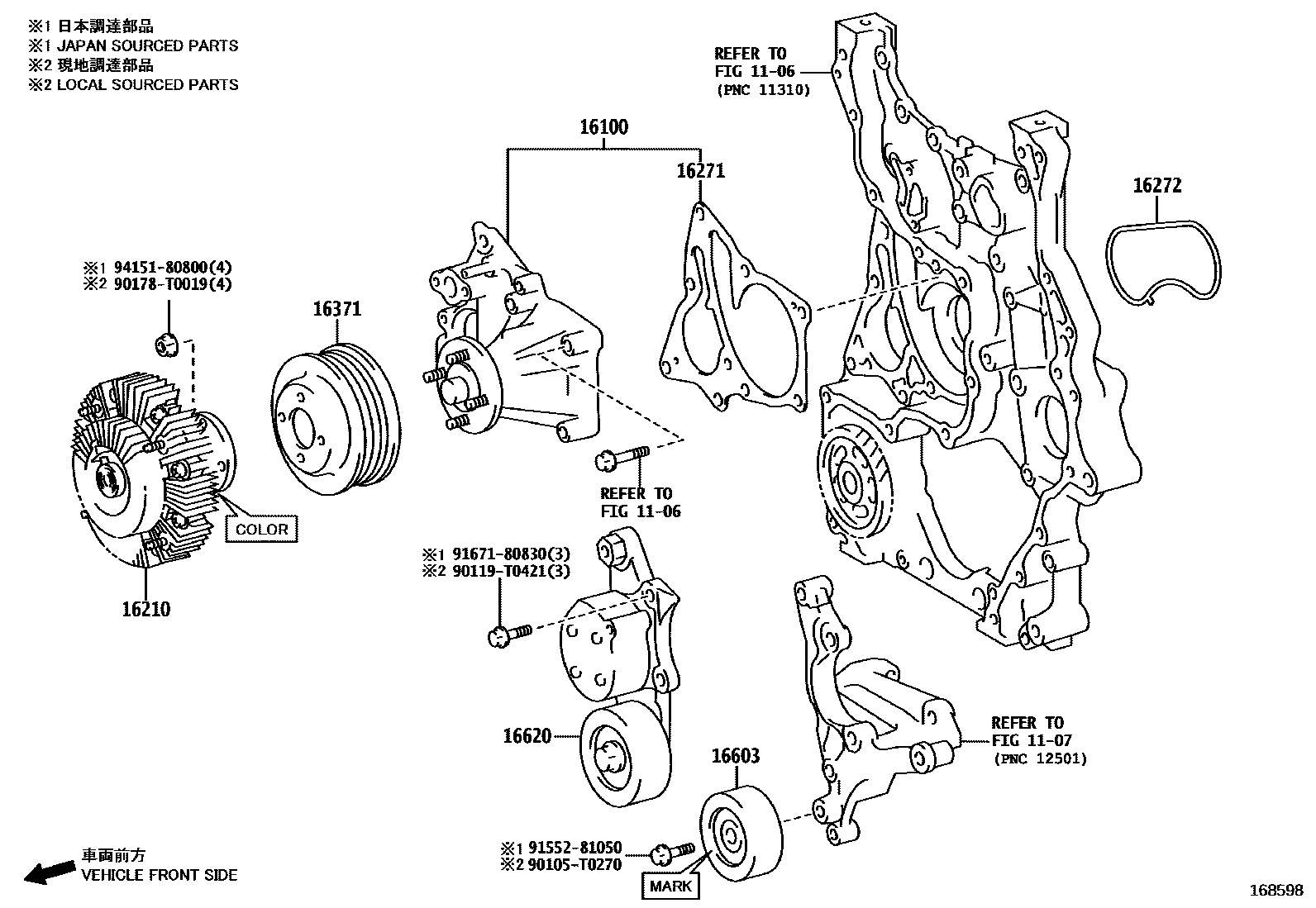

WATER PUMP
1106
1107
16100PUMP ASSY, ENGINE WATER
(L)
main16100-09711i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL,IND202208-202309
(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
16210COUPLING ASSY, FLUID
LIGHT GRAY
main16210-0E020i2GDFTV..GUN125..H..GCC;2GDFTV..GUN135..RHD..6F;2GDFTV..GUN125..RHD..6F..L..GEN;2GDFTV..GUN125..LHD..S..(GEN,LA);2GDFTV..GUN120,122..GCC,PH,SA,TH;2GDFTV..GUN135..6F.202208-202403
GREEN
main16210-0E040i1GDFTV..GUN136..6F..(BZAG,SA);1GDFTV..GUN126..6F..(H,S)..BZAG;1GDFTV..GUN121,136..6FC..(BZAG,TH);1GDFTV..GUN126..RHD..6F..H..(GEN,SA);1GDFTV..GUN126..6F..(GCC,IND,K202208
YELLOW
main16210-0E050i1GDFTV..GUN126..6FC..S;1GDFTV..GUN136..ARL,LA;1GDFTV..GUN126..L..BZAG;1GDFTV..GUN126..LHD..6F..H..GEN;1GDFTV..GUN126..6F..S..(ARL,GEN,SA);1GDFTV..GUN126,136..6FC..H202208
MOSS GREEN
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),LIGHT BLUE
LIGHT BLUE
16271GASKET, WATER PUMP
THA SOURCED PARTS
main16271-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL,IND202208-202309
IND SOURCED PARTS
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
16272GASKET, WATER PUMP, NO.2
THA SOURCED PARTS
main16272-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL,IND202208-202309
IND SOURCED PARTS
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
16371PULLEY, FAN
(L)
THA SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
main16371-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL,IND202208-202309
IND SOURCED PARTS
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
(J)
16603PULLEY SUB-ASSY, IDLER, NO.1
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),THA, NOPAINTED
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED
ASIA COLD COUNTRY SPEC,THA, NO PAINTED
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED
OCEANIA(EURO 5),THA, NO PAINTED
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED
THA, NO PAINTED
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA, BLACK PAINTED
IRAQ SPEC,THA, BLACK PAINTED
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
SYRIA SPEC,THA, BLACK PAINTED
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA, BLACK PAINTED
GCC SPEC EURO4 2022MY,THA, BLACK PAINTED
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA, BLACK PAINTED
EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA, BLACK PAINTED
(L)
THA, BLACK PAINTED
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED
CENTRAL AND SOUTH AMERICA SPEC,THA, BLACK PAINTED
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCEDPARTS
JAPAN SOURCED PARTS
main16603-31040i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN125..6F..L..(GCC,PH);2GDFTV..GUN135..THP..(LA,PH,TH);2GDFTV..GUN120,125..THP..6FC..(GCC,LA,TH);2GDFTV..GUN125..THP..6F..(H,S)202208-202307
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main16603-31040i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN125..6F..L..(GCC,PH);2GDFTV..GUN135..THP..(LA,PH,TH);2GDFTV..GUN120,125..THP..6FC..(GCC,LA,TH);2GDFTV..GUN125..THP..6F..(H,S)202208-202307
OCEANIA(EURO 5),JAPAN SOURCED PARTS
(J)
JAPAN SOURCED PARTS
16620TENSIONER ASSY, V-RIBBED BELT
(L)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
ASIA COLD COUNTRY SPEC,(L)
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
OCEANIA(EURO 5),(L)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),(L)
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
CENTRAL AND SOUTH AMERICA SPEC,WATER PROOF SPEC
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
IRAQ SPEC,WATER PROOF SPEC
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
SYRIA SPEC,WATER PROOF SPEC
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),WATER PROOF SPEC
GCC SPEC EURO4 2022MY,WATER PROOF SPEC
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),WATER PROOF SPEC
WATER PROOF SPEC
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
OCEANIA(EURO 5),(J)
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(J)
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
main91552-81050
9167180830
main91671-80830
9415180800
main94151-80800
15 parts on this diagram · 4 diagrams in section
