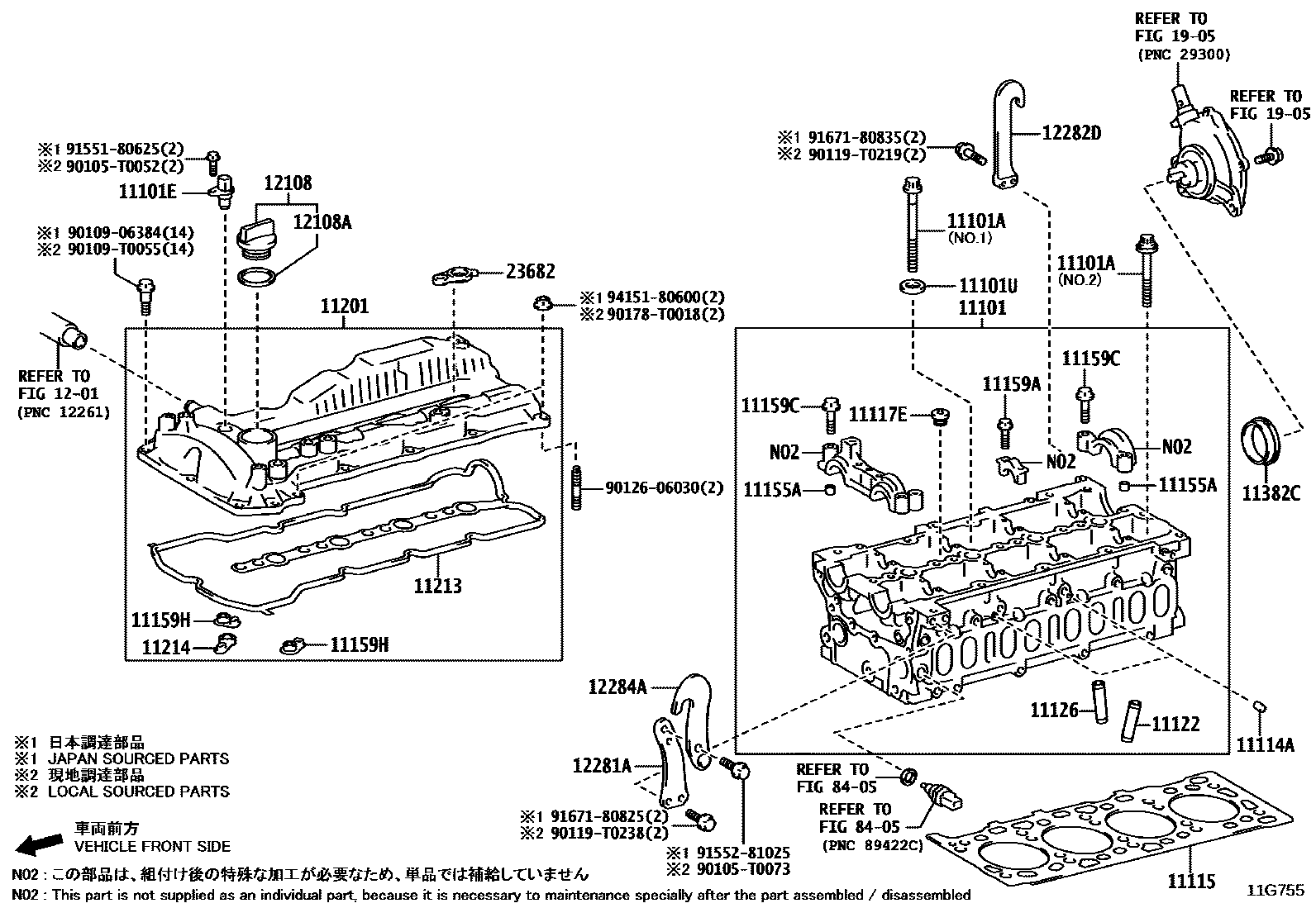

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
TYPE A:REFER 13-02
main11101-0C110i2TRFE..TGN126..L..SA;2TRFE..TGN121,136..SA;2TRFE..TGN126..(AGTP,SAP)..S202208-202310
TYPE A:REFER 13-02
TYPE B:REFER 13-02
THA SOURCED PARTS
JAPAN SOURCED PARTS
NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER 13-02
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J),NO.2
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J),NO.1
(L),NO.1
(L),NO.2
11101ESENSOR, CAM POSITION
11101USPACER(FOR CYLINDER HEAD SET BOLT)
(J)
(L)
11114APIN, STRAIGHT
L=8,OD=5,MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
L=8,OD=5,(L)
11115GASKET, CYLINDER HEAD
(L)
(L)
MARK A,(L)
OCEANIA(EURO 5),MARK B,(L)
MARK C,(L)
OCEANIA(EURO 5),MARK D,(L)
OCEANIA(EURO 5),MARK E,(L)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK A,(J)
MARK B,(J)
MARK C,(J)
MARK D,(J)
MARK E,(J)
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK D,REFER REPAIR MANUAL
MARK E,REFER REPAIR MANUAL
MARK F,REFER REPAIR MANUAL
(J)
(J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J)
(L)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
STD
O/S 0.05
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
STD
O/S 0.05
STD
O/S 0.05
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.1
(J)
NO.2
(L)
(L)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
(J)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1,*651
main11159-0C020i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
NO.1,*652
(L)
(J)
NO.1,*657
NO.2,*651
main1115A-0C020i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
NO.2,*652
NO.2,*657
NO.3,*651
main1115B-0C020×3i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
NO.3,*652
NO.3,*657
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-0C050i2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA202208-202401
IDN SOURCED PARTS
main11201-0C060i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
THA SOURCED PARTS
(L)
(L)
(J)
11213GASKET, CYLINDER HEAD COVER
main11213-0C020i2TRFE..TGN121,126..LHD..5F;2TRFE..TGN126..6FC..(GEN,SA);1TRFE,2TRFE..TGN120,136..BZAG,GCC,LA,SA202208-202401
IDN SOURCED PARTS
main11213-0C030i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
THA SOURCED PARTS
(L)
(J)
JAPAN SOURCED PARTS
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
(J)
11382CRETAINER, CAMSHAFT OIL SEAL
(L)
(J)
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
(L)
(J)
12281AHANGER, ENGINE, NO.1
IDN SOURCED PARTS
main12281-0C030i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
THA SOURCED PARTS
THA SOURCED PARTS
OCEANIA(EURO 5),IND SOURCED PARTS
ARG SOURCED PARTS
JAPAN SOURCED PARTS
12282DHANGER, ENGINE, NO.2
IDN SOURCED PARTS
main12281-0C030i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
THA SOURCED PARTS
(L)
(J)
12284AHANGER, ENGINE, NO.1 UPPER
(L)
(J)
1905
23682GASKET, NOZZLE HOLDER
(L)
(J)
8405
90105T0052
main90105-T0052
90105T0073
main90105-T0073
9010906384
main90109-06384
90109T0055
main90109-T0055
90119T0219
main90119-T0219
90119T0238
main90119-T0238
9012606030
main90126-06030
90178T0018
main90178-T0018
9155180625
main91551-80625
9155281025
main91552-81025
9167180825
main91671-80825
9167180835
main91671-80835
9415180600
main94151-80600
39 parts on this diagram · 7 diagrams in section
