MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
main87810-06041iGUN135..S..PH;GUN135..THP..(ARL,GEN,LA,TH,VN);GUN126..THP..(ARL,GCC,GEN,LA,TH,TWN);GGN125,GUN120,121,122,125,136,TGN120,121,126,136..THP202108-202207
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
NO PAINT REQ.
main87910-0KC41iTGN126,136..THP..L..LA;GUN122,125,126,135..LHD..THP..MTM..L..(GEN,LA,PH)202108-202207
NO PAINT REQ.
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR- *RCM(BLACK) & W(*SITL) & W(LOGO LAMP)&BACK MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
main87910-0KE42iGUN136..6FC..H..ARL;GUN126,135..6FC..H..TH;GUN125,126..RHD..H..(ARL,GEN)..CBU202108-202207
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
main87910-0KM60iGUN136..6FC..H..ARL;GUN126,135..6FC..H..TH;GUN125,126..RHD..H..(ARL,GEN)..CBU202108-202207
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.,BLACK
PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL),*CR
main87915-0K440iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
NO PAINT REQ.,BLACK
main87915-0K450iGUN126..H..BZAG;GGN125,GUN136,TGN128,138..AGTP..H;GUN125,126,135,TGN126,136..AGTP..(H,S)..LA202111-202210
PLATED,OUTSIDE REAR VIEW MIRROR-*551(*CR),*CR
PLATED,BLACK
PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA),BLACK
PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
87917CSCREW, OUTER MIRROR
main87917-0KM00×4iGUN125,135..(H,S)..TH;GUN125,136..H..(ARL,GEN);GUN126..RHD..THP..H..CBU;GUN126..LHD..6FC..H..GEN;GUN126,135..THP..H..(GCC,LA,PH,VN)202108-202207
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
87931OUTER MIRROR, RH
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
main87931-0KF80iGUN126..AGTP..H..LA;GUN136..AGTP..6F..LA;GUN126,136..AGTP..(L,S);GUN125,135,TGN126,128,13#..AGTP202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
87939COVER, OUTER MIRROR HOLE, RH
main87939-0KM00iGUN125,135..(H,S)..TH;GUN125,136..H..(ARL,GEN);GUN126..RHD..THP..H..CBU;GUN126..LHD..6FC..H..GEN;GUN126,135..THP..H..(GCC,LA,PH,VN)202108-202207
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR- *RCM(BLACK) & W(*SITL) & W(LOGO LAMP)&BACK MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.,RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
main87940-0KC92iGUN136..6FC..H..ARL;GUN126,135..6FC..H..TH;GUN125,126..RHD..H..(ARL,GEN)..CBU202108-202207
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
main87940-0KM60iGUN136..6FC..H..ARL;GUN126,135..6FC..H..TH;GUN125,126..RHD..H..(ARL,GEN)..CBU202108-202207
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)&BACK MONITOR-WITH(*PVM)
87945COVER, OUTER MIRROR, LH
main87945-0K390iGUN125..VN;TGN126..5F..GEN;GUN125..LHD..L..GEN;GUN125..RHD..(L,S)..(ARL,GEN);GUN135..THP..L..(ARL,GEN,LA,VN);GUN125,TGN126..THP..L..(IDN,LA,PH);GUN122,126,TGN136..L202108-202207
NO PAINT REQ.,BLACK
PLATED,OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL),*CR
main87945-0K440iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
NO PAINT REQ.,BLACK
main87945-0K450iGUN126..H..BZAG;GGN125,GUN136,TGN128,138..AGTP..H;GUN125,126,135,TGN126,136..AGTP..(H,S)..LA202111-202210
PLATED,OUTSIDE REAR VIEW MIRROR-*551(*CR),*CR
PLATED,BLACK
PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA),BLACK
PAINT REQ.,MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
87948COVER, OUTER MIRROR HOLE, LH
main87948-0KM00iGUN125,135..(H,S)..TH;GUN125,136..H..(ARL,GEN);GUN126..RHD..THP..H..CBU;GUN126..LHD..6FC..H..GEN;GUN126,135..THP..H..(GCC,LA,PH,VN)202108-202207
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
87961MIRROR OUTER, LH
MLM ADVENTURE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA)
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
main87961-0KF40iGUN126..AGTP..H..LA;GUN136..AGTP..6F..LA;GUN126,136..AGTP..(L,S);GUN125,135,TGN126,128,13#..AGTP202111-202210
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)
RUGGED X PACKAGE&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
90163T0002
main90163-T0002

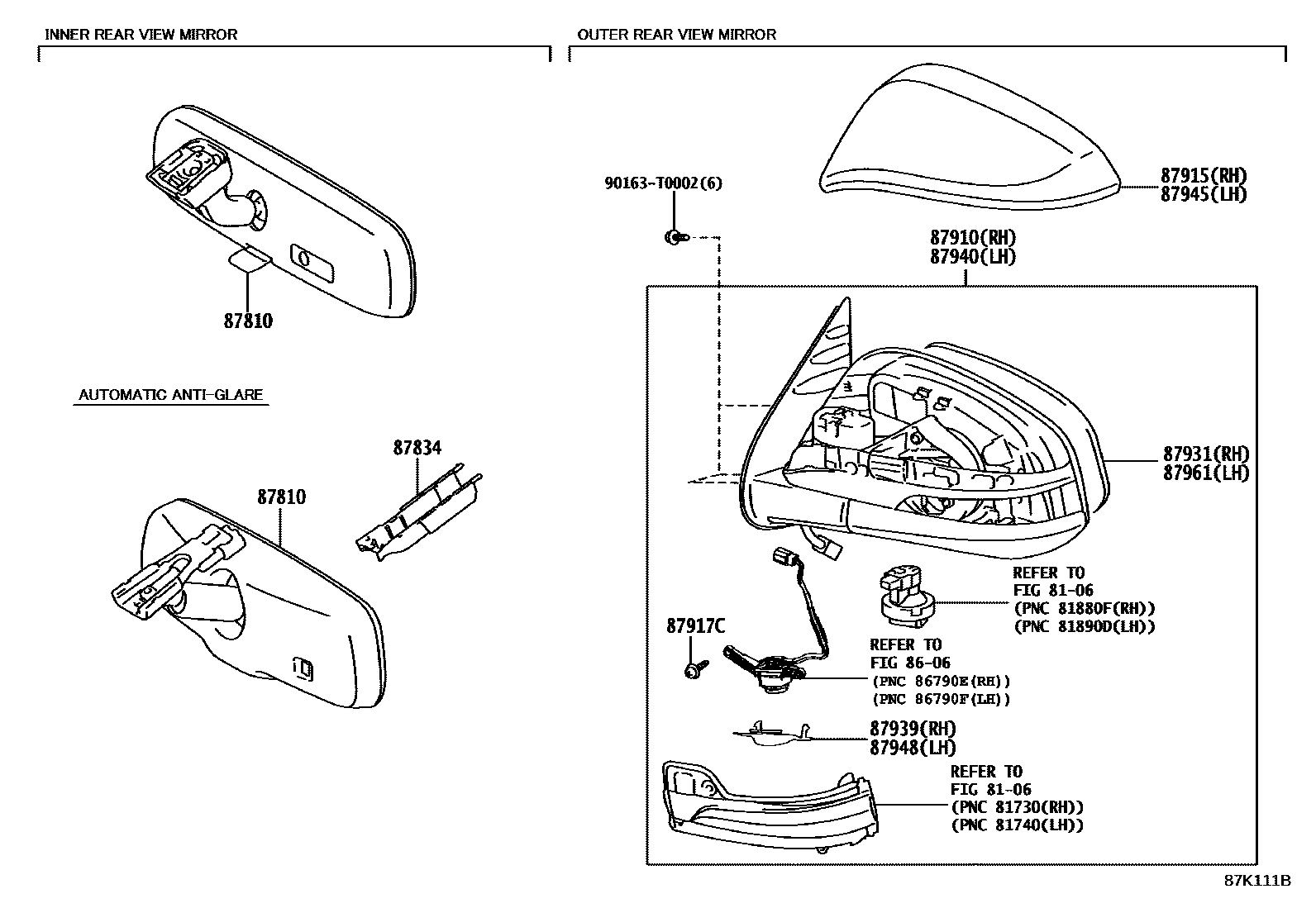

14 parts on this diagram · 1 diagram in section
