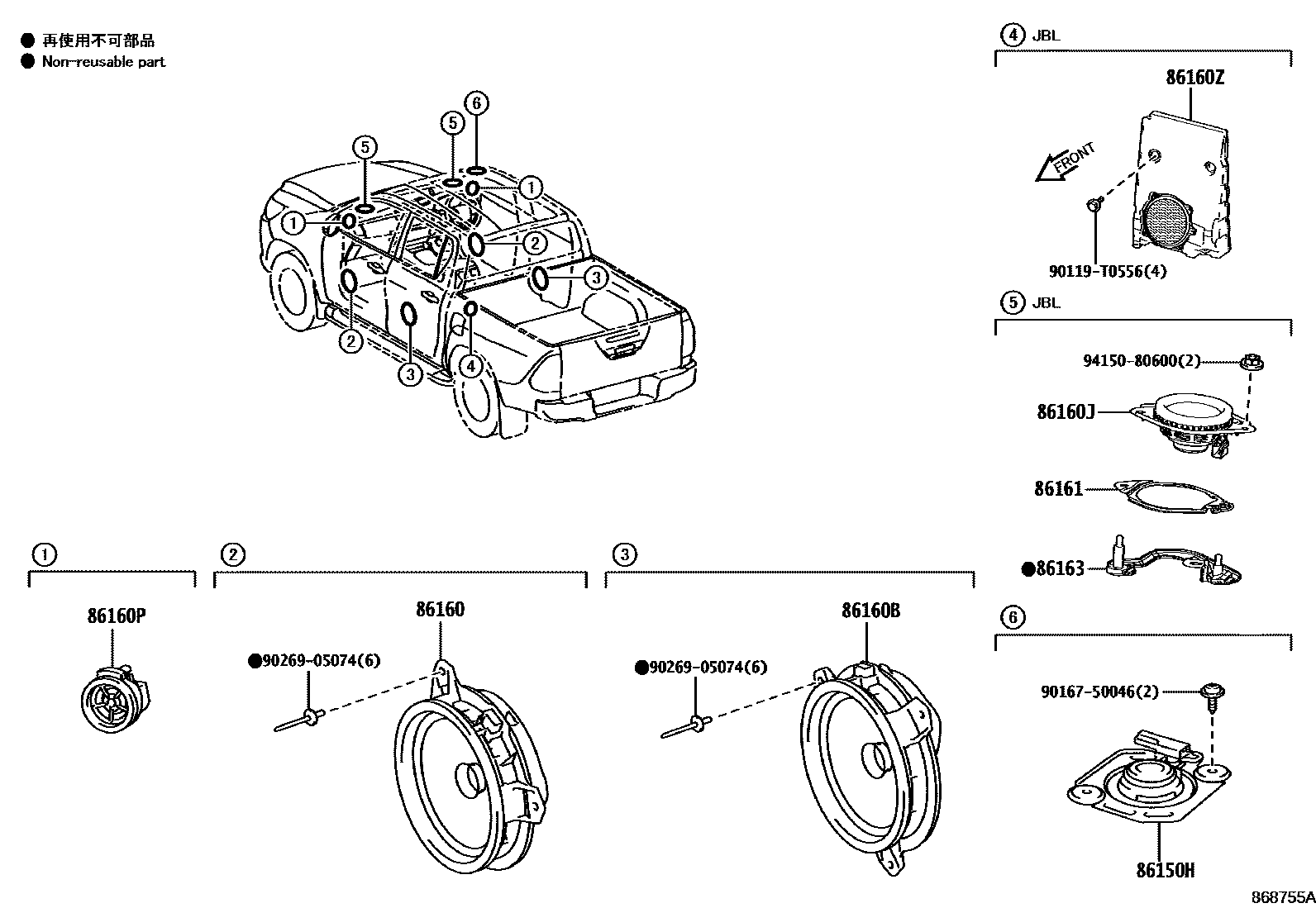

SPEAKER

86150HSPEAKER ASSY, W/BRACKET

main86150-0K390iTGN126..(H,S)..GEN202108-202207

86160SPEAKER ASSY, FRONT NO.1

main86160-0K500iGUN126..IND¥6,300202108-202303

main86160-0K520iGUN125,126..MA202110-202208

86160BSPEAKER ASSY, REAR

main86160-0K500iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥6,300202108-202303

main86160-0K500iGUN126,TGN136..THP;GUN125..THP..L..LA;TGN126..(H,S)..GCC;GUN125..RHD..L..GEN;GUN122,TGN121..L..GEN;GUN135,TGN126..THP..(GEN,LA,PH,TH,VN);GGN125,GUN120,121,122,125,1¥6,300202108-202207

SPEAKER-4SPEAKER

main86160-0K520iGUN125,126..(H,S)..MA202110-202208

86160JSPEAKER ASSY, FRONT NO.3

86160PSPEAKER ASSY, FRONT NO.2

main86150-0K160iGUN126..IND202203-202209

main86150-0K260iGUN135..S..VN;TGN121..5F..S;TGN126..H..GCC;GUN125,126..RHD..H..GEN;GUN125,126,TGN121..THP..H..(GCC,LA);GUN122,125,135..LHD..MTM..S..(GEN,PH)¥6,300202108-202301

SPEAKER-6SPEAKER

main86150-0K260iGGN125,GUN125,126,136..H..(GHA,KEN,SA)¥6,300202108-202303

main86150-0K340iGUN125,126..(H,S)..MA202110-202208

86160ZSPEAKER ASSY, REAR NO.3

86161BRACKET, SPEAKER, FRONT NO.1

main86161-KK020

main86161-KK030

main86161-KK040

86163BRACKET, SPEAKER, NO.2

main86163-KK010

main86163-KK020

main86163-KK030

main86163-KK040

90119T0556

main90119-T0556

9016750046

main90167-50046¥80

9026905074

main90269-05074¥70

9415080600

main94150-80600¥60

12 parts on this diagram · 1 diagram in section
