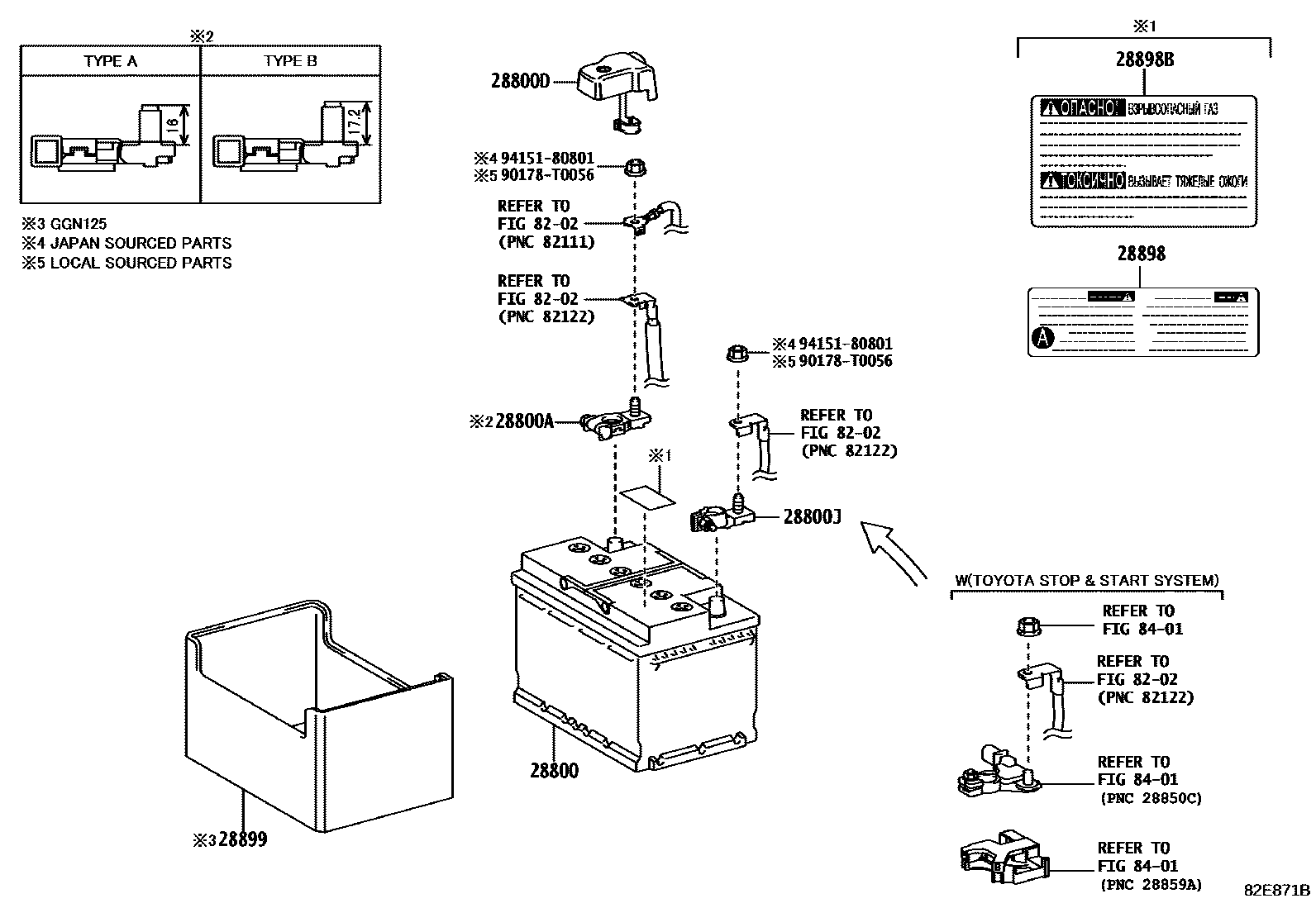

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0C240i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..LA;2TRFE..TGN121,136..THP..(ARL,GEN,LA)202108-202207

LN2,GS

sub28800-0C241

main28800-0C251i2TRFE..TGN126,128,13#..AGTP202111-202210

LN2,JOHNSON CONTROLS

main28800-0C260i2TRFE..TGN121,126,136..SA202109-202301

LN2

sub28800-0C261

main28800-0C273i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..LA;2TRFE..TGN121,136..THP..(ARL,GEN,LA)202108-202207

LN2,FURUKAWA

sub28800-0C274

main28800-0C280i2TRFE..TGN126,136..AGTP202111-202210

LN2,UNION BATTERY

sub28800-0C281

main28800-0C360i1TRFE,2TRFE..TGN120,121,126..5F..GCC202108-202207

LN0

sub28800-0C361

main28800-0L380i1GDFTV..GUN126..PKN202202-202301

80D26L

main28800-0L440i1GDFTV..GUN126..IND202203-202209

LN3

main28800-0L461i1G#,2GDFTV..GGN125,GUN125,126,13#..AGTP202111-202210

LN3,JOHNSON CONTROLS

main28800-0L481i1G#,2GDFTV..GGN125,GUN122,125,126,13#..GHA,KEN,SA202109-202303

LN3

main28800-0L490i5LE..LAN125202109-202301

LN4

sub28800-0L491

main28800-0L503i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..THP..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..THP..6FC..(ARL,GEN,LA,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,13#..THP..(202108-202210

LN3,FURUKAWA

sub28800-0L504

main28800-0L503i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..THP..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..THP..6FC..(ARL,GEN,LA,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,13#..THP..(202108-202207

LN3,ASIA COLD COUNTRY SPEC,FURUKAWA

sub28800-0L504

main28800-0L503i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..THP..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..THP..6FC..(ARL,GEN,LA,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,13#..THP..(202108-202207

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,FURUKAWA

sub28800-0L504

main28800-0L520i2GDFTV..GUN125,135..TH;1GDFTV..GUN126..6F..TH¥57,800202108-202207

LN4,TOYOTA STOP & START SYSTEM-WITH

sub28800-0L521¥52,500

main28800-0L520i2GDFTV..GUN125,135..TH;1GDFTV..GUN126..6F..TH¥57,800202108-202207

LN4

sub28800-0L521¥52,500

main28800-0L570i2TRFE..TGN126..L..GEN202108-202207

LN3,YUASA

sub28800-0L571

main28800-0L570i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..THP..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..(MMRP,THP)..6FC..(ARL,GEN,LA,MMR,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,202108-202207

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,YUASA

sub28800-0L571

main28800-0L570i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..THP..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..(MMRP,THP)..6FC..(ARL,GEN,LA,MMR,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,202108-202207

LN3,ASIA COLD COUNTRY SPEC,YUASA

sub28800-0L571

main28800-0L600i1GDFTV..GUN126..6FC..S..BZAG202111-202210

LN3,ARGENTINA SPEC,UNION BATTERY

sub28800-0L601

main28800-0L600i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..AGTP..LA;1GDFTV..GUN126..6F..S..BZAG;1G#,2GDFTV..GGN125,GUN125,13#..AGTP202111-202210

LN3,UNION BATTERY

sub28800-0L601

main28800-0L720i1G#,2GDFTV..GGN125,GUN122,125,126..GCC202108-202207

LN3

sub28800-0L721

main28800-0L730i2TRFE..TGN121,126..6FC..GCC202108-202207

LN2

sub28800-0L731

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GDFTV..GUN126..PKN¥850202108-202303

TYPE A:REFER ILLUST.

main90982-05061i1G#,2GDFTV,5LE,2TRFE..GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA¥850202108-202303

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i1GDFTV..GUN126..IND¥640202108-202303

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GDFTV..GUN126..THP..6F;1GDFTV..GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN);1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN120,121,122,125,13#,TGN120,121,126,136..THP¥850202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main90982-06059i1GDFTV,2GDFTV..GUN125,126..MA¥850202108-202303

28898PLATE, BATTERY

main28897-36030i1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN122,125,126,TGN120,121,126..GCC¥110202108-202207

28898BPLATE, BATTERY

main28897-31040i2TRFE..TGN126..(H,S)..GEN¥180202108-202207

28899INSULATOR, BATTERY

main28899-27020i1GRFE..GGN125..GCC¥1,400202108-202301

8202

8401

90178T0056

main90178-T0056

9415180801

main94151-80801¥80

11 parts on this diagram · 1 diagram in section
