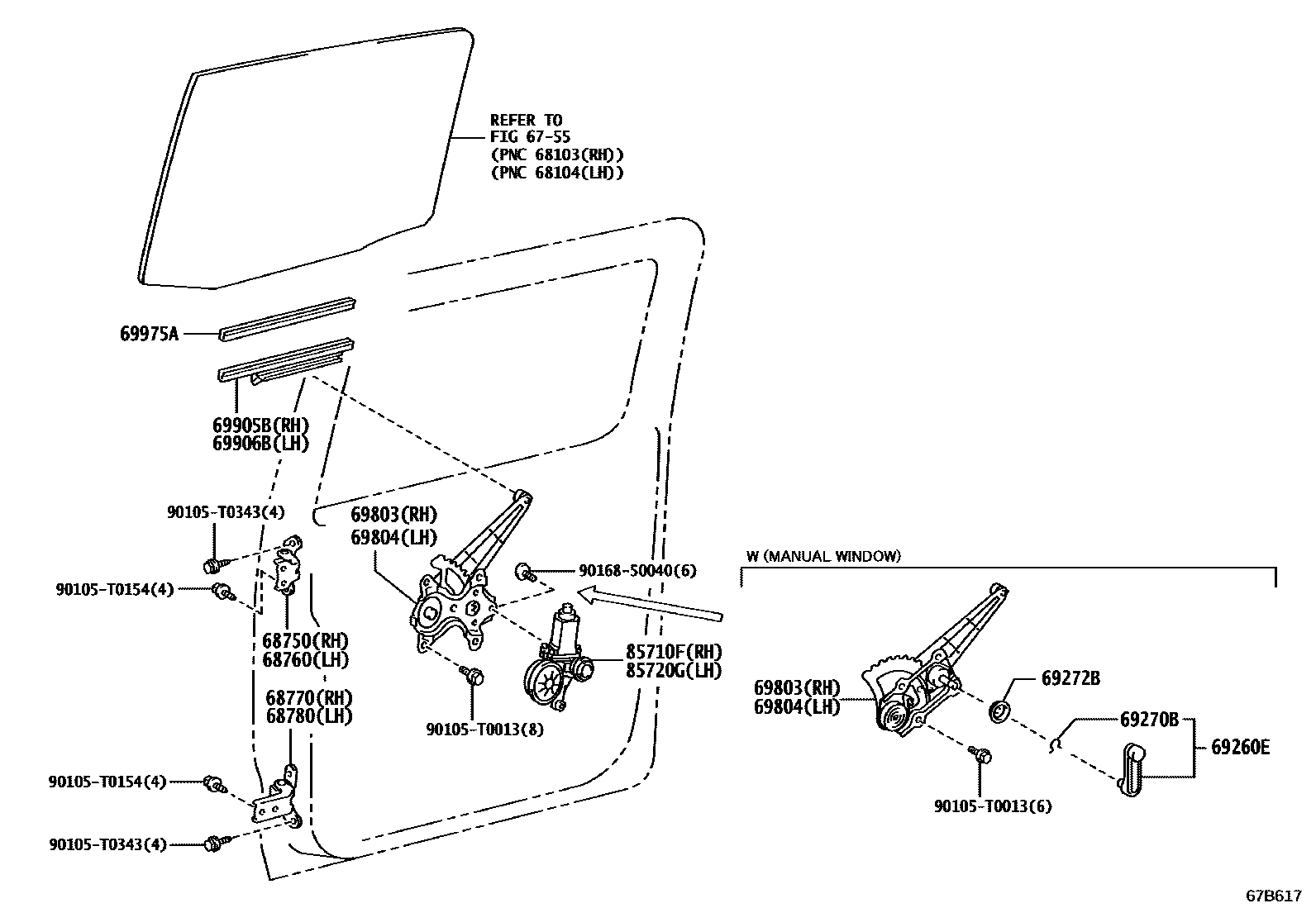

REAR DOOR WINDOW REGULATOR & HINGE
6755
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#,3#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main69260-0K010-C0iGUN135,TGN126,136..THP..L..LA;GUN122,125,126..THP..MTM..L..(GEN,IDN,LA,PH)202108-202301
BLACK,TRIM2#
main69260-0K010-C0iGUN135,TGN126,136..THP..L..LA;GUN122,125,126..THP..MTM..L..(GEN,IDN,LA,PH)202108-202207
BLACK,TRIM2#,3#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
BLACK,TRIM2#
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main90520-01274iTGN126..THP..L..(GCC,LA);GUN126,TGN121..MTM..L..(GCC,LA);GUN122,125,135,TGN120..LHD..THP..L..(GCC,GEN,LA)202108-202203
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main90520-01274iGUN135..THP..L..LA;GUN125,TGN121,126,136..THP..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120..THP..MTM..L..(GCC,GEN,IDN,LA,PH)202108-202301
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main69268-04020iTGN126..THP..L..(GCC,LA);GUN126,TGN121..MTM..L..(GCC,LA);GUN122,125,135,TGN120..LHD..THP..L..(GCC,GEN,LA)202108-202203
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69268-04020iTGN126..THP..L..(GCC,LA);GUN126,TGN121..MTM..L..(GCC,LA);GUN122,125,135,TGN120..LHD..THP..L..(GCC,GEN,LA)202108-202203
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main69268-04020iGUN135..THP..L..LA;GUN125,TGN121,126,136..THP..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120..THP..MTM..L..(GCC,GEN,IDN,LA,PH)202108-202301
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main69803-0K110iGUN125..6F..ARL;GUN125..RHD..6FC..L;GUN122,125..(H,S)..GEN;GUN126,13#,TGN121,126,136..ARL,GEN202108-202207
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69803-0K120iTGN136..SA;GUN125..L..GHA;GGN125,GUN125,126,13#,LAN125,TGN126..(H,S)..(GHA,KEN,SA)202109-202303
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69803-0K130iGUN135..AGTP..S;GUN135..L..BZAG;GUN125,TGN136..BZAG;GGN125,GUN126,136,TGN128,138..AGTP;GUN125,TGN126,136..AGTP..(H,S)..LA202111-202210
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69803-0K160iGUN126..6FC..L;GUN122,135..L..(TH,VN);GGN125,GUN120,121,136..THP..(GCC,LA,TH);GUN122,125,126,135,TGN121,126..THP..(H,S)..(GCC,IDN,LA,PH,TH,TWN,VN)202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69830-0K180iGUN135..THP..L..LA;GUN125,TGN121,126,136..THP..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120..THP..MTM..L..(GCC,GEN,IDN,LA,PH)202108-202301
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69804-0K110iGUN125..6F..ARL;GUN125..RHD..6FC..L;GUN122,125..(H,S)..GEN;GUN126,13#,TGN121,126,136..ARL,GEN202108-202207
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main69804-0K110iGUN125..6F..ARL;GUN125..RHD..6FC..L;GUN122,125..(H,S)..GEN;GUN126,13#,TGN121,126,136..ARL,GEN202108-202207
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main69804-0K120iTGN136..SA;GUN125..L..GHA;GGN125,GUN125,126,13#,LAN125,TGN126..(H,S)..(GHA,KEN,SA)202109-202303
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69804-0K130iGUN135..AGTP..S;GUN135..L..BZAG;GUN125,TGN136..BZAG;GGN125,GUN126,136,TGN128,138..AGTP;GUN125,TGN126,136..AGTP..(H,S)..LA202111-202210
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69804-0K160iGUN126..6FC..L;GUN122,135..L..(TH,VN);GGN125,GUN120,121,136..THP..(GCC,LA,TH);GUN122,125,126,135,TGN121,126..THP..(H,S)..(GCC,IDN,LA,PH,TH,TWN,VN)202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69840-0K180iGUN135..THP..L..LA;GUN125,TGN121,126,136..THP..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120..THP..MTM..L..(GCC,GEN,IDN,LA,PH)202108-202301
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85720-0D580iGUN122..L..TH;GUN126..6FC..L;TGN126..H..GCC;GUN135..THP..6F..S..LA;TGN126..THP..S..(GCC,LA);GUN126..THP..(H,S)..(GCC,LA);GUN135..6F..(L,S)..(PH,TH,VN);GUN120,121,13202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main85720-0K180iGUN125..6F..ARL;GUN122,125..MTM..S..GEN;GUN126,13#..(L,S)..(ARL,GEN);GUN125,TGN121,126,136..(5F,6FC)..(ARL,GEN)202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85720-0K180iGUN125..6F..ARL;GUN122,125..MTM..S..GEN;GUN126,13#..(L,S)..(ARL,GEN);GUN125,TGN121,126,136..(5F,6FC)..(ARL,GEN)202108-202207
WIRELESS DOOR LOCK-WITH
main85720-0K180iGUN125..6F..ARL;GUN122,125..MTM..S..GEN;GUN126,13#..(L,S)..(ARL,GEN);GUN125,TGN121,126,136..(5F,6FC)..(ARL,GEN)202108-202207
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85720-0K180iGUN125..L..GHA;GUN136..6F..S..SA;GUN136,TGN136..(5F,6FC)..SA;GGN125,GUN125,126,135,LAN125,TGN126..(H,S)..(GHA,SA)202108-202303
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
SUB-SAHARAN AFRICA SPEC(EURO 2)&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main85710-0K180iGUN125..L..GHA;GUN136..6F..S..SA;GUN136,TGN136..(5F,6FC)..SA;GGN125,GUN125,126,135,LAN125,TGN126..(H,S)..(GHA,SA)202108-202303
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85710-0K180iGUN125..6F..ARL;GUN122,125..MTM..S..GEN;GUN126,13#..(L,S)..(ARL,GEN);GUN125,TGN121,126,136..(5F,6FC)..(ARL,GEN)202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85710-0K180iGUN125..6F..ARL;GUN122,125..MTM..S..GEN;GUN126,13#..(L,S)..(ARL,GEN);GUN125,TGN121,126,136..(5F,6FC)..(ARL,GEN)202108-202207
WIRELESS DOOR LOCK-WITH
main85710-0K180iGUN125..6F..ARL;GUN122,125..MTM..S..GEN;GUN126,13#..(L,S)..(ARL,GEN);GUN125,TGN121,126,136..(5F,6FC)..(ARL,GEN)202108-202207
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
SUB-SAHARAN AFRICA SPEC(EURO 2)&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85710-0K290iGUN135..AGTP..S;GUN135..L..BZAG;GUN126..AGTP..(L,S);GUN126..AGTP..H..LA;GUN136..AGTP..6F..LA;GUN125,TGN126,136..AGTP..S..LA;GUN125,136,TGN13#..(L,S)..BZAG202111-202210
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
90105T0013
main90105-T0013
90105T0154
main90105-T0154
90105T0343
main90105-T0343
9016850040
main90168-50040
19 parts on this diagram · 1 diagram in section
