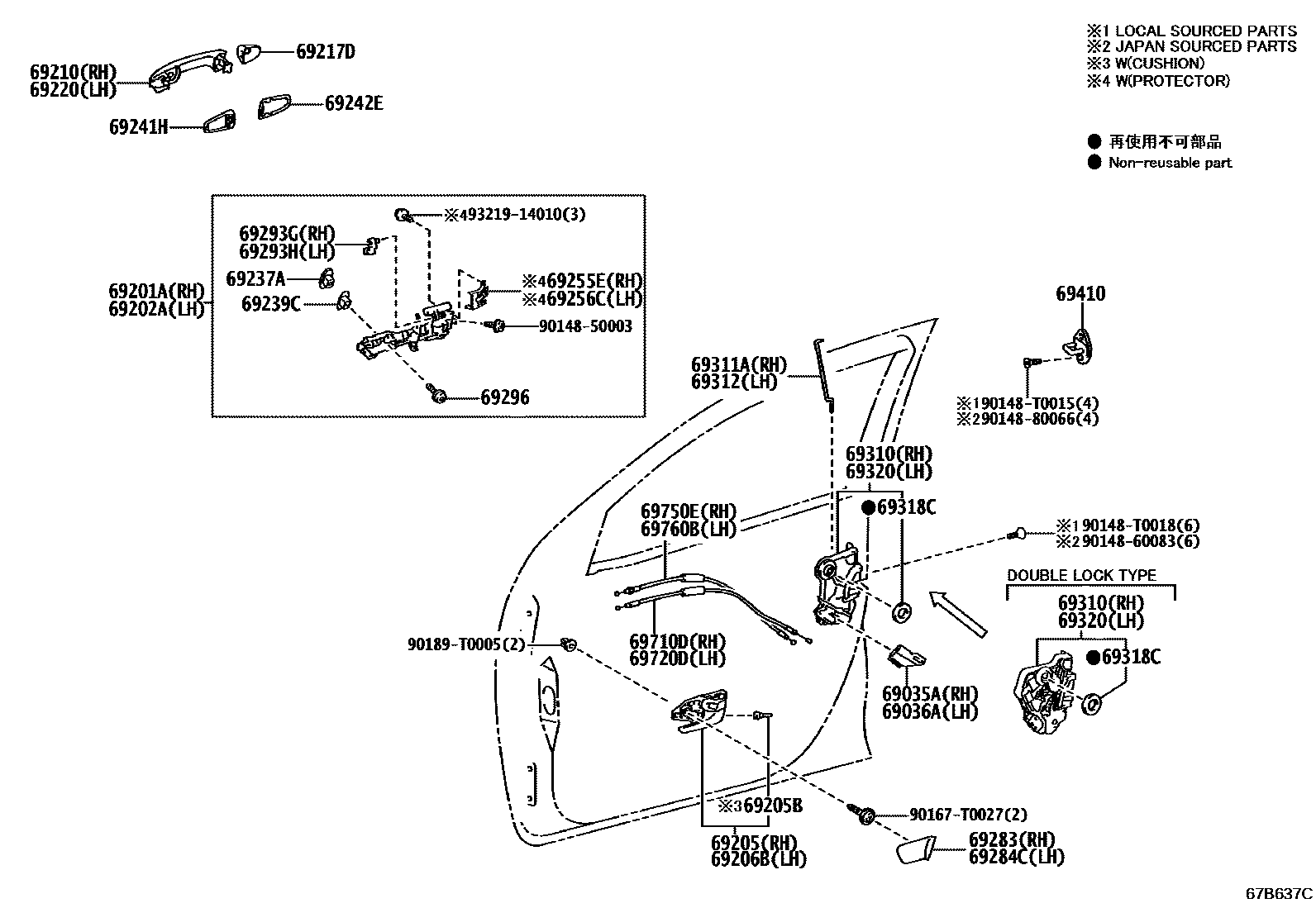

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-02040iGUN126..GHA,KEN,MMR;GUN126,TGN136..LHD..SA;GUN125..LHD..S..(GHA,SA);GUN125,135..(H,L)..(GHA,KEN,SA);GUN122,126,136,LAN125,TGN121,126..(L,S)..SA202108-202303
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0K061iGUN126..H..BZAG;GGN125,GUN136,TGN128,138..AGTP..H;GUN125,126,135,TGN126,136..AGTP..(H,S)..LA202108-202303
main69201-0K070iGUN126..GHA,SA;GUN136..6FC..SA;GUN136..6F..S..SA;GGN125,GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303
main69201-0K080iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
GR SPORT&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69201-0K080iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
GR SPORT
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
GR SPORT&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0K061iGUN126..H..BZAG;GGN125,GUN136,TGN128,138..AGTP..H;GUN125,126,135,TGN126,136..AGTP..(H,S)..LA202108-202303
main69202-0K070iGUN126..GHA,SA;GUN136..6FC..SA;GUN136..6F..S..SA;GGN125,GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303
GR SPORT
GR SPORT&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
GR SPORT&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
main69205-0K110-C0iGUN135..L..TH;GUN126..LHD..THP..6FC..S;GUN125..RHD..6F..S..(GEN,TH);GUN126..THP..6F..S..(GEN,LA);GUN125..THP..6FC..S..(GEN,LA);GUN125,TGN126..THP..MTM..(H,S)..LA;GU202108-202301
BLACK,TRIM2#
main69205-0K110-C0iGUN135..L..TH;GUN126..LHD..THP..6FC..S;GUN125..RHD..6F..S..(GEN,TH);GUN126..THP..6F..S..(GEN,LA);GUN125..THP..6FC..S..(GEN,LA);GUN125,TGN126..THP..MTM..(H,S)..LA;GU202108-202207
CENTRAL AND SOUTH AMERICA SPEC,BLACK,TRIM2#
main69205-0K110-C0iGUN135..L..TH;GUN126..LHD..THP..6FC..S;GUN125..RHD..6F..S..(GEN,TH);GUN126..THP..6F..S..(GEN,LA);GUN125..THP..6FC..S..(GEN,LA);GUN125,TGN126..THP..MTM..(H,S)..LA;GU202108-202207
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),BLACK,TRIM2#
main69205-0K110-C0iGUN135..L..TH;GUN126..LHD..THP..6FC..S;GUN125..RHD..6F..S..(GEN,TH);GUN126..THP..6F..S..(GEN,LA);GUN125..THP..6FC..S..(GEN,LA);GUN125,TGN126..THP..MTM..(H,S)..LA;GU202108-202207
DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0K090-C1iGUN135..THP..L..LA;GUN125..LHD..S..GEN;GUN126..RHD..THP..6FC..S;GUN135..(L,S)..(ARL,GEN,VN);GUN122,TGN126..THP..L..(LA,TH);GUN125,126..6F..S..(ARL,IDN,VN);GUN122,13202108-202207
BLACK,TRIM2#,3#
main69206-0K090-C1iGUN135..THP..L..LA;GUN125..LHD..S..GEN;GUN126..RHD..THP..6FC..S;GUN135..(L,S)..(ARL,GEN,VN);GUN122,TGN126..THP..L..(LA,TH);GUN125,126..6F..S..(ARL,IDN,VN);GUN122,13202108-202301
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC,BLACK,TRIM2#
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),BLACK,TRIM2#
DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED,MLM ADVENTURE PACKAGE
PLATED,GR SPORT&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH
PLATED,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K210iTGN126..THP..L..LA;GUN121,TGN126..(L,S)..(GEN,TH);GUN135..THP..L..(ARL,GEN,LA,VN);GUN120,122,125,126,TGN121,136..THP..L..(ARL,GEN,IDN,LA,PH,TH)202108-202207
NO PAINT REQ.,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K210iGUN136..S..ARL;GUN126..6F..S..ARL;GUN122,125..LHD..S..GEN;GUN126..RHD..THP..6FC..S202108-202301
NO PAINT REQ.
PLATED
main69210-0K250iGUN125..L..GHA;GUN122,125,126,13#,LAN125,TGN121,126,136..(L,S)..(KEN,SA)202109-202303
NO PAINT REQ.
NO PAINT REQ.
PLATED
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PAINT REQ.
PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
*CR,DRIVER SIDE
*CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
*CR,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
*CR,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
*CR,DRIVER & PASSENGER
*CR,GR SPORT&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
*CR,MLM ADVENTURE PACKAGE,DRIVER SIDE
*CR,PASSENGER SIDE
*CR,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
*CR,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
*CR,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
BLACK MATERIAL,DRIVER & PASSENGER
main69217-0K430iGUN126..6FC..L;GUN135..L..(ARL,GEN,VN);GUN122,125..6F..L..(ARL,TH);GUN121,TGN126..(L,S)..(GEN,TH);GUN120,125,TGN121,136..(5F,6FC)..L..(ARL,GEN,TH)202108-202208
BLACK MATERIAL,DRIVER SIDE
main69217-0K430iGUN126..6FC..L;GUN135..L..(ARL,GEN,VN);GUN122,125..6F..L..(ARL,TH);GUN121,TGN126..(L,S)..(GEN,TH);GUN120,125,TGN121,136..(5F,6FC)..L..(ARL,GEN,TH)202108-202207
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K430iGUN126..6FC..L;GUN135..L..(ARL,GEN,VN);GUN122,125..6F..L..(ARL,TH);GUN121,TGN126..(L,S)..(GEN,TH);GUN120,125,TGN121,136..(5F,6FC)..L..(ARL,GEN,TH)202108-202207
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K430iGUN126..6FC..L;GUN135..L..(ARL,GEN,VN);GUN122,125..6F..L..(ARL,TH);GUN121,TGN126..(L,S)..(GEN,TH);GUN120,125,TGN121,136..(5F,6FC)..L..(ARL,GEN,TH)202108-202207
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVERSIDE ONLY,DRIVER SIDE
main69217-0K430iGUN126..6FC..L;GUN135..L..(ARL,GEN,VN);GUN122,125..6F..L..(ARL,TH);GUN121,TGN126..(L,S)..(GEN,TH);GUN120,125,TGN121,136..(5F,6FC)..L..(ARL,GEN,TH)202108-202207
BLACK MATERIAL,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
main69217-0K440iGUN136..S..ARL;GUN126..6F..S..ARL;GUN122,125..LHD..S..GEN;GUN126..RHD..THP..6FC..S202108-202207
BLACK MATERIAL,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVERSIDE ONLY,PASSENGER SIDE
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
BLACK MATERIAL,PASSENGER SIDE
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),DRIVER SIDE
BLACK MATERIAL,DRIVER SIDE
BLACK MATERIAL,DRIVER & PASSENGER
BLACK MATERIAL,PASSENGER SIDE
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PASSENGER SIDE
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
BLACK MATERIAL,DRIVER SIDE
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH,DRIVER SIDE
BLACK MATERIAL,DRIVER & PASSENGER
BLACK MATERIAL,PASSENGER SIDE
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
PLATED,PASSENGER SIDE
PLATED,DRIVER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON),DRIVER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PASSENGER SIDE
LESS COLOR,PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED,GR SPORT&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K060iTGN126..THP..H..LA;GUN125,126..H..(ARL,GEN,PH,TH,TWN,VN);GGN125,GUN13#..H..(ARL,GCC,GEN,PH,TH)202108-202303
PLATED
main69210-0K060iTGN126..THP..H..LA;GUN125,126..H..(ARL,GEN,PH,TH,TWN,VN);GGN125,GUN13#..H..(ARL,GCC,GEN,PH,TH)202108-202301
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69210-0K060iTGN126..THP..H..LA;GUN125,126..H..(ARL,GEN,PH,TH,TWN,VN);GGN125,GUN13#..H..(ARL,GCC,GEN,PH,TH)202108-202207
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
PLATED,MLM ADVENTURE PACKAGE
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH
PLATED,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K210iGUN136..S..ARL;GUN126..6F..S..ARL;GUN122,125..LHD..S..GEN;GUN126..RHD..THP..6FC..S202108-202207
NO PAINT REQ.,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K210iTGN126..THP..L..LA;GUN121,TGN126..(L,S)..(GEN,TH);GUN135..THP..L..(ARL,GEN,LA,VN);GUN120,122,125,126,TGN121,136..THP..L..(ARL,GEN,IDN,LA,PH,TH)202108-202301
NO PAINT REQ.
PLATED
main69210-0K250iGUN125..L..GHA;GUN122,125,126,13#,LAN125,TGN121,126,136..(L,S)..(KEN,SA)202109-202303
NO PAINT REQ.
NO PAINT REQ.
PLATED
PAINT REQ.
PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PAINT REQ.
69237ANUT, FRONT DOOR HANDLE
GR SPORT&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
main69237-0E010iGUN126..GHA,SA;GUN136..6FC..SA;GUN136..6F..S..SA;GGN125,GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303
main69237-0K070iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
GR SPORT&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69237-0K070iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
GR SPORT
main69237-0K070iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69237-0K070iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69239CBUSH, FRONT DOOR HANDLE
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69239-0K070iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
GR SPORT
main69239-0K070iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
GR SPORT&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69239-0K070iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
GR SPORT&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69255EPROTECTOR, DOOR OUTSIDE HANDLE, RH
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
sub69256-0K051
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030iGUN126..H..BZAG;GGN125,GUN136,TGN128,138..AGTP..H;GUN125,126,135,TGN126,136..AGTP..(H,S)..LA202108-202303
GR SPORT
main69293-33010iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
GR SPORT&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69293-33010iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69293-33010iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202111-202210
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
GR SPORT&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
GR SPORT
69296SCREW, DOOR INSIDE HANDLE
main69296-0M010iGUN126..H..BZAG;GGN125,GUN136,TGN128,138..AGTP..H;GUN125,126,135,TGN126,136..AGTP..(H,S)..LA202108-202303
GR SPORT&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
main69296-30010iGUN135..AGTP..L..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..S..BZAG;GUN125,TGN126,136..AGTP..L202109-202210
GR SPORT
main69296-30010iGUN126..GHA,SA;GUN136..6FC..SA;GUN136..6F..S..SA;GGN125,GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303
69310LOCK ASSY, FRONT DOOR, RH
main69030-02470iGUN125..6F..ARL;GUN135..RHD..THP;GUN125..RHD..6FC..L;GUN125,126..RHD..THP..(H,S);GUN120,121,122,136,TGN121..ARL,TH202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main69030-02480iGUN126..LHD..(GEN,PH,TWN,VN);GGN125,GUN135..LHD..(GCC,GEN,PH);GUN125,136,TGN126..LHD..THP..MTM..H..(GEN,LA)202108-202207
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main69030-02480iGUN126..LHD..(GEN,PH,TWN,VN);GGN125,GUN135..LHD..(GCC,GEN,PH);GUN125,136,TGN126..LHD..THP..MTM..H..(GEN,LA)202108-202207
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69030-02480iGUN126..LHD..(GEN,PH,TWN,VN);GGN125,GUN135..LHD..(GCC,GEN,PH);GUN125,136,TGN126..LHD..THP..MTM..H..(GEN,LA)202108-202207
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main69030-02480iGUN126..LHD..(GEN,PH,TWN,VN);GGN125,GUN135..LHD..(GCC,GEN,PH);GUN125,136,TGN126..LHD..THP..MTM..H..(GEN,LA)202108-202207
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
main69030-02600iTGN126..L..GCC;GUN125..LHD..H..GEN;GUN126,TGN121..MTM..L..(GCC,LA);GUN122,125,135,TGN120..LHD..THP..L..(GCC,GEN,LA)202108-202207
WIRELESS DOOR LOCK-WITH
main69030-02600iGUN125..L..GHA;TGN136..LHD..SA;GUN125,126,LAN125,TGN126..LHD..(H,S)..(GHA,SA)202108-202303
WIRELESS DOOR LOCK-WITH
main69030-0K200iTGN126..AGTP..S;GUN125,135,TGN136..L..BZAG;GUN125,126,135..AGTP..(H,S)..LA202111-202210
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
main69310-0K100iTGN126..THP..L..(GCC,LA);GUN126,TGN121,136..THP..MTM..L..(GCC,LA);GUN122,125,135,TGN120..LHD..THP..L..(GCC,GEN,LA,PH)202108-202301
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
main69040-02450iTGN126..L..GCC;GUN126,TGN121..MTM..L..(GCC,LA);GUN122,125,135,TGN120..LHD..THP..L..(GCC,GEN,LA)202108-202207
WIRELESS DOOR LOCK-WITH
main69040-02450iGUN125..L..GHA;TGN136..LHD..SA;GUN125,126,LAN125,TGN126..LHD..(H,S)..(GHA,MMR,SA)202108-202303
main69040-02450iGGN125,TGN136..GCC,GEN;GUN135,TGN126..LHD..L..(GEN,VN);GUN126,TGN121..(5F,6FC)..L..(GEN,LA);GUN122,125,126,13#,TGN121,126..LHD..THP..(H,S)202108-202207
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main69040-02510iGUN135..AGTP..S;GUN135..L..BZAG;GUN125,TGN136..BZAG;GGN125,GUN126,136,TGN128,138..AGTP;GUN125,TGN126,136..AGTP..(H,S)..LA202111-202210
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH
main69040-02510iGUN135..AGTP..S;GUN135..L..BZAG;GUN125,TGN136..BZAG;GGN125,GUN126,136,TGN128,138..AGTP;GUN125,TGN126,136..AGTP..(H,S)..LA202111-202210
WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
main69320-0K090iTGN126..THP..L..(GCC,LA);GUN126,TGN121,136..THP..MTM..L..(GCC,LA);GUN122,125,135,TGN120..LHD..THP..L..(GCC,GEN,LA,PH)202108-202301
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
main69710-0K160iGUN126..GHA,KEN,MMR;GUN126,TGN136..LHD..SA;GUN125..LHD..S..(GHA,SA);GUN125,135..(H,L)..(GHA,KEN,SA);GUN122,126,136,LAN125,TGN121,126..(L,S)..SA202108-202303
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
main69750-0K160iGUN126..GHA,KEN,MMR;GUN126,TGN136..LHD..SA;GUN125..LHD..S..(GHA,SA);GUN125,135..(H,L)..(GHA,KEN,SA);GUN122,126,136,LAN125,TGN121,126..(L,S)..SA202108-202303
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
9321914010
main93219-14010
39 parts on this diagram · 1 diagram in section
