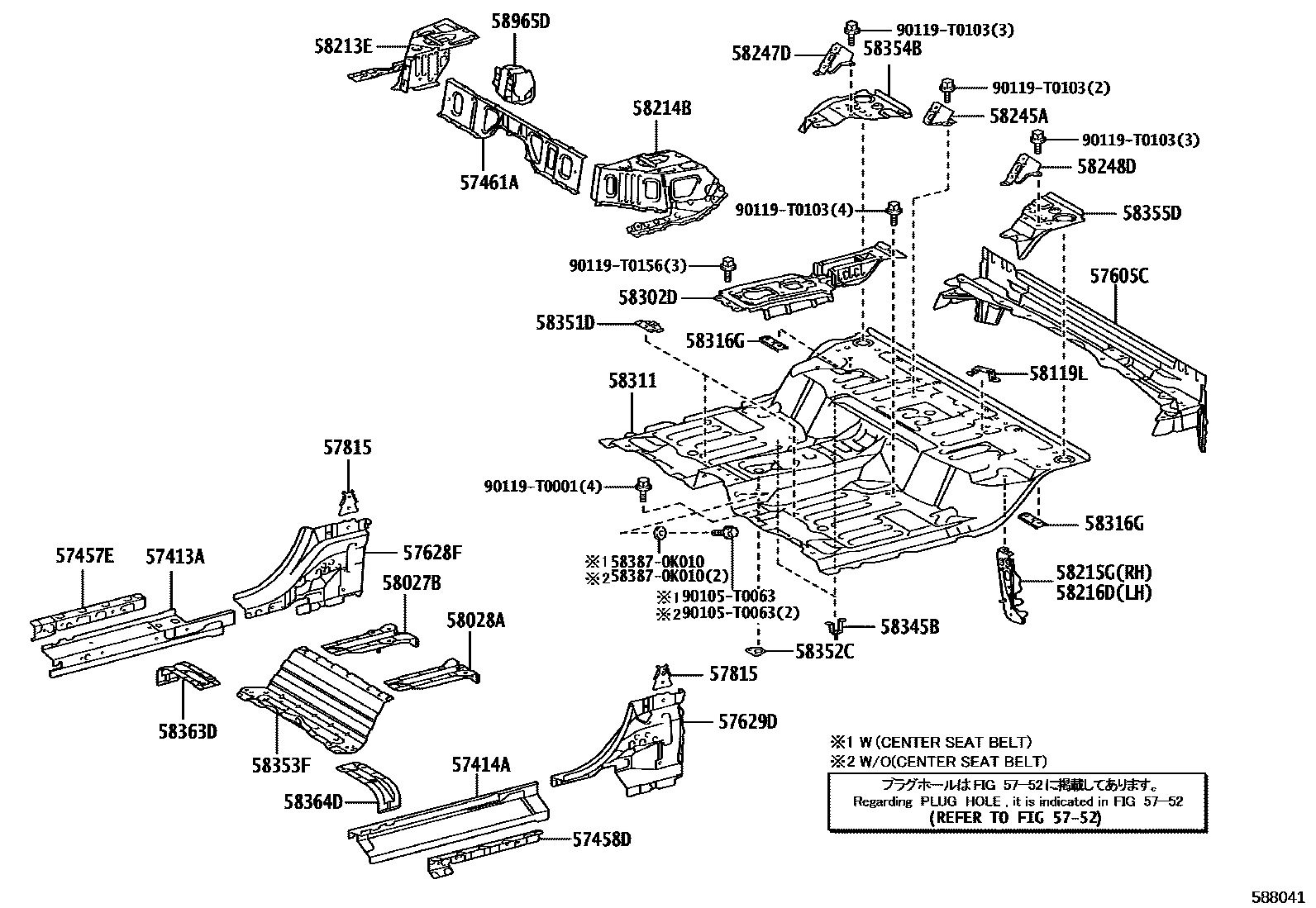

REAR FLOOR PANEL & REAR FLOOR MEMBER

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57413-KK020iGUN125,126..MA¥6,600202108-202303

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57414-KK020iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥6,600202108-202303

57457EPATCH, FLOOR SIDE MEMBER, RR RH

main57457-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥1,320202108-202303

57458DPATCH, FLOOR SIDE MEMBER, REAR LH

main57458-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥1,320202108-202303

57461AMEMBER, CENTER FLOOR CROSS

main57461-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥2,420202108-202303

5752

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-KK020iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥22,900202108-202303

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-KK020iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥4,260202108-202303

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-KK020iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥5,700202108-202303

57815REINFORCEMENT, BELT ANCHOR, NO.1

main61665-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥610202108-202303

58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-KK010iGUN126..PKN¥2,470202108-202303

58028AREINFORCE SUB-ASSY, SEAT BELT ANCHOR, NO.2

main58028-0K020iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,128,13#..AGTP,GHAP,INDP,KENP,MAP,MMRP,PKNP,SAP¥2,710202108-202208

main58028-KK010iGUN126..IND¥2,470202208-202303

58119LPLATE, REAR FLOOR SIDE

main58348-KK020iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥270202108-202303

sub58348-KK021¥240

58213EPANEL, SEAT FLOOR SIDE, RH

main58201-KK020iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥5,600202108-202303

58214BPANEL, SEAT FLOOR SIDE, LH

main58202-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥6,200202108-202208

main58202-KK040iGUN126..IND¥5,600202208-202303

58215GBRACKET, REAR SEAT MOUNTING, NO.1

main58215-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥1,620202108-202303

58216DBRACKET, REAR SEAT MOUNTING, LH

main58216-KK010iGUN125,126..MA¥1,620202108-202303

58245ABRACKET, REAR SEAT HINGE, CENTER NO.1

main58248-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥1,260202108-202303

58247DBRACKET, REAR SEAT HINGE, OUTER RH

main58247-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥1,300202108-202303

58248DBRACKET, REAR SEAT HINGE, OUTER LH

main58204-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥1,450202108-202303

main58247-KK010iGUN126..PKN¥1,300202110-202301

58302DPANEL SUB-ASSY, REAR FLOOR, FRONT

main58302-KK010iGUN125,126..MA¥5,600202108-202303

58311PAN, REAR FLOOR

main58311-KK010iTGN126..THP..L..LA;GUN125..6FC..L..GEN;GUN126..LHD..6FC..GEN;GUN126..LHD..6F..S..GEN;GUN125..LHD..(H,S)..GEN;GUN126..THP..6F..S..(ARL,LA);GUN135..THP..L..(ARL,GEN,L¥25,500202108-202301

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&REAR HEADREST-WITH(RH/LH/CENTER)

main58311-KK010iTGN126..THP..L..LA;GUN125..6FC..L..GEN;GUN126..LHD..6FC..GEN;GUN126..LHD..6F..S..GEN;GUN125..LHD..(H,S)..GEN;GUN126..THP..6F..S..(ARL,LA);GUN135..THP..L..(ARL,GEN,L¥25,500202108-202301

REAR HEADREST-WITH(RH/LH/CENTER)

main58311-KK010iGUN125,126..MA¥25,500202108-202303

main58311-KK020iGUN125,135,TGN121,136..LHD..L..SA202109-202301

main58311-KK030iGUN125,135..RHD..L..(KEN,SA)202109-202303

main58311-KK110iGUN125..LHD..S..GEN202108-202301

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

main58311-KK110iGUN125..LHD..S..GEN202108-202301

REAR HEADREST-WITH(RH/LH)

main58311-KK110iGUN125..LHD..S..GEN202108-202207

ASIA COLD COUNTRY SPEC&REAR HEADREST-WITH(RH/LH)

main58311-KK110iGUN125..LHD..S..GEN202108-202207

OCEANIA GENERAL SPEC&REAR HEADREST-WITH(RH/LH)

main58311-KK120iGUN125,TGN126..MTM..L..GCC;GUN122,TGN120,121..5F..(L,S)..GCC202108-202207

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)

main58311-KK120iLAN125,TGN126..L..SA202108-202301

main58311-KK130iGUN122..RHD..GEN202108-202207

58316GRETAINER, REAR SEAT, NO.1

main58316-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥500202108-202303

58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-0K010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥270202108-202303

58351DREINFORCEMENT, REAR FLOOR PANEL

main57555-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥490202108-202303

58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2

main58352-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥270202108-202303

58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3

main58353-KK010iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥5,400202108-202303

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K060iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥2,840202108-202303

58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5

main58355-0K060iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥2,840202108-202303

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-0K010iGUN125,126..MA¥1,320202108-202303

58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

main58363-0K010iGUN126..IND¥1,320202108-202303

58965DBRACKET, JACK SUPPORT

main58967-KK010iGUN125,126..MA¥1,380202108-202303

583870K010PLATE, REAR FLOOR FINISH

main58387-0K010¥190

90105T0063

main90105-T0063

90119T0001

main90119-T0001

90119T0103

main90119-T0103

90119T0156

main90119-T0156¥60

37 parts on this diagram · 1 diagram in section
