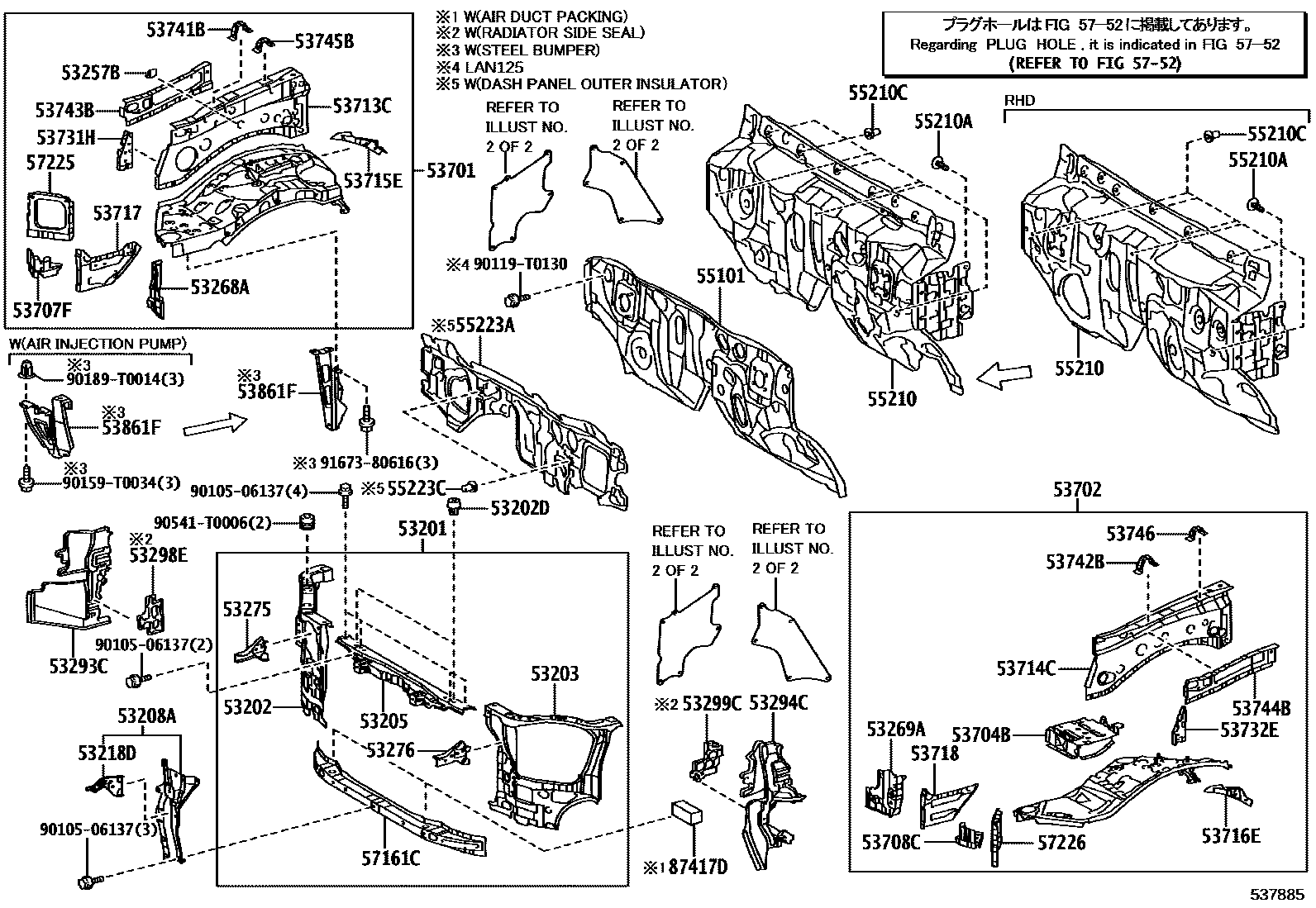

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53218DEXTENSION, HOOD LOCK BRACE
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
main53269-KK010iTGN136..LHD..(SAP,THP);GUN125,126,135..LHD..SA;GUN122,LAN125,TGN121,126..SAP,THP;GGN125,GUN120,121,125,126,13#,TGN120..GHAP,MMRP,THP202108-202303
53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH
53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-KK040iGUN125..L..GHA;TGN126,136..L..SA;GUN122,125,135,LAN125,TGN121..MTM..(L,S)..(KEN,SA)202108-202303
FRONT BUMPER-PAINTED
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/65R17 STEEL
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/65R17 ALUMINUM
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
FRONT BUMPER-WITH(STEEL LOWER COVER)
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-KK040iGUN126,135..THP..L..LA;GUN125..THP..6F..L..(GCC,GEN,LA,PH);GUN125,TGN126..LHD..THP..(5F,6FC)..L;GUN120,121,122,TGN121,136..THP..(GEN,LA,PH,TH)202108-202207
FRONT BUMPER-PAINTED
main53294-KK110iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);TGN126..THP..(H,S)..(GCC,LA);GGN125,GUN125,126,13#..THP..(H,S)..(GCC,GEN,IDN,LA,PH,TH,TWN,VN)202108-202301
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main53294-KK110iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);TGN126..THP..(H,S)..(GCC,LA);GGN125,GUN125,126,13#..THP..(H,S)..(GCC,GEN,IDN,LA,PH,TH,TWN,VN)202108-202301
TIRE & DISC WHEEL-265/65R17 ALUMINUM
main53294-KK110iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);TGN126..THP..(H,S)..(GCC,LA);GGN125,GUN125,126,13#..THP..(H,S)..(GCC,GEN,IDN,LA,PH,TH,TWN,VN)202108-202301
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main53294-KK110iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);TGN126..THP..(H,S)..(GCC,LA);GGN125,GUN125,126,13#..THP..(H,S)..(GCC,GEN,IDN,LA,PH,TH,TWN,VN)202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM
main53294-KK110iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);TGN126..THP..(H,S)..(GCC,LA);GGN125,GUN125,126,13#..THP..(H,S)..(GCC,GEN,IDN,LA,PH,TH,TWN,VN)202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/65R17 STEEL
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/65R17 ALUMINUM
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 STEEL
FRONT BUMPER-WITH(STEEL LOWER COVER)
53298ESEAL, RADIATOR SIDE, RH
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/65R17 STEEL
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/65R17 ALUMINUM
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM
53299CSEAL, RADIATOR SIDE, LH
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/65R17 STEEL
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/65R17 ALUMINUM
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/60R18 ALUMINUM
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53701-KK350
sub53701-KK360
sub53701-KK370
sub53701-KK380
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
FRONT BUMPER-WITH(STEEL LOWER COVER)
sub53701-KK780
FRONT BUMPER-PAINTED
sub53701-KK760
sub53701-KK820
sub53701-KK830
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-KK030iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..LHD..(GHAP,MMRP,SAP,THP)202108-202207
sub53702-KK310
sub53702-KK290
sub53702-KK330
sub53702-KK230
sub53702-KK100
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
main53716-0K030iTGN136..LHD..(SAP,THP);GUN125,126,135..LHD..SA;GUN122,LAN125,TGN121,126..SAP,THP;GGN125,GUN120,121,125,126,13#,TGN120..GHAP,MMRP,THP202108-202303
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
main53718-KK010iTGN136..LHD..(SAP,THP);GUN125,126,135..LHD..SA;GUN122,LAN125,TGN121,126..SAP,THP;GGN125,GUN120,121,125,126,13#,TGN120..GHAP,MMRP,THP202108-202303
53731HPATCH, FRONT FENDER APRON, RH
53732EREINFORCEMENT, FRONT FENDER APRON, LH
main53732-KK010iTGN136..LHD..(SAP,THP);GUN125,126,135..LHD..SA;GUN122,LAN125,TGN121,126..SAP,THP;GGN125,GUN120,121,125,126,13#,TGN120..GHAP,MMRP,THP202108-202303
53741BPLATE, FENDER APRON REINFORCE, RH
53742BPLATE, FENDER APRON REINFORCE, LH
main53742-KK020iTGN136..LHD..(SAP,THP);GUN125,126,135..LHD..SA;GUN122,LAN125,TGN121,126..SAP,THP;GGN125,GUN120,121,125,126,13#,TGN120..GHAP,MMRP,THP202108-202303
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
main53744-KK010iTGN136..LHD..(SAP,THP);GUN125,126,135..LHD..SA;GUN122,LAN125,TGN121,126..SAP,THP;GGN125,GUN120,121,125,126,13#,TGN120..GHAP,MMRP,THP202108-202303
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53861FBRACKET, FRONT WHEEL OPENING, NO.1
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)&FRONT BUMPER-WITH(STEEL LOWER COVER)
FRONT BUMPER-WITH(STEEL LOWER COVER)
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&FRONT BUMPER-WITH(STEEL LOWER COVER)
FRONT BUMPER-WITH(STEEL LOWER COVER)
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
55210INSULATOR ASSY, DASH PANEL
main55210-0K320iGUN126..THP..(L,S)..LA;GUN122,TGN120,121,136..LHD..THP;GUN125,135,TGN126..LHD..THP..(L,S)202108-202207
sub55210-0K360
55210ACLIP
IVORY
55210CCLIP
(J)
(L)
55223AINSULATOR, DASH PANEL, OUTER
IRAN SPEC
EGYPT SPEC
55223CCLIP
EGYPT SPEC
main90467-T0032iTGN121..5F..H;TGN126..H..GCC;TGN121..6FC..(H,L);GGN125,GUN12#,13#..THP;TGN126..THP..(H,S)..(GEN,LA);TGN121,126,136..THP..5F..L..(ARL,LA)202108-202207
IRAN SPEC
57161CMEMBER, FRONT CROSS
57225BRACE, FRONT MOUNTING BRACKET, RH
57226BRACE, FRONT MOUNTING BRACKET, LH
main57226-KK010iTGN136..LHD..(SAP,THP);GUN125,126,135..LHD..SA;GUN122,LAN125,TGN121,126..SAP,THP;GGN125,GUN120,121,125,126,13#,TGN120..GHAP,MMRP,THP202108-202303
5752
87417DPACKING, AIR DUCT
9010506137
main90105-06137
90119T0130
main90119-T0130
90159T0034
main90159-T0034
90189T0014
main90189-T0014
90541T0006
main90541-T0006
9167380616
main91673-80616
53 parts on this diagram · 2 diagrams in section
