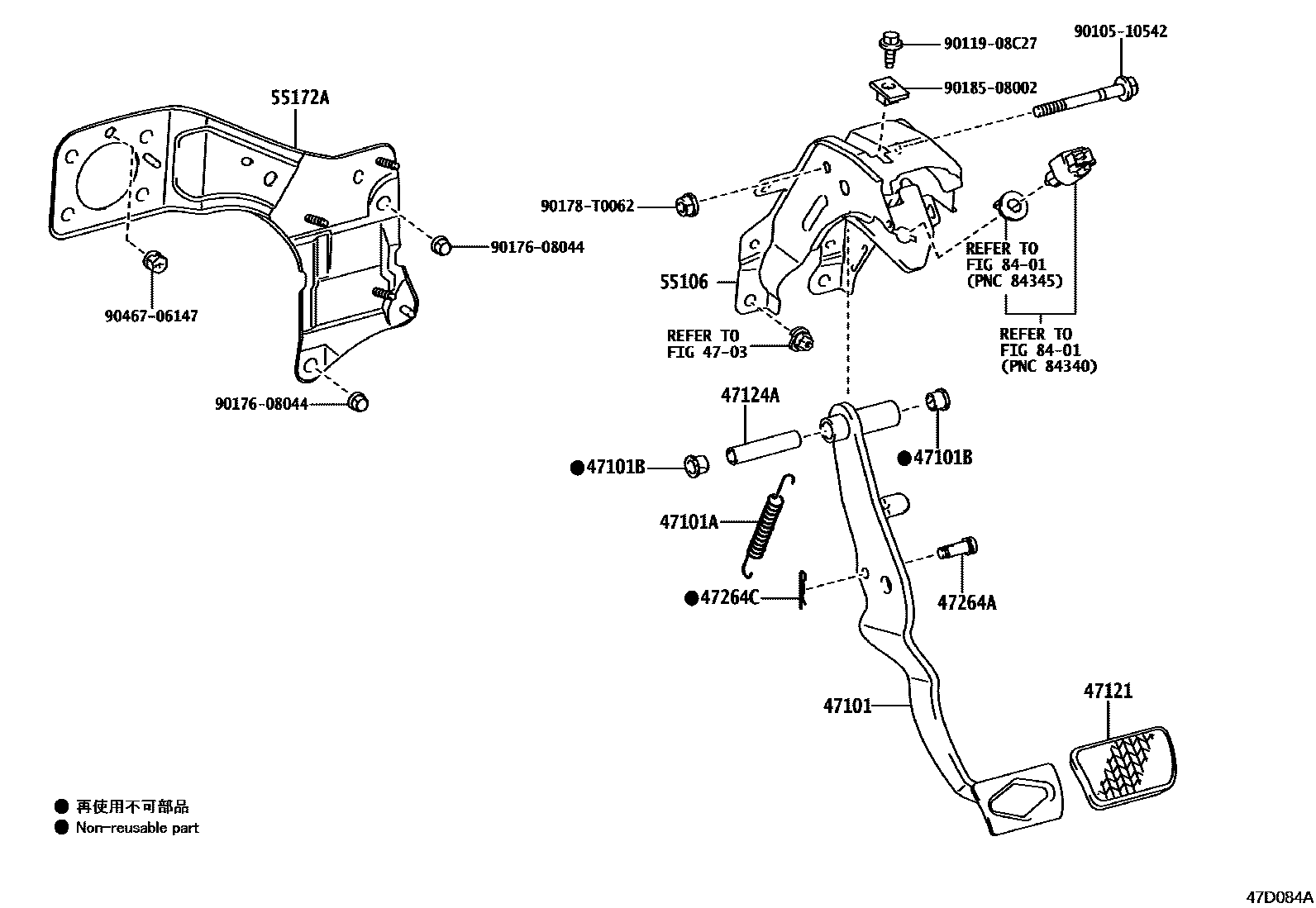

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703

47101PEDAL SUB-ASSY, BRAKE

main47101-KK010iGUN122,125,126,13#,TGN121..RHD..THP..MTM202108-202303

main47101-KK020iGUN122,125,126,13#,TGN120,121,126,136..LHD..THP..MTM202108-202303

main47101-KK030iGGN125,GUN125,126,13#..RHD..6FC..(KEN,SA)202108-202303

main47101-KK040iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC202108-202303

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

47121PAD, BRAKE PEDAL

main31321-02020iGUN126..6F..PKN202108-202303

main47121-02030iGUN125,126..6FC..MA202108-202303

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10121iGGN125,GUN12#,13#,LAN125,TGN12#,13#..AGTP,GHAP,KENP,MMRP,PKNP,SAP,THP202108-202303

47264APIN(FOR PUSH ROD)

main47148-35010iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK010iGUN126..PKN202108-202303

main55106-KK030iGUN126..IND202110-202209

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK040iGUN12#,13#,TGN121..RHD..THP202108-202303

main55172-KK050iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)202108-202303

8401

9010510542

main90105-10542

9011908C27

main90119-08C27

9017608044

main90176-08044

90178T0062

main90178-T0062

9018508002

main90185-08002

9046706147

main90467-06147

17 parts on this diagram · 2 diagrams in section
