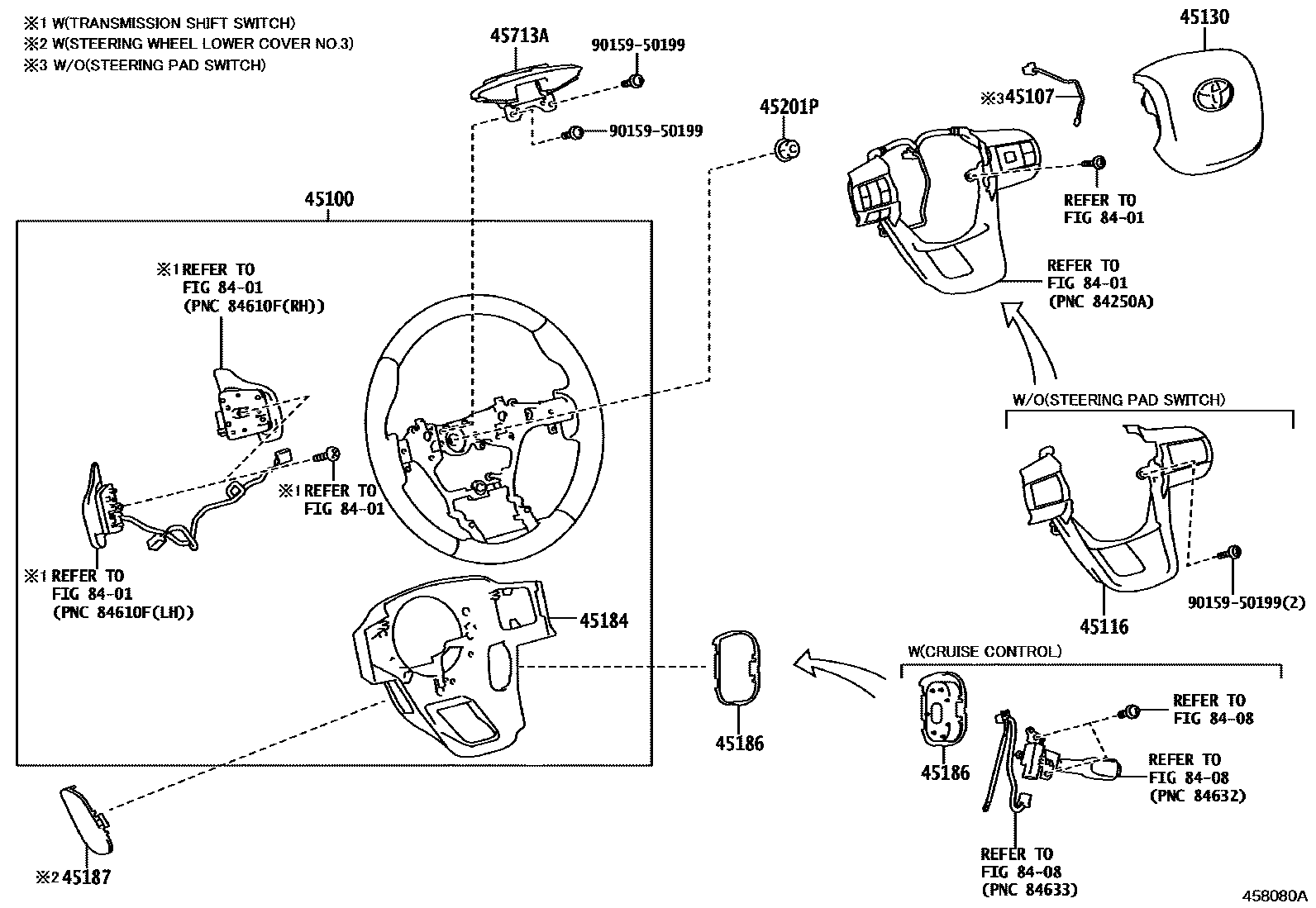

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,MLM ADVENTURE PACKAGE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#,3#
3-SPOKE,LEATHER,BLACK & GRAY NO.205,TRIM2#
main45100-0K641-C0iGUN135..H..PH;GUN126..LHD..S..GEN;GUN135..(H,S)..(GEN,TH);GUN120,121,122,125..S..TH;GUN125,126,136,TGN126..THP..H..(ARL,GEN,IDN,LA,PH,TH,TWN,VN)202108-202208
3-SPOKE,LEATHER,MLM ADVENTURE PACKAGE,BLACK & GRAY NO.205,TRIM2#
main45100-0K641-C0iGUN135..H..PH;GUN126..LHD..S..GEN;GUN135..(H,S)..(GEN,TH);GUN120,121,122,125..S..TH;GUN125,126,136,TGN126..THP..H..(ARL,GEN,IDN,LA,PH,TH,TWN,VN)202108-202207
3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK & GRAY NO.205,TRIM2#
3-SPOKE,LEATHER,GR SPORT&STEERING WHEEL-GR SPORT(LEATHER),BLACK & GRAY NO.205,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#
main45100-0KF00-C0iGUN135..L..BZAG;GUN135..AGTP..LA;GUN125,126..AGTP..L;TGN126,136..AGTP..(L,S);GUN125,126..AGTP..S..LA202111-202210
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK & GRAY,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#
45107WIRE SUB-ASSY, HORN BUTTON
ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT
45116ORNAMENT, STEERING WHEEL, NO.1
BLACK,TRIM2#
main45116-0K030-C0iGUN135..L..VN;TGN126..THP..L..(GEN,LA);GUN120,122,125,TGN121..L..(GEN,IDN,PH,TH)202108-202207
BLACK,TRIM2#,3#
main45116-0K030-C0iGUN135..L..VN;TGN126..THP..L..(GEN,LA);GUN120,122,125,TGN121..L..(GEN,IDN,PH,TH)202108-202207
ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
45130BUTTON ASSY, HORN
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
GR SPORT,BLACK,TRIM2#
MLM ADVENTURE PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#,3#
MLM PACKAGE,BLACK,TRIM2#
GR SPORT&DOOR TRIM-LEATHER(GR SPORT),BLACK,TRIM2#
BLACK,TRIM2#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM2#,3#
BLACK,TRIM2#
MLM ADVENTURE PACKAGE,BLACK,TRIM2#,3#
MLM ADVENTURE PACKAGE,BLACK,TRIM2#
GR SPORT&STEERING WHEEL-GR SPORT(LEATHER),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
MLM ADVENTURE PACKAGE,BLACK,TRIM2#
GR SPORT,BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM2#
CRUISE CONTROL-WITH,BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#,3#
main45186-0K130-C0iGUN126..S..GEN;GUN125..6FC..(GEN,IDN);GUN135..THP..6FC..(L,S)..(LA,PH,TH);GUN125,135..6F..(L,S)..(GEN,IDN,PH,TH,VN);GUN120,121,122,TGN121,126,136..THP..(L,S)..(GEN,202108-202207
BLACK,TRIM2#,3#
main45186-0K130-C0iGUN126..S..GEN;GUN125..6FC..(GEN,IDN);GUN135..THP..6FC..(L,S)..(LA,PH,TH);GUN125,135..6F..(L,S)..(GEN,IDN,PH,TH,VN);GUN120,121,122,TGN121,126,136..THP..(L,S)..(GEN,202108-202301
BLACK,TRIM2#
main45186-0K130-C0iGUN126..S..GEN;GUN125..6FC..(GEN,IDN);GUN135..THP..6FC..(L,S)..(LA,PH,TH);GUN125,135..6F..(L,S)..(GEN,IDN,PH,TH,VN);GUN120,121,122,TGN121,126,136..THP..(L,S)..(GEN,202108-202207
MLM ADVENTURE PACKAGE&CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
main45186-0K130-C0iGUN126..S..GEN;GUN125..6FC..(GEN,IDN);GUN135..THP..6FC..(L,S)..(LA,PH,TH);GUN125,135..6F..(L,S)..(GEN,IDN,PH,TH,VN);GUN120,121,122,TGN121,126,136..THP..(L,S)..(GEN,202108-202207
GR SPORT&CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
main45186-0K140-C0iGUN125,135..LHD..(H,L)..SA;GGN125,GUN122,126,136,TGN121..(H,L)..(GHA,KEN,SA)202109-202303
BLACK,TRIM2#
main45186-0K150-C0iGUN125..L..GHA;GUN125..LHD..S..(GHA,SA);GUN125,135..RHD..(KEN,SA);GUN126,136,LAN125,TGN126,136..(L,S)..SA202109-202303
BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM2#
CRUISE CONTROL-WITH,BLACK,TRIM2#
CRUISE CONTROL-WITH (HIGH SPEED *ACC),BLACK,TRIM2#
main45186-0K160-C0iTGN136..S..LA;GUN126,135..(L,S)..BZAG;GUN125,136,TGN138..AGTP..(L,S);GUN126,135..AGTP..6F..(L,S)..LA202111-202210
BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM2#,3#
BLACK,TRIM2#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401
8408
9015950199
main90159-50199
12 parts on this diagram · 1 diagram in section
