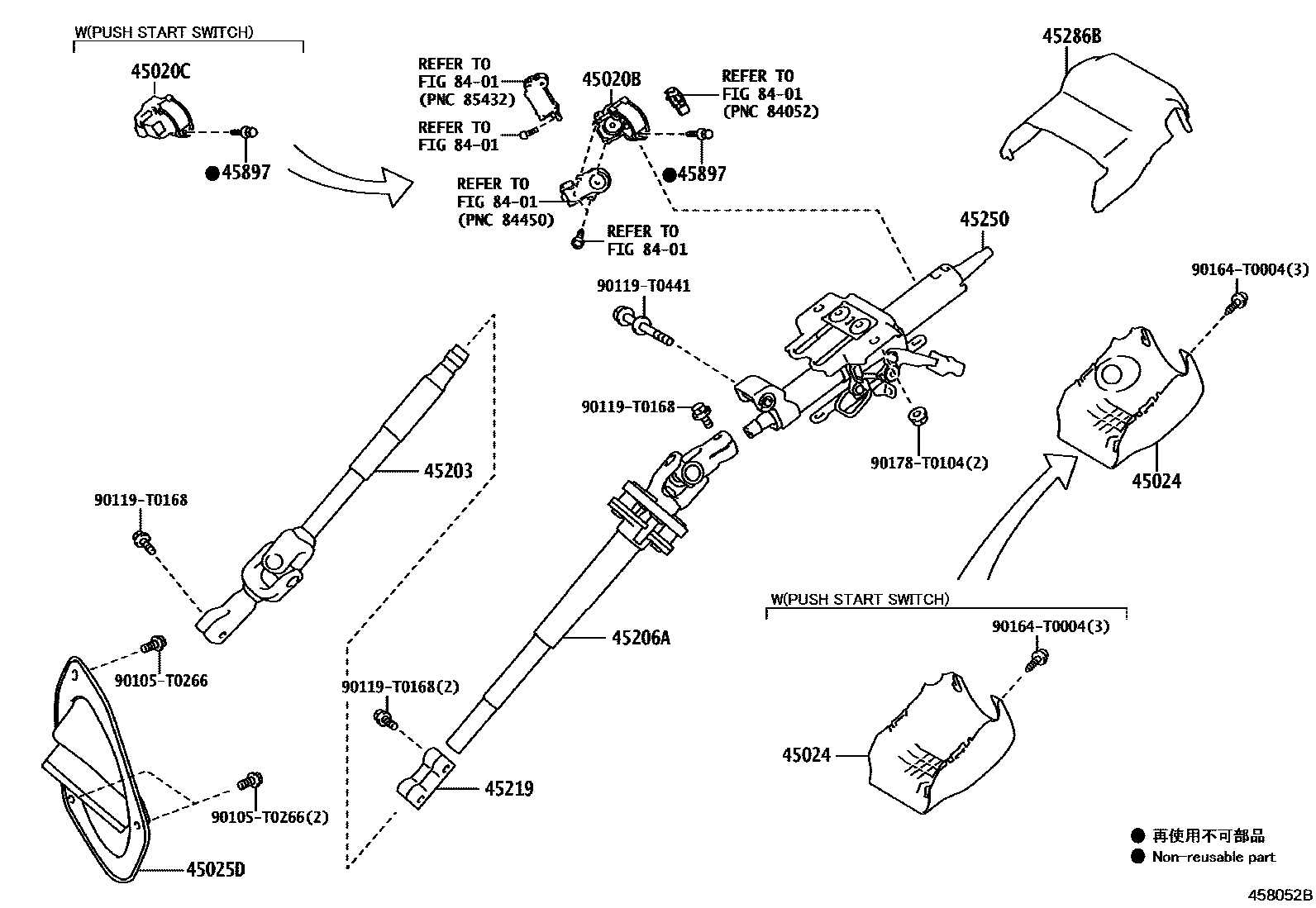

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
main45280-0K120iGUN126,13#..THP..6FC..(L,S);GUN126..THP..6FC..H..(GCC,LA);GUN120,121,125,TGN121,126..THP..6FC202108-202207
WIRELESS DOOR LOCK-WITH
main45280-0K180iGUN126..6F..SA;GUN136..6F..S..SA;GUN122,125,135,LAN125,TGN121,126,136..MTM..(GHA,KEN,SA)202108-202303
WIRELESS DOOR LOCK-WITH
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
main45020-0K190iTGN126..THP..H..LA;GUN125,126..H..(ARL,GEN,PH,TH,TWN,VN);GGN125,GUN13#..H..(ARL,GCC,GEN,PH,TH)202108-202207
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main45020-0K190iTGN126..THP..H..LA;GUN125,126..H..(ARL,GEN,PH,TH,TWN,VN);GGN125,GUN13#..H..(ARL,GCC,GEN,PH,TH)202108-202207
STEERING COLUMN-WITH(TILT & TELESCOPIC,WITH(*SES))
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
main45024-0K010-C0iGUN126,136..THP..H..LA;GUN125,TGN126..THP..6FC..(ARL,GEN,IDN,LA);GUN125..THP..6F..(L,S)..(ARL,GEN,IDN,LA,PH,TH,VN);GUN120,121,122,126,13#,TGN121,126,136..THP..(L,S)202108-202301
BLACK,TRIM2#
sub45024-0K011
main45024-0K010-C0iGUN126,136..THP..H..LA;GUN125,TGN126..THP..6FC..(ARL,GEN,IDN,LA);GUN125..THP..6F..(L,S)..(ARL,GEN,IDN,LA,PH,TH,VN);GUN120,121,122,126,13#,TGN121,126,136..THP..(L,S)202108-202207
BLACK,TRIM2#,3#
sub45024-0K011
WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
sub45024-0K011
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#,3#
sub45024-0K031
STEERING COLUMN-WITH(TILT & TELESCOPIC,WITH(*SES))&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK),BLACK,TRIM2#,3#
sub45024-0K031
BLACK,TRIM2#
BLACK,TRIM2#
main45024-0K060-C0iGUN126..AGTP..H..LA;GUN136..AGTP..6F..LA;GUN125,126,13#,TGN126,13#..AGTP..(L,S)202111-202210
WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
main45024-0K070-C0iGUN126..GHA,SA;GUN136..6FC..SA;GUN136..6F..S..SA;GGN125,GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303
BLACK,TRIM2#
sub45024-0K071
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING
45219YOKE, STEERING SLIDING
45250COLUMN ASSY, STEERING
main45250-0K060iGUN122..RHD..GEN;GUN125,135..GCC,VN;GUN122,126,TGN120,121,126..GCC;GUN125,TGN126..MTM..L..(GEN,IDN)202108-202207
STEERING COLUMN-WITH(TILT)
STEERING COLUMN-WITH(TILT & TELESCOPIC,WITHOUT(*SES))
main45250-0K070iGUN126..AGTP..H..LA;GUN136..AGTP..6F..LA;GUN125,126,13#,TGN126,13#..AGTP..(L,S)202108-202303
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main45250-0K080iTGN126..THP..H..LA;GUN125,126..H..(ARL,GEN,PH,TH,TWN,VN);GGN125,GUN13#..H..(ARL,GCC,GEN,PH,TH)202108-202207
STEERING COLUMN-WITH(TILT & TELESCOPIC,WITH(*SES))&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK)
main45250-0K080iTGN126..THP..H..LA;GUN125,126..H..(ARL,GEN,PH,TH,TWN,VN);GGN125,GUN13#..H..(ARL,GCC,GEN,PH,TH)202108-202207
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
8401
90105T0266
main90105-T0266
90119T0168
main90119-T0168
90119T0441
main90119-T0441
90164T0004
main90164-T0004
90178T0104
main90178-T0104
16 parts on this diagram · 1 diagram in section
