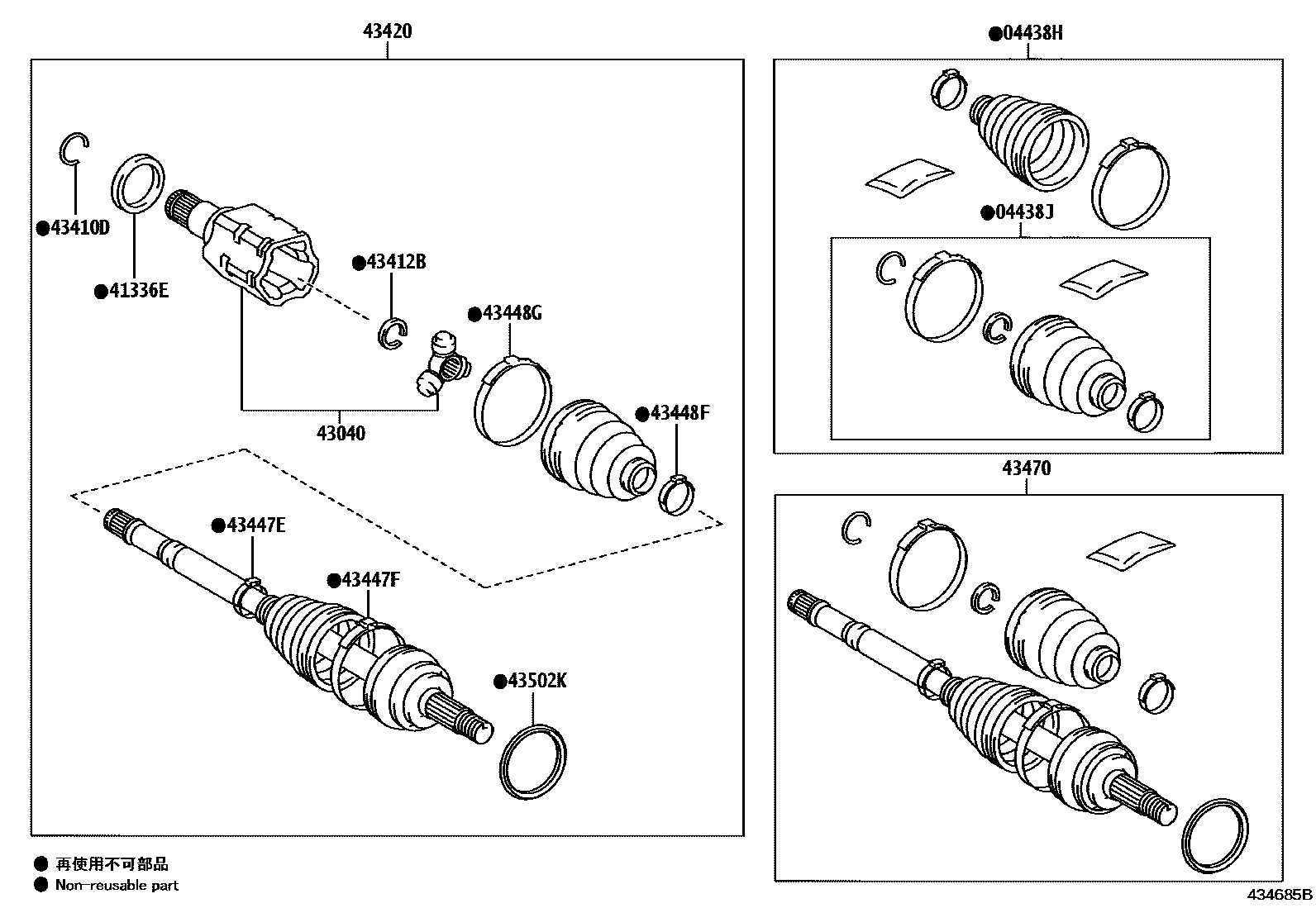

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-0D581iGUN125,126..MA202110-202208

main04427-0K050iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main04427-0K062iGGN125,GUN125,126,TGN126..MMRP,THP202108-202202

sub04427-0K063

main04427-0K063iGUN126..IND202202-202301

sub04427-0K090

main04427-0K072iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-0D420iGUN125,126..MA202110-202208

main04437-0K050iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main04437-0K061iGUN126..IND202108-202301

main04437-0K071iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-0K051iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main41336-0K071iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

main41336-0K080iGUN126..IND202108-202301

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-0K050iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main43040-0K060iGGN125,GUN125,126,TGN126..THP202108-202301

main43040-0K070iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

main43040-0K080iGUN125,126..MA202110-202208

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-0K060iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main43430-0K070iGUN126..MMR,PKN202108-202301

main43430-0K080iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

main43430-0K130iGUN125,126..MA202110-202208

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main43425-0K040iGGN125,GUN125,126,TGN126..THP202108-202301

main43425-0K080iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main43425-0K110iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-0K130iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main43425-0K140iGUN125,126..MA202108-202301

main43425-0K150iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-0K060iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main43430-0K070iGUN126..IND202108-202301

main43430-0K080iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

main43430-0K130iGUN125,126..MA202110-202208

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K070iGUN126..MMR,PKN202108-202301

main42345-0K090iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main42345-0K150iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K100iGUN125,126..MA202108-202301

main42345-0K120iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main42345-0K160iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K040iGGN125,GUN125,126,TGN126..THP202108-202301

main42345-0K060iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main42345-0K140iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K010iGGN125,GUN125,126,TGN126..THP202108-202301

main42345-0K030iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main42345-0K130iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-09Y50iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

main43460-09Y61iGGN125,GUN125,126,TGN126..MMRP,THP202108-202112

sub43460-09Y63

main43460-09Y63iGUN126..IND202112-202301

main43460-09Y70iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-T0001iGGN125,GUN125,126,TGN126..THP202108-202303

14 parts on this diagram · 2 diagrams in section
