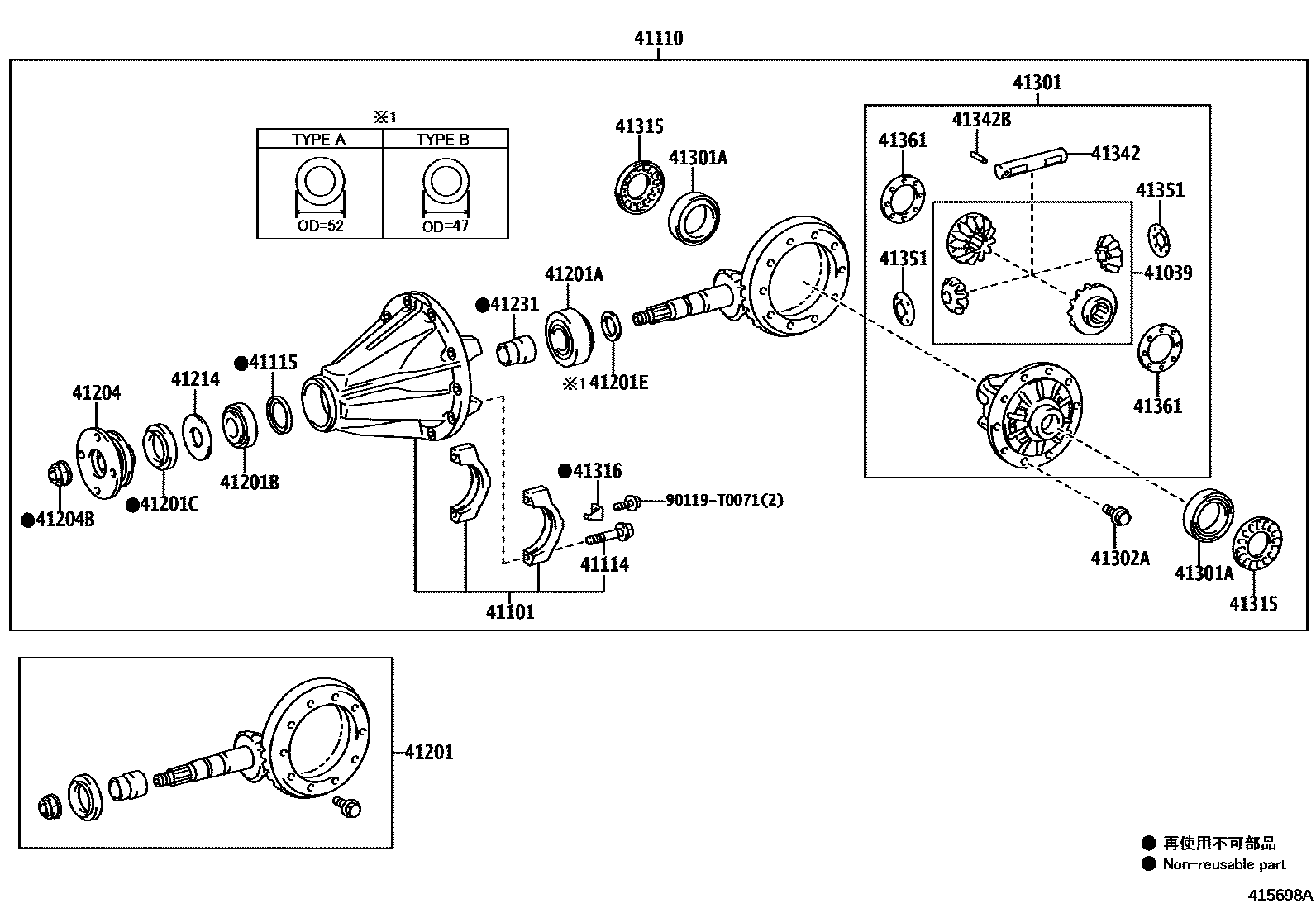

REAR AXLE HOUSING & DIFFERENTIAL

0001 1W/O(DIFFERENTIAL LOCK) 0002 1SAUDI ARABIA SPEC 0003 1W/O(DIFFERENTIAL LOCK) 0004 1W/O(DIFFERENTIAL LOCK) 0005 1W(DIFFERENTIAL LOCK) 0006 1W(DIFFERENTIAL LOCK) 0007 1W(DIFFERENTIAL LOCK) 0008 1 0009 1 0010 1W/O(DIFFERENTIAL LOCK) 0011 1W(DIFFERENTIAL LOCK)

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-0K010iGUN125..GHA202108-202303

main41039-0K010iGUN126..6FC..L;GUN125..6F..H..GCC;GUN125..L..(IDN,PH);GUN125..6FC..(H,S)..GCC;GUN135..THP..(H,S)..(GEN,LA);GGN125,GUN126,136,TGN126..THP..(H,S);GUN125..THP..(H,S)..202108-202301

DIFFERENTIAL LOCK-WITH

main41039-71011iTGN121..5F..GCC202108-202207

SAUDI ARABIA SPEC

main41039-71011iLAN125202108-202301

main41039-71070iGUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN126,135..THP..6F..L..(GEN,LA);GUN125,TGN126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..THP..(ARL,GCC,GEN,LA,TH)202108-202207

DIFFERENTIAL LOCK-WITHOUT

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0K011iLAN125202108-202301

main41101-0K011iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC

main41101-0K070iGUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN126,135..THP..6F..L..(GEN,LA);GUN125,TGN126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..THP..(ARL,GCC,GEN,LA,TH)202108-202207

DIFFERENTIAL LOCK-WITHOUT

main41101-0K080iGUN125..6F..L..GCC;GUN126,135..THP..6F..L..LA;GUN125,TGN126..THP..L..(GEN,LA)202108-202207

DIFFERENTIAL LOCK-WITH

main41101-0K080iGUN126..IND202108-202301

main41101-0K110iGUN136..6FC..LA;GUN13#,TGN138..BZAG;TGN126,136..AGTP..L;GUN126..6FC..H..BZAG;GGN125,GUN125,135..AGTP..(H,L)..LA202109-202301

main41101-0K120iGUN126..AGTP..(L,S);GUN126..AGTP..H..LA;GUN126..6F..H..BZAG;GUN136..AGTP..6F..LA;GGN125,GUN125,TGN128..BZAG;GUN125,135,TGN126,136..AGTP..(H,S)..LA202109-202210

DIFFERENTIAL LOCK-WITH

main41101-0K120iGUN125..KEN;GUN135..LHD..SA;GUN125..LHD..6FC..SA;GGN125,GUN125,126,136..H..(GHA,KEN,SA)202109-202303

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0K570iGUN125..6F..S..GCC;GUN135..THP..L..LA;GUN135..6F..(PH,VN);GUN135..RHD..THP..6F;GUN120,122..GCC,GEN,TH;GUN125,126..THP..6F..L..(ARL,GCC,GEN,LA)202108-202207

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT

main41110-0K570iGUN125..6F..S..GCC;GUN135..THP..L..LA;GUN135..6F..(PH,VN);GUN135..RHD..THP..6F;GUN120,122..GCC,GEN,TH;GUN125,126..THP..6F..L..(ARL,GCC,GEN,LA)202108-202207

*FGR=43:12=3.583

main41110-0K580iGUN121202108-202207

*FGR=43:11=3.909

main41110-0K580iGUN121202108-202207

*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITHOUT

main41110-0K590iGUN125..6FC..(H,S)..GCC202108-202207

*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITHOUT

main41110-0K590iTGN121..THP;GUN125..6FC..L;GUN135..6FC..(ARL,PH,TH,VN)202108-202207

*FGR=41:10=4.100

main41110-0K610iTGN126,136..THP..L202108-202207

*FGR=41:9=4.555

main41110-0K610iTGN126..(H,S)..GCC202108-202207

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITHOUT

main41110-0K620iGUN126..6F..IND202108-202301

*FGR=43:12=3.583

main41110-0K620iGUN125..6F..H..GCC;GUN125..L..(IDN,PH);GUN126..THP..6F..(H,S);GUN135..THP..6F..(H,S)..(GEN,LA);GUN125,136..THP..6F..(H,S)..(ARL,GEN,IDN,LA,TH,VN)202108-202207

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

main41110-0K630iGGN125,GUN126,136..THP..6FC202108-202301

*FGR=43:11=3.909

main41110-0K640iGUN125..6FC..L..GEN202108-202208

*FGR=41:10=4.100

main41110-0K640iGUN125,135..THP..6FC..(H,S)..(GCC,GEN,IDN,LA)202108-202207

*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH

main41110-0K660iTGN126..THP..L..(GEN,LA)202108-202207

*FGR=41:9=4.555

main41110-0K660iTGN126..THP..(H,S)202108-202207

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH

main41110-0K670iGUN13#..6F..BZAG;GUN125,135..AGTP..L..LA202111-202210

*FGR=43:12=3.583

sub41110-0K671

main41110-0K670iGUN13#..6F..BZAG;GUN125,135..AGTP..L..LA202111-202210

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT

sub41110-0K671

main41110-0K680iGGN125..LA;GUN136..AGTP..6FC;GUN126..6FC..H..BZAG202111-202210

*FGR=43:11=3.909

sub41110-0K681

main41110-0K710iTGN138;TGN126,136..AGTP..L202111-202210

*FGR=41:9=4.555

sub41110-0K711

main41110-0K720iGUN125,135..AGTP..L..LA202111-202210

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

sub41110-0K721

main41110-0K720iGUN125..BZAG;GUN126..AGTP..6F;GUN125,13#..AGTP..6F..(H,S)..LA202111-202210

*FGR=43:12=3.583

sub41110-0K721

main41110-0K730iGGN125..BZAG;GUN126..AGTP..6FC..S;GUN126..AGTP..6FC..H..LA202111-202210

*FGR=43:11=3.909

sub41110-0K731

main41110-0K730iGGN125..BZAG;GUN126..AGTP..6FC..S;GUN126..AGTP..6FC..H..LA202111-202210

*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH

sub41110-0K731

main41110-0K760iTGN126,128,136..AGTP..(H,S)202111-202210

*FGR=41:9=4.555

sub41110-0K761

main41110-0K760iTGN126,128,136..AGTP..(H,S)202111-202210

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH

sub41110-0K761

main41110-0K770iGUN135..RHD..6F..SA;GUN122,125,126,136..MTM..(L,S)..SA202109-202301

*FGR=43:12=3.583

sub41110-0K771

main41110-0K780iGUN126,136..6FC..S..SA202109-202301

*FGR=43:11=3.909

sub41110-0K781

main41110-0K790iGUN125..RHD..6FC..SA;GUN135,TGN121..(5F,6FC)..SA202109-202301

*FGR=41:10=4.100

sub41110-0K791

main41110-0K800iTGN126..L..SA202109-202301

*FGR=43:10=4.300

sub41110-0K801

main41110-0K810iTGN136..SA;TGN126..S..SA202109-202301

*FGR=41:9=4.555,TIRE & DISC WHEEL-225/70R17C STEEL

sub41110-0K811

main41110-0K810iTGN136..SA;TGN126..S..SA202109-202301

*FGR=41:9=4.555

sub41110-0K811

main41110-0K820iGUN125..KEN;GUN135..LHD..SA;GUN125,126,136..6F..H..(KEN,SA)202109-202303

*FGR=43:12=3.583

sub41110-0K821

main41110-0K830iGGN125,GUN126,136..6FC..H..(GHA,KEN,SA)202109-202303

*FGR=43:11=3.909

sub41110-0K831

main41110-0K840iGUN125..LHD..6FC..SA202109-202301

*FGR=41:10=4.100

sub41110-0K841

main41110-0K840iGUN125..LHD..6FC..SA202109-202301

*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH

sub41110-0K841

main41110-0K880iGUN135..6FC..BZAG202111-202210

*FGR=41:10=4.100

sub41110-0K881

main41110-0K890iGUN125,135..AGTP..6FC..LA202111-202210

*FGR=41:10=4.100

sub41110-0K891

main41110-0KB30iGUN122..PH202108-202207

*FGR=43:12=3.583

main41110-0KB60iLAN125202109-202301

*FGR=43:10=4.300

main41110-0KB70iTGN120202108-202207

*FGR=41:9=4.555

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-F0001iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

TYPE A:REFER ILLUST.

main90105-T0081iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC

main90105-T0081iLAN125202108-202301

main90109-F0001iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

TYPE B:REFER ILLUST.

main90109-T0030iGUN125,126..MA202108-202301

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0K010iTGN121..5F..GCC202108-202207

SAUDI ARABIA SPEC

main41115-0K010iLAN125202108-202301

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09B60iGUN126..6F..PKN202108-202301

*FGR=43:12=3.583

main41201-09B70iGUN126..6FC..IND202108-202301

*FGR=43:11=3.909

main41201-09B80iGUN125..6FC..MA202108-202208

*FGR=41:10=4.100

main41201-09C10iTGN126,136..THP202108-202207

*FGR=41:9=4.555

main41201-09C30iLAN125202109-202301

*FGR=43:10=4.300

main41201-09C40iTGN120202108-202207

*FGR=41:9=4.555

main41201-09C50iGUN122..PH202108-202207

*FGR=43:12=3.583

main41201-09E41iGUN125..GHA202109-202303

*FGR=43:12=3.583

sub41201-09E42

main41201-09E81iTGN136..SA;TGN126..S..SA202109-202301

*FGR=41:9=4.555,TIRE & DISC WHEEL-225/70R17C STEEL

sub41201-09E82

main41201-09E81iLAN125..S202109-202301

*FGR=41:9=4.555

sub41201-09E82

main41201-09E81iLAN125..S202109-202301

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH&TIRE & DISC WHEEL-265/65R17 STEEL

sub41201-09E82

main41201-09E81iLAN125..S202109-202301

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH&TIRE & DISC WHEEL-265/65R17 ALUMINUM

sub41201-09E82

main41201-09F50iGGN125,GUN126,136..AGTP..6FC202111-202210

*FGR=43:11=3.909

sub41201-09F51

main41201-09F70iGGN125,GUN126,136..6FC..(GHA,KEN,SA)202109-202303

*FGR=43:11=3.909

sub41201-09F71

main41201-09F80iGUN125,135,TGN121..(5F,6FC)..SA202109-202301

*FGR=41:10=4.100

sub41201-09F81

main41201-09F90iLAN125202109-202301

*FGR=43:10=4.300,DIFFERENTIAL LOCK-WITH

sub41201-09F91

main41201-09F90iLAN125202109-202301

*FGR=43:10=4.300

sub41201-09F91

main41201-09G00iGUN125,135..AGTP..6FC202111-202210

sub41201-09G01

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-S0016iGUN126..GHA,KEN,SA;GGN125,GUN122,125,13#,TGN121,126,136..KEN,SA202109-202303

main90366-T0065iGUN126..MMR,PKN202108-202301

main90366-T0080iTGN121..5F..GCC202108-202207

SAUDI ARABIA SPEC

main90366-T0080iLAN125202108-202301

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-S0013iGUN125..GHA202109-202303

main90366-T0062iGUN126..MMR,PKN202108-202301

main90366-T0083iTGN121..5F..GCC202108-202207

SAUDI ARABIA SPEC

main90366-T0083iLAN125202108-202301

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-S0001iGUN126..GHA,KEN,SA;GGN125,GUN122,125,13#,TGN121,126,136..KEN,SA202109-202303

sub90311-53001

main90311-T0065iGUN126..IND202108-202301

main90311-T0068iTGN121..5F..GCC202108-202207

SAUDI ARABIA SPEC

main90311-T0068iLAN125202108-202301

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90201-35497iTGN120;GUN122..PH202108-202301

OD=47,T=1.70,TYPE B:REFER ILLUST.

main90201-35497iTGN120;GUN122..PH202108-202207

OD=47,T=1.70,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35498iTGN120;GUN122..PH202108-202301

OD=47,T=1.73,TYPE B:REFER ILLUST.

main90201-35498iTGN120;GUN122..PH202108-202207

OD=47,T=1.73,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35499iTGN121..5F..GCC202108-202301

OD=47,T=1.76,TYPE B:REFER ILLUST.

main90201-35499iTGN120;GUN122..PH202108-202207

OD=47,T=1.76,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35500iTGN121..5F..GCC202108-202301

OD=47,T=1.79,TYPE B:REFER ILLUST.

main90201-35500iTGN121..5F..GCC202108-202207

OD=47,T=1.79,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35501iTGN121..5F..GCC202108-202301

OD=47,T=1.82,TYPE B:REFER ILLUST.

main90201-35501iTGN120;GUN122..PH202108-202207

OD=47,T=1.82,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35502iTGN120;GUN122..PH202108-202301

OD=47,T=1.85,TYPE B:REFER ILLUST.

main90201-35502iTGN120;GUN122..PH202108-202207

OD=47,T=1.85,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35503iTGN121..5F..GCC202108-202301

OD=47,T=1.88,TYPE B:REFER ILLUST.

main90201-35503iTGN121..5F..GCC202108-202207

OD=47,T=1.88,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35504iTGN120;GUN122..PH202108-202207

OD=47,T=1.91,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35504iTGN120;GUN122..PH202108-202301

OD=47,T=1.91,TYPE B:REFER ILLUST.

main90201-35505iTGN120;GUN122..PH202108-202207

OD=47,T=1.94,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35505iLAN125202108-202301

OD=47,T=1.94,TYPE B:REFER ILLUST.

main90201-35506iTGN121..5F..GCC202108-202301

OD=47,T=1.97,TYPE B:REFER ILLUST.

main90201-35506iTGN121..5F..GCC202108-202207

OD=47,T=1.97,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35507iTGN121..5F..GCC202108-202301

OD=47,T=2.00,TYPE B:REFER ILLUST.

main90201-35507iTGN120;GUN122..PH202108-202207

OD=47,T=2.00,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35508iTGN121..5F..GCC202108-202207

OD=47,T=2.03,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35508iLAN125202108-202301

OD=47,T=2.03,TYPE B:REFER ILLUST.

main90201-35509iTGN120;GUN122..PH202108-202207

OD=47,T=2.06,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35509iLAN125202108-202301

OD=47,T=2.06,TYPE B:REFER ILLUST.

main90201-35510iTGN121..5F..GCC202108-202301

OD=47,T=2.09,TYPE B:REFER ILLUST.

main90201-35510iTGN120;GUN122..PH202108-202207

OD=47,T=2.09,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35511iLAN125202108-202301

OD=47,T=2.12,TYPE B:REFER ILLUST.

main90201-35511iTGN120;GUN122..PH202108-202207

OD=47,T=2.12,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35512iLAN125202108-202301

OD=47,T=2.15,TYPE B:REFER ILLUST.

main90201-35512iTGN120;GUN122..PH202108-202207

OD=47,T=2.15,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35513iLAN125202108-202301

OD=47,T=2.18,TYPE B:REFER ILLUST.

main90201-35513iTGN120;GUN122..PH202108-202207

OD=47,T=2.18,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35514iLAN125202108-202301

OD=47,T=2.21,TYPE B:REFER ILLUST.

main90201-35514iTGN121..5F..GCC202108-202207

OD=47,T=2.21,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35515iTGN120;GUN122..PH202108-202207

OD=47,T=2.24,MARK 01,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35515iTGN121..5F..GCC202108-202301

OD=47,T=2.24,MARK 01,TYPE B:REFER ILLUST.

main90201-35516iTGN121..5F..GCC202108-202301

OD=47,T=2.27,MARK 02,TYPE B:REFER ILLUST.

main90201-35516iTGN120;GUN122..PH202108-202207

OD=47,T=2.27,MARK 02,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35517iTGN120;GUN122..PH202108-202301

OD=47,T=2.30,MARK 03,TYPE B:REFER ILLUST.

main90201-35517iTGN121..5F..GCC202108-202207

OD=47,T=2.30,MARK 03,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35518iTGN120;GUN122..PH202108-202207

OD=47,T=2.33,MARK 04,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35518iTGN121..5F..GCC202108-202301

OD=47,T=2.33,MARK 04,TYPE B:REFER ILLUST.

main90564-35109iTGN121..5F..GCC202108-202301

OD=52,T=1.70,TYPE A:REFER ILLUST.

main90564-35109iTGN120;GUN122..PH202108-202207

OD=52,T=1.70,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35110iTGN120;GUN122..PH202108-202207

OD=52,T=1.73,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35110iTGN121..5F..GCC202108-202301

OD=52,T=1.73,TYPE A:REFER ILLUST.

main90564-35111iTGN120;GUN122..PH202108-202207

OD=52,T=1.76,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35111iLAN125202108-202301

OD=52,T=1.76,TYPE A:REFER ILLUST.

main90564-35112iTGN121..5F..GCC202108-202301

OD=52,T=1.79,TYPE A:REFER ILLUST.

main90564-35112iTGN120;GUN122..PH202108-202207

OD=52,T=1.79,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35113iLAN125202108-202301

OD=52,T=1.82,TYPE A:REFER ILLUST.

main90564-35113iTGN121..5F..GCC202108-202207

OD=52,T=1.82,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35114iTGN120;GUN122..PH202108-202207

OD=52,T=1.85,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35114iTGN120;GUN122..PH202108-202301

OD=52,T=1.85,TYPE A:REFER ILLUST.

main90564-35115iLAN125202108-202301

OD=52,T=1.88,TYPE A:REFER ILLUST.

main90564-35115iTGN120;GUN122..PH202108-202207

OD=52,T=1.88,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35116iTGN121..5F..GCC202108-202207

OD=52,T=1.91,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35116iTGN120;GUN122..PH202108-202301

OD=52,T=1.91,TYPE A:REFER ILLUST.

main90564-35117iTGN120;GUN122..PH202108-202207

OD=52,T=1.94,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35117iTGN121..5F..GCC202108-202301

OD=52,T=1.94,TYPE A:REFER ILLUST.

main90564-35118iTGN121..5F..GCC202108-202207

OD=52,T=1.97,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35118iTGN120;GUN122..PH202108-202301

OD=52,T=1.97,TYPE A:REFER ILLUST.

main90564-35119iTGN120;GUN122..PH202108-202207

OD=52,T=2.00,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35119iTGN121..5F..GCC202108-202301

OD=52,T=2.00,TYPE A:REFER ILLUST.

main90564-35120iTGN121..5F..GCC202108-202301

OD=52,T=2.03,TYPE A:REFER ILLUST.

main90564-35120iTGN120;GUN122..PH202108-202207

OD=52,T=2.03,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35121iTGN120;GUN122..PH202108-202207

OD=52,T=2.06,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35121iTGN120;GUN122..PH202108-202301

OD=52,T=2.06,TYPE A:REFER ILLUST.

main90564-35123iTGN120;GUN122..PH202108-202207

OD=52,T=2.09,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35123iTGN121..5F..GCC202108-202301

OD=52,T=2.09,TYPE A:REFER ILLUST.

main90564-35124iTGN120;GUN122..PH202108-202207

OD=52,T=2.12,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35124iLAN125202108-202301

OD=52,T=2.12,TYPE A:REFER ILLUST.

main90564-35125iTGN120;GUN122..PH202108-202301

OD=52,T=2.15,TYPE A:REFER ILLUST.

main90564-35125iTGN121..5F..GCC202108-202207

OD=52,T=2.15,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35126iTGN120;GUN122..PH202108-202207

OD=52,T=2.18,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35126iLAN125202108-202301

OD=52,T=2.18,TYPE A:REFER ILLUST.

main90564-35127iTGN120;GUN122..PH202108-202207

OD=52,T=2.21,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35127iLAN125202108-202301

OD=52,T=2.21,TYPE A:REFER ILLUST.

main90564-35128iTGN121..5F..GCC202108-202207

OD=52,T=2.24,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35128iTGN121..5F..GCC202108-202301

OD=52,T=2.24,TYPE A:REFER ILLUST.

main90564-35129iTGN120;GUN122..PH202108-202301

OD=52,T=2.27,TYPE A:REFER ILLUST.

main90564-35129iTGN121..5F..GCC202108-202207

OD=52,T=2.27,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35130iTGN120;GUN122..PH202108-202301

OD=52,T=2.30,TYPE A:REFER ILLUST.

main90564-35130iTGN121..5F..GCC202108-202207

OD=52,T=2.30,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35131iTGN121..5F..GCC202108-202301

OD=52,T=2.33,TYPE A:REFER ILLUST.

main90564-35131iTGN121..5F..GCC202108-202207

OD=52,T=2.33,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-78001iGUN125,126..MA202108-202301

T=1.72

main90564-78002iGUN125,126..MA202108-202301

T=1.74

main90564-78003iGUN126..MMR,PKN202108-202301

T=1.76

main90564-78004iGUN125,126,135..THP;GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202108-202301

T=1.78

main90564-78005iGUN126..IND202108-202301

T=1.80

main90564-78006iGUN126..MMR,PKN202108-202301

T=1.82

main90564-78007iGUN126..IND202108-202301

T=1.84

main90564-78008iGUN126..MMR,PKN202108-202301

T=1.86

main90564-78009iGUN126..IND202108-202301

T=1.88

main90564-78010iGUN125,126..MA202108-202301

T=1.90

main90564-78011iGUN126..MMR,PKN202108-202301

T=1.92

main90564-78012iGUN125,126..MA202108-202301

T=1.94

main90564-78013iGUN126..MMR,PKN202108-202301

T=1.96

main90564-78014iGUN125,126,135..THP;GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202108-202301

T=1.98

main90564-78015iGUN125,126..MA202108-202301

T=2.00

main90564-78016iGUN126..MMR,PKN202108-202301

T=2.02

main90564-78017iGUN126..MMR,PKN202108-202301

T=2.04

main90564-78018iGUN125,126..MA202108-202301

T=2.06

main90564-78019iGUN125,126..MA202108-202301

T=2.08

main90564-78020iGUN126..IND202108-202301

T=2.10

main90564-78021iGUN125,126,135..THP;GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202108-202301

T=2.12

main90564-78022iGUN126..IND202108-202301

T=2.14

main90564-78023iGUN125,126..MA202108-202301

T=2.16

main90564-78024iGUN125,126..MA202108-202301

T=2.18

main90564-S0001iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

T=1.025

main90564-S0002iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202109-202303

T=1.050

main90564-S0003iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

T=1.075

main90564-S0004iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

T=1.100

main90564-S0005iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202109-202303

T=1.125

main90564-S0006iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202109-202303

T=1.150

main90564-S0007iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202109-202303

T=1.175

main90564-S0008iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202109-202303

T=1.200

main90564-S0009iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202109-202303

T=1.225

main90564-S0010iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202109-202303

T=1.250

main90564-S0011iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

T=1.275

main90564-S0012iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

T=1.300

main90564-S0013iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202109-202303

T=1.325

main90564-S0014iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

T=1.350

main90564-S0015iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

T=1.375

main90564-S0016iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202109-202303

T=1.400

main90564-S0017iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

T=1.425

main90564-S0018iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

T=1.450

main90564-S0019iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202109-202303

T=1.475

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0K100iTGN121..5F..GCC202108-202207

SAUDI ARABIA SPEC

main41204-0K100iLAN125202108-202301

main41204-0K110iGUN126..IND202108-202301

main41204-0K131iGUN125..GHA202109-202303

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iLAN125202108-202301

OD=39.5

main90177-22003iTGN120;GUN122..PH202108-202207

OD=39.5,SAUDI ARABIA SPEC

main90178-F0001iGUN125..GHA202109-202303

OD=43.5

main90179-22029iGUN125,126,135..THP;GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202108-202301

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0K040iGUN126..IND202108-202301

main41214-0K050iGUN125..GHA202109-202303

main41214-26011iLAN125202108-202301

main41214-26011iTGN121..5F..GCC202108-202207

SAUDI ARABIA SPEC

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-0K030iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

main41231-24010iTGN121..5F..GCC202108-202207

SAUDI ARABIA SPEC

main41231-24010iLAN125202108-202301

main41231-71010iGUN126..MMR,PKN202108-202301

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-0K100iGUN125,135..RHD..SA;GUN125..LHD..6F..(L,S)..SA;GUN122,126,136,TGN121,126,136..(L,S)..SA202109-202301

main41301-0K110iLAN125202108-202301

main41301-0K110iTGN121..5F..GCC202108-202207

SAUDI ARABIA SPEC

main41301-0K120iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

DIFFERENTIAL LOCK-WITHOUT

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-S0019iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

LH

main90366-S0022iGUN126..GHA,KEN,SA;GGN125,GUN122,125,13#,TGN121,126,136..KEN,SA202109-202303

RH

main90366-T0010iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC

main90366-T0010iLAN125202108-202301

main90366-T0068iGUN125,126..MA202108-202301

LH

main90366-T0071iGUN126..IND202108-202301

RH

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-0K020iGUN126..6FC..L;GUN125..6F..H..GCC;GUN125..L..(IDN,PH);GUN125..6FC..(H,S)..GCC;GUN135..THP..(H,S)..(GEN,LA);GGN125,GUN126,136,TGN126..THP..(H,S);GUN125..THP..(H,S)..202108-202207

DIFFERENTIAL LOCK-WITH

main41302-0K020iGUN125,126..MA202108-202301

main41302-0K030iGUN125..GHA202109-202303

main41302-0K030iTGN126..AGTP..L;GUN126..6FC..H..BZAG;GGN125,GUN125,135,TGN136..AGTP..(H,L)..LA202109-202210

DIFFERENTIAL LOCK-WITH

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-F0003iGUN126..GHA,KEN,SA;GGN125,GUN122,125,13#,TGN121,126,136..KEN,SA202109-202303

main90105-T0268iGUN125,126,135..THP;GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202108-202301

main90105-T0417iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC

main90105-T0417iLAN125202108-202301

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-0K010iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC,(L)

main41315-0K010iTGN120;GUN122..PH202108-202301

(L)

main41315-35020iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC,(J)

main41315-35020iTGN121..5F..GCC202108-202301

(J)

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-0K010iTGN120;GUN122..PH202108-202301

(L)

main41316-0K010iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC,(L)

main41316-35010iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC,(J)

main41316-35010iTGN120;GUN122..PH202108-202301

(J)

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0K060iLAN125202108-202301

main41342-0K060iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC

main41342-0K070iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

DIFFERENTIAL LOCK-WITHOUT

main41342-0K080iGUN126..AGTP..(L,S);GUN126..AGTP..H..LA;GUN126..6F..H..BZAG;GUN136..AGTP..6F..LA;GGN125,GUN125,TGN128..BZAG;GUN125,135,TGN126,136..AGTP..(H,S)..LA202108-202301

DIFFERENTIAL LOCK-WITH

main41342-0K080iGUN125..KEN;GUN135..LHD..SA;GUN125..LHD..6FC..SA;GGN125,GUN125,126,136..H..(GHA,KEN,MMR,SA)202108-202303

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-T0006iGUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN126,135..THP..6F..L..(GEN,LA);GUN120,121,122,TGN120,121,136..THP;GUN125,TGN126..THP..L..(ARL,GCC,GEN,LA)202108-202207

DIFFERENTIAL LOCK-WITHOUT

main90250-T0006iLAN125202108-202301

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-0K010iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC,(L)

main41351-0K010iTGN120;GUN122..PH202108-202301

(L)

main41351-0K040iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

DIFFERENTIAL LOCK-WITHOUT

main41351-0K050iGUN125..6F..L..GCC;GUN126,135..THP..6F..L..LA;GUN125,TGN126..THP..L..(GEN,LA)202108-202207

DIFFERENTIAL LOCK-WITH

main41351-0K050iGUN126..MMR,PKN202108-202301

main41351-0K060iTGN126..AGTP..L;GUN126..6FC..H..BZAG;GGN125,GUN125,135,TGN136..AGTP..(H,L)..LA202109-202210

DIFFERENTIAL LOCK-WITH

main41351-0K060iGUN125..GHA,KEN;GUN135..LHD..SA;GUN125..LHD..6FC..SA;GGN125,GUN125,126,136..H..(GHA,KEN,SA)202109-202303

main41351-35030iTGN120;GUN122..PH202108-202301

(J)

main41351-35030iTGN120;GUN122..PH202108-202207

SAUDI ARABIA SPEC,(J)

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020iLAN125202108-202301

T=1.55

main41361-0K020iTGN120;GUN122..PH202108-202207

T=1.55,SAUDI ARABIA SPEC

main41361-0K030iTGN120;GUN122..PH202108-202207

T=1.60,SAUDI ARABIA SPEC

main41361-0K030iTGN121..5F..GCC202108-202301

T=1.60

main41361-0K040iTGN121..5F..GCC202108-202301

T=1.65

main41361-0K040iTGN120;GUN122..PH202108-202207

T=1.65,SAUDI ARABIA SPEC

main41361-0K050iLAN125202108-202301

T=1.70

main41361-0K050iTGN120;GUN122..PH202108-202207

T=1.70,SAUDI ARABIA SPEC

main41361-0K060iLAN125202108-202301

T=1.75

main41361-0K060iTGN120;GUN122..PH202108-202207

T=1.75,SAUDI ARABIA SPEC

main41361-0K070iLAN125202108-202301

T=1.80

main41361-0K070iTGN120;GUN122..PH202108-202207

T=1.80,SAUDI ARABIA SPEC

main41361-0K080iTGN121..5F..GCC202108-202301

T=1.85

main41361-0K080iTGN121..5F..GCC202108-202207

T=1.85,SAUDI ARABIA SPEC

main41361-0K090iTGN121..5F..GCC202108-202301

T=1.90

main41361-0K090iTGN121..5F..GCC202108-202207

T=1.90,SAUDI ARABIA SPEC

main41361-0K110iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.45

main41361-0K110iGUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN126,135..THP..6F..L..(GEN,LA);GUN125,TGN126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..THP..(ARL,GCC,GEN,LA,TH)202108-202207

T=1.45,DIFFERENTIAL LOCK-WITHOUT

main41361-0K300iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.50,DIFFERENTIAL LOCK-WITHOUT

main41361-0K300iGUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN126,135..THP..6F..L..(GEN,LA);GUN125,TGN126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..THP..(ARL,GCC,GEN,LA,TH)202108-202207

T=1.50

main41361-0K310iGUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN126,135..THP..6F..L..(GEN,LA);GUN125,TGN126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..THP..(ARL,GCC,GEN,LA,TH)202108-202207

T=1.55

main41361-0K310iGUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN126,135..THP..6F..L..(GEN,LA);GUN125,TGN126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..THP..(ARL,GCC,GEN,LA,TH)202108-202207

T=1.55,DIFFERENTIAL LOCK-WITHOUT

main41361-0K320iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.60

main41361-0K320iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.60,DIFFERENTIAL LOCK-WITHOUT

main41361-0K330iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.65

main41361-0K330iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.65,DIFFERENTIAL LOCK-WITHOUT

main41361-0K340iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.70

main41361-0K340iGUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN126,135..THP..6F..L..(GEN,LA);GUN125,TGN126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..THP..(ARL,GCC,GEN,LA,TH)202108-202207

T=1.70,DIFFERENTIAL LOCK-WITHOUT

main41361-0K350iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.75,DIFFERENTIAL LOCK-WITHOUT

main41361-0K350iGUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN126,135..THP..6F..L..(GEN,LA);GUN125,TGN126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..THP..(ARL,GCC,GEN,LA,TH)202108-202207

T=1.75

main41361-0K360iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.80,DIFFERENTIAL LOCK-WITHOUT

main41361-0K360iGUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN126,135..THP..6F..L..(GEN,LA);GUN125,TGN126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..THP..(ARL,GCC,GEN,LA,TH)202108-202207

T=1.80

main41361-0K370iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.85,DIFFERENTIAL LOCK-WITHOUT

main41361-0K370iGUN126..GCC;GUN125..6F..H..GCC;GUN125..6F..S..GEN;GUN126..RHD..6F..H..GEN;GUN125..6FC..(H,S)..GCC;GGN125,GUN136,TGN126..(H,S)..(ARL,GCC)202108-202207

T=1.85

main41361-0K380iGUN126..6FC..L;GUN125..6F..H..GCC;GUN125..L..(IDN,PH);GUN125..6FC..(H,S)..GCC;GUN135..THP..(H,S)..(GEN,LA);GGN125,GUN126,136,TGN126..THP..(H,S);GUN125..THP..(H,S)..202108-202207

T=1.1,DIFFERENTIAL LOCK-WITH

main41361-0K380iGUN125..6F..L..GCC;GUN126,135..THP..6F..L..LA;GUN125,TGN126..THP..L..(GEN,LA)202108-202301

T=1.1

main41361-0K390iGUN126..6FC..L;GUN125..6F..H..GCC;GUN125..L..(IDN,PH);GUN125..6FC..(H,S)..GCC;GUN135..THP..(H,S)..(GEN,LA);GGN125,GUN126,136,TGN126..THP..(H,S);GUN125..THP..(H,S)..202108-202301

T=1.2

main41361-0K390iGUN126..6FC..L;GUN125..6F..H..GCC;GUN125..L..(IDN,PH);GUN125..6FC..(H,S)..GCC;GUN135..THP..(H,S)..(GEN,LA);GGN125,GUN126,136,TGN126..THP..(H,S);GUN125..THP..(H,S)..202108-202207

T=1.2,DIFFERENTIAL LOCK-WITH

main41361-0K400iGUN126..6FC..L;GUN125..6F..H..GCC;GUN125..L..(IDN,PH);GUN125..6FC..(H,S)..GCC;GUN135..THP..(H,S)..(GEN,LA);GGN125,GUN126,136,TGN126..THP..(H,S);GUN125..THP..(H,S)..202108-202207

T=1.3,DIFFERENTIAL LOCK-WITH

main41361-0K400iGUN125,126..MA202108-202301

T=1.3

main41361-0K410iGUN126..6FC..L;GUN125..6F..H..GCC;GUN125..L..(IDN,PH);GUN125..6FC..(H,S)..GCC;GUN135..THP..(H,S)..(GEN,LA);GGN125,GUN126,136,TGN126..THP..(H,S);GUN125..THP..(H,S)..202108-202301

T=1.4

main41361-0K410iGUN125..6F..L..GCC;GUN126,135..THP..6F..L..LA;GUN125,TGN126..THP..L..(GEN,LA)202108-202207

T=1.4,DIFFERENTIAL LOCK-WITH

main41361-0K460iTGN126..AGTP..L;GUN126..6FC..H..BZAG;GGN125,GUN125,135,TGN136..AGTP..(H,L)..LA202109-202210

T=1.1,DIFFERENTIAL LOCK-WITH

main41361-0K460iGUN126..AGTP..(L,S);GUN126..AGTP..H..LA;GUN126..6F..H..BZAG;GUN136..AGTP..6F..LA;GGN125,GUN125,TGN128..BZAG;GUN125,135,TGN126,136..AGTP..(H,S)..LA202109-202303

T=1.1

main41361-0K470iGUN126..AGTP..(L,S);GUN126..AGTP..H..LA;GUN126..6F..H..BZAG;GUN136..AGTP..6F..LA;GGN125,GUN125,TGN128..BZAG;GUN125,135,TGN126,136..AGTP..(H,S)..LA202109-202303

T=1.2

main41361-0K470iTGN126..AGTP..L;GUN126..6FC..H..BZAG;GGN125,GUN125,135,TGN136..AGTP..(H,L)..LA202109-202210

T=1.2,DIFFERENTIAL LOCK-WITH

main41361-0K480iGUN126..AGTP..(L,S);GUN126..AGTP..H..LA;GUN126..6F..H..BZAG;GUN136..AGTP..6F..LA;GGN125,GUN125,TGN128..BZAG;GUN125,135,TGN126,136..AGTP..(H,S)..LA202109-202210

T=1.3,DIFFERENTIAL LOCK-WITH

main41361-0K480iGUN125..GHA,KEN;GUN135..LHD..SA;GUN125..LHD..6FC..SA;GGN125,GUN125,126,136..H..(GHA,KEN,SA)202109-202303

T=1.3

main41361-0K490iTGN126..AGTP..L;GUN126..6FC..H..BZAG;GGN125,GUN125,135,TGN136..AGTP..(H,L)..LA202109-202210

T=1.4,DIFFERENTIAL LOCK-WITH

main41361-0K490iGUN126..AGTP..(L,S);GUN126..AGTP..H..LA;GUN126..6F..H..BZAG;GUN136..AGTP..6F..LA;GGN125,GUN125,TGN128..BZAG;GUN125,135,TGN126,136..AGTP..(H,S)..LA202109-202303

T=1.4

90119T0071

main90119-T0071

25 parts on this diagram · 11 diagrams in section
