TRANSFER LEVER & SHIFT ROD

3609

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06007iGUN125,126..MA202108-202303

L=8.6,OD=6,*382,*381

36275PLUG, SHIFT DETENT BALL SPRING

main33593-35030iGUN126..6FC..(GHA,KEN)202302-202303

*382,*381

main90341-12038iGUN126..PKN202108-202303

*381

main90341-T0018iGUN126..MMR,SA;GUN126..6F..KEN;GGN125,GUN125,LAN125,TGN126..GHA,KEN,SA202108-202303

*382

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-18091iGGN125,GUN125,126,TGN126,128..AGTP202108-202303

L=20.8,*381

main90501-T0042iGUN126..PKN202108-202303

L=20.8,*382

36275BBALL, SHIFT DETENT

main90360-10003iGGN125,GUN125,126,TGN126..THP202108-202303

OD=9.52,STEEL,*381

main90360-T0008iGUN125,126..MA202108-202303

OD=9.53,STEEL,*382

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-0K010iGUN126..PKN202108-202303

*382

sub36311-0K011

main36311-0K011iGUN126..6FC..(GHA,KEN)202302-202303

*382

main36311-34010iGUN126..PKN202108-202303

*381

sub36311-34011

main36311-34011iGUN126..6FC..(GHA,KEN)202302-202303

*381

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iGUN125,126..MA202108-202303

*381

main90520-T0237iGUN126..PKN202108-202303

*382

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-0K010iGUN126..MMR,SA;GUN126..6F..KEN;GGN125,GUN125,LAN125,TGN126..GHA,KEN,SA202108-202303

*382

sub36312-0K011

main36312-0K011iGUN126..6FC..(GHA,KEN)202302-202303

*382

main36312-34010iGUN126..IND202108-202303

*381

sub36312-34011

main36312-34011iGUN126..6FC..(GHA,KEN)202302-202303

*381

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-0K030iGGN125,GUN125,126,TGN126..THP202108-202303

*382

main36313-34011iGGN125,GUN125,126,TGN126,128..AGTP202108-202303

*381

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-0K020iGGN125,GUN125,126,TGN126..THP202108-202303

*382

main36317-35041iGUN126..PKN202108-202303

*381

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-0K010iGGN125..SA202108-202301

*382

main36410-0K020iGUN125,126,TGN126..THP202108-202303

*382

main36410-71010iGGN125..SA202108-202301

*381

main36410-71020iGUN126..IND202108-202303

*381

36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)

main90301-28013iGGN125,GUN125,126,TGN126..THP202108-202303

*381

main90301-T0066iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,MMR,SA202108-202303

*382

36470ABRACKET ASSY, TRANSFER BREATHER

main36470-0K010iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,MMR,SA202108-202303

*382,NO.1:REFER ILL.

main36470-0K020iGUN126..PKN202108-202303

*382,NO.2:REFER ILL.

main36470-71010iGUN125,126..MA202108-202303

*381,NO.1:REFER ILL.

main36470-71020iGGN125,GUN125,126,TGN126,128..AGTP202108-202303

*381,NO.2:REFER ILL.

36478BBRACKET, TRANSFER BREATHER

main36478-71060iGGN125..GCC202108-202301

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

8271147120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-47120

90105T0327

main90105-T0327

90119T0499

main90119-T0499

9044708176

main90447-08176

90447T0002

main90447-T0002

91511C0828

main91511-C0828

91631B0820

main91631-B0820

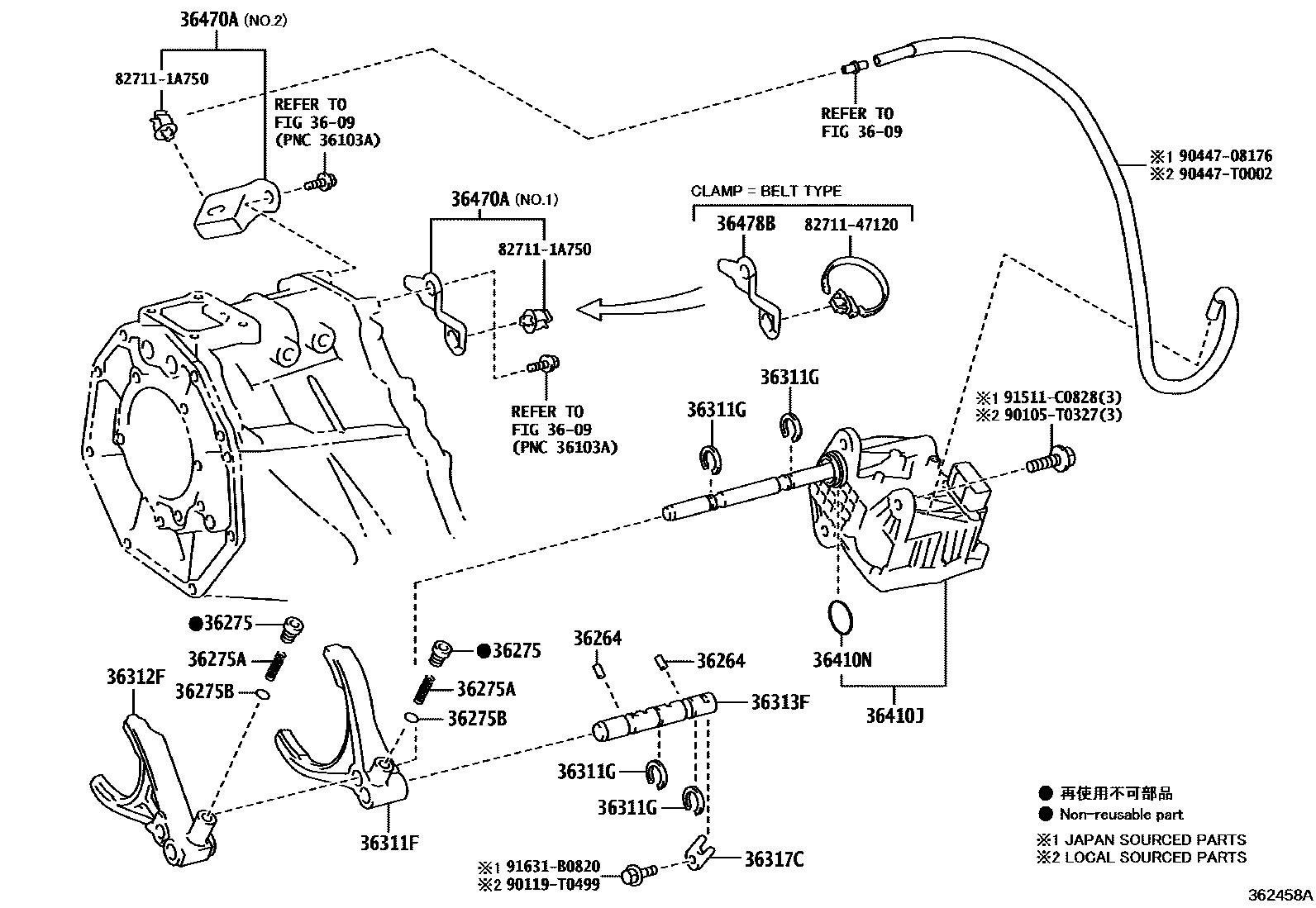

22 parts on this diagram · 1 diagram in section
