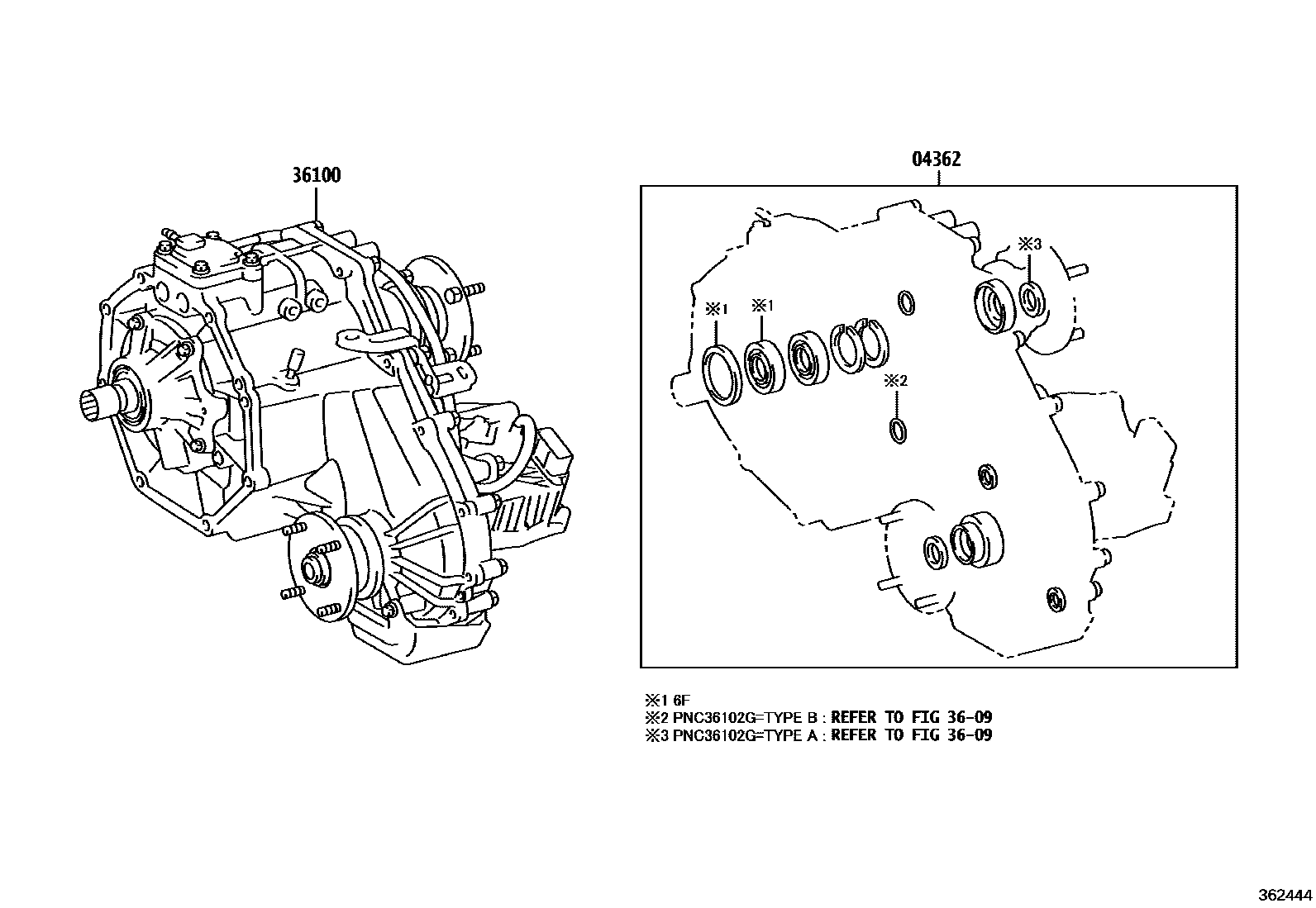

TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-0K020iGGN125,GUN125,126,TGN126,128..AGTP..(5F,6FC)202108-202303

*382

main04362-0K030iGUN126..6F..IND202108-202303

*382

main04362-71170iGUN126..6FC..IND202108-202303

*381

main04362-71180iGUN126..6F..PKN202108-202303

*381

3609

36100TRANSFER ASSY

main36100-0K400iGGN125..SA202108-202301

*382

main36100-0K410iGUN126..LHD..6FC..H..GEN;GUN125..LHD..THP..6FC..(H,S)202108-202301

*382

main36100-0K410iGUN126..LHD..6FC..H..GEN;GUN125..LHD..THP..6FC..(H,S)202108-202207

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*382

main36100-0K420iGUN125,126..6F..(GHA,KEN,SA)202108-202303

*382

main36100-0K430iGUN126..LHD..6F..S..GEN202108-202207

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*382

sub36100-0K431

main36100-0K430iGUN126..6F..PKN202108-202301

*382

sub36100-0K431

main36100-0K440iTGN126..AGTP..H202108-202210

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*382

main36100-0K440iTGN126..S..GEN;TGN126..THP..H..LA202108-202301

*382

main36100-0K450iTGN126..L..GEN;TGN126..5F..H..GCC;TGN126..THP..5F..(L,S)..(GCC,LA)202108-202210

*382

main36100-0K460iGUN125,126..6FC..MA202108-202303

*382

main36100-0K460iTGN126..6FC..H..GCC202108-202207

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*382

main36100-71370iGGN125..SA202108-202301

*381

main36100-71380iGUN126..LHD..6FC..H..GEN;GUN125..LHD..THP..6FC..(H,S)202108-202301

*381

main36100-71380iGUN126..LHD..6FC..H..GEN;GUN125..LHD..THP..6FC..(H,S)202108-202207

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*381

main36100-71420iGUN125..6F..MA202108-202303

*381

sub36100-71421

main36100-71430iGUN126..LHD..6F..S..GEN202108-202301

*381

sub36100-71431

main36100-71430iGUN126..LHD..6F..S..GEN202108-202207

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*381

sub36100-71431

main36100-71440iTGN126..AGTP..(L,S)202108-202210

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381

main36100-71440iTGN126..AGTP..H202108-202301

*381

main36100-71450iTGN126..AGTP..(L,S)202108-202210

*381

main36100-71460iGUN126..6FC..IND202108-202303

*381

main36100-71460iTGN126..6FC..H..GCC202108-202207

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381

3 parts on this diagram · 1 diagram in section
