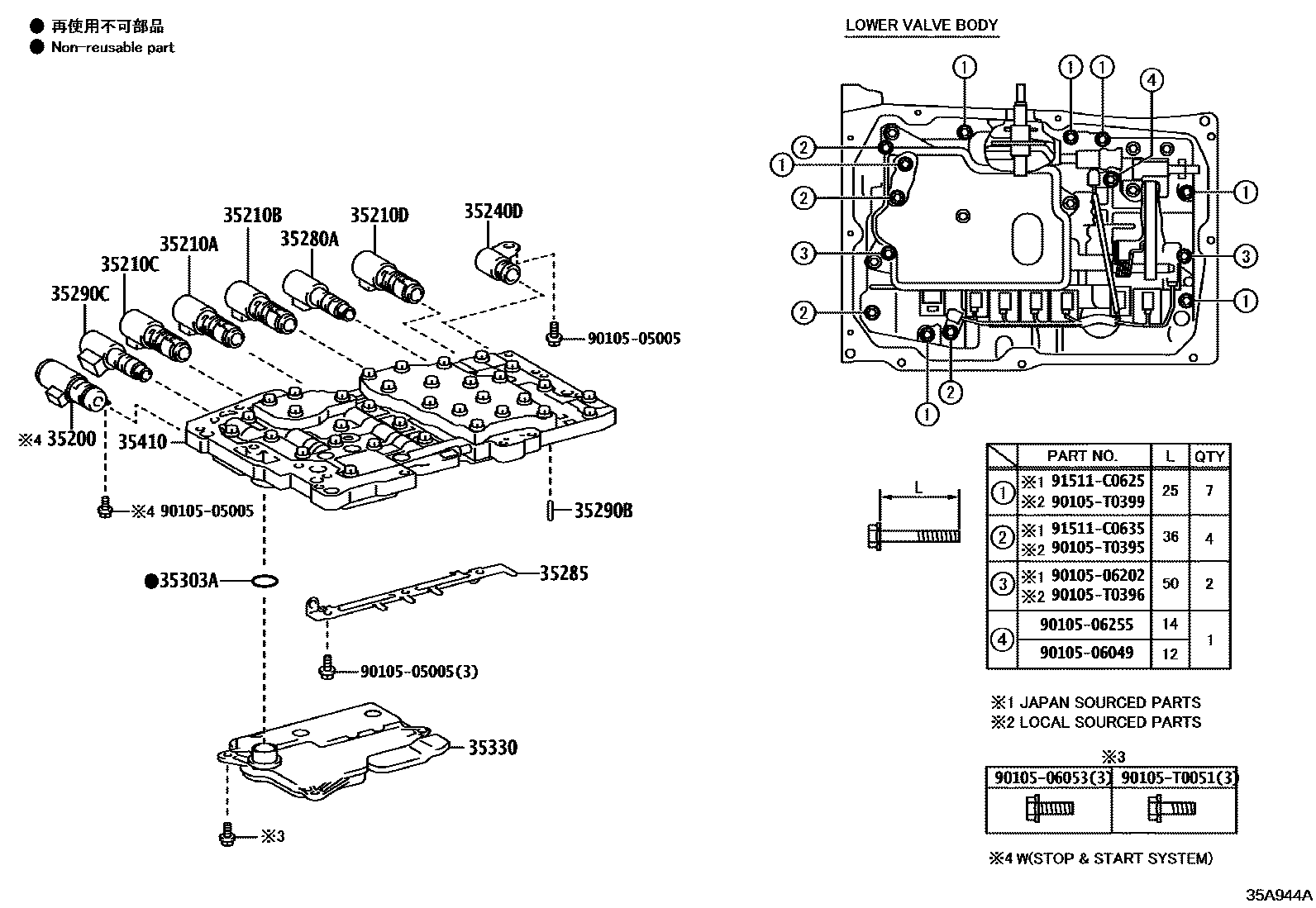

VALVE BODY & OIL STRAINER (ATM)

0001 1AC60E,AC60F 0002 1AC60E,AC60F

35200PUMP ASSY, OIL, W/SOLENOID

main35200-71010iGUN135..6FC..TH;GUN125,126..6FC..(H,S)..GCC202108-202207

TOYOTA STOP & START SYSTEM-WITH

35210AVALVE, SOLENOID(SL1)

main35210-71010iGUN125,126..6FC..MA202108-202303

35210BVALVE, SOLENOID(SL3)

main35210-71010iGUN125,126..6FC..MA202108-202303

35210CVALVE, SOLENOID(SL2)

main35210-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202303

35210DVALVE, SOLENOID(SL4)

main35210-71010iGUN125,126..6FC..MA202108-202303

35240DVALVE, SOLENOID(SL)

main35240-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202303

35280AVALVE, SOLENOID(SLU)

main35280-0K010iGUN125,126..6FC..MA202108-202210

(L)

main35280-71010iGUN126..6FC..TH202108-202207

(J)

sub35280-71020

main35280-71010iGUN125,136,TGN126..(AGTP,SAP)..6FC;GUN126..6FC..(ARL,BZAG,GCC,GEN,GHA,IND,KEN,LA,PH,PKN,SA,TWN,VN);GGN125,GUN120,135,TGN128,138..6FC..(ARL,BZAG,GEN,LA,PH,SA,TH,VN)202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

sub35280-71020

main35280-71020iGUN126..6FC..PKN202207-202303

35285PLATE, SOLENOID LOCK

main35285-0K010iGUN126..MMR202108-202210

(L)

main35285-71010iGUN126..6FC..PKN202108-202303

(J)

main35285-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045iGUN125,126..6FC..MA202108-202303

35290CVALVE, SOLENOID(SLT)

main35290-0K010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(L)

main35290-71020iGUN126..6FC..TH202108-202207

(J)

main35290-71020iGUN126..6FC..TH202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35290-71030iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,SA)202207-202303

35303ARING, O (FOR OIL STRAINER)

main90301-27010iGUN126..6FC..PKN202108-202303

(J)

main90301-27010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90301-T0071iGUN126..MMR202108-202210

(L)

35330STRAINER ASSY, VALVE BODY OIL

main35330-0K010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(L)

main35330-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35330-71010iGUN126..6FC..IND202108-202303

(J)

35410BODY ASSY, TRANSMISSION VALVE

main35410-0K030iGUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC202108-202210

(L)

sub35410-0K031

main35410-0K030iGUN126..6FC..TH202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(L)

sub35410-0K031

main35410-0K040iGUN135..6FC..TH;GUN125,126..6FC..(H,S)..GCC202108-202207

(L)

sub35410-0K041

main35410-0K040iGUN135..6FC..TH;GUN125,126..6FC..(H,S)..GCC202108-202207

TOYOTA STOP & START SYSTEM-WITH,(L)

sub35410-0K041

main35410-71102iGUN126..6FC..TH202108-202303

(J)

sub35410-71103

main35410-71102iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

sub35410-71103

9010505005

main90105-05005

9010506049

main90105-06049

9010506053

main90105-06053

9010506202

main90105-06202

9010506255

main90105-06255

90105T0051

main90105-T0051

90105T0395

main90105-T0395

90105T0396

main90105-T0396

90105T0399

main90105-T0399

91511C0625

main91511-C0625

91511C0635

main91511-C0635

24 parts on this diagram · 2 diagrams in section
