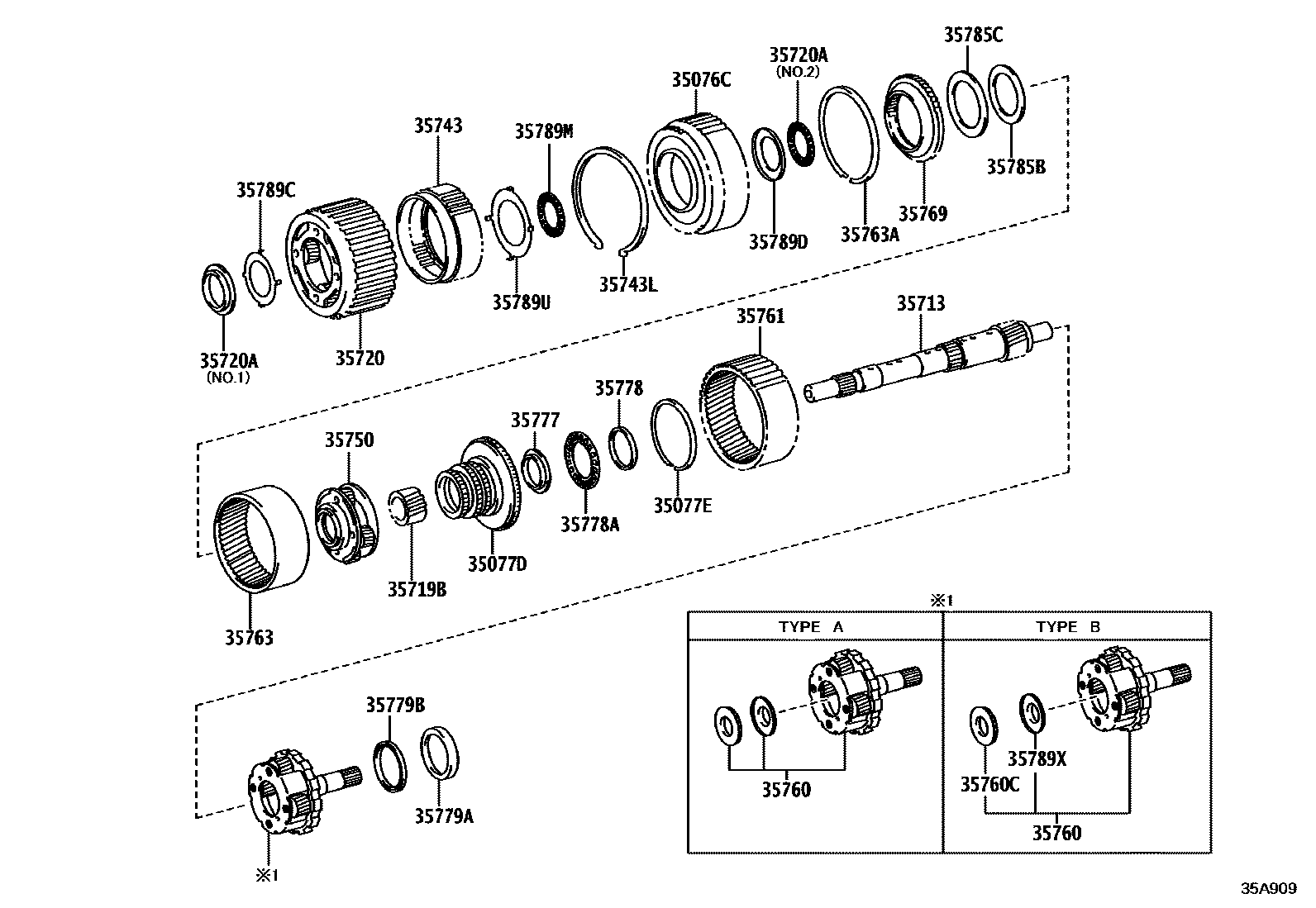

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
(L)
(J)
TOYOTA STOP & START SYSTEM-WITHOUT
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
TOYOTA STOP & START SYSTEM-WITHOUT,(J)
(J)
(L)
35713SHAFT, INTERMEDIATE
(L)
(L)
(J)
TOYOTA STOP & START SYSTEM-WITHOUT
(J)
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35743GEAR, FRONT PLANETARY RING
35743LRING, SNAP (FOR PLANETARY RING GEAR)
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
(L),TYPE A:REF ILL.
(L),TYPE A:REF ILL.
(L)
(L)
(L)
TYPE B:REFER ILLUST.
(J),TYPE A:REF ILL.
(J)
(J),TYPE A:REF ILL.
(J)
(J)
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
35760CBEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETARY GEAR)
TYPE B:REFER ILLUST.
35761GEAR, REAR PLANETARY RING
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35769FLANGE, PLANETARY RING GEAR, CTR
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35779BBEARING, THRUST NEEDLE ROLLER
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
35789MBEARING, THRUST NEEDLE ROLLER
35789URACE, THRUST BEARING
35789XRACE, THRUST BEARING
TYPE B:REFER ILLUST.
