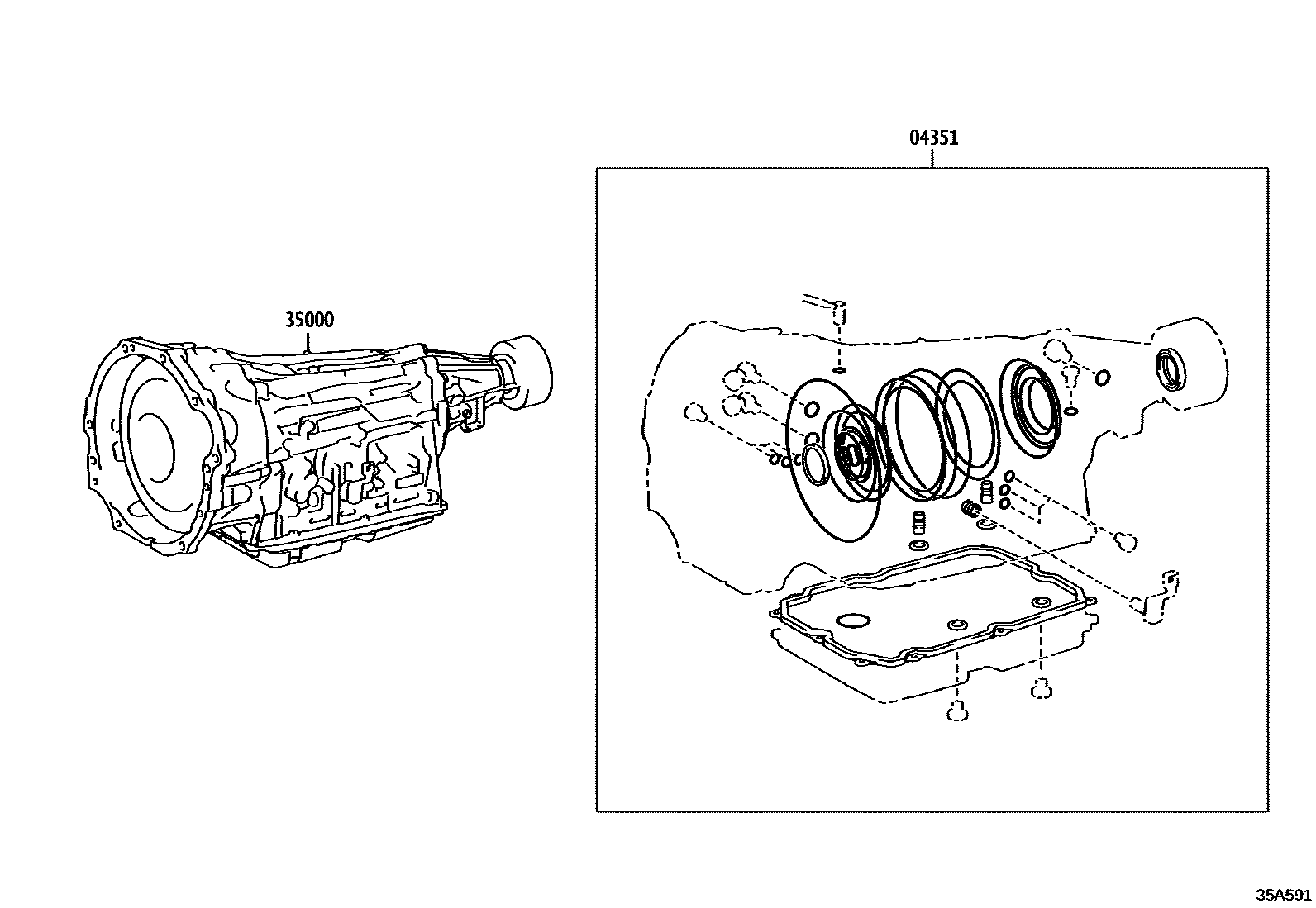

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1AC60E 0002 1AC60F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-71220iGUN135,TGN138..AGTP..6FC202108-202301

main04351-71230iGUN125,126..6FC..MA202108-202303

main04351-71241iGUN121,136..THP..6FC202108-202301

35000TRANSMISSION ASSY, AUTOMATIC

main35000-0K030iGUN125..THP..6FC202108-202208

AC60F,(L)

main35000-0K050iGUN120,135..THP..6FC202108-202207

AC60E,(L)

main35000-0K070iGGN125..GCC202108-202207

AC60F,(L)

main35000-0K080iTGN121..6FC202108-202207

AC60E,(L)

main35000-0K090iTGN126..THP..6FC202108-202207

AC60F,(L)

main35000-0K110iGUN121,136..THP..6FC202108-202207

AC60E,(L)

main35000-0K130iGUN126..MA202108-202210

AC60F,(L)

main35000-0K130iGUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

AC60F,TOYOTA STOP & START SYSTEM-WITHOUT,(L)

main35000-0K140iGUN126..6FC..GCC202108-202207

AC60F,(L)

main35000-0K140iGUN126..6FC..TH202108-202207

AC60F,TOYOTA STOP & START SYSTEM-WITH,(L)

main35000-71340iGUN126..6FC..TH202108-202207

AC60F,TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main35000-71340iGUN126..6FC..TH202108-202303

AC60F,(J)

main35000-71380iTGN138202111-202210

AC60E,(J)

main35000-71390iGUN135..AGTP..6FC202108-202301

AC60E,(J)

main35000-71410iTGN128202109-202301

AC60F,(J)

main35000-71420iGUN125..AGTP..6FC202109-202301

AC60F,(J)

main35000-71440iGGN125..AGTP202109-202301

AC60F,(J)

main35000-71520iGUN136..6FC..SA202109-202301

AC60E,(J)

2 parts on this diagram · 2 diagrams in section
