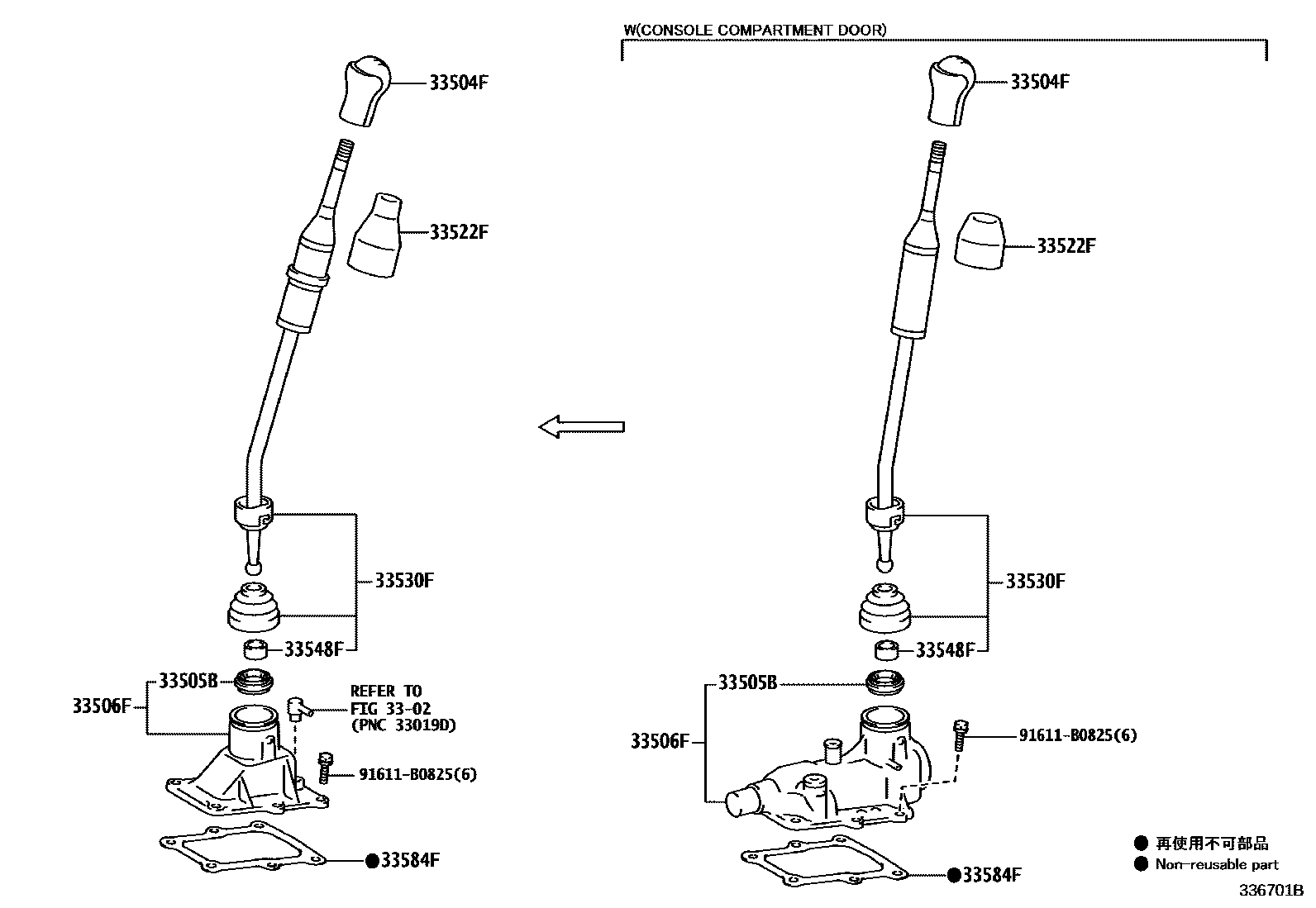

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

3302

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0K050iTGN126..AGTP..H202108-202210

main33504-0K060-C0iTGN126..5F..S..GCC202108-202207

BLACK,TRIM2#,3#

main33504-0K060-C0iTGN126..5F..S..GCC202108-202210

BLACK,TRIM2#

main33504-0K060-C0iTGN126..5F..S..GCC202108-202207

ASIA COLD COUNTRY SPEC,BLACK,TRIM2#

main33504-0K090-C0iGUN126..6F..L..LA202108-202207

FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH),BLACK,TRIM2#

main33504-0K090-C0iGUN125..6F..S..GCC202108-202207

BLACK,TRIM2#,3#

main33504-0K090-C0iGUN125..6F..S..GCC202108-202301

BLACK,TRIM2#

main33504-0K090-C0iGUN125..6F..S..GCC202108-202207

MOROCCO SPEC,BLACK,TRIM2#

main33504-0K090-C0iGUN125..6F..S..GCC202108-202207

ASIA COLD COUNTRY SPEC,BLACK,TRIM2#

main33504-0K101-C0iGUN122,125..S..TH;GUN126..LHD..6F..S..GEN;GUN135..6F..(H,S)..(GEN,PH,TH);GUN125,126,136..THP..6F..H..(ARL,GEN,LA,PH,TH)202108-202303

BLACK,TRIM2#

main33504-0K101-C0iGUN122,125..S..TH;GUN126..LHD..6F..S..GEN;GUN135..6F..(H,S)..(GEN,PH,TH);GUN125,126,136..THP..6F..H..(ARL,GEN,LA,PH,TH)202108-202207

STEERING WHEEL-LEATHER,BLACK,TRIM2#

main33504-0K101-C0iGUN125..LHD..S..GEN202108-202207

BLACK,TRIM2#,3#

main33504-0K121-C0iGGN125,GUN125,126,TGN121,126..6FC..H..GCC202108-202207

BLACK,TRIM2#,3#

main33504-0K121-C0iGGN125,GUN125,126,TGN121,126..6FC..H..GCC202108-202303

BLACK,TRIM2#

main33504-0K121-C0iGUN126..H..PKN202108-202301

GR SPORT,BLACK,TRIM2#

main33504-0K131-C0iGUN125,TGN121,126..6FC..(L,S)..GCC202108-202207

BLACK,TRIM2#,3#

main33504-0K131-C0iGUN125,TGN121,126..6FC..(L,S)..GCC202108-202301

BLACK,TRIM2#

main33504-0K160-C0iLAN125..L202109-202301

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main33504-0K160-C0iLAN125..L202109-202301

BLACK,TRIM2#

main33504-0K220-C0iGUN125..L..MA202110-202209

BLACK,TRIM2#

main33504-0K230-C0iGUN125,135..RHD..L..(KEN,SA)202109-202303

BLACK,TRIM2#

main33504-0K230-C0iGUN125,126,13#..6F..S..(GHA,SA)202109-202303

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main33504-0K241-C0iGUN125..6F..S..MA202110-202208

BLACK,TRIM2#

main33504-0K261-C0iGUN126..6F..H..IND202203-202209

BLACK,TRIM2#

main33504-0K270-C0iTGN126..5F..L..GCC;GUN122,TGN120,121..5F..(L,S)..GCC202108-202207

BLACK,TRIM2#,3#

main33504-0K270-C0iTGN126..5F..L..GCC;GUN122,TGN120,121..5F..(L,S)..GCC202108-202210

BLACK,TRIM2#

main33504-0K280-C0iGUN122,LAN125,TGN121,126,136..L..SA202109-202301

BLACK,TRIM2#

main33504-0K290-C0iGUN135..THP..L..LA;GUN125,126..THP..6F..L..(GEN,IDN,LA)202108-202210

BLACK,TRIM2#

main33504-0K290-C0iGUN135..THP..L..LA;GUN125,126..THP..6F..L..(GEN,IDN,LA)202108-202207

BLACK,TRIM2#,3#

main33504-0K300-C0iGUN125..L..GHA202109-202303

BLACK,TRIM2#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iGUN125,126,13#..6F..(GHA,KEN,SA)202108-202303

TYPE A:REFER 33-01

main33505-0K010iGUN122,125,126,13#..THP..6F202108-202303

TYPE B:REFER 33-01

main33505-0K010iGUN122,125,126,13#..THP..6F202108-202207

ASIA COLD COUNTRY SPEC,TYPE B:REFER 33-01

main33505-0K010iGUN122,125,126,13#..THP..6F202108-202210

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33505-0K010iGUN125..6F..MA202108-202301

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33505-35030iTGN126,136..AGTP202108-202301

TYPE A:REFER 33-01

main33505-35030iTGN126..AGTP..L202108-202301

TYPE B:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0K011iTGN126..AGTP..L202108-202301

TYPE A:REFER 33-01

main33506-0K070iGUN122,13#..THP..6F202108-202301

TYPE A:REFER 33-01

main33506-0K090iGUN122,135..6F..(GEN,PH,TH,VN)202108-202301

TYPE B:REFER 33-01

main33506-0K090iGUN122,135..6F..(GEN,PH,TH,VN)202108-202210

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33506-60061iTGN126..AGTP..L202108-202301

TYPE B:REFER 33-01

main33570-0K030iGUN122,TGN121,136..L..SA202108-202301

TYPE B:REFER 33-01

main33570-0K040iTGN120,121,136..LHD..THP..5F..(L,S)202108-202301

TYPE A:REFER 33-01

main33570-0K040iTGN136..AGTP..L202108-202210

main33570-0K051iTGN126..L..GEN202108-202301

TYPE A:REFER 33-01

main33570-0K051iTGN126..THP..5F..(H,S)202108-202207

ASIA COLD COUNTRY SPEC,TYPE A:REFER 33-01

main33570-0K071iLAN125,TGN126..5F..S..SA202108-202301

TYPE B:REFER 33-01

main33570-0K071iTGN126..L..GEN202108-202207

ASIA COLD COUNTRY SPEC,TYPE B:REFER 33-01

main33570-0K080iTGN136..S..LA202108-202301

TYPE A:REFER 33-01

main33570-0K100iTGN136..S..LA202108-202301

TYPE B:REFER 33-01

main33570-0K111iGUN125,126..AGTP..6F202108-202303

TYPE A:REFER 33-01

main33570-0K121iGUN126..6F..IND202108-202303

TYPE B:REFER 33-01

33522FSEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)

main33522-0K010-C0iGUN122..L..TH;GUN122..S..(GEN,TH);TGN121..5F..(ARL,GEN)202108-202207

BLACK,TRIM2#,3#

main33522-0K010-C0iGUN122..L..TH;GUN122..S..(GEN,TH);TGN121..5F..(ARL,GEN)202108-202301

BLACK,TRIM2#

main33522-0K020-C0iGUN122..L..(GEN,PH)202108-202301

BLACK,TRIM2#

main33522-0K020-C0iGUN122..(L,S)..GCC202108-202207

BLACK,TRIM2#,3#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K621iTGN121..5F..H;TGN121..5F..ARL202108-202301

main33530-0K631iTGN126..AGTP..(H,S)202108-202301

main33530-0K631iTGN126..THP..5F..(H,S)202108-202207

ASIA COLD COUNTRY SPEC

main33530-0K641iGUN122..H;GUN122..S..GEN202108-202207

main33530-0K651iGUN122..SA202108-202301

main33530-0K671iTGN121,136..L..SA202108-202301

main33530-0K681iGUN122,13#..THP..6F202108-202301

main33530-0K691iGUN125,126..AGTP..6F202108-202303

main33530-0K731iGUN126..6F..IND202203-202209

main33530-0K741iTGN126..THP..5F..L202108-202301

main33530-0K761iLAN125..L202109-202301

main33530-0K781iLAN125..S202109-202301

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iTGN126,136..AGTP202108-202301

main33548-22020iGUN125,126..THP..6F202108-202303

main33548-60040iGUN13#..6F..SA202108-202301

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-0K010iGUN125,126..6F..(GHA,KEN,SA)202108-202303

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33584-0K020iGUN13#..THP..6F..LA202108-202301

TYPE B:REFER 33-01

main33584-0K020iGUN13#..THP..6F..LA202108-202210

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33584-0K020iGUN122,13#..THP..6F202108-202301

TYPE A:REFER 33-01

main33584-60070iLAN125,TGN126..5F..S..SA202108-202301

TYPE A:REFER 33-01

main33584-60070iLAN125,TGN126..5F..S..SA202108-202301

TYPE B:REFER 33-01

main33584-60070iTGN126..THP..5F..(H,S)202108-202210

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33584-60070iTGN126..L..GEN202108-202207

ASIA COLD COUNTRY SPEC,TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33584-71010iGUN122,TGN121,136..SA202108-202301

TYPE B:REFER 33-01,TYPE A:REFER 33-01

91611B0825

main91611-B0825

9 parts on this diagram · 8 diagrams in section
