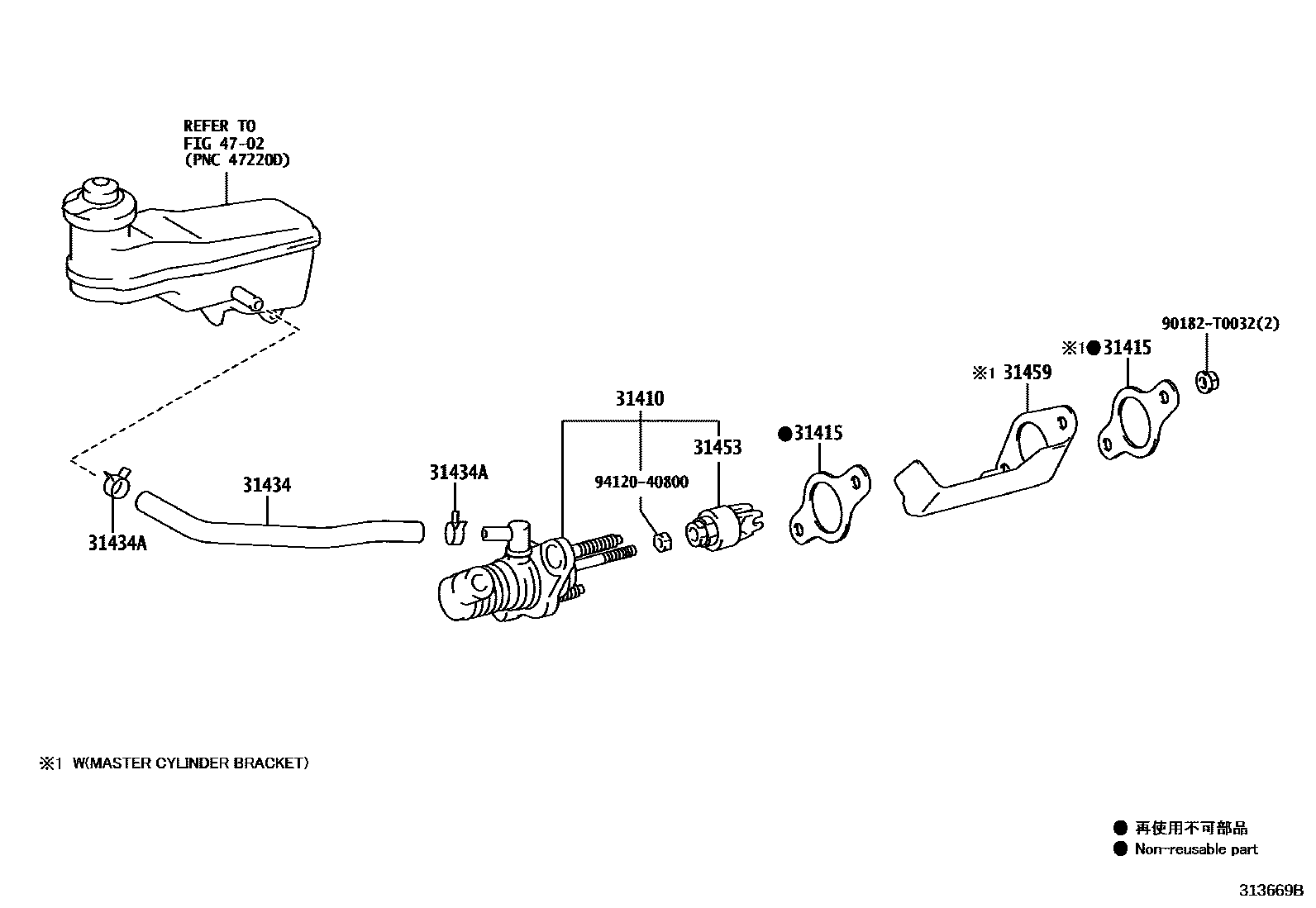

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K014iLAN125,TGN121,126,136..5F..SA202108-202301

main31420-0K061iGUN126,136..6F..H..(ARL,GCC,GEN,TH)202108-202207

VSC-W(*HSAC & *TSC & *DAC)

main31420-0K061iGUN126..6F..IND202108-202303

main31420-0K071iGUN126,136..6F..S..SA;GUN122,125,135..MTM..(GHA,KEN,SA)202108-202303

main31420-0K071iGUN122,125,135..THP..MTM;GUN126,136..THP..6F..(L,S);GUN126,136..THP..6F..H..(LA,PH)202108-202207

VSC-W(*HSAC & *TSC)

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iGUN122,125,126,13#..RHD..THP..MTM202108-202303

31434TUBE, CLUTCH RESERVOIR

main31434-0K041iGUN126,136..RHD..THP..6F..H202108-202207

VSC-W(*HSAC & *TSC & *DAC)

main31434-0K041iGUN126,136..6F..H..(KEN,SA)202108-202303

main31434-0K050iGUN126,136..6F..H..BZAG202111-202210

main31434-0K051iGUN126..LHD..6F..H..(GCC,GEN)202108-202207

VSC-W(*HSAC & *TSC & *DAC)

main31434-0K061iGUN125..6F..MA202110-202208

main31434-0K081iGUN126..6F..IND202203-202209

main31434-0K091iGUN125,126,13#,TGN136..RHD..MTM..(L,S)..(KEN,SA)202108-202303

main31434-0K091iGUN126,136..RHD..THP..6F..S;GUN122,125,135,TGN121..RHD..THP..MTM202108-202207

VSC-W(*HSAC & *TSC)

main31434-0K110iGUN126,136..AGTP..6F..LA;GUN126,136..6F..(L,S)..BZAG;GUN125,135,TGN126,136..AGTP..MTM202111-202210

main31434-0K111iGUN122,125,135,LAN125,TGN121,126,136..LHD..MTM..(GHA,SA)202108-202303

main31434-0K111iGUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,PH);GUN122,125,13#,TGN120,121,126,136..LHD..THP..MTM202108-202207

VSC-W(*HSAC & *TSC)

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015iGUN126..6F..IND202108-202303

main90466-T0052iGUN125,126,13#,TGN126,136..AGTP..MTM202111-202210

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-0K010iTGN126,136..AGTP202108-202301

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-0K010iGUN126..6F..IND202203-202209

main31459-71010iGUN126..6F..PKN202108-202303

4702

90182T0032

main90182-T0032

9412040800

main94120-40800

9 parts on this diagram · 2 diagrams in section
