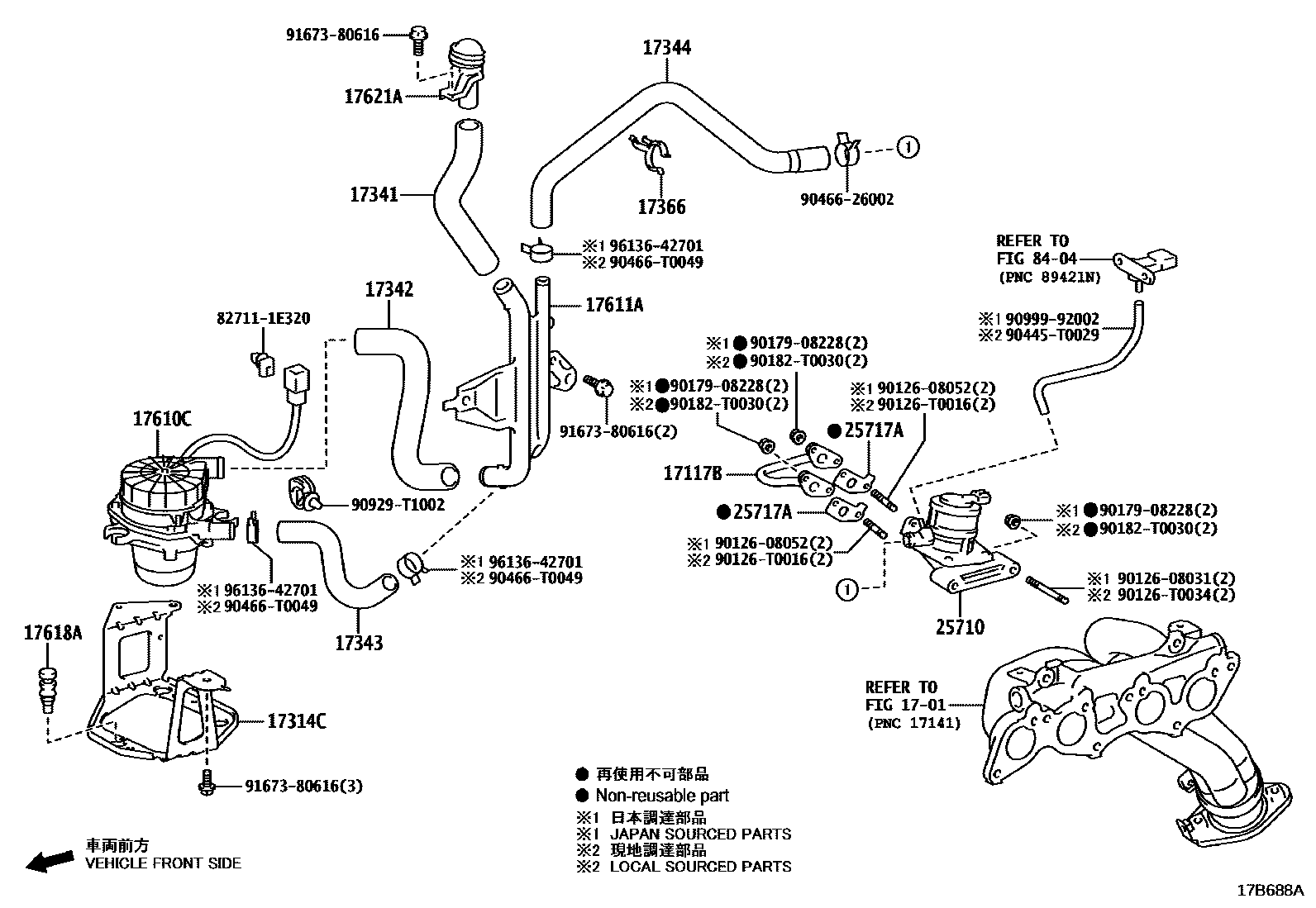

MANIFOLD AIR INJECTION SYSTEM
1701
17117BPIPE, INTAKE, NO.4
EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main17117-0C020i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202207
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
17314CBRACKET, AIR PUMP
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main17314-0C011i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202207
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main17341-0C130i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202210
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main17342-0C130i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202210
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main17343-0C090i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202210
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main17344-0C090i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202210
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17366CLAMP, AIR INJECTION HOSE, NO.1
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main17366-0C010i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202210
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17610CPUMP ASSY, AIR
EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main17610-0C040i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202207
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
17611APIPE, AIR PUMP INLET
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
main17611-0C060i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202210
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17618AINSULATOR, AIR PUMP
EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main17618-0C010i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202207
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
17621AINLET, AIR PUMP
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main17621-0C080i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202210
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
25710VALVE ASSY, AIR SWITCHING
EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
main25710-75015i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202207
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
25717AGASKET, AIR SWITCHING VALVE
(L)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L)
NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(L)
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J)
EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J)
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J)
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J)
main25717-75010i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202210
(J)
main25717-75010i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202207
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J)
NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(J)
8404
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
9012608031
main90126-08031
9012608052
main90126-08052
90126T0016
main90126-T0016
90126T0034
main90126-T0034
9017908228
main90179-08228
90182T0030
main90182-T0030
90445T0029
main90445-T0029
9046626002
main90466-26002
90466T0049
main90466-T0049
90929T1002
main90929-T1002
9099992002
main90999-92002
9167380616
main91673-80616
9613642701
main96136-42701
29 parts on this diagram · 1 diagram in section
