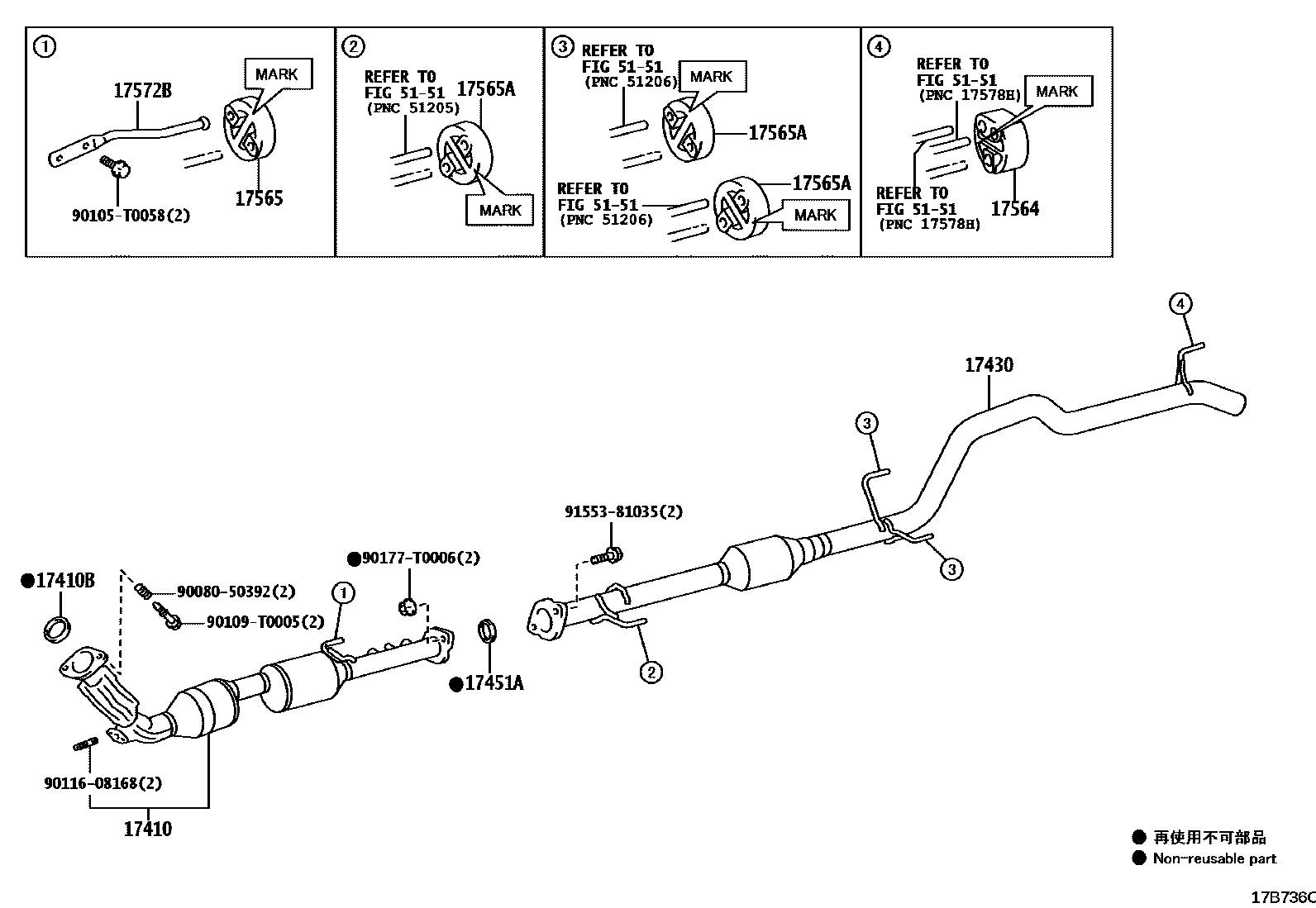

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
sub17401-05111
ECUADOR SPEC
BOLIVIA URUGUAY SPEC
COLOMBIA SPEC
IRAN SPEC
ASIA COLD COUNTRY SPEC
EGYPT SPEC
SUDAN SPEC
CENTRAL AND SOUTH AMERICA SPEC
AFRICA SPEC
SYRIA SPEC
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPEA:REFER ILLUST.
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
main17401-0L182i1GDFTV..GUN126..AGTP..H..LA;2GDFTV..GUN125,135..AGTP..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
TYPE A:REFER ILLUST.
main17401-0L182i1GDFTV..GUN126..AGTP..H..LA;2GDFTV..GUN125,135..AGTP..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,TYPE A:REFER ILLUST.
main17401-0L182i1GDFTV..GUN126..AGTP..H..LA;2GDFTV..GUN125,135..AGTP..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPEA:REFER ILLUST.
main17401-0L182i1GDFTV..GUN126..AGTP..H..LA;2GDFTV..GUN125,135..AGTP..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
main17401-0L182i1GDFTV..GUN126..AGTP..H..LA;2GDFTV..GUN125,135..AGTP..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
EXHAUST EMISSION CONTROL-TIER1.5,TYPE A:REFER ILLUST.
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFERILLUST.
TYPE A:REFER ILLUST.
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
CAMBODIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.
EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
*114=*102,BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
sub17410-0E041
sub17410-0E081
17410BGASKET, EXHAUST PIPE
MADE IN THAILAND
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
MADE IN INDIA
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),MADE IN INDIA
17430PIPE ASSY, EXHAUST, TAIL
main17430-0C130i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207
ASIA COLD COUNTRY SPEC
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-WITHOUT
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
main90917-T6002i1G#,2GDFTV,5LE,2TRFE..GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA202108-202303
17564SUPPORT,EXHAUST PIPE, NO.4
MARK:17565-0L100
MARK:17565-0L110
MARK:17565-0L120
main17565-0L130i2GDFTV..GUN135..H..GEN;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN12#,136,TGN120,121,126,136..THP..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202108-202303
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-0L070i2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..THP..L..LA;1GDFTV..GUN126..THP..H..LA;2GDFTV..GUN125..RHD..L..GEN;2GDFTV..GUN122..LHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202108-202210
EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L070
main17565-0L070i2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..THP..L..LA;1GDFTV..GUN126..THP..H..LA;2GDFTV..GUN125..RHD..L..GEN;2GDFTV..GUN122..LHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202108-202210
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),MARK:17565-0L070
main17565-0L070i2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..THP..L..LA;1GDFTV..GUN126..THP..H..LA;2GDFTV..GUN125..RHD..L..GEN;2GDFTV..GUN122..LHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202108-202303
MARK:17565-0L070
MARK:17565-0L080
main17565-0L090i2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..THP..L..LA;1GDFTV..GUN126..THP..H..LA;2GDFTV..GUN125..RHD..L..GEN;2GDFTV..GUN122..LHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202108-202303
MARK:17565-0L090
main17565-0L090i2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..THP..L..LA;1GDFTV..GUN126..THP..H..LA;2GDFTV..GUN125..RHD..L..GEN;2GDFTV..GUN122..LHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202108-202210
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),MARK:17565-0L090
main17565-0L090i2GDFTV..GUN125..H..GCC;2GDFTV..GUN125..THP..L..LA;1GDFTV..GUN126..THP..H..LA;2GDFTV..GUN125..RHD..L..GEN;2GDFTV..GUN122..LHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202108-202210
EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L090
main17565-0P240i2GDFTV..GUN125..AGTP..LA;1GDFTV..GUN126..AGTP..H..LA;1GDFTV,2GDFTV..GUN126,135..AGTP..6F..(L,S)..LA202108-202210
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),NO MARK
NO MARK
EXHAUST EMISSION CONTROL-WITHOUT,NO MARK
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
17565ASUPPORT, EXHAUST PIPE, NO.4
MARK:17565-0L070
MARK:17565-0L080
main17565-0L090i1G#,2GDFTV,5LE,2TRFE..GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA202108-202303
MARK:17565-0L090
NO MARK
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
main17572-0L030i2GDFTV..GUN125..THP..L..LA;2GDFTV..GUN135..THP..6F..LA;1GDFTV..GUN126..THP..6FC..H..LA;2GDFTV..GUN125..LHD..THP..S..(GEN,LA)202108-202210
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
main17572-0L030i2GDFTV..GUN125..L..IDN;2GDFTV..GUN122..RHD..GEN;2GDFTV..GUN125..LHD..L..GEN;1GDFTV..GUN126..6FC..H..GEN;1GDFTV..GUN126..LHD..6F..H..GEN;1GDFTV,2GDFTV..GUN122,126..S202108-202210
EXHAUST EMISSION CONTROL-WITHOUT
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
5151
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035
17 parts on this diagram · 6 diagrams in section
