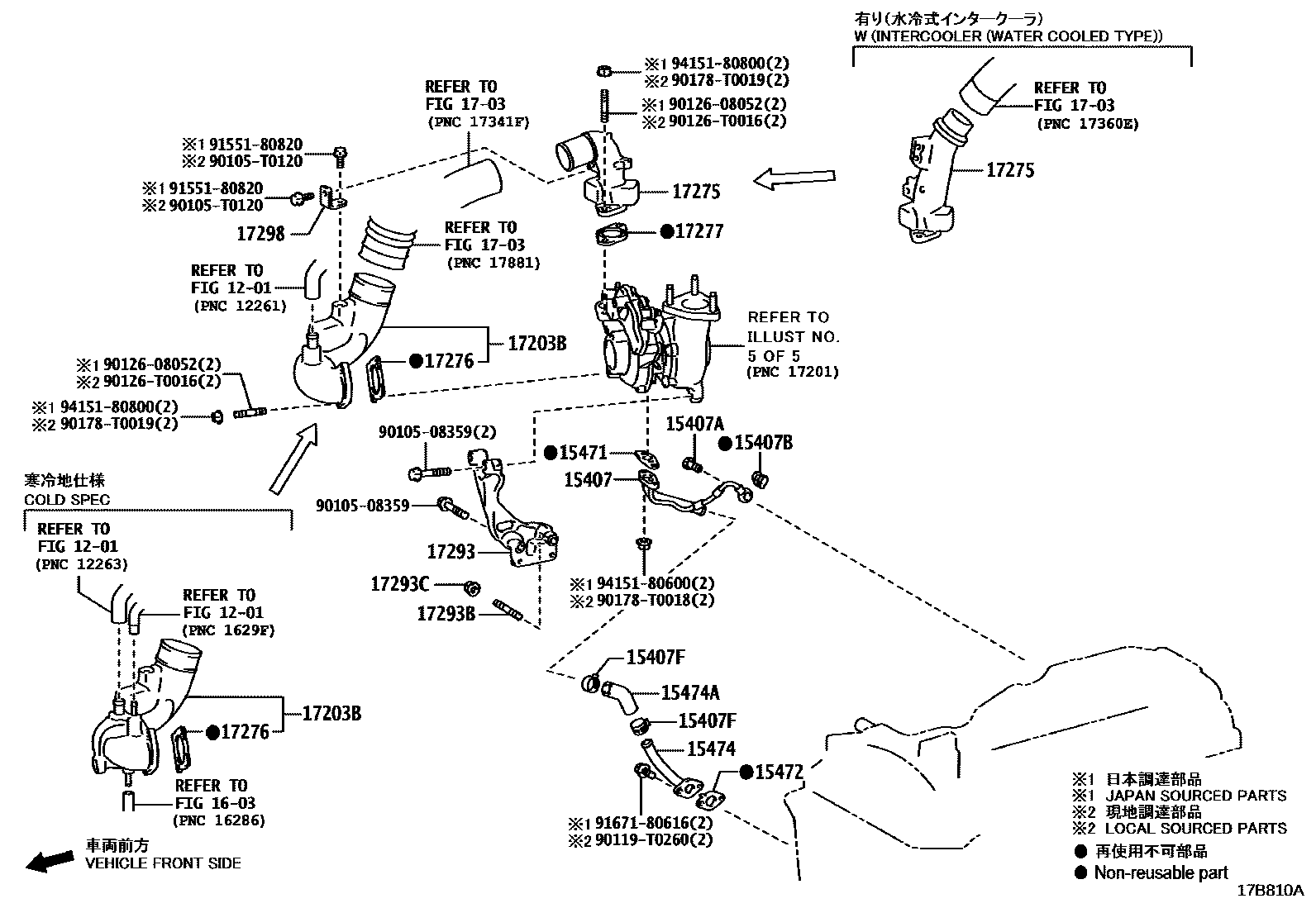

MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
(L)
main96341-11200i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
main96341-11200i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
(J)
15407BGASKET(FOR TURBO OIL INLET PIPE)
(L)
main90904-30004i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(J)
15407FCLAMP OR CLIP, OIL HOSE
15471GASKET, TURBO OIL INLET
THA SOURCED PARTS
main15471-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main15471-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202209
IND SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
15472GASKET, TURBO OIL OUTLET, NO.1
THA SOURCED PARTS
main15472-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main15472-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202209
IND SOURCED PARTS
main15472-11010i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
15474PIPE, TURBO OIL OUTLET
THA SOURCED PARTS
IND SOURCED PARTS
main15474-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
15474AHOSE, TURBO OIL OUTLET
THA SOURCED PARTS
IND SOURCED PARTS
main15491-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main15491-11010i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main15491-11010i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
JAPAN SOURCED PARTS
1703
17203BELBOW SUB-ASSY, COMPRESSOR INLET
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
ASIA COLD COUNTRY SPEC
main17203-0E020i2GDFTV..GUN135..ARL;2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L202108-202207
IND SOURCED PARTS
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
THA SOURCED PARTS
IND SOURCED PARTS
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main17203-11010i2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(ARL,GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
17275ELBOW, COMPRESSOR OUTLET
main17275-0E040i2GDFTV..GUN135..H..GEN;2GDFTV..GUN135..THP..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN12#,136..THP..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202108-202303
THA SOURCED PARTS
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
IND SOURCED PARTS
main17275-0E060i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main17275-11050i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
17276GASKET, COMPRESSOR INLET
(L)
main17276-26010i2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(ARL,GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
main17276-26010i2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(ARL,GCC,LA,PH,TH,VN)202108-202207
(J)
17277GASKET, COMPRESSOR OUTLET
THA SOURCED PARTS
main17277-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
main17277-11030i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main17277-11030i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
JAPAN SOURCED PARTS
17293STAY, TURBOCHARGER
THA SOURCED PARTS
IND SOURCED PARTS
main17293-0E050i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main17293-0E060i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
COSTA RICA SPEC,ARG SOURCED PARTS
main17293-0E060i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
ARG SOURCED PARTS
main17293-0E060i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
BOLIVIA URUGUAY SPEC,ARG SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main17293-11020i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
JAPAN SOURCED PARTS
17293BBOLT(FOR TURBOCHARGER STAY)
17293CNUT(FOR TURBOCHARGER STAY)
(L)
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,(L)
EXHAUST EMISSION CONTROL-TIER1.5,(L)
CHILE SPEC,(L)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
main94151-80800i2GDFTV..GUN125..LHD..SA;2GDFTV..GUN135..ARL,GEN,SA;2GDFTV..GUN125..LHD..(H,L)..GEN;1GDFTV,2GDFTV..GUN121,122,126,136;2GDFTV..GUN125..RHD..(ARL,GEN,IDN,SA)202108-202207
(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
17298STAY, COMPRESSOR ELBOW
THA SOURCED PARTS
main17298-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202209
IND SOURCED PARTS
main17298-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main17298-11010i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
JAPAN SOURCED PARTS
9010508359
main90105-08359
90105T0120
main90105-T0120
90119T0260
main90119-T0260
9012608052
main90126-08052
90126T0016
main90126-T0016
90178T0018
main90178-T0018
90178T0019
main90178-T0019
9155180820
main91551-80820
9167180616
main91671-80616
9415180600
main94151-80600
9415180800
main94151-80800
28 parts on this diagram · 9 diagrams in section
