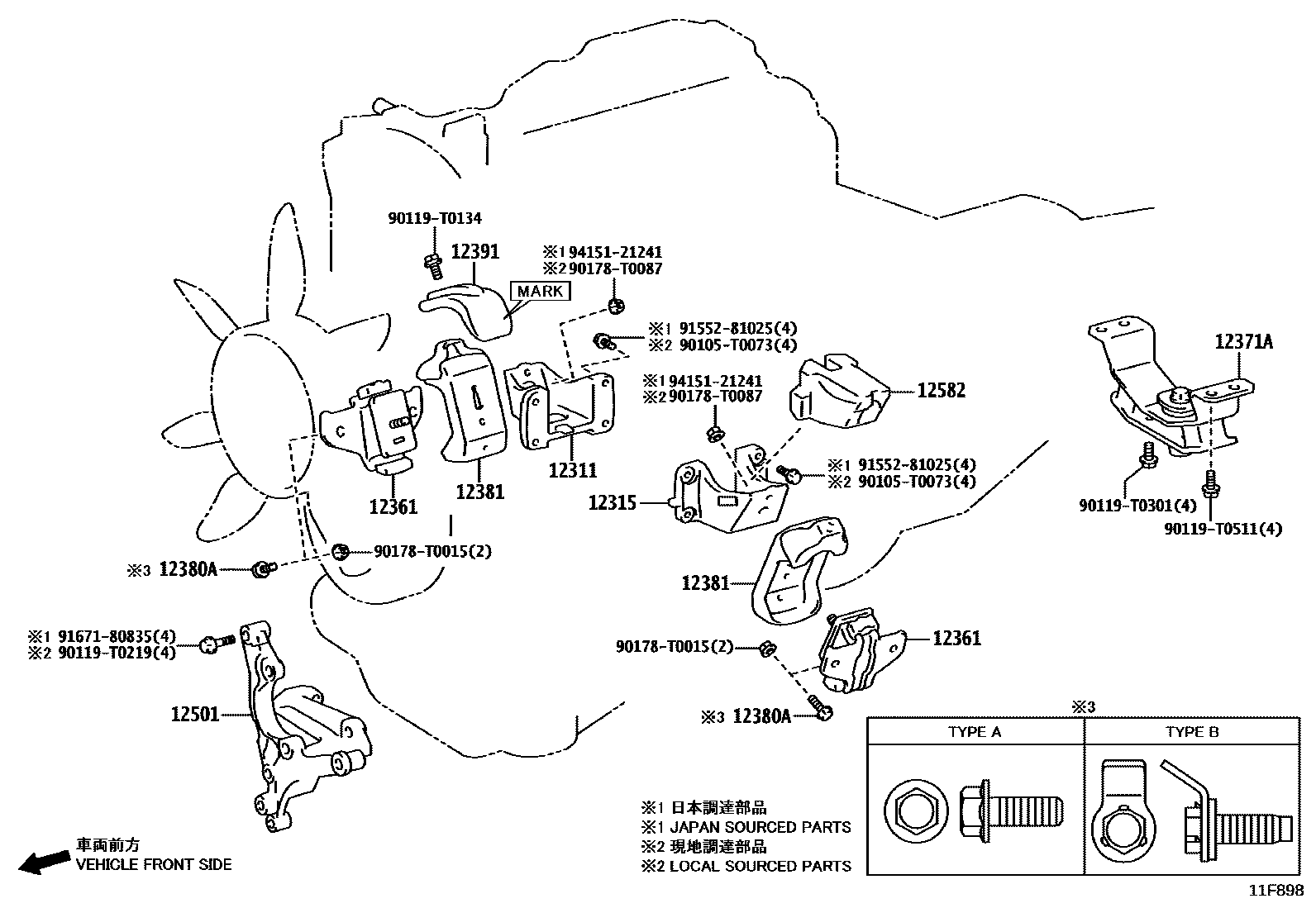

MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
main12311-0C010i2TRFE..TGN126..H..GEN;2TRFE..TGN136..THP..LA;1TRFE,2TRFE..TGN120,121,126..LHD..THP..5F202108-202301
IDN SOURCED PARTS
main12311-0C020i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207
THA SOURCED PARTS
THA SOURCED PARTS
COSTA RICA SPEC,(L)
BOLIVIA URUGUAY SPEC,(L)
(L)
main12311-0E050i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
main12311-11140i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main12311-11140i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202204-202210
(J)
main12311-11140i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202204-202210
BOLIVIA URUGUAY SPEC,(J)
main12311-11140i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202204-202210
COSTA RICA SPEC,(J)
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
main12315-0C010i2TRFE..TGN126..H..GEN;2TRFE..TGN136..THP..LA;1TRFE,2TRFE..TGN120,121,126..LHD..THP..5F202108-202301
IDN SOURCED PARTS
main12315-0C020i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207
THA SOURCED PARTS
THA SOURCED PARTS
COSTA RICA SPEC,(L)
(L)
BOLIVIA URUGUAY SPEC,(L)
IND SOURCED PARTS
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12315-11060i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main12315-11060i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
JAPAN SOURCED PARTS
main12315-11060i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202204-202210
(J)
main12315-11060i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202204-202210
BOLIVIA URUGUAY SPEC,(J)
main12315-11060i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202204-202210
COSTA RICA SPEC,(J)
12361INSULATOR, ENGINE MOUNTING, FRONT
(L)
(J)
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12371AINSULATOR, ENGINE MOUNTING, REAR
12380ABOLT(FOR ENGINE MOUNTING INSURATOR)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12381STABILIZER, ENGINE MOUNTING
(L)
(J)
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
MARK=T
MARK=A
MARK=S
12501BRACKET SUB-ASSY, ALTERNATOR
THA SOURCED PARTS
IND SOURCED PARTS
main12501-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12501-0E030i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
BOLIVIA URUGUAY SPEC,ARG SOURCED PARTS
main12501-0E030i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
ARG SOURCED PARTS
main12501-0E030i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
COSTA RICA SPEC,ARG SOURCED PARTS
JAPAN SOURCED PARTS
main12501-11012i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12582INSULATOR, CYLINDER BLOCK, NO.2
THA SOURCED PARTS
main12582-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202209
IND SOURCED PARTS
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12582-11010i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main12582-11010i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
JAPAN SOURCED PARTS
90105T0073
main90105-T0073
90119T0134
main90119-T0134
90119T0219
main90119-T0219
90119T0301
main90119-T0301
90119T0511
main90119-T0511
90178T0015
main90178-T0015
90178T0087
main90178-T0087
9155281025
main91552-81025
9167180835
main91671-80835
9415121241
main94151-21241
20 parts on this diagram · 9 diagrams in section
