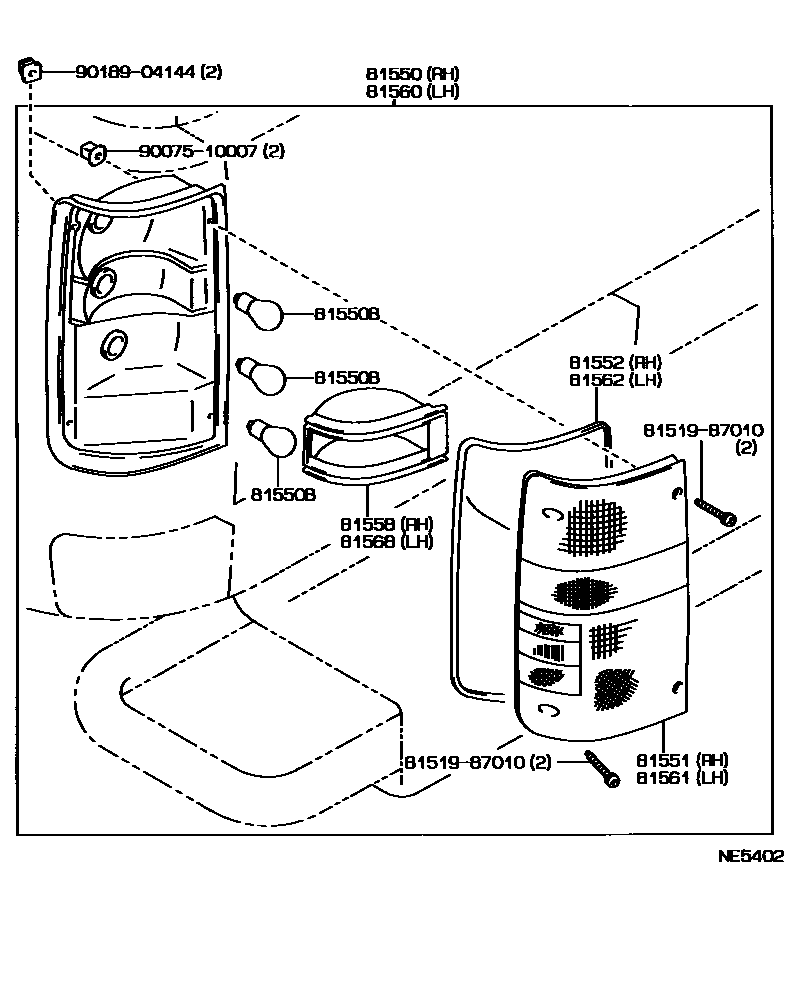

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-35190iVZN120199208-199511

main81550-35191iVZN120199401-199407

sub81550-35190

main81550-89156iVZN85,95..IV6198808-199308

main81550-89166iRN8#,90,VZN85,90..CBU,IV3198808-199501

main81550-89168iRN12#,VZN120198904-199208

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230iVZN85,95..IV6198808-199308

12V 23W

main99132-11270iRN8#,90,VZN85,90..CBU,IV3198808-199511

12V 27W

main99132-21230iVZN85,95..IV6198808-199308

12V 23/8W

main99132-21270iRN12#,8#,90,VZN120,85,90..CBU,IV3198808-199511

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-60180iVZN85,95..IV6198808-199308

sub81551-35061

main81551-89166iRN8#,90,VZN85,90..CBU198808-199501

main81551-89168iRN12#,VZN120198904-199511

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-26040iVZN85,95..IV6198808-199308

main81552-89163iRN8#,90,VZN85,90..CBU,IV3198808-199501

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-26040iVZN85,95..IV6198808-199308

main81557-89163iRN8#,90,VZN85,90..CBU198808-199501

81560LAMP ASSY, REAR COMBINATION, LH

main81560-35190iVZN120199208-199511

main81560-35191iVZN120199401-199407

sub81560-35190

main81560-89156iVZN85,95..IV6198808-199308

main81560-89166iRN8#,90,VZN85,90..CBU198808-199501

main81560-89168iRN12#,VZN120198904-199208

81561LENS, REAR COMBINATION LAMP, LH

main81561-60080iVZN85,95..IV6198808-199308

sub81561-35061

main81561-89166iRN8#,90,VZN85,90..CBU,IV3198808-199501

main81561-89168iRN12#,VZN120198904-199511

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-89163iRN8#,90,VZN85,90..CBU,IV3198808-199501

main81562-26040iVZN85,95..IV6198808-199308

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-26040iVZN85,95..IV6198808-199308

main81567-89163iRN8#,90,VZN85,90..CBU,IV3198808-199501

8151987010BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-87010

9007510007

main90075-10007

9018904144

main90189-04144

12 parts on this diagram · 3 diagrams in section
