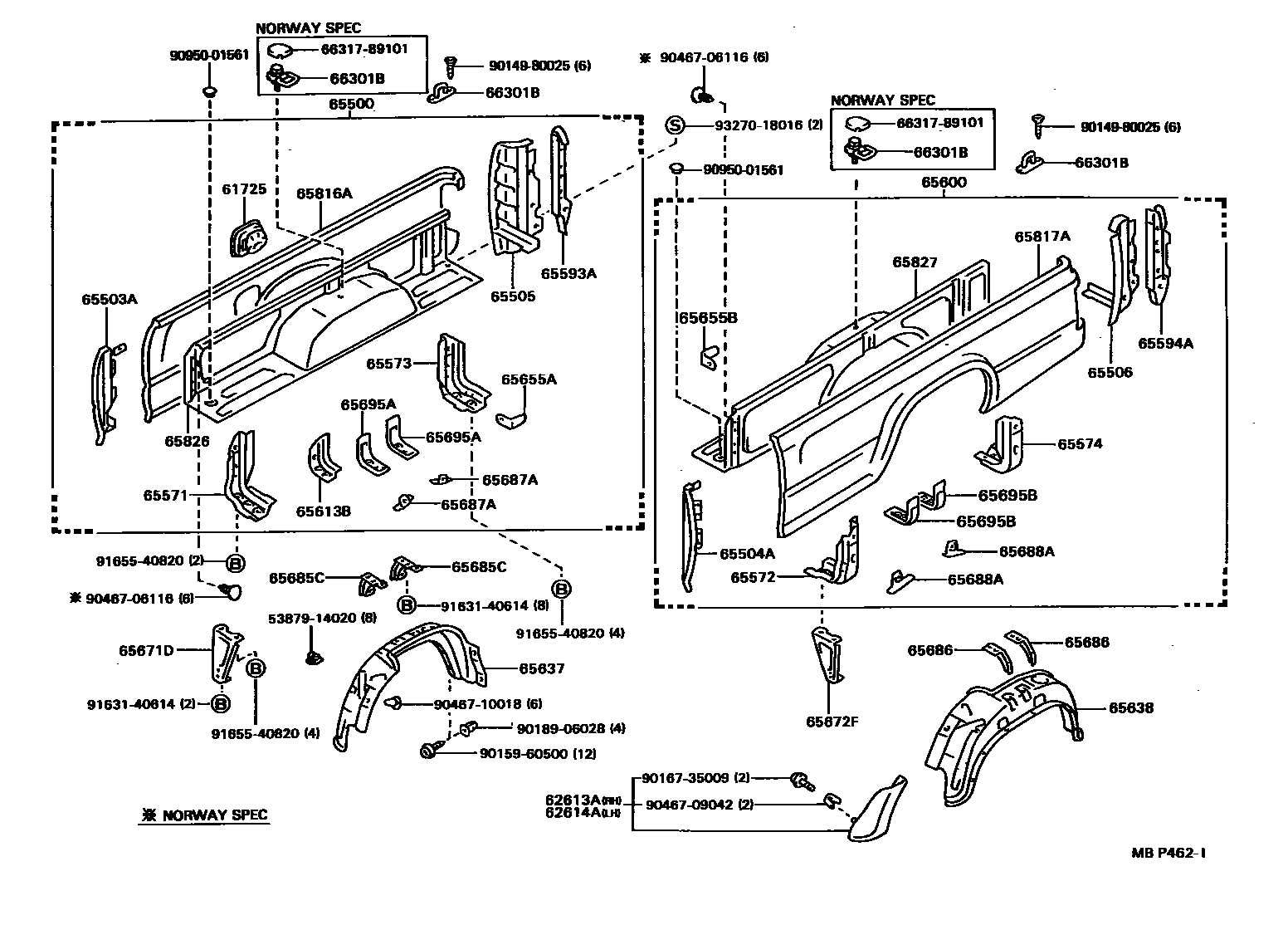

REAR BODY SIDE PANEL

61725BOX, FUEL INLET

main61709-89110iRN8#,90,VZN85,90..CBU,IV3198808-199501

62613ACOVER, QUARTER WHEEL HOUSE, RH

main62613-89106-01iRN85..4HC..SR5..CBU198808-198908

BLACK,033 ,138 ,147 ,202 ,3H4 ,3H7 ,4J9 ,4K4 ,8D8 ,8E2

sub62613-89106

main62613-89106-01iRN85..4HC..SR5..CBU198808-198908

BLACK,033 ,138 ,147 ,202 ,3B2 ,3H4 ,3H7 ,4J9 ,4K4 ,8D8 ,8E2

sub62613-89106

main62613-89106-01iRN85..SR5..IV3;RN90,VZN90..SR5;RN85..W..SR5..CBU198808-198908

BLACK,033 ,147 ,202 ,3H4 ,3H7 ,4J9 ,4K4 ,8D8 ,8E2

sub62613-89106

main62613-89106-01iRN8#,90,VZN85,90..CBU198908-199008

BLACK,033 ,147 ,179 ,202 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2

sub62613-89106

main62613-89106-01iVZN90;RN8#,90,VZN85..(4HC,5F)..(DLX,STD)..CBU198909-199008

BLACK,033 ,147 ,179 ,202 ,27L ,3H4 ,3H7 ,4J9 ,8D8 ,8E2

sub62613-89106

main62613-89106-01iRN80..STD..USA199008-199108

BLACK,147 ,179 ,202 ,3H4 ,3H7 ,8D8 ,8E3 ,8H8

sub62613-89106

main62613-89106-01iRN80..STD..USA199008-199108

BLACK,147 ,179 ,202 ,27L ,3H4 ,3H7 ,8D8 ,8E3 ,8H8

sub62613-89106

main62613-89106-06iRN8#,90,VZN85,90..CBU,IV3198808-199008

BROWN,4J9

sub62613-89106

main62613-89106-08iRN8#,90,VZN85,90..CBU,IV3198808-199008

WHITE,033

sub62613-89106

main62613-89106-18iRN8#,90,VZN85,90..CBU199008-199108

WHITE,045

sub62613-89106

main62613-89106-A0iRN8#,90,VZN85,90..CBU199108-199501

WHITE,TRIM1#,8#&045

sub62613-89106

main62613-89106-C0iRN8#,90,VZN90..CND199108-199208

BLACK,045 ,147 ,179 ,202 ,3H7 ,3K3 ,6J7 ,8E3 ,8H8

sub62613-89106

main62613-89106-C0iRN8#,90,VZN90..CND199108-199208

BLACK,045 ,147 ,179 ,202 ,27L ,3H7 ,3K3 ,6J7 ,8E3 ,8H8

sub62613-89106

main62613-89106-C0iRN8#,90,VZN90..USA199208-199308

BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,6J7 ,8E3 ,8H8

sub62613-89106

main62613-89106-C0iRN8#,90,VZN90199308-199501

BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,751 ,8E3 ,8H8

sub62613-89106

main62613-89106-C0iRN8#,90,VZN90..USA199208-199308

BLACK,045 ,179 ,196 ,202 ,27L ,3H7 ,3K3 ,6J7 ,8E3 ,8H8

sub62613-89106

main62613-89108-02iRN8#,90,VZN85,90..CBU,IV3198808-199108

RED,3H7

sub62613-89108

sub62613-89106

main62613-89108-12iRN8#,90,VZN85,90..CBU,IV3198808-199108

RED MICA,3H4

sub62613-89108

sub62613-89106

main62613-89108-D0iRN8#,90,VZN90..(DLX,STD)..USA199108-199501

RED,TRIM1#,8#&3H7

sub62613-89108

sub62613-89106

main62613-89108-D1iRN8#,90,VZN90199108-199501

RED MICA,TRIM1#,8#&3K3

sub62613-89108

sub62613-89106

62614ACOVER, QUARTER WHEEL HOUSE, LH

main62614-89106-01iRN80..STD..USA199008-199108

BLACK,147 ,179 ,202 ,3H4 ,3H7 ,8D8 ,8E3 ,8H8

sub62614-89106

main62614-89106-01iRN85..4HC..SR5..CBU198808-198908

BLACK,033 ,147 ,202 ,3H4 ,3H7 ,4J9 ,4K4 ,8D8 ,8E2

sub62614-89106

main62614-89106-01iRN85..4HC..SR5..CBU198808-198908

BLACK,033 ,138 ,147 ,202 ,3H4 ,3H7 ,4J9 ,4K4 ,8D8 ,8E2

sub62614-89106

main62614-89106-01iRN85..4HC..SR5..CBU198808-198908

BLACK,033 ,138 ,147 ,202 ,3B2 ,3H4 ,3H7 ,4J9 ,4K4 ,8D8 ,8E2

sub62614-89106

main62614-89106-01iRN8#,90,VZN85,90..CBU198908-199008

BLACK,033 ,147 ,179 ,202 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2

sub62614-89106

main62614-89106-01iVZN90;RN8#,90,VZN85..(4HC,5F)..(DLX,STD)..CBU198909-199008

BLACK,033 ,147 ,179 ,202 ,27L ,3H4 ,3H7 ,4J9 ,8D8 ,8E2

sub62614-89106

main62614-89106-01iRN80..STD..USA199008-199108

BLACK,147 ,179 ,202 ,27L ,3H4 ,3H7 ,8D8 ,8E3 ,8H8

sub62614-89106

main62614-89106-06iRN8#,90,VZN85,90..CBU,IV3198808-199008

BROWN,4J9

sub62614-89106

main62614-89106-08iRN8#,90,VZN85,90..CBU,IV3198808-199008

WHITE,033

sub62614-89106

main62614-89106-18iRN8#,90,VZN85,90..CBU199008-199108

WHITE,045

sub62614-89106

main62614-89106-A0iRN8#,90,VZN85,90..CBU199108-199501

WHITE,TRIM1#,8#&045

sub62614-89106

main62614-89106-C0iRN8#,90,VZN90..CND199108-199208

BLACK,045 ,147 ,179 ,202 ,27L ,3H7 ,3K3 ,6J7 ,8E3 ,8H8

sub62614-89106

main62614-89106-C0iRN8#,90,VZN85,90..USA..CBU199108-199208

BLACK,045 ,147 ,179 ,202 ,3H7 ,3K3 ,6J7 ,8E3 ,8H8

sub62614-89106

main62614-89106-C0iRN8#,90,VZN90..USA199208-199308

BLACK,045 ,179 ,196 ,202 ,27L ,3H7 ,3K3 ,6J7 ,8E3 ,8H8

sub62614-89106

main62614-89106-C0iRN8#,90,VZN90..CND199208-199308

BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,6J7 ,8E3 ,8H8

sub62614-89106

main62614-89106-C0iRN8#,90,VZN90199308-199501

BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,751 ,8E3 ,8H8

sub62614-89106

main62614-89108-02iRN8#,90,VZN85,90..CBU,IV3198808-199108

RED,3H7

sub62614-89108

sub62614-89106

main62614-89108-12iRN8#,90,VZN85,90..CBU,IV3198808-199108

RED MICA,3H4

sub62614-89108

sub62614-89106

main62614-89108-D0iRN8#,90,VZN90199108-199501

RED,TRIM1#,8#&3H7

sub62614-89108

sub62614-89106

main62614-89108-D1iRN8#,90,VZN90199108-199501

RED MICA,TRIM1#,8#&3K3

sub62614-89108

sub62614-89106

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-89337iRN85,VZN85..CBU,IV3198808-198907

sub65500-89338

main65500-89338iRN85,VZN85..CBU,IV3198907-199410

main65500-89340iRN80,90,VZN90198808-198907

main65500-89376iRN80,90,VZN90198907-199501

sub65500-89340

sub65681-89104

65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH

main65503-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65504APOST SUB-ASSY, SIDE PANEL FRONT END, LH

main65504-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65505POST SUB-ASSY, SIDE PANEL REAR END, RH

main65505-89108iRN8#,90,VZN85,90..CBU,IV3198808-199501

65506POST SUB-ASSY, SIDE PANEL REAR END, LH

main65506-89108iRN8#,90,VZN85,90..CBU,IV3198808-199501

65571FRAME, SIDE PANEL, FRONT RH

main65571-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65572FRAME, SIDE PANEL, FRONT LH

main65572-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65573FRAME, SIDE PANEL, REAR RH

main65573-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65574FRAME, SIDE PANEL, REAR LH

main65574-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65593APLATE, SIDE PANEL REAR END POST INSIDE, RH

main65593-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65594APLATE, SIDE PANEL REAR END POST INSIDE, LH

main65594-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-89283iRN85,VZN85..CBU,IV3198808-198907

sub65600-89284

main65600-89284iRN85,VZN85..CBU,IV3198907-199410

main65600-89286iRN80,90,VZN90198808-198907

sub65600-89316

main65600-89316iRN80,90,VZN90198907-199501

sub65600-89287

sub65682-89104

65613BRETAINER, REAR BODY PANEL

main65613-89104iRN8#,90,VZN85,90..CBU,IV3198808-199501

65637LINER, REAR WHEEL HOUSE, RH

main65637-89102iRN8#,90,VZN85,90..CBU,IV3198808-199501

65638LINER, REAR WHEEL HOUSE, LH

main65638-89102iRN8#,90,VZN85,90..CBU,IV3198808-199501

65655ABRACKET, WHEEL HOUSE SEAL, FRONT

main65655-89103iRN8#,90,VZN85,90..CBU,IV3198808-199501

65655BBRACKET, WHEEL HOUSE SEAL, FRONT

main65655-89103iRN8#,90,VZN85,90..CBU,IV3198808-199501

65671DBRACE, SIDE PANEL SKIRT, FRONT RH

main65671-89106iRN8#,90,VZN85,90..CBU,IV3198808-198901

sub65671-89107

main65671-89107iRN8#,90,VZN85,90..CBU,IV3198901-199501

65672FBRACE, SIDE PANEL SKIRT, FRONT LH

main65672-89101iRN8#,90,VZN85,90..CBU,IV3198808-198901

sub65672-89102

main65672-89102iRN8#,90,VZN85,90..CBU,IV3198901-199501

65685CBRACE, WHEEL HOUSE, RH

main65685-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65686BRACE, WHEEL HOUSE, LH

main65686-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65687ABRACKET, WHEEL HOUSE BRACE, RH

main65687-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65688ABRACKET, WHEEL HOUSE BRACE, LH

main65688-89101iRN8#,90,VZN85,90..CBU,IV3198808-199501

65695ABRACKET, WHEEL HOUSE BRACE, NO.2

main65695-89102iRN8#,90,VZN85,90..CBU,IV3198808-199501

65695BBRACKET, WHEEL HOUSE BRACE, NO.2

main65695-89102iRN8#,90,VZN85,90..CBU199108-199501

65816APANEL, REAR BODY SIDE, RH

main65816-89131iRN85,VZN85..CBU,IV3198808-199410

main65816-89133iRN80,90,VZN90198808-199501

65817APANEL, REAR BODY SIDE, LH

main65817-89129iRN85,VZN85..CBU,IV3198808-199410

main65817-89131iRN80,90,VZN90198808-199501

65826PANEL, REAR BODY SIDE, INNER RH

main65826-89109iRN85,VZN85..CBU,IV3198808-199410

main65826-89110iRN80,90,VZN90198808-199501

65827PANEL, REAR BODY SIDE, INNER LH

main65827-89109iRN85,VZN85..CBU,IV3198808-199410

main65827-89110iRN80,90,VZN90198808-199501

66301BHOOK SUB-ASSY, ROPE

main66301-89102iRN8#,90,VZN85,90..CBU,IV3198808-199208

main66312-35010iRN8#,90,VZN90199208-199501

5387914020LINER, FRONT FENDER, LH

main53879-14020

6631789101HOOK, ROPE, NO.7

main66317-89101

9014980025

main90149-80025

9015960500

main90159-60500

9016735009

main90167-35009

9018906028

main90189-06028

9046706116

main90467-06116

9046709042

main90467-09042

9046710018

main90467-10018

9095001561

main90950-01561

9163140614

main91631-40614

9165540820

main91655-40820

9327018016

main93270-18016

46 parts on this diagram · 1 diagram in section
