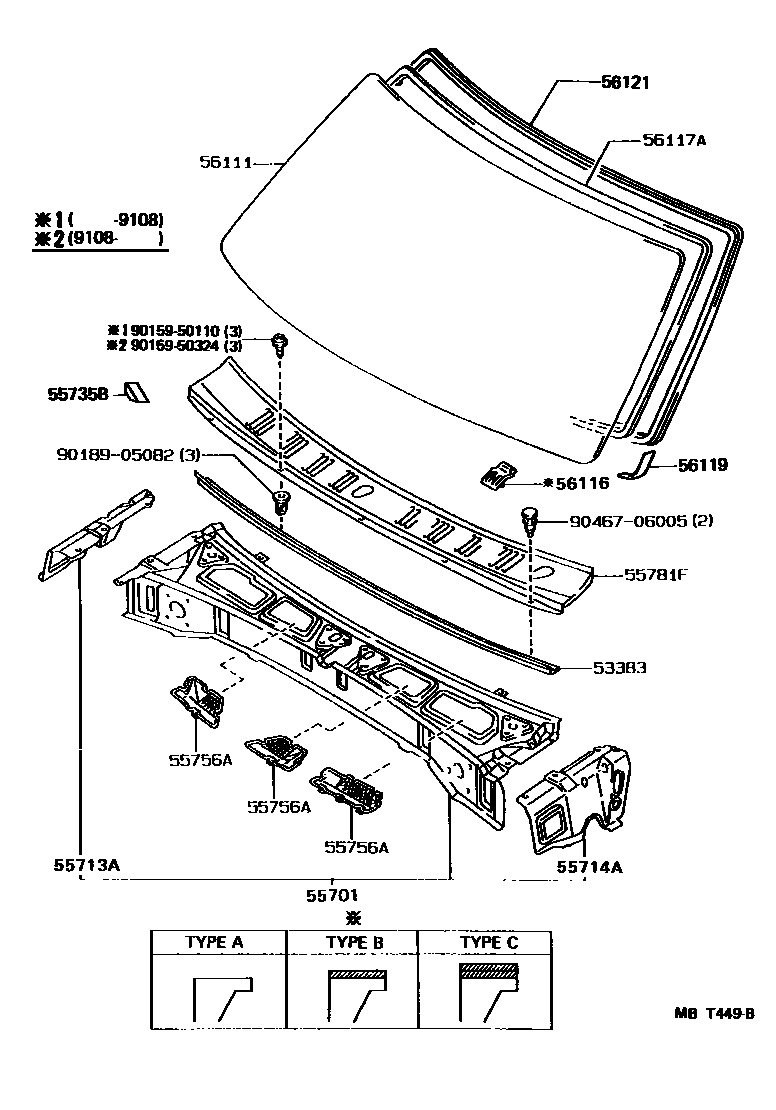

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-89106iRN12#,8#,90,VZN120,85,9#198808-199511

55701PANEL SUB-ASSY, COWL

main55700-89145iRN12#,8#,90..EFI198901-198906

PLANT NO. A51,A52

sub55700-89146

main55700-89146iVZN120,85,9#198901-199005

PLANT NO. P11

main55700-89146iRN12#,8#,90,VZN120,85,9#198901-199005

PLANT NO. A51,A52

main55700-89146iRN12#,8#,90199005-199108

PLANT NO.A51,A52

main55700-89146iRN8#,90198808-199511

55713APANEL, COWL TOP SIDE, RH

main55713-89105iRN12#,8#,90,VZN120,85,9#198808-199511

55714APANEL, COWL TOP SIDE, LH

main55714-89106iRN12#,8#,90,VZN120,85,9#198808-199511

55735BSEAL, FRONT AIR SHUTTER

main55735-89101iRN12#,8#,90,VZN120,85,9#198808-199511

55756ASCREEN, HEATER AIR DUCT

main55756-89108iRN121,8#,90,VZN85,9#..CND198808-199511

LH

main55756-89108iRN121,8#,90,VZN85,9#..CND198808-199008

COLD SPEC,LH

main55756-89109iRN121,8#,90,VZN85,9#..CND198808-199511

CENTER

main55756-89109iRN121,8#,90,VZN85,9#..CND198808-199008

COLD SPEC,CENTER

main55756-89111iRN80..G..USA;RN80..DLX..EFI;RN120,85,90,VZN120,85,9#..USA198808-199511

RH

main55756-89111iRN80..G..USA;RN80..DLX..EFI;RN120,85,90,VZN120,85,9#..USA198808-199008

COLD SPEC,RH

55781FLOUVER, COWL TOP VENTILATOR

main55781-89103iRN12#,8#,90,VZN120,85,9#198808-199511

56111GLASS, WINDSHIELD

main56111-89144iRN80..STD..USA198808-199108

*LAM,T=5.3

sub56111-89145

main56111-89145iRN80..STD..USA198808-199108

*TL,T=5.3

sub56111-35390

main56111-89147iRN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN85,95;RN80,VZN90..DLX..EFI198808-199511

*TL,T=5.3,BLUE

sub56111-35410

main56111-89148iVZN120198808-199511

*TL,T=5.3,BRONZE

main56111-89150iRN8#,90,VZN85,9#..DLX,STD198808-199501

*LAM,T=5.3

sub56111-89147

56116SPACER, WINDSHIELD GLASS

main56116-89104iRN8#,90,VZN120,85,9#198808-199511

TYPE A

main56116-89105iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198808-199511

TYPE B

main56116-89106iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198808-199511

TYPE C

56117ADAM, WINDOW GLASS ADHESIVE

main56117-89104iRN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#198808-199511

56119SEAL, WINDSHIELD GLASS

main56119-35010iRN80..STD..USA199011-199108

56121WEATHERSTRIP, WINDSHIELD

main56121-89122iRN80..STD..USA198808-199108

9015950110

main90159-50110

9015950324

main90159-50324

9018905082

main90189-05082

9046706005

main90467-06005

16 parts on this diagram · 1 diagram in section
