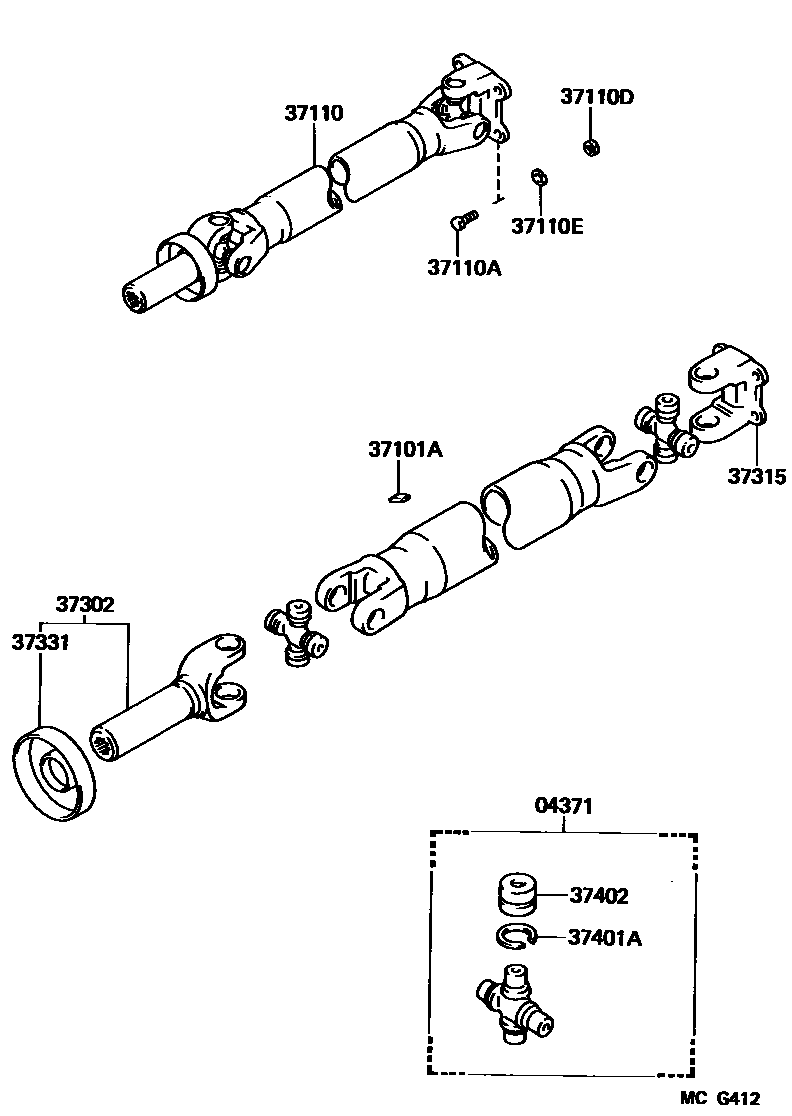

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-04010iRN80..USA199112-199312

DANA

main04371-04020iRN80..USA199312-199501

DANA

main04371-30021iRN12#,80,VZN120198808-199501

sub04371-30040

main04371-30021iRN80..USA199108-199511

TOYOTA

sub04371-30040

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90080-93007iRN80..USA199112-199501

22.1G

main90080-93010iRN80..USA199112-199501

25.5G

main90080-93019iRN80..USA199112-199501

2.3G

main90080-93020iRN80..USA199112-199501

4.5G

main90080-93021iRN80..USA199112-199501

7.9G

main90080-93022iRN80..USA199112-199501

11.3G

main90080-93023iRN80..USA199112-199501

14.8G

main90080-93024iRN80..USA199112-199501

18.1G

main90937-01132iRN12#,8#,90,VZN120,85,9#198808-199511

10G,L=20.7

main90937-01136iRN8#,90,VZN120,85,9#199108-199511

20G,L=41.4

main90937-01147iRN12#,8#,90,VZN120,85,9#198808-199511

2G,T=2.0

main90937-01148iRN12#,8#,90,VZN120,85,9#198808-199511

4G,T=2.0

main90937-01149iRN12#,8#,90,VZN120,85,9#198808-199511

6G,L=12.4

main90937-01150iRN12#,8#,90,VZN120,85,9#198808-199511

8G,L=16.6

main90937-01151iRN12#,8#,90,VZN120,85,9#198808-199511

12G,L=24.9

main90937-01152iRN12#,8#,90,VZN120,85,9#198808-199511

14G,L=29.0

main90937-01153iRN8#,90,VZN120,85,9#199108-199511

16G,L=33.2

main90937-01154iRN8#,90,VZN120,85,9#199108-199511

18G,L=37.3

main90937-01155iRN8#,90,VZN120,85,9#199108-199511

22G,L=45.6

main90937-01156iRN8#,90,VZN120,85,9#199108-199511

24G,L=49.7

main90937-01157iRN8#,90,VZN120,85,9#199108-199511

26G,L=53.9

main90937-01158iRN8#,90,VZN120,85,9#199108-199511

28G,L=58.1

main90937-01201iRN12#,8#,90,VZN120,85,9#198808-199511

30G,T=4.5,L=27.4

37110SHAFT ASSY, PROPELLER

main37110-04020iRN80..W..USA199112-199501

DANA

main37110-04030iRN80..4HC199112-199501

DANA

main37110-26350iRN80..4HC198808-199112

main37110-26350iRN80..4HC199112-199501

TOYOTA

main37110-35200iRN80..W..USA199112-199501

TOYOTA

main37110-35200iRN80..5F198808-199112

main37110-35221iRN85,90198808-199501

main37110-35330iVZN85,90198808-199501

main37110-35400iRN80..STD..USA198808-199008

main37110-35570iVZN95198808-198809

sub37110-35630

main37110-35590iVZN120198904-199511

main37110-35610iRN12#..4FC198904-199108

main37110-35620iRN121..W198904-199108

main37110-35630iVZN95198809-199008

main37110-35631iVZN95199008-199308

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085iRN12#,8#,90,VZN120,85,9#198808-199511

*10-1.00PX27-13

37110DNUT (FOR PROPELLER SHAFT)

main90179-10059iRN12#,8#,90,VZN120,85,9#198808-199511

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iRN12#,8#,90,VZN120,85,9#198808-199511

sub90560-10H00

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-04020iRN80..USA199112-199501

main37302-24010iVZN120,85,9#198808-199511

main37302-35030iRN80..USA199112-199501

TOYOTA

main37302-35030iRN12#,8#,90198808-199112

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-04020iRN80..USA199112-199312

DANA

main37315-04030iRN80..USA199312-199501

DANA

main37315-35040iRN12#,80,VZN120198808-199112

main37315-35040iVZN120;RN80..CND199112-199511

TOYOTA

37331COVER, SLIDING SHAFT DUST

main37331-04020iRN80..USA199112-199501

DANA

main37331-24010iVZN120,85,9#198808-199511

main37331-30010iRN80..USA199112-199501

TOYOTA

main37331-30010iRN12#,8#,90198808-199112

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90080-52038iRN80..USA199112-199501

T=1.64,BLUE

main90080-52039iRN80..USA199112-199501

T=1.59,YELLOW

main90080-52040iRN80..USA199112-199501

T=1.54,SILVER

main90080-52041iRN80..USA199112-199501

T=1.49,COPPER

main90080-52042iRN80..USA199112-199501

T=1.51,BLACK

main90080-52043iRN80..USA199112-199501

T=1.44,RED

main90080-52044iRN80..USA199112-199501

T=1.38,GREEN

main90520-26038iRN12#,80,VZN120198808-199511

T=2.125,MARK 1

main90520-26040iRN85,90,VZN85,9#198808-199511

T=2.175,MARK 2

main90520-26041iRN85,90,VZN85,9#198808-199511

T=2.225,MARK 3

main90520-26042iRN85,90,VZN85,90198808-199511

T=2.275,MARK 4

main90520-26043iRN12#,80,VZN120198808-199511

T=2.325,MARK 5

main90520-26044iRN12#,80,VZN120198808-199511

T=2.375,MARK 6

main90520-26045iRN85,90,VZN85,90198808-199511

T=2.425,MARK 7

main90520-26046iRN85,90,VZN85,9#198808-199511

T=2.475,MARK 8

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-30011iRN85,90,VZN85,90198808-199511

sub04371-60070

sub04371-60100

main37402-30021iRN12#,80,VZN120,95198808-199511

RED PAINTED

sub04371-60070

sub04371-60100

11 parts on this diagram · 2 diagrams in section
