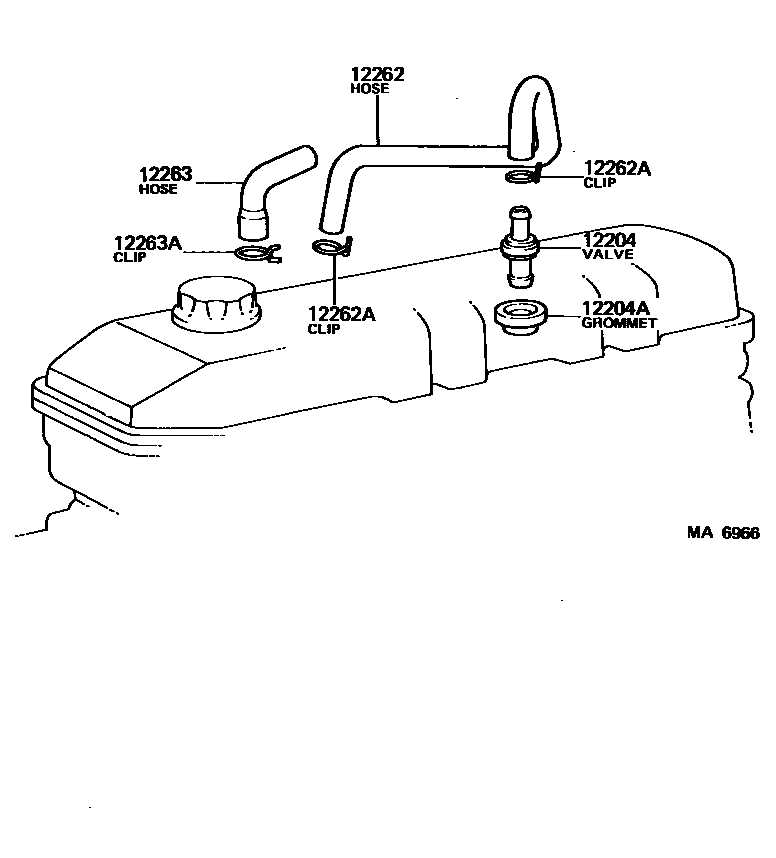

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-35030i22R..RN8#,90198808-199008

main12204-35040i3VZE..VZN120,85,9#198808-199501

main12204-65010i3VZE..VZN120,85,9#198912-199511

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i3VZE..VZN120,85,9#198808-199511

main90480-18180i22R#..RN12#,8#,90198808-199501

12262HOSE, VENTILATION, NO.2

main12261-35011i22RE..RN12#,8#,90198808-199501

main12261-38011i22R..RN8#,90198808-199008

main12262-65011i3VZE..VZN120,85,9#198808-199511

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-15006i22R#..RN12#,8#,90198808-199501

main90467-19122i3VZE..VZN120,85,9#198808-199511

12263HOSE, VENTILATION, NO.3

main12262-35040i22R..RN8#,90198808-199008

main12262-35060i22RE..RN12#,8#,90198808-199501

12263ACLIP(FOR VENTILATION HOSE)

main90467-15006i22RE..RN12#,8#,90198808-199501

SURGE TANK SIDE

main90467-19003i22R..RN8#,90198808-199501

HEAD COVER SIDE

6 parts on this diagram · 3 diagrams in section
