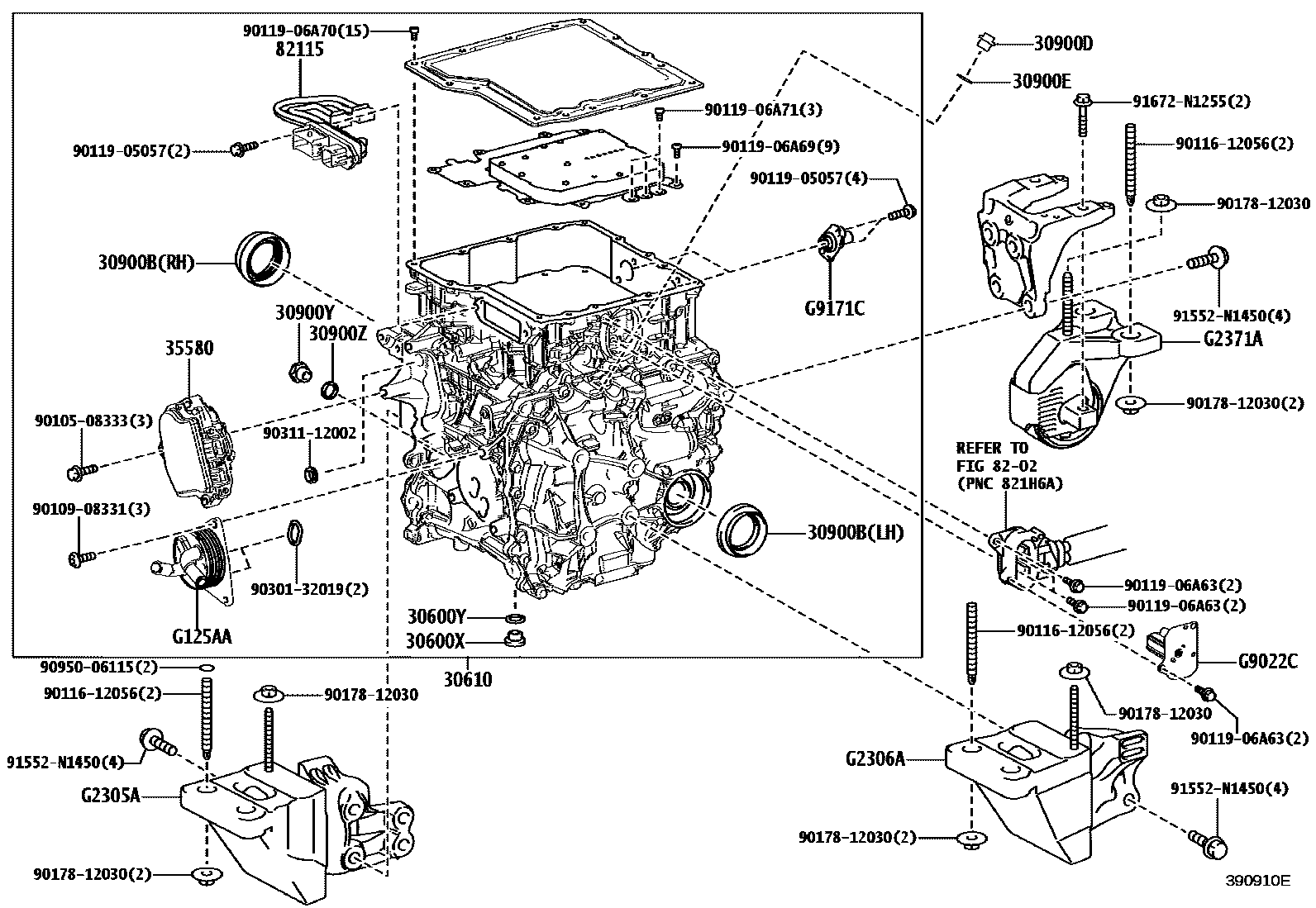

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30600XPLUG, DRAIN(BEV)

main90341-18016iXPN135202311-202407

30600YGASKET, DRAIN PLUG(BEV)

main90430-18008iXPN135202311-202407

30610TRANSAXLE ASSY, W/MOTOR & INVERTER

main30610-42011iXPN135202311-202407

30900BSEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY)

main90311-50067iXPN135202311-202407

RH

main90311-50068iXPN135202311-202407

LH

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iXPN135202311-202407

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iXPN135202311-202407

30900YPLUG, FILLER(BEV)

main90341-18090iXPN135202311-202407

30900ZGASKET, FILLER PLUG(BEV)

main90430-18008iXPN135202311-202407

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-42021iXPN135202311-202407

8202

82115WIRE, MOTOR COMPARTMENT, MAIN

main82115-42Q00iXPN135202311-202407

G125AACOOLER, MOTOR COOLING

mainG125A42020iXPN135202311-202407

G2305AINSULATOR SUB-ASSY, MOTOR MOUNTING, RH

mainG230571010iXPN135202311-202408

G2306AINSULATOR SUB-ASSY, MOTOR MOUNTING, LH

mainG230671010iXPN135202311-202408

G2371AINSULATOR, MOTOR MOUNTING, REAR

mainG237171010iXPN135202311-202408

G9022CCOVER SUB-ASSY, INVERTER, UPPER, NO.2

mainG902242020iXPN135202311-202407

G9171CPIPE, INVERTER COOLING, NO.1

mainG917142010×2iXPN135202311-202407

9010508333

main90105-08333

9010908331

main90109-08331

9011612056

main90116-12056

9011905057

main90119-05057

9011906A63

main90119-06A63

9011906A69

main90119-06A69

9011906A70

main90119-06A70

9011906A71

main90119-06A71

9017812030

main90178-12030

9030132019

main90301-32019

9031112002

main90311-12002

9095006115

main90950-06115

91552N1450

main91552-N1450

91672N1255

main91672-N1255

31 parts on this diagram · 1 diagram in section
