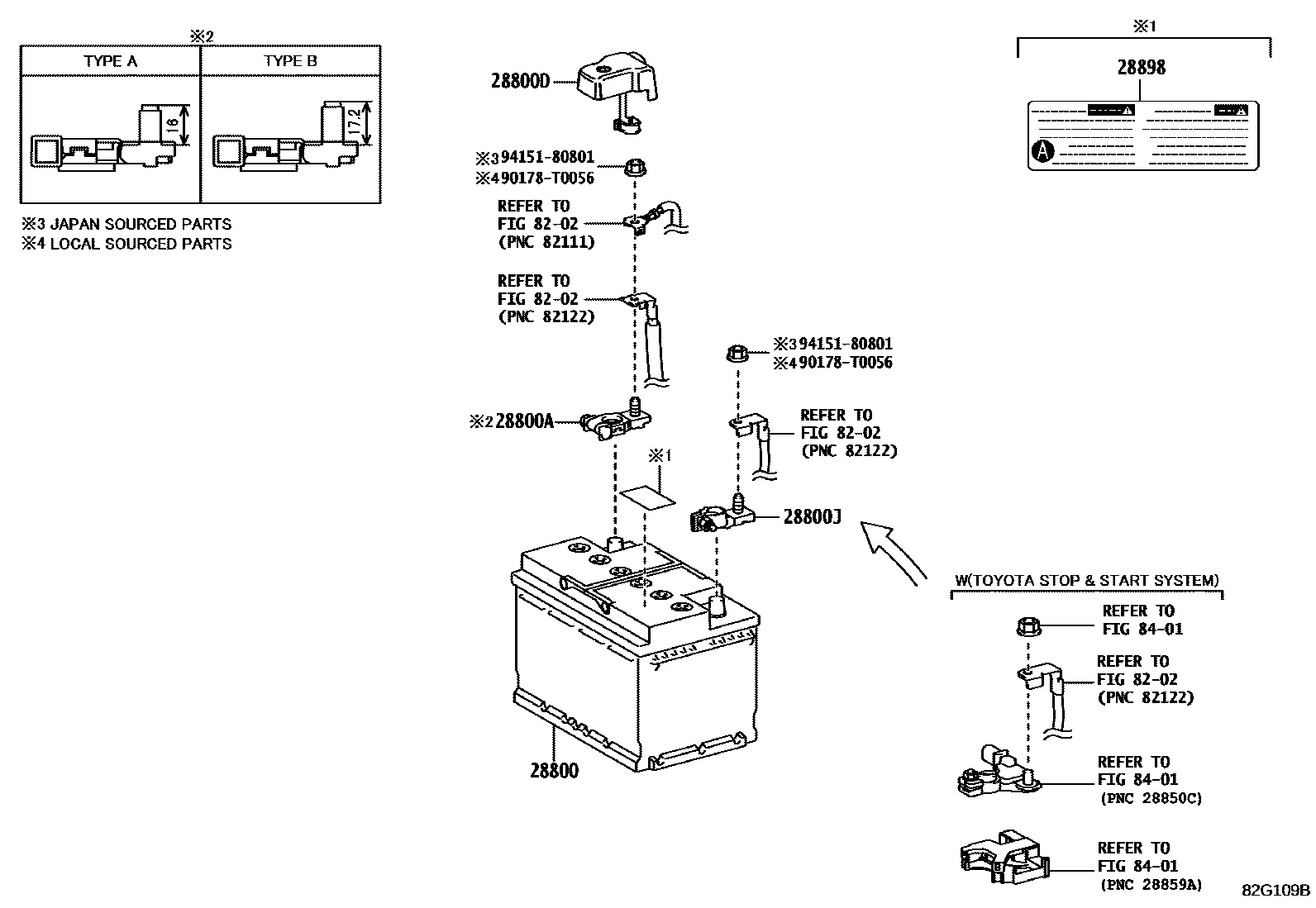

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0C210i1TRFE..TGN110..IDN202208-202211

LN0

sub28800-0C211

main28800-0C211i1TRFE..TGN110..IDN202212-202307

LN0

main28800-0C240i2TRFE..TGN121,126..ARL,GEN,LA,TH202208-202211

LN2,GS

sub28800-0C241

main28800-0C241i2TRFE..TGN121,126..THP..(ARL,GEN,LA,TH)202212-202307

LN2,GS

main28800-0C251i2TRFE..TGN126,136..AGTP202306-202310

LN2

main28800-0C251i2TRFE..TGN126,136..AGTP202211-202306

LN2,JOHNSON CONTROLS

main28800-0C261i1TRFE,2TRFE..TGN120,121,136..SA202301-202401

LN2

main28800-0C273i2TRFE..TGN121,126..ARL,GEN,LA,TH202208-202211

LN2,FURUKAWA

sub28800-0C274

main28800-0C274i2TRFE..TGN121,126..THP..(ARL,GEN,LA,TH)202212-202307

LN2,FURUKAWA

main28800-0C281i2TRFE..TGN126,136..AGTP202211-202306

LN2,UNION BATTERY

main28800-0C361i1TRFE,2TRFE..TGN11#,12#..GCC202208-202307

LN0

main28800-0L461i1GDFTV..GUN126..LA;2GDFTV..GUN125,135..AGTP202211-202310

LN3,JOHNSON CONTROLS

main28800-0L461i1GDFTV..GUN126..LA;2GDFTV..GUN125,135..AGTP202306-202310

LN3

main28800-0L481i1GDFTV,2GDFTV..GUN122,125,126,13#..SA202301-202403

LN3

main28800-0L490i2GDFTV..GUN122,125..SA..IV3202301-202401

LN4

sub28800-0L491

main28800-0L490i5LE..LAN125202301-202401

LN4,POWER SUPPLY PACKAGE

sub28800-0L491

main28800-0L503i2GDFTV..GUN125..6FC..IV3;2GDFTV..GUN125..6F..(ARL,GEN,IDN,LA,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,13#..ARL,GEN,IDN,LA,PH,TH202208-202211

LN3,FURUKAWA

sub28800-0L504

main28800-0L504i2GDFTV..GUN125..6FC..IV3;2GDFTV..GUN125..THP..6F..(ARL,GEN,IDN,LA,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,13#..THP..(ARL,GEN,IDN,LA,PH,TH)202212-202307

LN3,FURUKAWA

main28800-0L510i2GDFTV..GUN120,122..TH..IV3202208-202211

LN4,POWER SUPPLY PACKAGE

sub28800-0L511

main28800-0L510i2GDFTV..GUN120,122..TH..IV3202208-202211

LN4

sub28800-0L511

main28800-0L510i2GDFTV..GUN120,122..TH..IV3202208-202211

LN4,COLD CHAIN PACKAGE

sub28800-0L511

main28800-0L511i2GDFTV..GUN125..6FC..GEN202212-202307

LN4,POWER SUPPLY PACKAGE

main28800-0L511i2GDFTV..GUN125..6FC..GEN202212-202307

LN4

main28800-0L511i2GDFTV..GUN125..6FC..GEN202212-202307

LN4,COLD CHAIN PACKAGE

main28800-0L570i2GDFTV..GUN125..6FC..IV3;2GDFTV..GUN125..6F..(ARL,GEN,IDN,LA,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,13#..ARL,GEN,IDN,LA,PH,TH202208-202211

LN3,YUASA

sub28800-0L571

main28800-0L571i2GDFTV..GUN125..6FC..IV3;2GDFTV..GUN125..THP..6F..(ARL,GEN,IDN,LA,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,13#..THP..(ARL,GEN,IDN,LA,PH,TH)202212-202307

LN3,YUASA

sub28800-0L572

main28800-0L600i1GDFTV..GUN126..LA;2GDFTV..GUN125,135..AGTP202211-202212

LN3,UNION BATTERY

sub28800-0L601

main28800-0L601i1GDFTV..GUN126..LA;2GDFTV..GUN125,135..AGTP202212-202306

LN3,UNION BATTERY

main28800-0L721i1GDFTV,2GDFTV..GUN11#,122,125,126..GCC202208-202209

LN3

sub28800-0L722

main28800-0L722i1GDFTV,2GDFTV..GUN11#,122,125,126..GCC202209-202307

LN3

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN11#,12#,13#,TGN11#,12#..THP202208-202403

TYPE A:REFER ILLUST.

main90982-05061i2GDFTV..GUN125,135..KEN202208-202403

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN11#,12#,13#,TGN11#,12#..THP202208-202403

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN11#,12#,13#,TGN11#,12#..THP202208-202403

28898PLATE, BATTERY

main28897-36030i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN11#,122,125,126,TGN11#,12#..GCC202208-202307

8202

8401

90178T0056

main90178-T0056

9415180801

main94151-80801

9 parts on this diagram · 1 diagram in section
