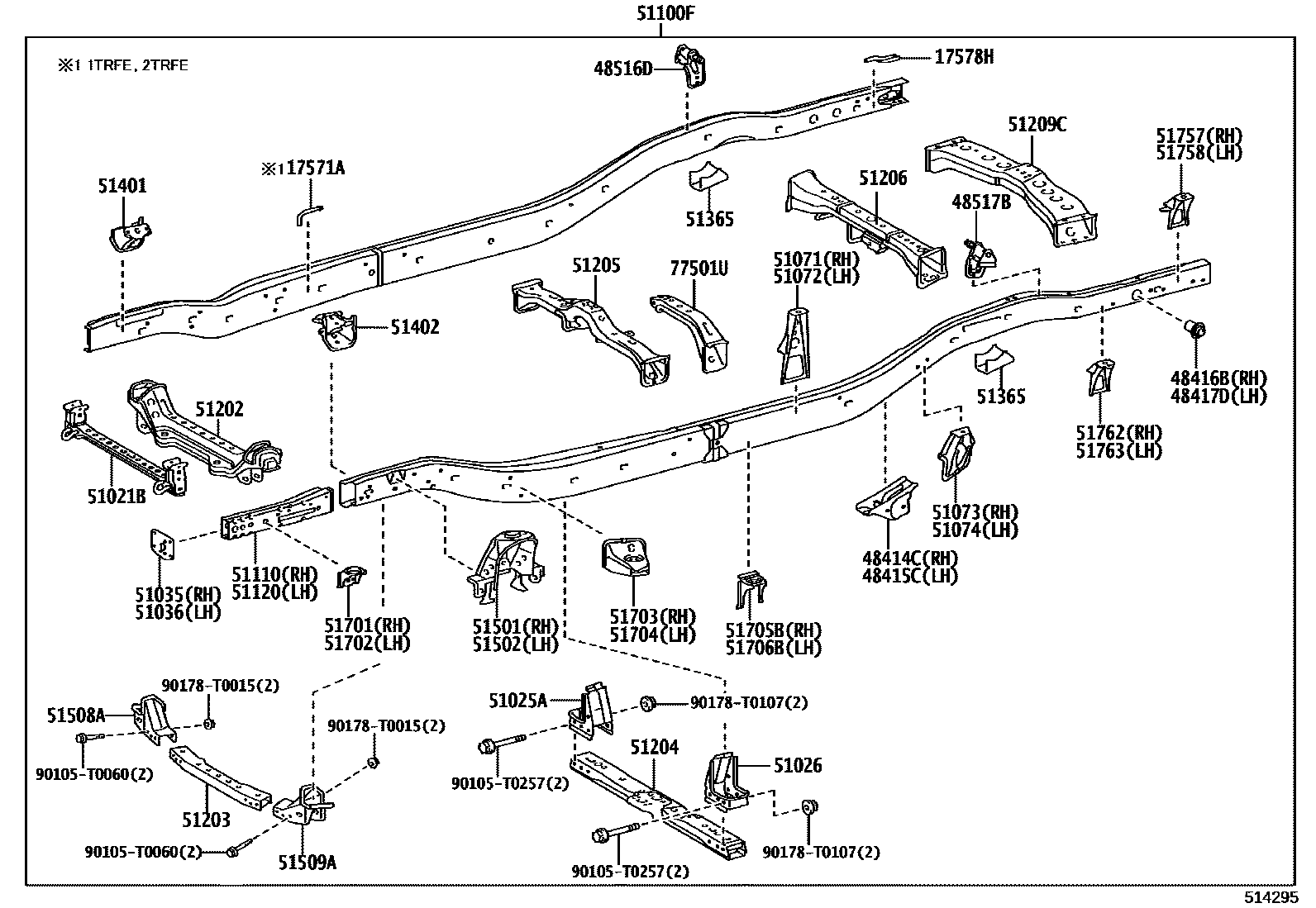

FRAME

0001 1 0002 1 0003 1 0004 1 0005 1PROPELLER SHAFT GUARD 0006 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i2TRFE..TGN136..L202208-202401

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L020i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN122,125,126,13#,LAN125,TGN120,121,136..SA202208-202403

48414CBRACKET, SPRING, NO.3 RH

main48404-KK020iGUN11#,120,121,122,TGN11#,120,121..SCB..THP202208-202401

main48404-KK030iGUN120,122..XTR202208-202307

main48404-KK040iGUN135,TGN136..AGTP202208-202403

48415CBRACKET, SPRING, NO.3 LH

main48407-KK020iGUN122,TGN121..PKN202208-202401

main48407-KK030iGUN120,122..XTR202208-202307

main48407-KK040iGUN135,TGN136..AGTP202208-202403

48416BBRACKET, SPRING, NO.4 RH

main48405-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

48417DBRACKET, SPRING, NO.4 LH

main48405-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

main48505-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

main48506-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-KK010iGUN125,126,135..MAP,THP;GUN11#,122,136,TGN11#,12#..THP..(ARL,GCC,LA)202208-202403

main51021-KK020iGUN125,126,TGN126..AGTP202211-202310

main51021-KK030iGUN112,120,121,122,TGN110,121..GEN,IDN,PH,TH202302-202307

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-KK010iGUN135,TGN136..AGTP202208-202403

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-KK010iGUN135,TGN136..AGTP202208-202403

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-KK010iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202208-202403

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-0K010iGUN11#,TGN11#202208-202307

main51071-0K020iGUN126..PKN202208-202403

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51071-0K020iGUN135,TGN136..AGTP202208-202403

main51072-0K010iGUN11#,TGN11#202208-202307

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

51100FFRAME SUB-ASSY

main51001-KK101iTGN11#202208-202301

sub51001-KK102

sub51001-KK103

main51001-KK102iTGN11#..GCC202302-202307

sub51001-KK103

main51001-KK121iGUN112202208-202301

sub51001-KK122

sub51001-KK123

main51001-KK122iGUN112..GCC202302-202307

sub51001-KK123

main51001-KK152iTGN121..6FC202208-202301

sub51001-KK153

sub51001-KK154

main51001-KK153iTGN121..6FC202302-202307

sub51001-KK154

main51001-KK162iTGN120,121..5F202208-202301

sub51001-KK163

main51001-KK163iTGN120,121..5F..(ARL,GCC,PKN)202302-202306

sub51001-KK164

main51001-KK164iTGN121..PKN202307

main51001-KK182iGUN120,122..SCB..(5F,6FC)202208-202301

sub51001-KK183

main51001-KK183iGUN122..GCC,PKN202302-202306

sub51001-KK184

main51001-KK184iGUN122..PKN202307

main51001-KK232iGUN120..XTR202208-202301

sub51001-KK233

sub51001-KK234

main51001-KK233iGUN120..XTR202302-202307

sub51001-KK234

main51001-KK312iTGN126..THP202208-202301

sub51001-KK313

sub51001-KK314

main51001-KK313iTGN126..THP202302-202307

sub51001-KK315

main51001-KK322iGUN125..KEN202301-202403

main51001-KK332iLAN125202301-202401

main51001-KK342iGUN125,126..XTR..SA202301-202401

main51001-KK402iGUN135..KEN202301-202403

main51001-KK423iGUN13#..6FC202208-202301

sub51001-KK424

sub51001-KK425

main51001-KK424iGUN13#..THP..6FC202302-202307

sub51001-KK425

main51001-KK432iGUN13#..XTR..6F..SA202301-202401

main51001-KK672iGUN125,126..SCB..(MAP,THP)202208-202301

sub51001-KK673

main51001-KK673iGUN126..PKN202302-202307

sub51001-KKK90

main51001-KK712iTGN136..SA202301-202401

main51001-KK722iGUN135..SCB..THP202208-202301

sub51001-KK723

sub51001-KK724

main51001-KK723iGUN135..SCB..THP202302-202307

sub51001-KK724

main51001-KK761iTGN120,121..SA202301-202401

main51001-KK771iGUN122..SA202301-202401

main51001-KK802iGUN125,126..XTR202208-202301

sub51001-KK803

sub51001-KK804

main51001-KK803iGUN125,126..XTR..THP202302-202307

sub51001-KK805

main51001-KK812iGUN135..6F..TH202208-202301

sub51001-KK813

sub51001-KK814

main51001-KK813iGUN135..6F..TH202302-202307

sub51001-KK814

main51001-KK822iGUN13#..SCB..6FC202301-202401

main51001-KK832iGUN13#..XTR..6FC..SA202301-202401

main51001-KKA13iTGN126..AGTP202211-202307

main51001-KKA23iGUN125,126..AGTP202211-202307

main51001-KKA53iTGN136..L202211-202310

main51001-KKA63iGUN135..AGTP202211-202310

main51001-KKC11iGUN121,122..SCB..TH202208-202301

sub51001-KKC12

sub51001-KKC13

main51001-KKC12iGUN121,122..SCB..TH202302-202307

sub51001-KKC13

main51001-KKC21iGUN122..XTR202208-202301

sub51001-KKC22

sub51001-KKC23

main51001-KKC22iGUN122..XTR202302-202307

sub51001-KKC23

main51001-KKF00iGUN111202208-202301

sub51001-KKF01

sub51001-KKF02

main51001-KKF01iGUN111202302-202307

sub51001-KKF02

main51001-KKJ20iTGN110..IDN202302-202307

sub51001-KKJ21

main51001-KKJ30iGUN112..RHD202302-202307

sub51001-KKJ31

main51001-KKJ40iTGN121..GEN,TH202302-202307

sub51001-KKJ41

main51001-KKJ50iGUN120,122..SCB..(5F,6FC)..(GEN,PH,TH)202302-202307

sub51001-KKJ51

main51001-KKK90iGUN126..PKN202307-202308

51110EXTENSION ASSY, SIDE RAIL, RH

main5103A-KK010iGUN125,126,13#,LAN125,TGN126,136..AGTP,KENP,SAP202211-202403

main5103A-KK020iGUN122,TGN120,121..SA202301-202401

main51110-KK906iGUN11#,120,121,122,TGN11#,120,121..PKNP,THP202208-202307

main51110-KK907iGUN125,126,13#,TGN126..MAP,PKNP,THP202208-202307

51120EXTENSION ASSY, SIDE RAIL, LH

main5103B-KK010iGUN125,126,13#,LAN125,TGN126,136..AGTP,KENP,SAP202211-202403

main5103B-KK020iGUN122,TGN120,121..SA202301-202401

main51122-KK906iGUN11#,120,121,122,TGN11#,120,121..PKNP,THP202208-202307

main51122-KK907iGUN125,126,13#,TGN126..MAP,PKNP,THP202208-202307

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-KK010iGUN122,TGN121..PKN202208-202401

main51201-KK050iGUN126..PKN202208-202403

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0K010iGUN11#,120,121,122,TGN11#,120,121..THP202208-202401

main51202-KK010iGUN126..PKN202208-202403

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-KK010iGUN122,13#..(5F,6FC)..SA202301-202401

sub51203-KK100

main51203-KK020iTGN120,121,136..SA202301-202401

sub51203-KK110

sub51203-KK230

main51203-KK030iGUN111,121,122,135..THP..6F202208-202403

main51203-KK040iGUN125,126..SA202208-202403

sub51203-KK250

main51203-KK050iTGN126..THP202208-202401

sub51203-KK260

main51203-KK130iTGN11#,120,121..(PKNP,THP)..5F202208-202310

sub51203-KK230

main51203-KK140iGUN135..AGTP202211-202310

main51203-KK150iGUN125,126..AGTP202211-202307

main51203-KK190iTGN121..6FC;GUN112,120,122,13#..(PKNP,THP)..(5F,6FC)202208-202307

sub51203-KK210

main51203-KK200iTGN126..AGTP202211-202307

main51203-KK210iGUN122..PKN202307

main51203-KK230iTGN121..PKN202307

main51203-KK250iGUN126..PKN202309

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-KK030iGUN126..PKN202208-202403

main51204-KK040iGUN122,TGN120,121..SA202208-202401

main51204-KK050iGUN13#..THP202208-202403

main51204-KK070iGUN11#,TGN11#202208-202307

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-KK030iGUN11#,TGN11#202208-202307

main51205-KK040iGUN135,TGN136..AGTP202208-202403

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-KK010iGUN126..PKN202208-202403

51365STOPPER, REAR BUMPER

main57081-KK010iGUN11#,120,121,122,TGN11#,120,121..THP202208-202401

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-KK010iLAN125202301-202401

main51401-KK020iTGN136..L202208-202401

main51401-KK040iGUN125,135..KEN202208-202403

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-KK010iLAN125202301-202401

main51402-KK020iTGN11#,12#..AGTP,THP202208-202401

main51402-KK040iGUN125,135..KEN202208-202403

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-KK010iGUN11#,120,121,122,TGN11#,120,121..THP202208-202401

main51501-KK020iGUN135,TGN136..AGTP202208-202403

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-KK010iGUN11#,120,121,122,TGN11#,120,121..THP202208-202401

main51502-KK020iGUN135..THP;GUN125,126,136,TGN126..AGTP,MAP,THP202208-202403

51508ABRACKET SUB-ASSY, LOWER ARM, RH

main51508-KK020iGUN122,TGN121..PKN202208-202401

51509ABRACKET SUB-ASSY, LOWER ARM, LH

main51509-KK020iGUN122,TGN121..PKN202208-202401

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-KK010iGUN126..PKN202208-202403

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-KK010iGUN120,122,125,126,13#..XTR..THP202208-202401

main51731-KK030iGUN135,TGN136..AGTP202208-202403

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51706-KK010iGUN120,122,125,126,13#..XTR..THP202208-202401

main51731-KK030iGUN135,TGN136..AGTP202208-202403

51757BRACKET, BODY SUPPORT, NO.4 RH

main51077-KK010iGUN135..THP;GUN11#,12#,136,TGN11#,12#..AGTP,MAP,THP202208-202403

51758BRACKET, BODY SUPPORT, NO.4 LH

main51078-KK010iGUN135,TGN136..AGTP202208-202403

51762BRACKET, BODY SUPPORT, NO.5 RH

main51075-KK010iGUN126..PKN202208-202403

51763BRACKET, BODY SUPPORT, NO.5 LH

main51076-KK010iGUN125,135..KEN202208-202403

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-0K020iGUN122,TGN121..PKN202208-202403

main77501-KK040iGUN11#,TGN11#202208-202307

90105T0060

main90105-T0060

90105T0257

main90105-T0257

90178T0015

main90178-T0015

90178T0107

main90178-T0107

48 parts on this diagram · 6 diagrams in section
