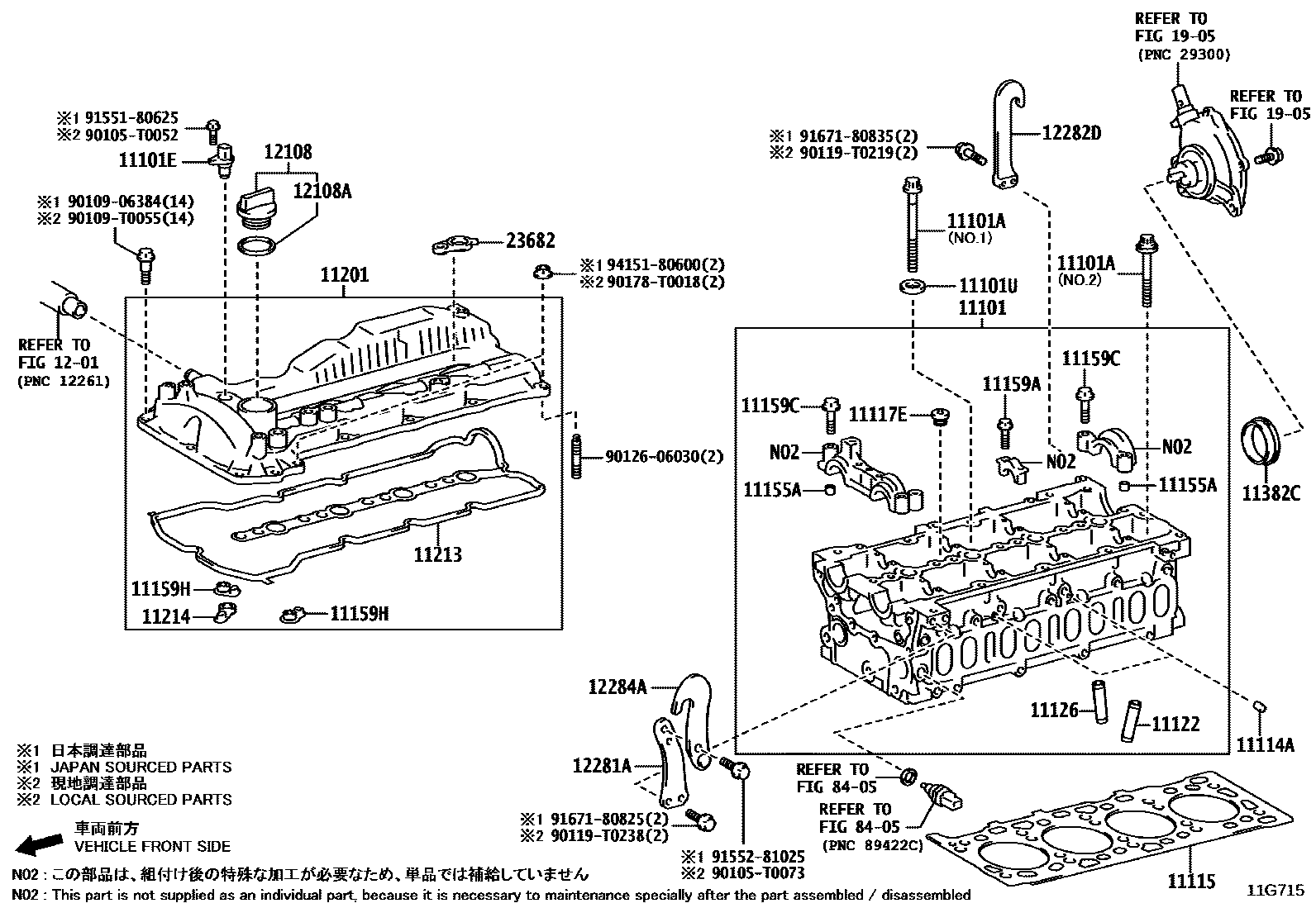

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
TYPE B:REFER 13-02
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER 13-02
sub11101-0C101
(L),TYPE A:REF.13-02,TYPE A:REFER 13-02
sub11101-0C111
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L),TYPEA:REF.13-02,TYPE A:REFER 13-02
sub11101-0C111
TYPE A:REFER 13-02
sub11101-0C111
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER 13-02
sub11101-0C111
TYPE B:REFER 13-02
THA SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY,JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
(J),NO.2
GCC SPEC EURO4 2022MY,(J),NO.2
(J),NO.1
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L),NO.1
(L),NO.1
(L),NO.2
11101ESENSOR, CAM POSITION
CENTRAL AND SOUTH AMERICA SPEC
GCC SPEC EURO4 2022MY
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
11101USPACER(FOR CYLINDER HEAD SET BOLT)
(J)
GCC SPEC EURO4 2022MY,(J)
(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
11114APIN, STRAIGHT
L=8,OD=5,GCC SPEC EURO4 2022MY,(J)
L=8,OD=5,(J)
L=8,OD=5,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
L=8,OD=5,(L)
11115GASKET, CYLINDER HEAD
(L)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARKA,(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARKA,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK A,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK A,(L)
MARK A,(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK A,(L)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK A,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK B,(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK B,(L)
MARK B,(L)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK B,(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARKB,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK B,(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARKB,(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARKC,(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARKC,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK C,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK C,(L)
MARK C,(L)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK C,(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK C,(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARKD,(L)
MARK D,(L)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK D,(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARKD,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK D,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK D,(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK D,(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARKE,(L)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARKE,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK E,(L)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK E,(L)
MARK E,(L)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK E,(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK E,(L)
MARK A,(J)
GCC SPEC EURO4 2022MY,MARK A,(J)
MARK B,(J)
GCC SPEC EURO4 2022MY,MARK B,(J)
MARK C,(J)
GCC SPEC EURO4 2022MY,MARK C,(J)
MARK D,(J)
GCC SPEC EURO4 2022MY,MARK D,(J)
MARK E,(J)
GCC SPEC EURO4 2022MY,MARK E,(J)
(J)
(J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY,(J)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
(J)
(L)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
O/S 0.05,GCC SPEC EURO4 2022MY
O/S 0.05,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
O/S 0.05,OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
O/S 0.05,BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
O/S 0.05,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
O/S 0.05,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
O/S 0.05,BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
STD
STD,BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
STD,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD,BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
STD,OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
O/S 0.05,GCC SPEC EURO4 2022MY
O/S 0.05,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
O/S 0.05,OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
O/S 0.05,BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
O/S 0.05,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
O/S 0.05,BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
O/S 0.05
STD
STD,BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
STD,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD,BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
STD,OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
STD
O/S 0.05
11155APIN, RING W/HEAD
GCC SPEC EURO4 2022MY
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(J)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
GCC SPEC EURO4 2022MY,(J)
(L)
(L)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
(J)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY,(J)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1,*651
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),NO.1,*651
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),NO.1,*651
NO.1,*652
(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
GCC SPEC EURO4 2022MY,(J)
(J)
NO.1,*657
NO.2,*651
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),NO.2,*651
NO.2,*652
NO.2,*657
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),NO.3,*651
NO.3,*651
NO.3,*652
NO.3,*657
11201COVER SUB-ASSY, CYLINDER HEAD
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IDN SOURCED PARTS
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
THA SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
sub11201-0E012
(L)
(J)
GCC SPEC EURO4 2022MY,(J)
JAPAN SOURCED PARTS
11213GASKET, CYLINDER HEAD COVER
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
GCC SPEC EURO4 2022MY,(J)
(J)
JAPAN SOURCED PARTS
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
(J)
GCC SPEC EURO4 2022MY,(J)
11382CRETAINER, CAMSHAFT OIL SEAL
(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
(J)
GCC SPEC EURO4 2022MY,(J)
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
(J)
GCC SPEC EURO4 2022MY,(J)
12108AGASKET(FOR OIL FILLER CAP)
(L)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
(J)
GCC SPEC EURO4 2022MY,(J)
12281AHANGER, ENGINE, NO.1
IDN SOURCED PARTS
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),ARG SOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),ARG SOURCED PARTS
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),ARGSOURCED PARTS
ARG SOURCED PARTS
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),ARGSOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,ARG SOURCED PARTS
GCC SPEC EURO4 2022MY,JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
12282DHANGER, ENGINE, NO.2
IDN SOURCED PARTS
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
THA SOURCED PARTS
(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
(J)
GCC SPEC EURO4 2022MY,(J)
12284AHANGER, ENGINE, NO.1 UPPER
(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
GCC SPEC EURO4 2022MY,(J)
(J)
1905
23682GASKET, NOZZLE HOLDER
(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
GCC SPEC EURO4 2022MY,(J)
(J)
8405
90105T0052
main90105-T0052
90105T0073
main90105-T0073
9010906384
main90109-06384
90109T0055
main90109-T0055
90119T0219
main90119-T0219
90119T0238
main90119-T0238
9012606030
main90126-06030
90178T0018
main90178-T0018
9155180625
main91551-80625
9155281025
main91552-81025
9167180825
main91671-80825
9167180835
main91671-80835
9415180600
main94151-80600
39 parts on this diagram · 4 diagrams in section
