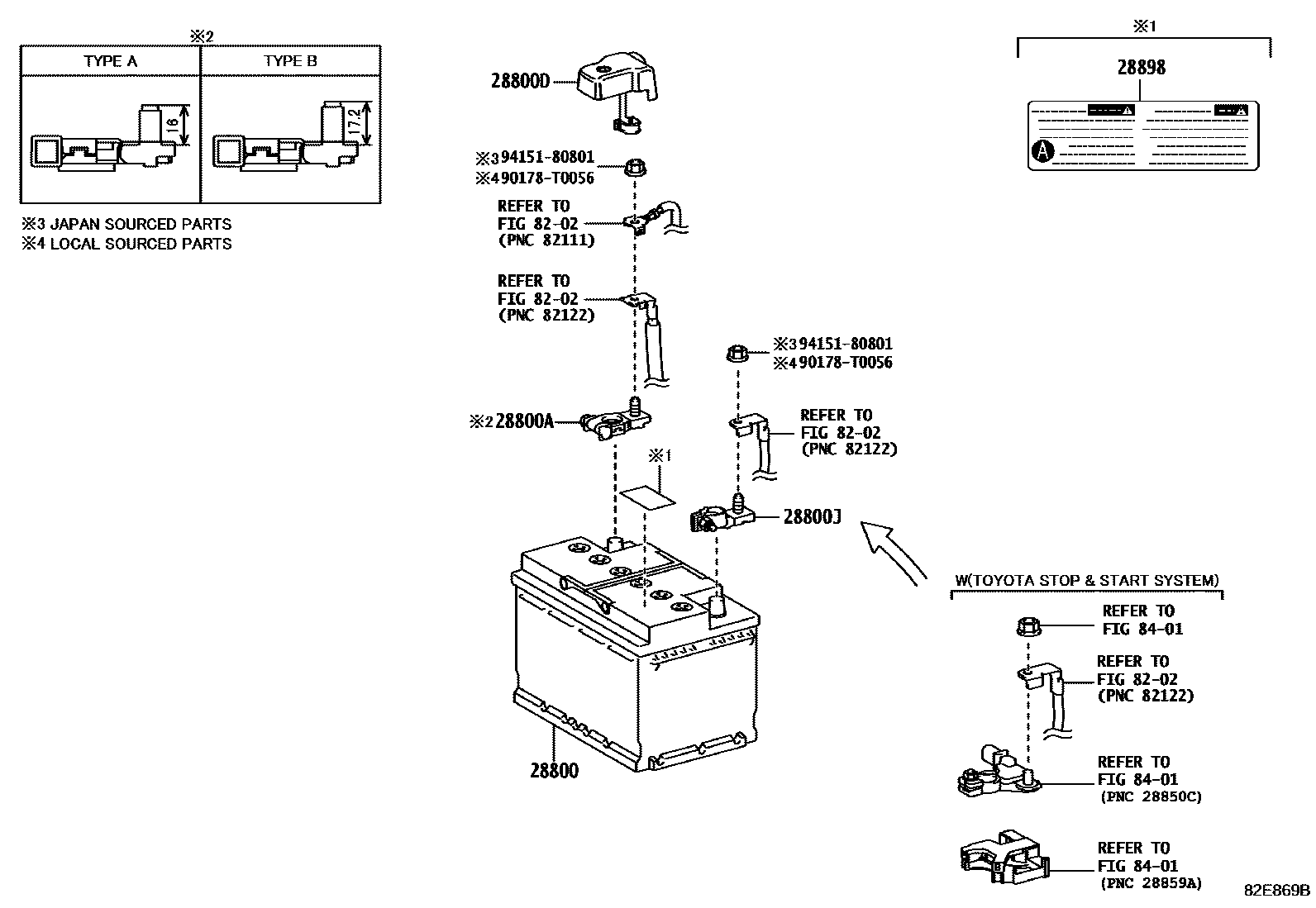

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0C210i1TRFE..TGN110..IDN202108-202207

LN0

sub28800-0C211

main28800-0C240i2TRFE..TGN121,126..THP..(ARL,GEN,LA,TH)202108-202207

LN2,GS

sub28800-0C241

main28800-0C251i2TRFE..TGN126,136..AGTP202111-202210

LN2,JOHNSON CONTROLS

main28800-0C260i1TRFE,2TRFE..TGN120,121,136..SA202109-202301

LN2

sub28800-0C261

main28800-0C273i2TRFE..TGN121,126..THP..(ARL,GEN,LA,TH)202108-202207

LN2,FURUKAWA

sub28800-0C274

main28800-0C280i2TRFE..TGN126,136..AGTP202111-202210

LN2,UNION BATTERY

sub28800-0C281

main28800-0C360i1TRFE,2TRFE..TGN11#,12#..GCC202108-202207

LN0

sub28800-0C361

main28800-0L380i1GDFTV,2GDFTV,2TRFE..GUN122,126,TGN121..PKN202202-202301

80D26L

main28800-0L461i1GDFTV,2GDFTV..GUN125,126,135..AGTP202111-202210

LN3,JOHNSON CONTROLS

main28800-0L481i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202109-202303

LN3

main28800-0L490i2GDFTV..GUN122,125..RHD..SA..IV3202109-202301

LN4

sub28800-0L491

main28800-0L490i5LE..LAN125202109-202301

LN4,POWER SUPPLY PACKAGE

sub28800-0L491

main28800-0L503i2GDFTV..GUN125..6FC..IV3;2GDFTV..GUN125..THP..6F..(ARL,GEN,IDN,LA,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,13#..THP..(ARL,GEN,IDN,LA,PH,TH)202108-202207

LN3,FURUKAWA

sub28800-0L504

main28800-0L510i2GDFTV..GUN120,122..TH..IV3202108-202207

LN4,POWER SUPPLY PACKAGE

sub28800-0L511

main28800-0L510i2GDFTV..GUN125..6FC..GEN202108-202207

LN4

sub28800-0L511

main28800-0L510i2GDFTV..GUN125..6FC..GEN202108-202207

LN4,COLD CHAIN PACKAGE

sub28800-0L511

main28800-0L570i2GDFTV..GUN125..6FC..IV3;2GDFTV..GUN125..THP..6F..(ARL,GEN,IDN,LA,TH);1GDFTV,2GDFTV..GUN112,120,121,122,126,13#..THP..(ARL,GEN,IDN,LA,PH,TH)202108-202207

LN3,YUASA

sub28800-0L571

main28800-0L600i1GDFTV..GUN126..LA;2GDFTV..GUN125,135..AGTP202111-202210

LN3,UNION BATTERY

sub28800-0L601

main28800-0L720i1GDFTV,2GDFTV..GUN11#,122,125,126..GCC202108-202207

LN3

sub28800-0L721

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GDFTV..GUN125..MA202108-202303

TYPE A:REFER ILLUST.

main90982-05061i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202108-202303

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN11#,12#,13#,TGN11#,12#..THP202108-202303

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN11#,12#,13#,TGN11#,12#..THP202108-202303

28898PLATE, BATTERY

main28897-36030i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN11#,122,125,126,TGN11#,12#..GCC202108-202207

8202

8401

90178T0056

main90178-T0056

9415180801

main94151-80801

9 parts on this diagram · 1 diagram in section
