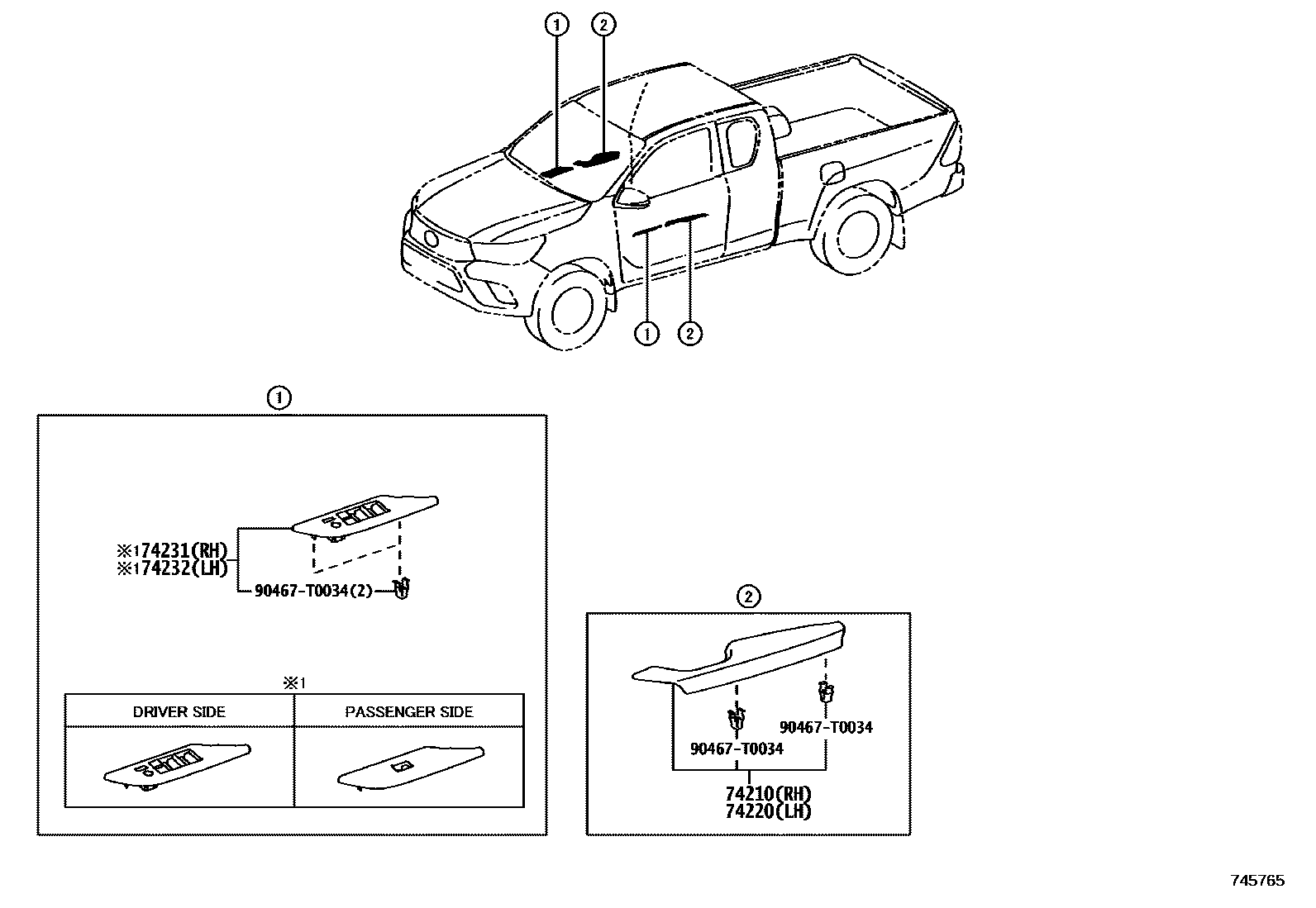

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BLACK,TRIM2#
RED,TRIM3#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
MAROON,TRIM3#
BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
BLACK,TRIM2#
RED,TRIM3#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K020-C2iGUN125..6F..ARL;GUN125..THP..(H,S);GUN112,122,126..(L,S)..TH;GUN125,TGN121..RHD..THP..(5F,6FC);GUN111,120,121,13#,TGN111..(L,S)..(ARL,GCC,TH);GUN112,122,126,TGN121,202108-202208
BLACK,TRIM2#
main74220-0K020-C2iGUN125..6F..ARL;GUN125..THP..(H,S);GUN112,122,126..(L,S)..TH;GUN125,TGN121..RHD..THP..(5F,6FC);GUN111,120,121,13#,TGN111..(L,S)..(ARL,GCC,TH);GUN112,122,126,TGN121,202108-202207
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K020-C2iGUN125..6F..ARL;GUN125..THP..(H,S);GUN112,122,126..(L,S)..TH;GUN125,TGN121..RHD..THP..(5F,6FC);GUN111,120,121,13#,TGN111..(L,S)..(ARL,GCC,TH);GUN112,122,126,TGN121,202108-202207
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main74220-0K020-C2iGUN125..6F..ARL;GUN125..THP..(H,S);GUN112,122,126..(L,S)..TH;GUN125,TGN121..RHD..THP..(5F,6FC);GUN111,120,121,13#,TGN111..(L,S)..(ARL,GCC,TH);GUN112,122,126,TGN121,202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K020-C2iGUN125..6F..ARL;GUN125..THP..(H,S);GUN112,122,126..(L,S)..TH;GUN125,TGN121..RHD..THP..(5F,6FC);GUN111,120,121,13#,TGN111..(L,S)..(ARL,GCC,TH);GUN112,122,126,TGN121,202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
MAROON,TRIM3#
BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K240-C2iGUN125..XTR..L..CBU;GUN125,135..S..(KEN,SA);GUN122,126,136,TGN120,136..RHD..SA202109-202212
BLACK,TRIM2#
main74220-0K240-C2iGUN125..XTR..L..CBU;GUN125,135..S..(KEN,SA);GUN122,126,136,TGN120,136..RHD..SA202109-202212
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K240-C2iGUN125..XTR..L..CBU;GUN125,135..S..(KEN,SA);GUN122,126,136,TGN120,136..RHD..SA202109-202212
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
DOOR TRIM-LEATHER & PAINT(SILVER)
DOOR TRIM-FABRIC & PAINT(SILVER)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&DOOR TRIM-FABRIC & PAINT(SILVER)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main74231-0K620iGUN13#..ARL;GUN125..6FC..L;GUN125..6F..ARL;GUN126..RHD..THP..(L,S);GUN112,120,121,122,TGN121..L..(ARL,TH)202108-202207
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main74231-0K620iGUN13#..ARL;GUN125..6FC..L;GUN125..6F..ARL;GUN126..RHD..THP..(L,S);GUN112,120,121,122,TGN121..L..(ARL,TH)202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main74231-0K620iGUN13#..ARL;GUN125..6FC..L;GUN125..6F..ARL;GUN126..RHD..THP..(L,S);GUN112,120,121,122,TGN121..L..(ARL,TH)202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL
main74231-0K770iGUN125..XTR..L..CBU;GUN125,135..RHD..S..(KEN,SA);GUN122,126,TGN120,136..RHD..(L,S)..SA202109-202303
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&DOOR TRIM-FABRIC & PAINT(BLACK
74232PANEL, FRONT ARMREST BASE, UPPER LH
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&DOOR TRIM-FABRIC & PAINT(SILVER)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main74232-0K600iGUN13#..ARL;GUN125..6FC..GEN;GUN125,126..(L,S)..(ARL,TH);GUN112,120,121,122,TGN121..L..(ARL,TH)¥1,740202108-202207
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main74232-0K600iGUN13#..ARL;GUN125..6FC..GEN;GUN125,126..(L,S)..(ARL,TH);GUN112,120,121,122,TGN121..L..(ARL,TH)¥1,740202108-202207
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main74232-0K600iGUN13#..ARL;GUN125..6FC..GEN;GUN125,126..(L,S)..(ARL,TH);GUN112,120,121,122,TGN121..L..(ARL,TH)¥1,740202108-202207
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
DOOR TRIM-FABRIC & PAINT(SILVER)
DOOR TRIM-LEATHER & PAINT(SILVER)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&DOOR TRIM-FABRIC & PAINT(BLACK
main74232-0K790iGUN125..XTR..L..CBU;GUN125,135..RHD..S..(KEN,SA);GUN122,126,TGN120,136..RHD..(L,S)..SA202109-202303
DOOR TRIM-LEATHER & PAINT(SILVER)
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&DOOR TRIM-LEATHER & PAINT(SILVER)
90467T0034
main90467-T0034
5 parts on this diagram · 2 diagrams in section
