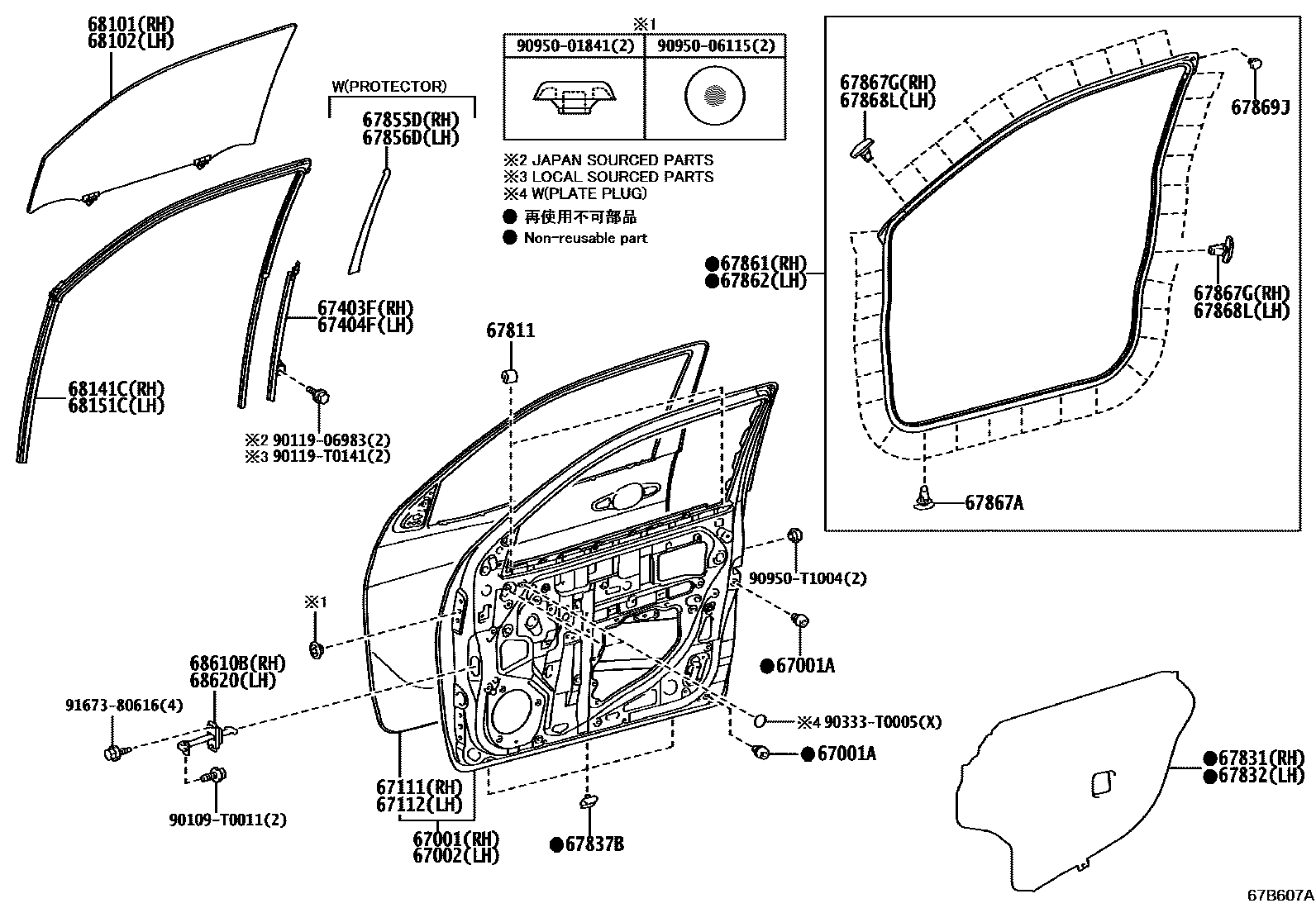

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM,W(POWER WINDOW) 0004 1DOOR TRIM,W/O(POWER WINDOW)

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK020iGUN125..MA202108-202208

main67001-KK030iGUN125,126,13#..XTR..SA202108-202301

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×2iGUN125,126,13#..XTR..SA202108-202301

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK020iGUN125,126,135,TGN126,136..AGTP202108-202210

main67002-KK030iGUN120,122,125,126,13#..XTR..THP202108-202207

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK020iGUN122,125,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202108-202303

main67111-KK030iGUN125,126,13#..XTR..SA202108-202301

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK020iGUN125,126,135,TGN126,136..AGTP202108-202210

main67112-KK030iGUN125,126,13#..XTR..SA202108-202301

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K070iGUN125..MA202108-202208

main67403-0K080iGUN125,126,135,TGN126,136..AGTP202111-202210

main67403-0K100iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K070iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

main67404-0K080iGUN125,126,135,TGN126,136..AGTP202111-202210

main67404-0K100iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

67811PAD, FRONT DOOR SILENCER

main69759-0K030×4iGUN125..MA202108-202208

main69759-0K060×4iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K130iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202108-202303

main67831-0K180iGUN122,126,TGN121..PKN202202-202301

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K130iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202108-202303

main67832-0K180iGUN122,126,TGN121..PKN202202-202301

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K092×6iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

main67837-0K093×6iGUN122,126,TGN121..PKN202210-202301

main67837-0K102×6iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202206

main67837-0K103×6iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202207-202303

main67837-0K210×6iGUN125..MA202110-202206

main67837-0K211×6iGUN125..MA202207-202208

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-0K110iGUN126,136..SCB..SA;GUN122,125,135,LAN125,TGN120,121,136..KEN,SA202109-202303

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-0K070iGUN126,136..SCB..SA;GUN122,125,135,LAN125,TGN120,121,136..KEN,SA202109-202303

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K130iGUN11#,12#,13#,TGN11#,12#..SCB..THP202108-202207

main67861-0K140iGUN120,122,125,126,13#..XTR..THP202108-202207

main67861-0K170iGUN122,125,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202109-202303

main67861-0K180iGUN125,126,135,TGN126,136..AGTP202111-202210

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K130iGUN11#,12#,13#,TGN11#,12#..SCB..THP202108-202207

main67862-0K140iGUN125,126,13#..XTR..SA202108-202301

main67862-0K170iGUN122,125,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202109-202303

main67862-0K180iGUN125,126,135,TGN126,136..AGTP202111-202210

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×48iGUN125,126,13#..XTR..SA202108-202301

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52020×11iGUN122,126,TGN121..PKN202108-202301

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010×11iGUN125,126,13#..XTR..SA202108-202301

main67867-52030×11iGUN125..MA202108-202208

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-22030×2iGUN122,125,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202108-202303

main67869-26050×2iGUN120,122,125,126,13#..XTR..THP202108-202207

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K221iGUN135..THP..L;GUN125..LHD..THP..L;GUN126,136..SCB..THP;GUN125..RHD..THP..(H,L);GUN11#,120,121,122,TGN11#,12#..THP202108-202207

main68101-0K230iGUN125..LHD..SCB..SA;GUN125..RHD..(KEN,SA);GUN122,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202109-202303

main68101-0K240iGUN125,126,135,TGN126,136..AGTP202111-202210

main68101-0K301iGUN125,126,13#..XTR..THP..(H,S)202108-202207

main68101-0K310iGUN125,126,13#..XTR..(H,S)..SA202109-202301

main68101-0K340iGUN125..MA202110-202208

main68101-0K450iGUN122,126,TGN121..PKN202202-202301

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K221iGUN135..THP..L;GUN125..LHD..THP..L;GUN126,136..SCB..THP;GUN125..RHD..THP..(H,L);GUN11#,120,121,122,TGN11#,12#..THP202108-202207

main68102-0K230iGUN125..LHD..SCB..SA;GUN125..RHD..(KEN,SA);GUN122,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202109-202303

main68102-0K240iGUN125,126,135,TGN126,136..AGTP202111-202210

main68102-0K301iGUN125,126,13#..XTR..THP..(H,S)202108-202207

main68102-0K310iGUN125,126,13#..XTR..(H,S)..SA202109-202301

main68102-0K340iGUN125..MA202110-202208

main68102-0K450iGUN122,126,TGN121..PKN202202-202301

68141CRUN, FRONT DOOR GLASS, RH

main68141-0K080iGUN125..MA202108-202208

main68141-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main68141-0K120iGUN125,126,135,TGN126,136..AGTP202111-202210

68151CRUN, FRONT DOOR GLASS, LH

main68151-0K080iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

main68151-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main68151-0K120iGUN125,126,135,TGN126,136..AGTP202111-202210

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K091iGUN122,126,TGN121..PKN202108-202301

main68610-0K100iGUN125,126,135,TGN126,136..AGTP202111-202210

main68610-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K091iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

main68610-0K100iGUN125,126,135,TGN126,136..AGTP202111-202210

main68610-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

33 parts on this diagram · 4 diagrams in section
