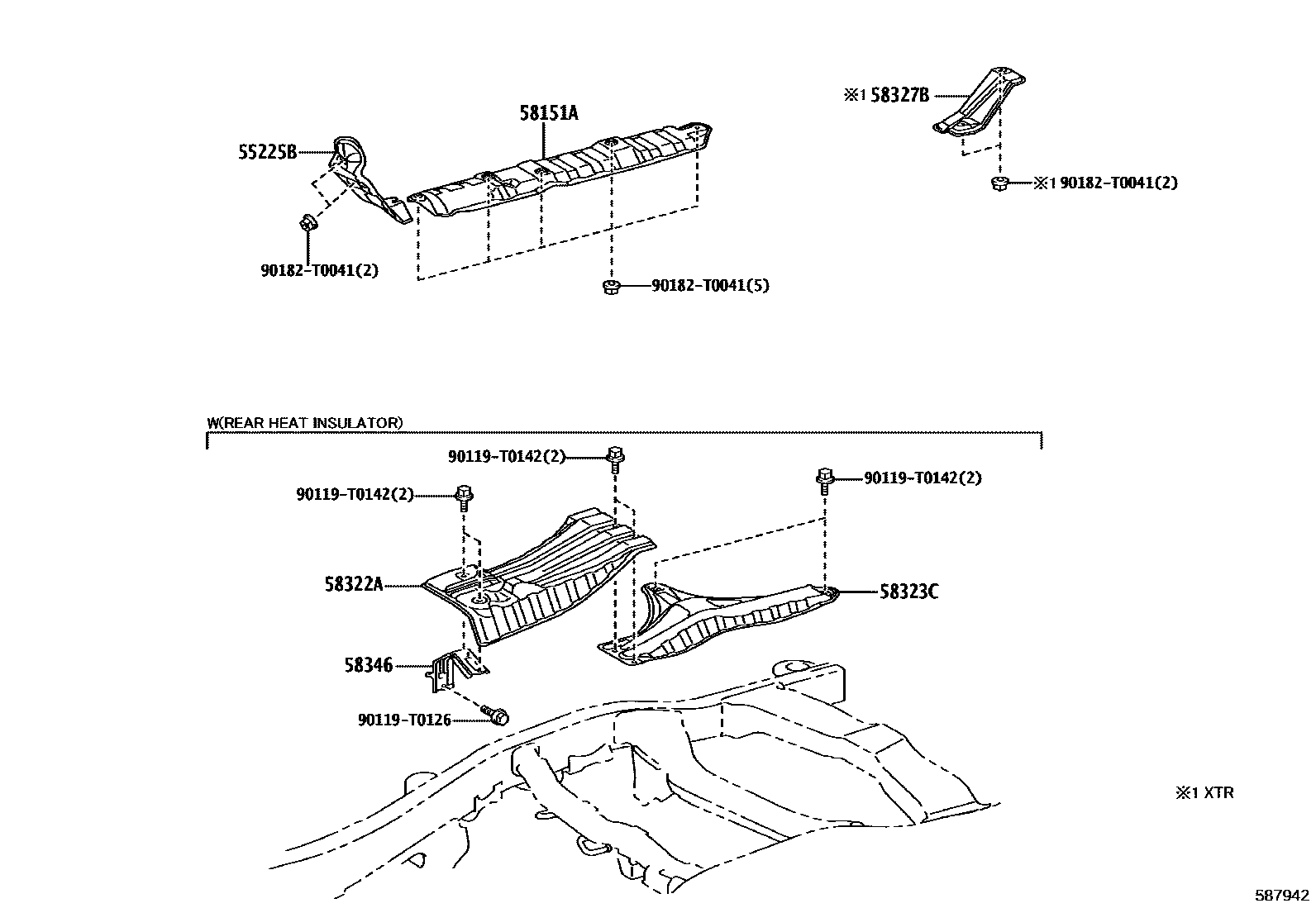

FLOOR INSULATOR

55225BINSULATOR, DASH PANEL HEAT

main55225-KK011iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK011iGUN125,126,135,TGN126,136..AGTP202111-202210

sub58151-KK020

main58151-KK020iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202108-202303

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-KK011iGUN135..BZAG;GUN125,TGN126,136..AGTP202108-202301

main58322-KK011iGUN126,13#..ARL;GUN125..6F..ARL;GUN125,TGN11#,12#..THP..(5F,6FC)202108-202207

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

58323CINSULATOR, REAR FLOOR HEAT, NO.3

main58323-KK011iGUN126,13#..ARL;GUN125..6F..ARL;GUN125,TGN11#,12#..THP..(5F,6FC)202108-202207

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58323-KK011iGUN135..BZAG;GUN125,TGN126,136..AGTP202108-202301

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K021iGUN120,122,125,126,13#..XTR..THP202108-202301

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58332-KK010iGUN126,13#..ARL;GUN125..6F..ARL;GUN125,TGN11#,12#..THP..(5F,6FC)202108-202207

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58332-KK010iGUN135..BZAG;GUN125,TGN126,136..AGTP202108-202301

90119T0126

main90119-T0126

90119T0142

main90119-T0142

90182T0041

main90182-T0041

9 parts on this diagram · 1 diagram in section
