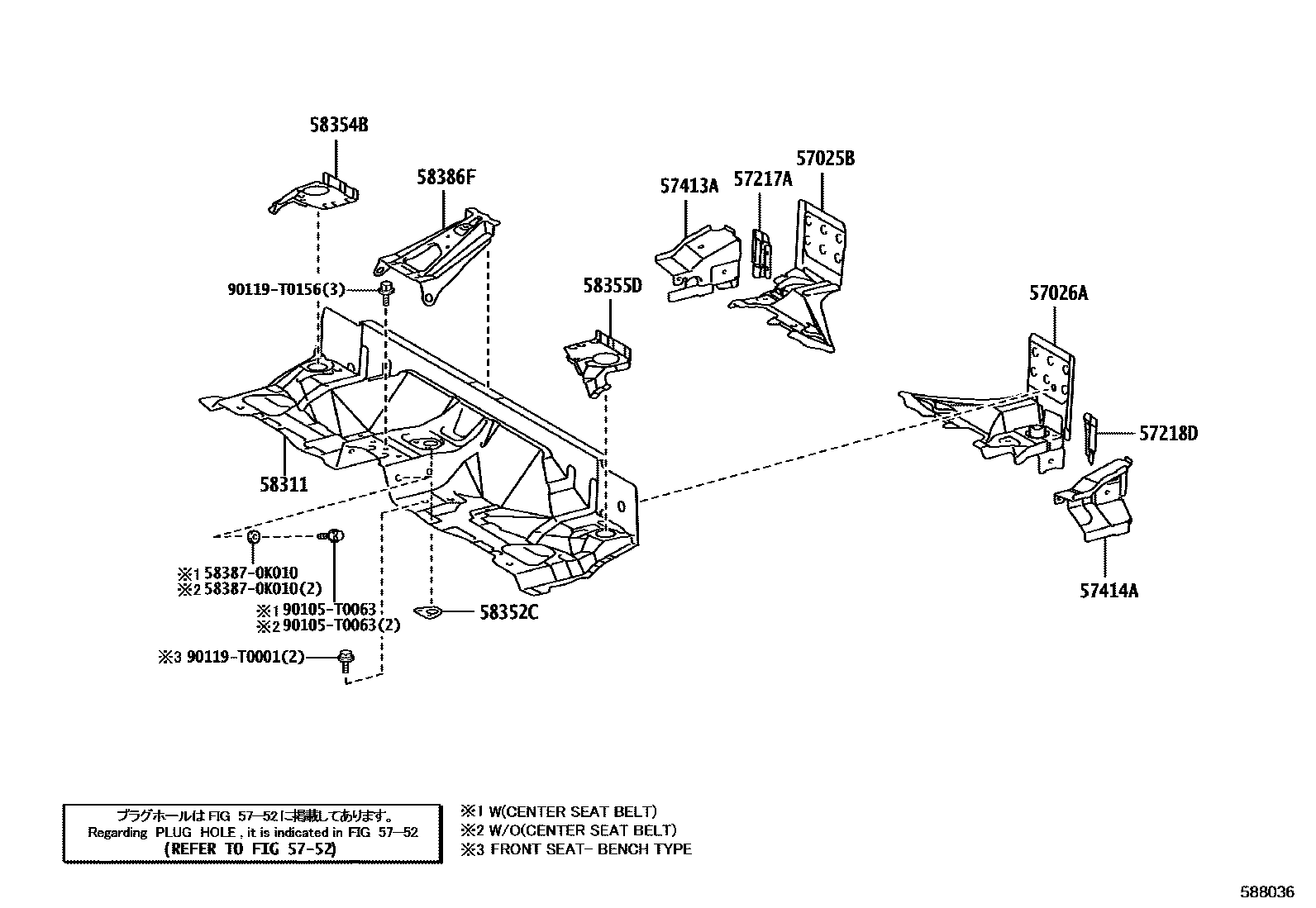

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57025BBRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH

main57025-KK010iGUN122,126,TGN121..PKN202108-202303

57026ABRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH

main57026-KK010iGUN125..MA202108-202303

57217ABRACKET, BODY MOUNTING, NO.4 RH

main57217-0K020iGUN122,126,TGN121..PKN202108-202303

57218DBRACKET, BODY MOUNTING, NO.4 LH

main57218-0K020iGUN122,126,TGN121..PKN202108-202303

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57403-KK030iGUN120,122,125,126,13#..XTR..THP202108-202301

main57413-KK030iGUN125,126,135,TGN126,136..AGTP202108-202303

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57404-KK030iGUN120,122,125,126,13#..XTR..THP202108-202301

main57414-KK030iGUN122,126,TGN121..PKN202108-202303

5752

58311PAN, REAR FLOOR

main58311-KK040iGUN125,126,13#,TGN136..SCB..(H,S)..(KEN,SA)202108-202303

main58311-KK040iTGN126..THP..LA;GUN126..6FC..GCC;GUN120,125,13#..SCB..(ARL,TH);GUN122,125,126..SCB..(H,S)..(ARL,GEN);GUN122,125,TGN121..RHD..SCB..(5F,6FC)..(ARL,GEN)202108-202301

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

main58311-KK050iGUN122..S..GCC;GUN122,125,135..LHD..THP..L;GUN11#,126,TGN11#,12#..MTM..(GCC,GEN)202108-202301

main58311-KK050iGUN125,126..AGTP..LA202111-202210

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)

main58311-KK060iGUN122,125,135,TGN120..RHD..SCB..L..(KEN,SA)202108-202303

main58311-KK060iGUN125..S..IV3202109-202301

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)

main58311-KK080iGUN125,126,136..XTR..ARL202108-202301

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

main58311-KK180iGUN125,126,13#..XTR..SA202108-202301

58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2

main58352-KK010iGUN125,126,135,TGN126,136..AGTP202108-202303

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K050iGUN11#,12#,13#,TGN11#,12#..SCB..THP202108-202303

58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5

main58355-0K050iGUN11#,12#,13#,TGN11#,12#..SCB..THP202108-202303

58386FGUSSET, LOWER BACK PANEL, NO.2

main58386-KK010iGUN11#,12#,13#,TGN11#,12#..SCB..THP202108-202303

583870K010PLATE, REAR FLOOR FINISH

main58387-0K010

90105T0063

main90105-T0063

90119T0001

main90119-T0001

90119T0156

main90119-T0156

16 parts on this diagram · 2 diagrams in section
