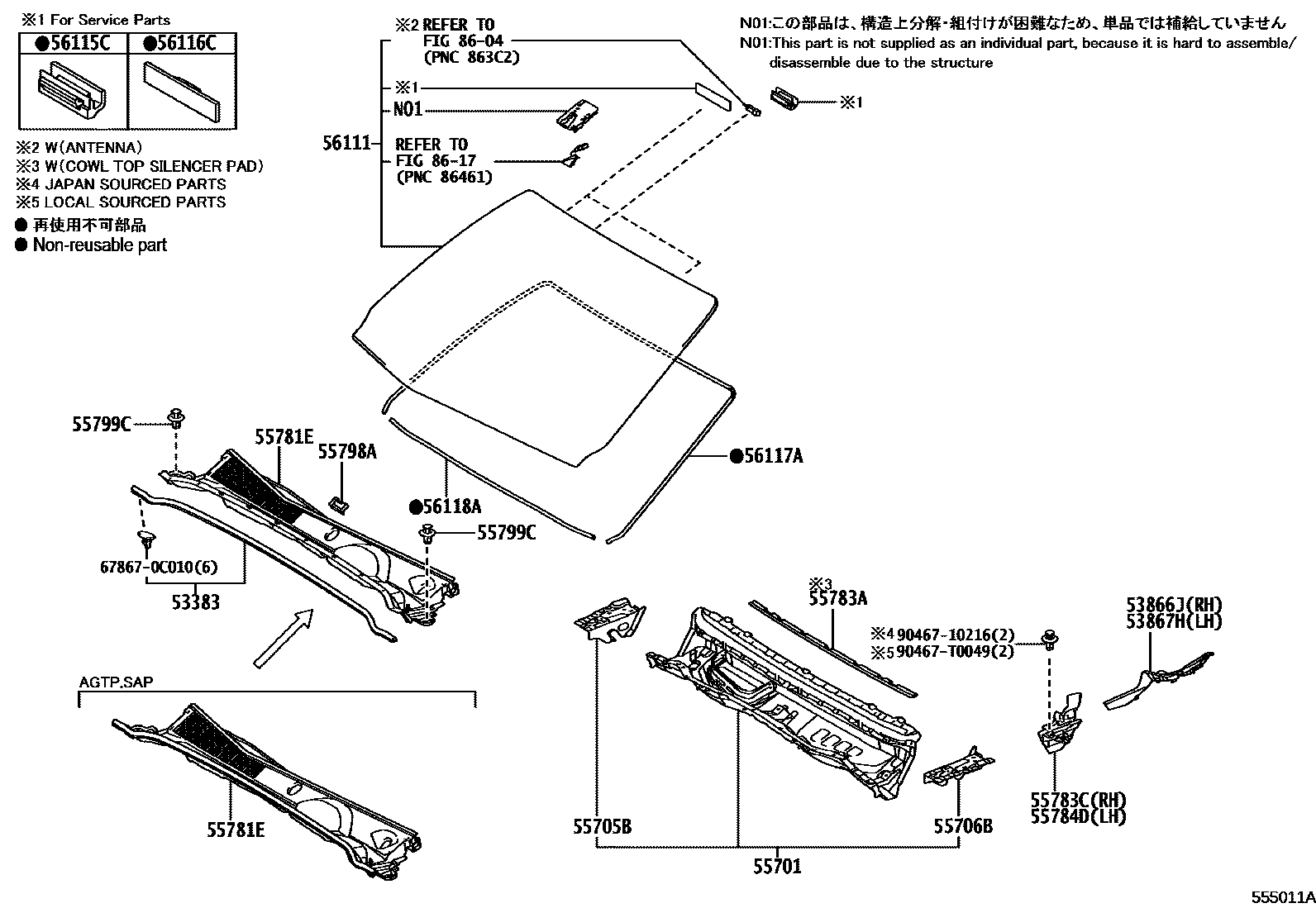

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-0K080iGUN125..MA202110-202208

main53383-0K120iGUN11#,12#,13#,TGN11#,12#..THP202108-202301

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0K050iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

main53866-0K060iGUN125,126,135,TGN126,136..AGTP202111-202210

main53866-0K110iGUN125..MA202110-202208

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0K050iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

main53867-0K060iGUN125,126,135,TGN126,136..AGTP202111-202210

main53867-0K110iGUN125..MA202110-202208

55701PANEL SUB-ASSY, COWL

main55700-KK010iGUN112,12#,13#,TGN110,121..RHD..THP202108-202303

main55700-KK020iGUN125,126,135,TGN126,136..AGTP202108-202301

main55700-KK030iTGN121..GEN202108-202207

MEXICO SPEC

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-KK010iGUN125,126,135,TGN126,136..AGTP202108-202303

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-KK010iGUN125..MA202108-202303

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0K190iGUN122,126,TGN121..PKN202108-202301

main55708-0K200iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP202108-202207

main55708-0K220iGUN125,126,135,TGN126,136..AGTP202111-202210

main55708-0K240iGUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)202109-202303

main55708-0K250iGUN122,125,LAN125,TGN121..LHD..SA202109-202301

55783APAD, COWL TOP SILENCER

main55785-0K040iGUN125,126,13#..XTR..THP..(H,S)202108-202207

main55785-0K120iGUN125,126,13#..XTR..(H,S)..SA202109-202301

55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH

main55783-0K100iGUN11#,12#,13#,TGN11#,12#..THP202108-202301

main55783-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main55783-0K120iGUN125,126,135,TGN126,136..AGTP202111-202210

55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH

main55784-0K030iGUN122,126,TGN121..PKN202108-202301

main55784-0K040iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main55784-0K050iGUN125,126,135,TGN126,136..AGTP202111-202210

55798ASUPPORT, COWL WATER EXTRACT SEAL

main55798-0K010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07215iGUN122,126,TGN121..PKN202108-202303

(J)

main90467-T0050iGUN125,126,135,TGN126,136..AGTP202108-202303

(L)

main90467-T0050iGUN125..MA202110-202208

56111GLASS, WINDSHIELD

main56101-0K301iGUN112,12#,135,TGN110,121..IDN,TH202108-202301

main56101-0K311iGUN122,125..RHD..GEN202108-202207

main56101-0K331iGUN122..PH202108-202207

main56101-0K342iTGN126..THP..LA;GUN122,125,TGN121..LHD..GEN202108-202207

ACTIVE SAFETY PACKAGE-WITHOUT

main56101-0K361iTGN121..GEN202108-202207

MEXICO SPEC

main56101-0K410iGUN125..BZAG;GUN126,135,TGN126,136..AGTP202111-202210

ACTIVE SAFETY PACKAGE-WITHOUT

main56101-0K680iGUN125..MA202110-202208

main56101-0KG30iGUN136..XTR..SA;GUN126..XTR..6FC..SA202109-202301

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main56101-0KG40iGUN125..AGTP..LA202111-202210

ACTIVE SAFETY PACKAGE-WITH

main56101-0KL60iGUN125,135..THP..LA202108-202207

main56101-0KM10iGUN125,126,13#,TGN121..(L,S)..ARL202108-202207

main56101-0KM20iGUN126..ARL..CBU202108-202207

main56101-0KP40iGUN125..KEN;GUN126..S..SA;GUN135..RHD..SCB..L..CBU;GUN122,125,TGN120..RHD..L..SA202109-202303

main56101-0KP50iGUN136..SCB..CBU;GUN126..6F..H..SA;GUN126..SCB..6FC..SA;GUN125,135,TGN136..RHD..S..SA202109-202301

AUDIO-*DA(FOR EMERGING MARKET) & DAB

main56101-0KP60iGUN122,125,LAN125,TGN121..LHD..SA202109-202301

56115CSTOPPER, WINDSHIELD GLASS

main56115-30100iGUN122,125..GCC;GUN122,125..RHD..(GEN,IDN,TH);GUN11#,120,121,126,135,TGN11#,12#..GCC,IDN,TH202108-202207

MEXICO SPEC

main56115-30100iGUN125..MA202108-202303

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGUN122,125..GCC;GUN126..THP..CBU;GUN122,125..RHD..(GEN,IDN,TH);GUN11#,120,121,135,TGN11#,12#..GCC,IDN,TH202108-202207

MEXICO SPEC

main56116-22050iGUN125..MA202108-202303

56117ADAM, WINDOW GLASS ADHESIVE

main56117-KK060iGUN125..GCC;GUN112,126..S..GCC;GUN122,TGN121,126..GCC..IV3202108-202301

L=2620,AUDIO-*DA(FOR EMERGING MARKET) & DAB

main56117-KK060iGUN125,135..THP..LA202108-202210

L=2620,ACTIVE SAFETY PACKAGE-WITHOUT

main56117-KK060iGUN125,135..THP..LA202108-202303

L=2620

main56117-KK060iGUN125,135..THP..LA202108-202301

L=2620,ACTIVE SAFETY PACKAGE-WITH

main56117-KK060iGUN125,135..THP..LA202108-202207

L=2620,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB

main56117-KK060iGUN125,135..THP..LA202108-202207

L=2620,MEXICO SPEC

main56117-KK060iGUN125,135..THP..LA202108-202207

L=2620,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-KK030iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

L=1248

main56117-KK030iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

L=1248,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB

main56117-KK030iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

L=1248,MEXICO SPEC

main56117-KK030iGUN11#,12#,13#,TGN11#,12#..THP202108-202301

L=1248,ACTIVE SAFETY PACKAGE-WITH

main56117-KK030iGUN11#,12#,13#,TGN11#,12#..THP202108-202210

L=1248,ACTIVE SAFETY PACKAGE-WITHOUT

main56117-KK030iGUN11#,12#,13#,TGN11#,12#..THP202108-202207

L=1248,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE

main56117-KK030iGUN11#,12#,13#,TGN11#,12#..THP202108-202301

L=1248,AUDIO-*DA(FOR EMERGING MARKET) & DAB

8604

8617

678670C010CLIP, DOOR WEATHERSTRIP

main67867-0C010

9046710216

main90467-10216

90467T0049

main90467-T0049

22 parts on this diagram · 2 diagrams in section
