0001 1 0002 1 0003 1 0004 1 0005 1PROPELLER SHAFT GUARD 0006 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i5LE,1TRFE,2TRFE..LAN125,TGN120,121,136..PKN,SA202108-202301

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L020i1GDFTV,2GDFTV,2TRFE..GUN122,126,TGN121..PKN202108-202303

48414CBRACKET, SPRING, NO.3 RH

main48404-KK020iGUN11#,120,121,122,TGN11#,120,121..SCB..THP202108-202301

main48404-KK030iGUN120,122..XTR202108-202207

main48404-KK040iGUN125..MA202108-202303

48415CBRACKET, SPRING, NO.3 LH

main48407-KK020iGUN122,TGN120,121..PKN,SA202108-202301

main48407-KK030iGUN120,122..XTR202108-202207

main48407-KK040iGUN125,126,135,TGN126,136..AGTP202108-202303

48416BBRACKET, SPRING, NO.4 RH

main48405-KK010iGUN126202108-202303

48417DBRACKET, SPRING, NO.4 LH

main48405-KK010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

main48505-KK010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

main48506-KK010iGUN122,126,TGN121..PKN202108-202303

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-KK010iGUN125..MA202108-202303

main51021-KK020iGUN125,126,135,TGN126,136..AGTP202111-202210

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-KK010iGUN122,126,TGN121..PKN202108-202303

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-KK010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-KK010iGUN125,135..KEN202108-202303

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-KK010iGUN125..MA202108-202303

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-0K010iGUN11#,TGN11#202108-202207

main51071-0K020iGUN122,126,TGN121..PKN202108-202303

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51071-0K020iGUN126202108-202303

main51072-0K010iGUN11#,TGN11#202108-202207

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-KK010iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202108-202303

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-KK010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

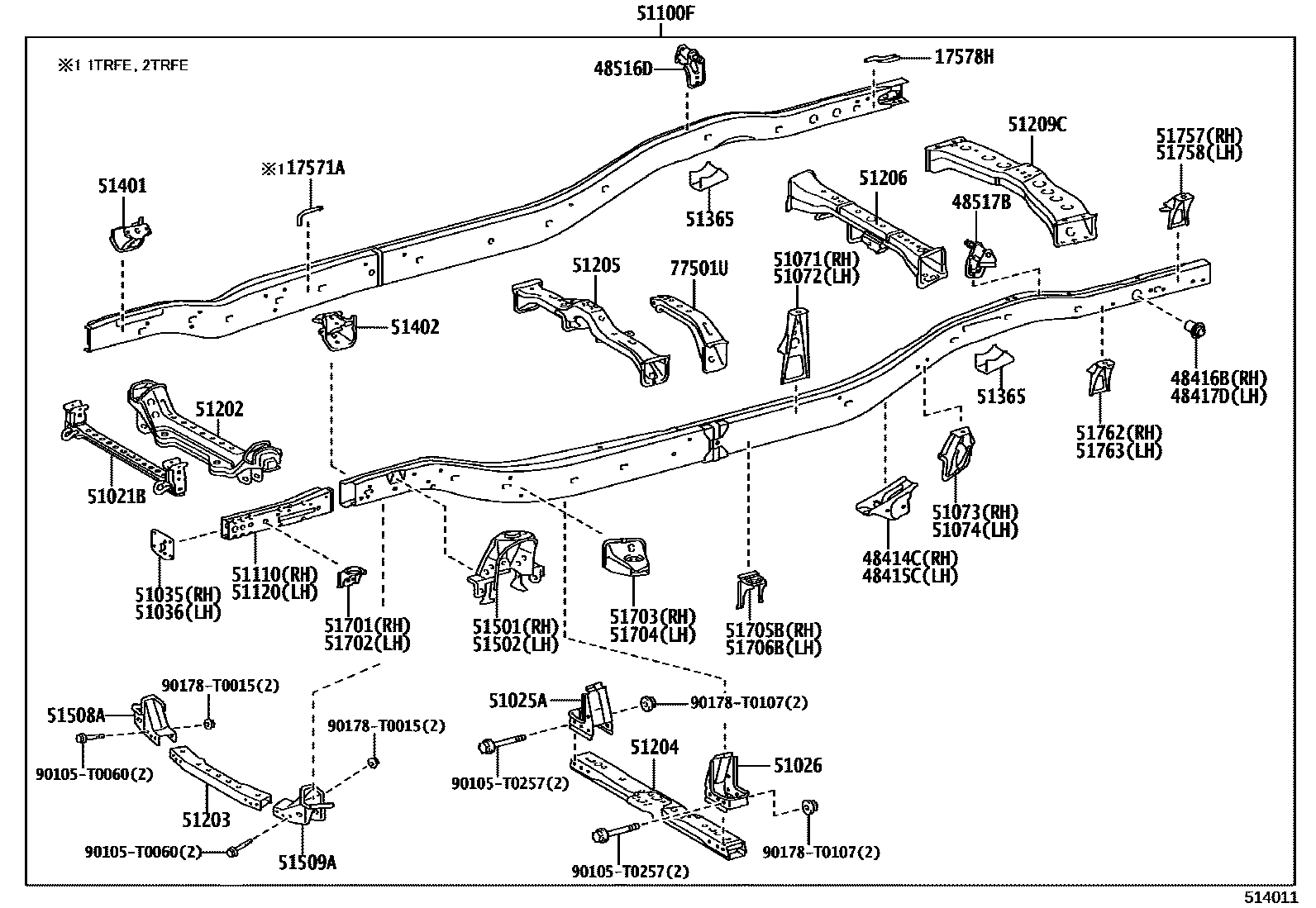

51100FFRAME SUB-ASSY

main51001-KK101iTGN11#202108-202207

sub51001-KK102

sub51001-KK103

main51001-KK121iGUN112202108-202207

sub51001-KK122

sub51001-KK123

main51001-KK152iTGN121..6FC202108-202207

sub51001-KK153

sub51001-KK154

main51001-KK162iTGN121..PKN202108-202210

sub51001-KK163

main51001-KK163iTGN121..PKN202211-202301

sub51001-KK164

main51001-KK182iGUN122..PKN202108-202210

sub51001-KK183

main51001-KK183iGUN122..PKN202211-202301

sub51001-KK184

main51001-KK232iGUN120..XTR202108-202207

sub51001-KK233

sub51001-KK234

main51001-KK311iTGN126..THP202108-202202

sub51001-KK312

main51001-KK312iTGN126..THP202202-202207

sub51001-KK313

sub51001-KK314

main51001-KK321iGUN125,126..SCB..(KEN,SA)202109-202202

sub51001-KK322

main51001-KK322iGUN125,126..SCB..(KEN,SA)202202-202303

main51001-KK331iLAN125202109-202202

sub51001-KK332

main51001-KK332iLAN125202202-202301

main51001-KK341iGUN125,126..XTR..SA202109-202202

sub51001-KK342

main51001-KK342iGUN125,126..XTR..SA202202-202301

main51001-KK401iGUN13#..RHD..SCB..6F..CBU202109-202202

sub51001-KK402

main51001-KK402iGUN13#..RHD..SCB..6F..CBU202202-202303

main51001-KK422iGUN13#..THP..6FC202108-202202

sub51001-KK423

main51001-KK423iGUN13#..THP..6FC202202-202207

sub51001-KK424

sub51001-KK425

main51001-KK431iGUN13#..XTR..6F..SA202109-202202

sub51001-KK432

main51001-KK432iGUN13#..XTR..6F..SA202202-202301

main51001-KK671iGUN125,126..SCB..(MAP,THP)202108-202202

sub51001-KK672

main51001-KK672iGUN125..MA202202-202210

sub51001-KK673

main51001-KK673iGUN126..PKN202211-202301

sub51001-KKK90

main51001-KK711iTGN136..SA202109-202202

sub51001-KK712

main51001-KK712iTGN136..SA202202-202301

main51001-KK721iGUN13#..SCB..THP202108-202202

sub51001-KK722

main51001-KK722iGUN13#..SCB..THP202202-202207

sub51001-KK723

sub51001-KK724

main51001-KK761iTGN120,121..SA202109-202301

main51001-KK771iGUN122..SA202109-202301

main51001-KK801iGUN125,126..XTR..THP202108-202202

sub51001-KK802

main51001-KK802iGUN125,126..XTR..THP202202-202207

sub51001-KK803

sub51001-KK804

main51001-KK811iGUN135..6F..TH202108-202202

sub51001-KK812

main51001-KK812iGUN135..6F..TH202202-202207

sub51001-KK813

sub51001-KK814

main51001-KK821iGUN13#..SCB..6FC202109-202202

sub51001-KK822

main51001-KK822iGUN13#..SCB..6FC202202-202301

main51001-KK831iGUN13#..XTR..6FC..SA202109-202202

sub51001-KK832

main51001-KK832iGUN13#..XTR..6FC..SA202202-202301

main51001-KKA12iTGN126..AGTP202111-202202

sub51001-KKA13

main51001-KKA13iTGN126..AGTP202202-202210

main51001-KKA22iGUN125,126..AGTP202111-202202

sub51001-KKA23

main51001-KKA23iGUN125,126..AGTP202202-202210

main51001-KKA52iTGN136..L202111-202202

sub51001-KKA53

main51001-KKA53iTGN136..L202202-202210

main51001-KKA62iGUN135..AGTP202111-202202

sub51001-KKA63

main51001-KKA63iGUN135..AGTP202202-202210

main51001-KKC11iGUN121,122..SCB..TH202108-202207

sub51001-KKC12

sub51001-KKC13

main51001-KKC21iGUN122..XTR202108-202207

sub51001-KKC22

sub51001-KKC23

main51001-KKF00iGUN111202108-202207

sub51001-KKF01

sub51001-KKF02

main51001-KKK90iGUN126202302

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-KK906iGUN122,TGN121..PKN202108-202301

main51110-KK907iGUN125,126,13#,TGN126..THP202108-202303

51120EXTENSION ASSY, SIDE RAIL, LH

main51122-KK906iGUN122,TGN121..PKN202108-202301

main51122-KK907iGUN125..MA202108-202303

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-KK010iGUN11#,120,121,122,TGN11#,120,121..THP202108-202301

main51201-KK020iGUN125,126,13#,LAN125,TGN126,136202108-202202

sub51201-KK050

main51201-KK050iGUN125,126,135,TGN126,136..AGTP202202-202303

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0K010iGUN122,TGN120,121..PKN,SA202108-202301

main51202-KK010iGUN126202108-202303

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-KK010iGUN122,13#..(5F,6FC)..SA202109-202301

sub51203-KK100

main51203-KK020iTGN120,121,136..SA202109-202301

sub51203-KK110

sub51203-KK230

main51203-KK030iGUN111,121,122,13#..THP..6F202108-202303

main51203-KK040iGUN125,126..KEN,SA202108-202303

sub51203-KK250

main51203-KK050iTGN126..THP202108-202301

sub51203-KK260

main51203-KK130iTGN11#,120,121..THP..5F202108-202301

sub51203-KK230

main51203-KK140iGUN135..AGTP202111-202210

main51203-KK150iGUN125,126..AGTP202111-202210

main51203-KK190iTGN121..6FC;GUN112,120,122,13#..THP..(5F,6FC)202108-202301

sub51203-KK210

main51203-KK200iTGN126..AGTP202111-202210

main51203-KK250iGUN126202302

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-KK030iGUN125,126,LAN125..SA202108-202303

main51204-KK040iGUN122,TGN120,121..PKN,SA202108-202301

main51204-KK050iGUN135,TGN136..AGTP202108-202303

main51204-KK070iGUN11#,TGN11#202108-202207

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-KK030iGUN11#,TGN11#202108-202207

main51205-KK040iGUN12#,13#,TGN12#..THP202108-202303

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-KK010iGUN122,126,TGN121..PKN202108-202303

51365STOPPER, REAR BUMPER

main57081-KK010iGUN11#,120,121,122,TGN11#,120,121..THP202108-202301

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-KK010iLAN125202109-202301

main51401-KK020iTGN120,121,136..PKN,SA202108-202301

main51401-KK040iGUN126202108-202303

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-KK010iLAN125202109-202301

main51402-KK020iTGN120,121,136..PKN,SA202108-202301

main51402-KK040iGUN122,126..PKN202108-202303

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-KK010iGUN122,TGN120,121..PKN,SA202108-202301

main51501-KK020iGUN125,126,135,TGN126,136..AGTP202108-202303

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-KK010iGUN122,TGN120,121..PKN,SA202108-202301

main51502-KK020iGUN126202108-202303

51508ABRACKET SUB-ASSY, LOWER ARM, RH

main51508-KK020iGUN11#,120,121,122,TGN11#,120,121..THP202108-202301

51509ABRACKET SUB-ASSY, LOWER ARM, LH

main51509-KK020iGUN122,TGN120,121..PKN,SA202108-202301

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-KK010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-KK010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-KK010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-KK010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-KK010iGUN125,126,13#..XTR..SA202108-202301

main51731-KK030iGUN11#,12#,13#,TGN11#,12#..SCB..THP202108-202303

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51706-KK010iGUN125,126,13#..XTR..SA202108-202301

main51731-KK030iGUN125..MA202108-202303

51757BRACKET, BODY SUPPORT, NO.4 RH

main51077-KK010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

51758BRACKET, BODY SUPPORT, NO.4 LH

main51078-KK010iGUN122,126,TGN121..PKN202108-202303

51762BRACKET, BODY SUPPORT, NO.5 RH

main51075-KK010iGUN125..MA202108-202303

51763BRACKET, BODY SUPPORT, NO.5 LH

main51076-KK010iGUN125,135..KEN202108-202303

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-0K020iGUN126202108-202303

main77501-KK040iGUN11#,TGN11#202108-202207

90105T0060

main90105-T0060

90105T0257

main90105-T0257

90178T0015

main90178-T0015

90178T0107

main90178-T0107

48 parts on this diagram · 6 diagrams in section
