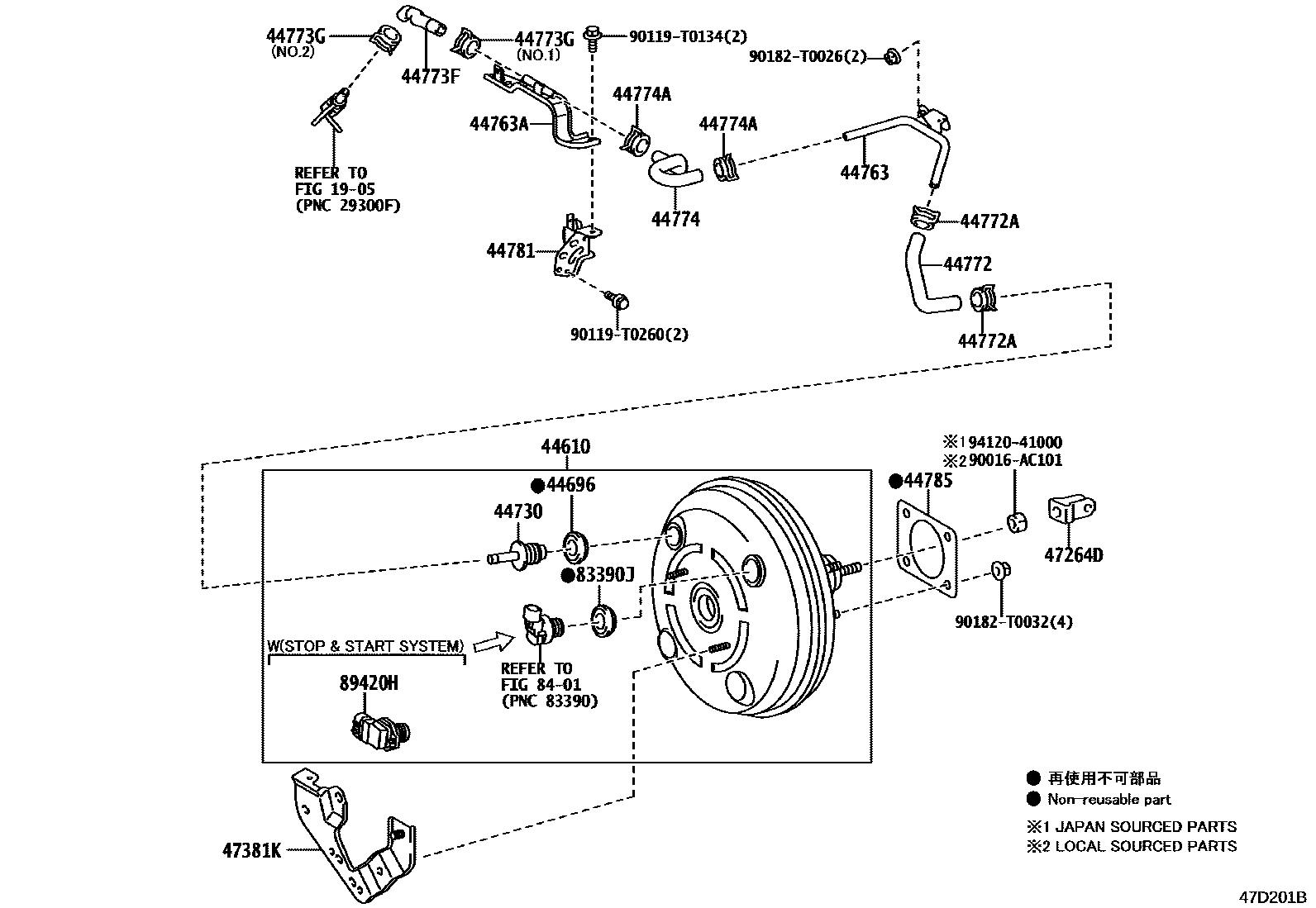

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1905

44610BOOSTER ASSY, BRAKE

main44610-0K560iTGN121..GEN..CBU202108-202207

COLOMBIA SPEC&VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM

main44610-0K560iTGN11#,12#..THP..(ARL,GCC,IDN,LA,TH)202108-202207

MEXICO SPEC&TIRE & DISC WHEEL-215/65R16C ALUMINUM

main44610-0K560iTGN11#,12#..THP..(ARL,GCC,IDN,LA,TH)202108-202207

MEXICO SPEC&TIRE & DISC WHEEL-215/65R16C STEEL

main44610-0K560iTGN11#,12#..THP..(ARL,GCC,IDN,LA,TH)202108-202207

COLOMBIA SPEC&VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C STEEL

main44610-0K560iTGN11#,12#..THP..(ARL,GCC,IDN,LA,TH)202108-202207

COLOMBIA SPEC&TIRE & DISC WHEEL-215/65R16C ALUMINUM

main44610-0K560iTGN11#,12#..THP..(ARL,GCC,IDN,LA,TH)202108-202207

COLOMBIA SPEC&TIRE & DISC WHEEL-215/65R16C STEEL

main44610-0K560iTGN11#,12#..THP..(ARL,GCC,IDN,LA,TH)202108-202207

VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM

main44610-0K560iTGN11#,12#..THP..(ARL,GCC,IDN,LA,TH)202108-202207

MEXICO SPEC&VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM

main44610-0K560iTGN11#,12#..THP..(ARL,GCC,IDN,LA,TH)202108-202207

VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C STEEL

main44610-0K560iTGN121..GEN..CBU202108-202207

MEXICO SPEC&VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C STEEL

main44610-0K560iTGN120,121,136..RHD..(PKN,SA)202108-202301

main44610-0K580iGUN122,126..PKN202108-202303

main44610-0K600iGUN11#,122,125,126,135..LHD..THP202108-202301

main44610-0K650iTGN121..GEN202108-202301

main44610-71010iTGN126,136..AGTP202111-202210

main44610-71030iGUN125,126,135..AGTP202111-202210

44696GROMMET, CHECK VALVE

main90016-AT003iGUN11#,12#,13#..THP202108-202303

main90480-24439iGUN125,126,135..AGTP202111-202210

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iTGN126,136..AGTP202108-202303

44763TUBE, BOOSTER VACUUM

main44763-KK020iTGN120,121,136..RHD..(PKN,SA)202108-202301

main44763-KK030iLAN125202109-202301

main44763-KK040iGUN122,125,126,13#..RHD..(KEN,SA)202108-202303

main44763-KK050iGUN125,126,135..AGTP202108-202301

main44763-KK160iTGN121..SA202108-202301

44763ATUBE, HOSE TO HOSE, NO.1

main44763-KK080iGUN112,12#,13#..RHD..THP202108-202301

TYPE A:REFER ILLUST.

main44763-KK080iGUN125,126,135..AGTP202108-202210

main44763-KK170iGUN125..MA202110-202303

TYPE B:REFER ILLUST.

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-KK010iGUN122,125,126,13#..RHD..(KEN,SA)202108-202303

main44772-KK040iTGN110,121..RHD..THP202108-202301

main44772-KK070iGUN125,126,135..AGTP202108-202301

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-T0019iGUN122,125,126,13#,TGN120,136..KEN,SA202108-202303

44773FHOSE, UNION TO CHECK VALVE

main44773-0K020iLAN125202109-202301

main44773-KK030iGUN11#,12#,13#..THP202108-202303

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019iGUN125,126,135..AGTP202108-202303

NO.1

main90467-16014iGUN125..MA202108-202303

NO.2

44774HOSE, UNION TO CONNECTOR TUBE

main44774-KK010iTGN120,121,136..RHD..(PKN,SA)202108-202301

main44774-KK020iTGN11#,12#..LHD..THP202108-202301

main44774-KK040iGUN125..MA202108-202303

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0019iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

44781BRACKET, HOSE

main44781-KK020iGUN11#,12#,13#..THP202108-202303

44785GASKET, BRAKE BOOSTER

main44785-17010iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGUN125..MA202108-202303

main47264-26030iGUN125,126,135,TGN126,136..AGTP202111-202210

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K071iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202108-202303

83390JGROMMET, VACUUM WARNING SWITCH

main90016-AT003iGUN122,125,126,13#,LAN125..KEN,SA202108-202303

main90480-24439iGUN125,126,135..AGTP202111-202210

8401

89420HSENSOR ASSY, VACUUM

90016AC101

main90016-AC101

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90182T0026

main90182-T0026

90182T0032

main90182-T0032

9412041000

main94120-41000

25 parts on this diagram · 5 diagrams in section
