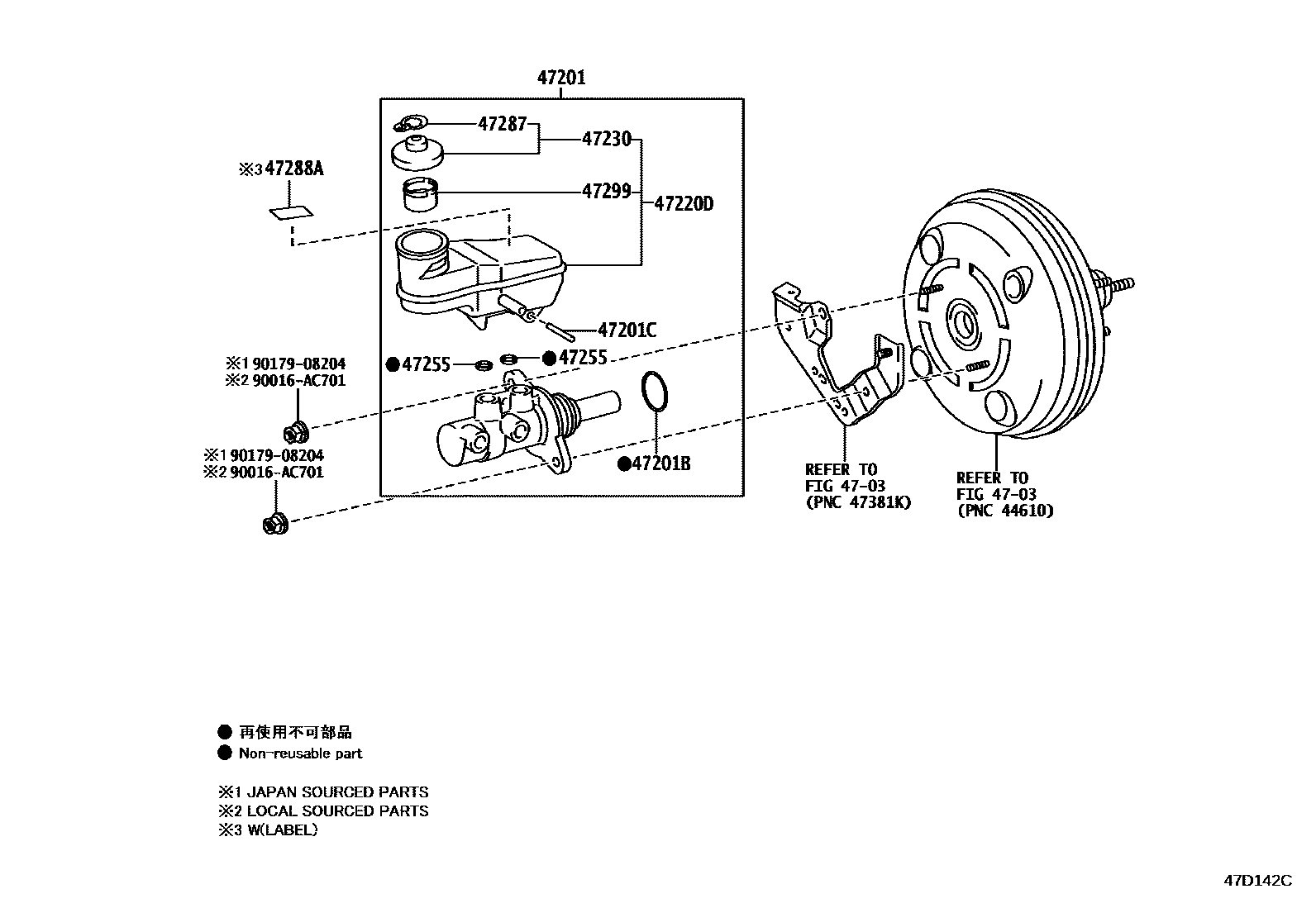

BRAKE MASTER CYLINDER
4703
47201CYLINDER SUB-ASSY, BRAKE MASTER
main47201-0K390iGUN125,135,TGN110..MTM..L..(IDN,TH);GUN112,121,122,126,TGN121..(L,S)..TH202108-202301
VSC-WITHOUT
VSC-WITHOUT
VSC-WITHOUT
COLOMBIA SPEC&VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C STEEL
VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM
VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C STEEL
MEXICO SPEC&VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM
MEXICO SPEC&VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C STEEL
COLOMBIA SPEC&VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM
VSC-W(*HSAC & *TSC)
VSC-W(*HSAC & *TSC)
TOYOTA STOP & START SYSTEM-WITH&VSC-W(*HSAC & *TSC)
VSC-W(*HSAC & *TSC)
main47201-0K610iGUN135..6F..SA;GUN122,125,136..RHD..MTM..(H,L)..SA;GUN125,126..RHD..6F..(H,S)..(KEN,SA)202108-202303
main47201-0K610iGUN125..RHD..6F..(ARL,GEN,TH);GUN126,135..RHD..THP..6F..(H,S);GUN112,122,13#,TGN121..RHD..MTM..(ARL,GEN,IDN)202108-202207
TOYOTA STOP & START SYSTEM-WITH&VSC-W(*HSAC & *TSC)
47201BRING, O(FOR BRAKE MASTER CYLINDER)
47201CRING PIN, BRAKE MASTER CYLINDER
47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47287LABEL, BRAKE FLUID INFORMATION
47288ALABEL, BRAKE FLUID NOTICE
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
90016AC701
main90016-AC701
9017908204
main90179-08204
12 parts on this diagram · 2 diagrams in section
