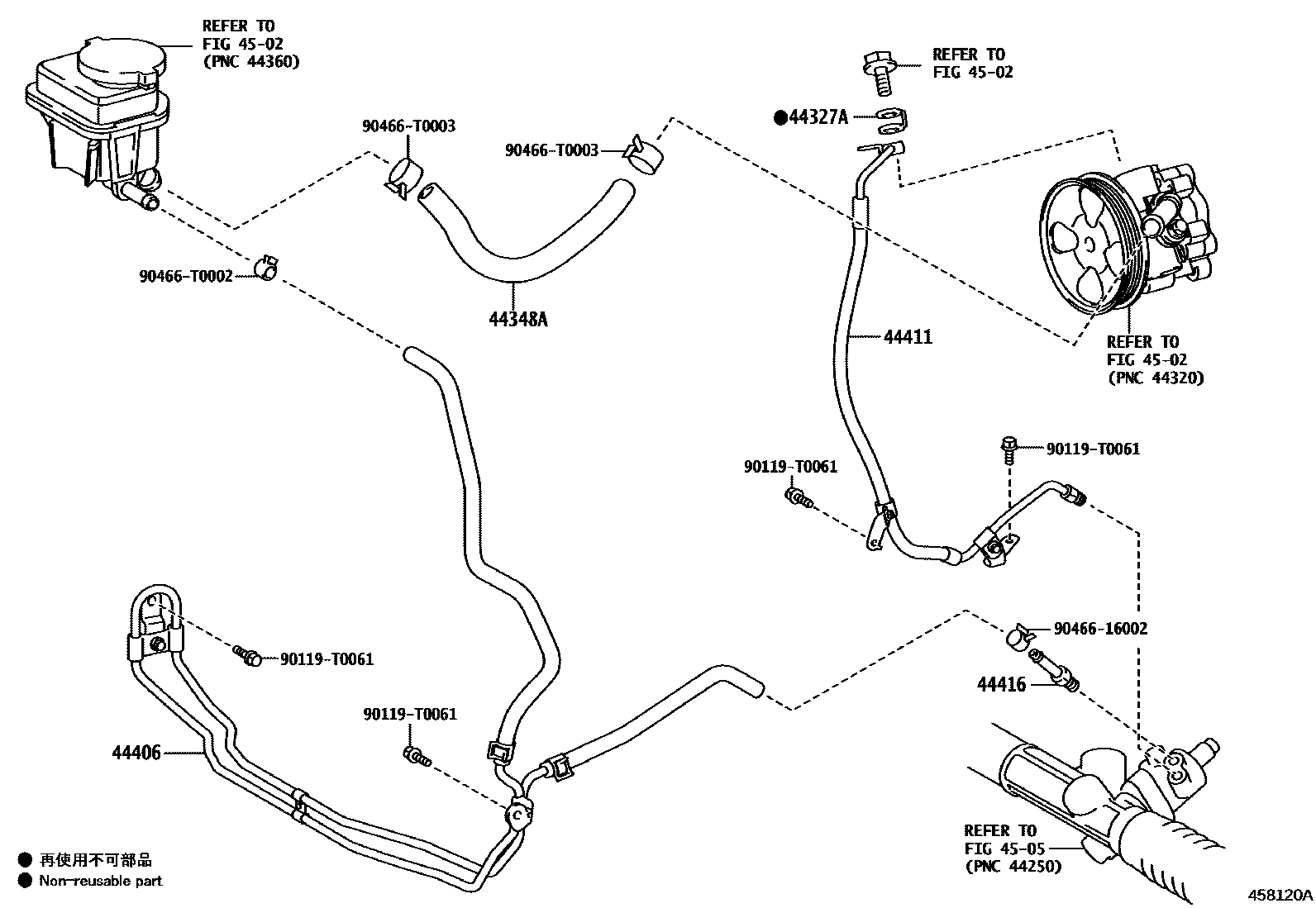

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGUN11#,12#,13#,TGN11#,12#..THP¥160202108-202303

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K070iLAN125202109-202301

main44348-0K110iGUN125,126,135..AGTP¥1,400202108-202303

44406TUBE SUB-ASSY, RETURN

main44406-0K140iTGN121..SA202108-202301

main44406-0K180iGUN11#,122..LHD..THP202108-202301

main44406-0K190iTGN126..THP202108-202210

main44406-0K210iLAN125202109-202301

main44406-0K240iGUN125,126,135..LHD..THP202108-202301

44411HOSE, PRESSURE FEED

main44411-0K100iLAN125202109-202301

main44411-0K140iTGN11#,120,121..GCC202108-202207

main44411-0K180iGUN11#,122..GCC202108-202207

main44411-0K190iTGN126..GCC202108-202207

main44411-0K200iTGN121..SA202108-202301

main44411-0K220iGUN122..LHD..(GEN,PH)202108-202301

main44411-0K230iTGN126..THP..LA202108-202210

main44411-0K250iGUN125..LHD..L..GEN202108-202207

VSC-WITHOUT

main44411-0K250iGUN125..LHD..L..SA202108-202301

main44411-0K260iGUN125..XTR..GEN;GUN125,135..THP..LA202108-202301

main44411-0K291iGUN125,126..GCC202108-202207

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K040iGUN11#,12#,13#,TGN11#,12#..THP202108-202303

4502

4505

90119T0061

main90119-T0061¥80

9046616002

main90466-16002¥220

90466T0002

main90466-T0002¥180

90466T0003

main90466-T0003¥220

11 parts on this diagram · 7 diagrams in section
