DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE G:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,TYPE G:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.
17X7.5J,TYPE G:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205R16C STEEL,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE A:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
16X6J, #,TYPE B:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C STEEL,TYPE B:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205R16C STEEL,TYPE D:REFER ILLUST.
16X6J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE B:REFER ILLUST.
16X6J, #,TYPE C:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE C:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE P:REFER ILLUST.
16X6J, #,TYPE P:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,TYPE R:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J,TYPE R:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,T/P AD:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AD:REFER ILLUST.
17X7.5J, #,T/P AD:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,T/P AD:REFER ILLUST.
15X6J, #,T/P AV:REFER ILLUST.
18X7.5J,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AF:REFER ILLUST.
18X7.5J,T/P AF:REFER ILLUST.
18X7.5J,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AF:REFER ILLUST.
18X7.5J,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AF:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
18X7.5J, #,T/P AG:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AG:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AG:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AG:REFER ILLUST.
17X6J, #,TIRE & DISC WHEEL-225/70R17C STEEL&SPEED METER-KM/H,TYPE E:REFER ILLUST.
main42611-0KT40iGUN125..RHD..SCB..L..SA;GUN125..LHD..L..SA..CBU;GUN135..RHD..SCB..L..CBU;GUN125,126..SCB..S..(KEN,SA)202109-202303
17X6J, #,TYPE E:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPEED METER-KM/H & WITH(*MID),TYPER:REFER ILLUST.
17X7.5J, #,TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,TYPER:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL)&SPEED METER-KM/H & WITH(*MID),TYPE R:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AR:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,TYPE D:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AN:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM,T/P AN:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P BA:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7.5J,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205R16C STEEL,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE A:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
main42611-0KG81iTGN121..ARL,GCC;GUN121,TGN110..GCC,TH;GUN11#,122,TGN111,120..GCC,GEN,IDN202108-202207
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE B:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C STEEL,TYPE B:REFER ILLUST.
16X6J, #,TYPE B:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205R16C STEEL,TYPE D:REFER ILLUST.
16X6J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,TYPED:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPEED METER-KM/H & WITH(*MID),TYPED:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE B:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AH:REFER ILLUST.
18X7.5J, #,T/P AH:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AD:REFER ILLUST.
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AD:REFER ILLUST.
15X6J, #,T/P AV:REFER ILLUST.
18X7.5J,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AF:REFER ILLUST.
18X7.5J,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AF:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AG:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AG:REFER ILLUST.
17X6J, #,TIRE & DISC WHEEL-225/70R17C STEEL&SPEED METER-KM/H,TYPE E:REFER ILLUST.
main42611-0KT40iGUN125..RHD..SCB..L..SA;GUN125..LHD..L..SA..CBU;GUN135..RHD..SCB..L..CBU;GUN125,126..SCB..S..(KEN,SA)202109-202303
17X6J, #,TYPE E:REFER ILLUST.
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J, #,TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL)&SPEED METER-KM/H & WITH(*MID),TYPE R:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AR:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,TYPE D:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P AN:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM,T/P AN:REFER ILLUST.
18X7.5J,#,TIRE & DISC WHEEL-265/60R18, ALUMINUM,T/P BA:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TIRE & DISC WHEEL-205/70R15C STEEL,TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-205/70R15C STEEL&WHEEL CAP-WITH(CENTER ORNAMENT),TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/65R16C STEEL,TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/65R16C STEEL&WHEEL CAP-WITH(CENTER ORNAMENT),TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/65R16C STEEL&WHEEL CAP-WITH(FULL CAP),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-225/70R17C STEEL&SPEED METER-KM/H,TYPE A:REFER ILLUST.
(J),T/P B:REF.ILLUST
(J),TYPE B:REF ILL.
TIRE & DISC WHEEL-215/65R16C ALUMINUM,(J),TYPE B:REF ILL.
TIRE & DISC WHEEL-215/65R16C ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(J),TYPE B:REFILL.
TIRE & DISC WHEEL-265/65R17 ALUMINUM,(J),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(J),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(J),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPEED METER-KM/H & WITH(*MID),(J),T/P B:REF.ILLUST
TIRE & DISC WHEEL-215/65R16C ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/65R17 ALUMINUM,(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST
(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-215/65R16C ALUMINUM,(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPEED METER-KM/H & WITH(*MID),(L),T/P B:REF.ILLUST
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
SUDAN SPEC
IRAN SPEC
AFRICA SPEC
SYRIA SPEC
EGYPT SPEC
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90080-94031iGUN126,135..H..TH;GUN125,135..THP..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121,126..THP..(L,S)..(ARL,GEN,IDN,LA,PH,TH)202108-202207
SUDAN SPEC
main90080-94031iGUN126,135..H..TH;GUN125,135..THP..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121,126..THP..(L,S)..(ARL,GEN,IDN,LA,PH,TH)202108-202207
IRAN SPEC
main90080-94031iGUN126,135..H..TH;GUN125,135..THP..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121,126..THP..(L,S)..(ARL,GEN,IDN,LA,PH,TH)202108-202207
AFRICA SPEC
main90080-94031iGUN126,135..H..TH;GUN125,135..THP..(ARL,GEN,IDN,LA);GUN112,120,121,122,126,136,TGN110,121,126..THP..(L,S)..(ARL,GEN,IDN,LA,PH,TH)202108-202207
SYRIA SPEC
EGYPT SPEC
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL)
SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)

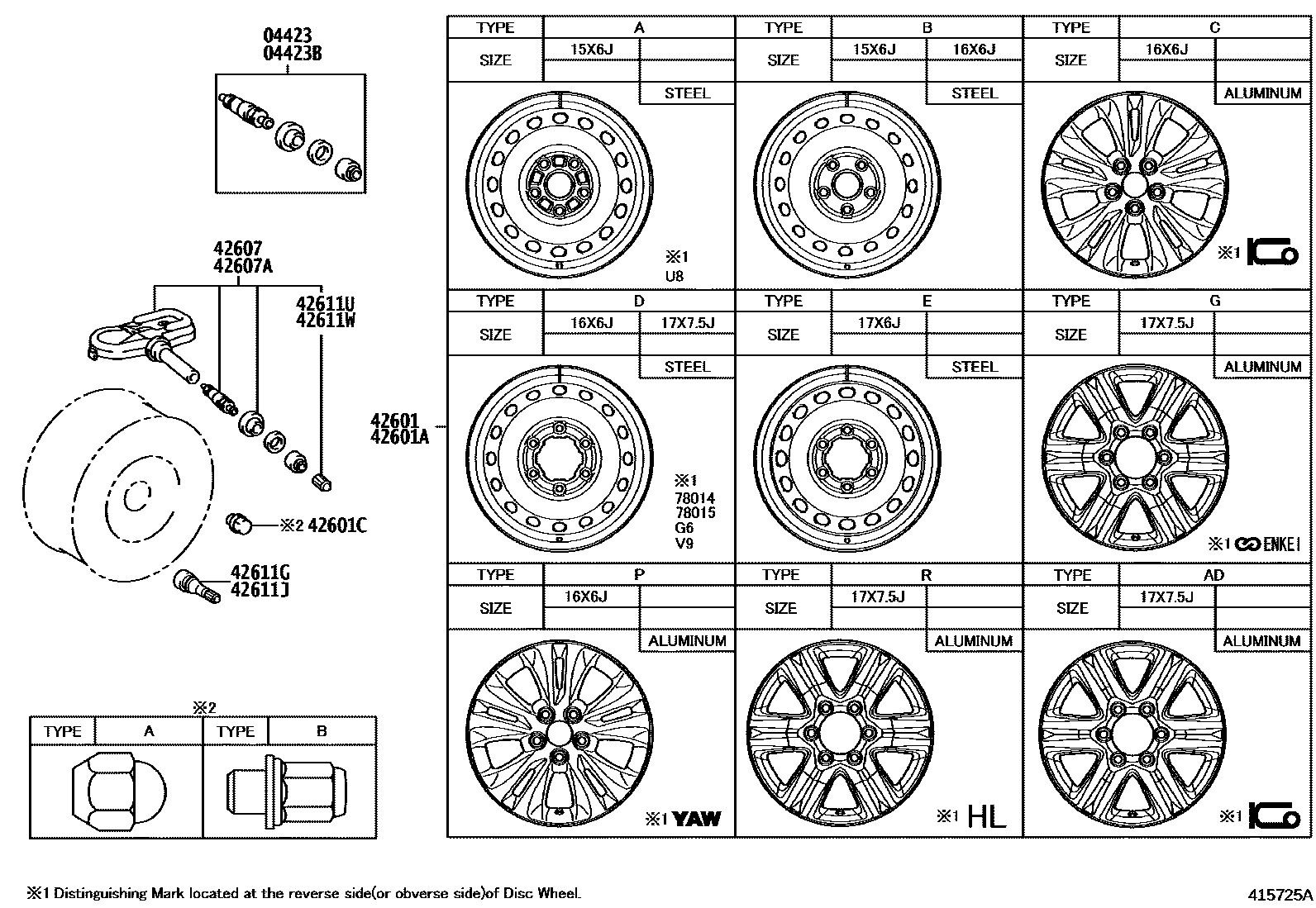

11 parts on this diagram · 3 diagrams in section
