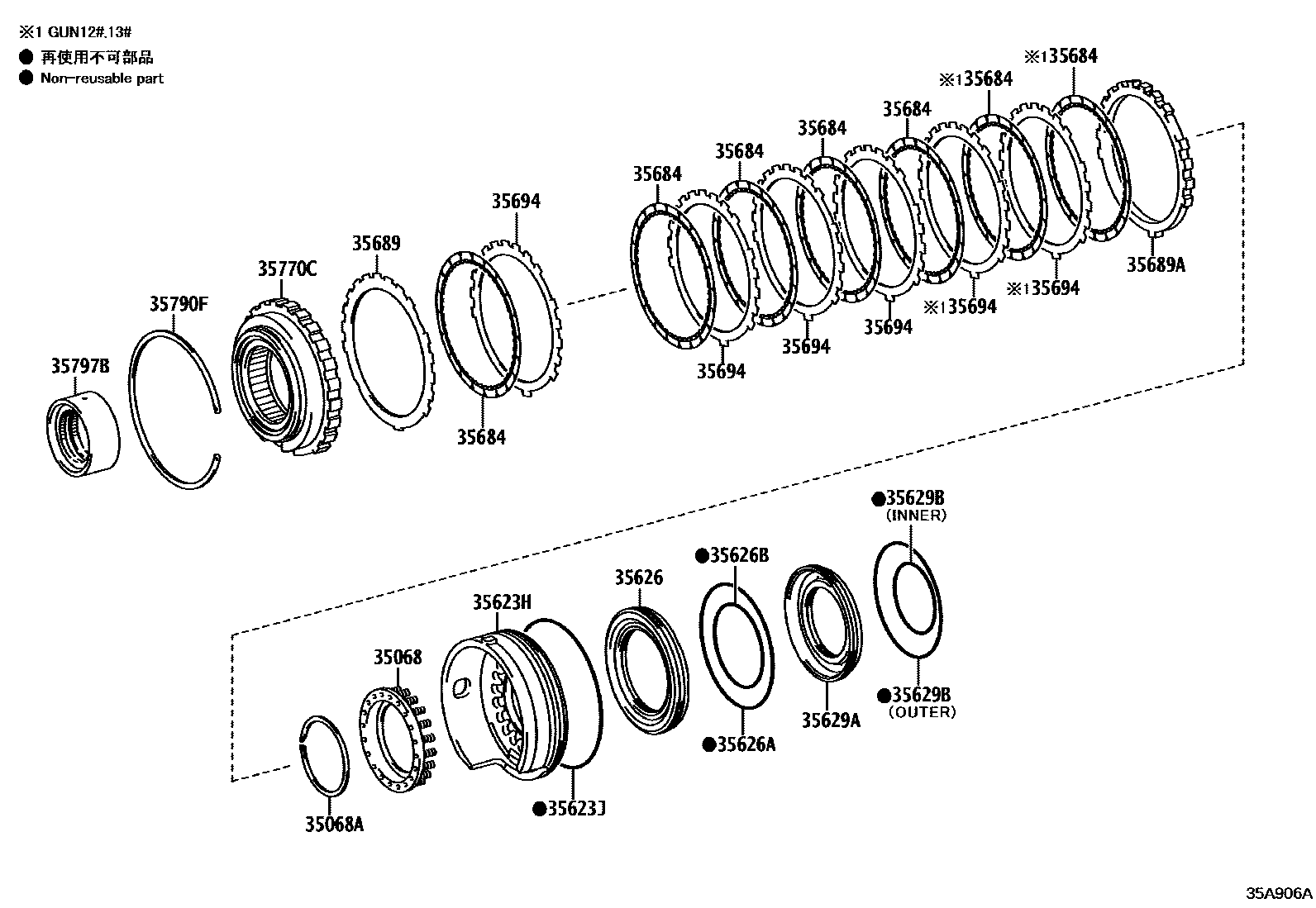

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-0K010iGUN120,125,126,13#,TGN121..THP..6FC202108-202207

(L)

main35068-60010iGUN120,126,135..THP..6FC202108-202301

(J)

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

35623HPISTON, 1ST & REVERSE BRAKE

main35623-0K010iGUN120,125,126,13#..THP..6FC202108-202207

(L)

main35623-0K020iTGN121..6FC202108-202207

(L)

main35623-71010iGUN120,126,135..THP..6FC202108-202301

(J)

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGUN120,126,135..THP..6FC202108-202301

(J)

main90301-T0072iGUN120,125,126,13#,TGN121..THP..6FC202108-202207

(L)

35626SLEEVE, BRAKE REACTION

main35626-50010iGUN125,126,13#..6FC..SA202108-202301

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144iGUN125,126,13#..6FC..SA202108-202301

(J)

main90301-T0073iGUN120,125,126,13#,TGN121..THP..6FC202108-202207

(L)

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iGUN120,126,135..THP..6FC202108-202301

(J)

main90301-T0074iGUN120,125,126,13#,TGN121..THP..6FC202108-202207

(L)

35629APISTON, BRAKE, NO.4

main35629-50020iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iGUN120,126,135..THP..6FC202108-202301

(J),INNER

main90301-99084iGUN125,126,13#..6FC..SA202108-202301

(J),OUTER

main90301-T0075iGUN120,125,126,13#,TGN121..THP..6FC202108-202207

(L),OUTER

main90301-T0076iGUN120,125,126,13#,TGN121..THP..6FC202108-202207

(L),INNER

35684DISC, BRAKE, NO.4

main35684-0K010iGUN120,125,126,13#..THP..6FC202108-202207

(L)

main35684-60030iGUN120,126,135..THP..6FC202108-202301

(J)

35689FLANGE, BRAKE, NO.4

main35689-60270iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

T=1.8,MARK 0

main35689-60280iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

T=1.97,MARK 1

main35689-60290iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

T=2.11,MARK 3

main35689-60300iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

T=2.25,MARK 4

main35689-60310iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

T=2.39,MARK 5

main35689-60320iGUN125,126,13#..6FC..SA202108-202301

T=2.53,MARK 7

main35689-60330iGUN125,126,13#..6FC..SA202108-202301

T=2.67,MARK 8

main35689-60340iGUN125,126,13#..6FC..SA202108-202301

T=2.81,MARK10

main35689-60350iGUN125,126,13#..6FC..SA202108-202301

T=2.95,MARK 11

main35689-60360iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

T=3.09,MARK 12

main35689-60370iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

T=3.23,MARK 14

35689AFLANGE, BRAKE, NO.4

main35689-71010iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

35694PLATE, BRAKE, NO.4

main35694-0K010iGUN120,125,126,13#..THP..6FC202108-202207

(L)

main35694-60011iGUN120,126,135..THP..6FC202108-202301

(J)

35770CCLUTCH ASSY, 1WAY NO.3

main35770-0K020iGUN120,125,126,13#,TGN121..THP..6FC202108-202207

(L)

main35770-60030iGUN120,126,135..THP..6FC202108-202301

(J)

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90521-99131iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

35797BRACE, 1 WAY CLUTCH, INNER

main35797-60020iGUN120,125,126,13#,TGN121..THP..6FC202108-202301

16 parts on this diagram · 1 diagram in section
